LCWC0603J2N2GTAR datasheet, PDF

Datasheet> All Categories > Passive components> LCWC0603J2N2GTAR

LCWC0603J2N2GTAR: DescriptionFixed Inductors 2.2nH 5%; CategoryPassive components; File Size206KB，9 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LCWC0603J2N2GTAR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCWC0603J2N2GTAR	-	-	View	Buy Now

LCWC0603J2N2GTAR Overview

Fixed Inductors 2.2nH 5%

LCWC0603J2N2GTAR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Fixed Inductors
RoHS	Details
Inductance	2.2 nH
Tolerance	5 %
Maximum DC Current	700 mA
Maximum DC Resistance	100 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Q Minimum	15
Test Frequency	250 MHz
Product	RF Inductors
Shielding	Unshielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	0603 (1608 metric)
Length	1.8 mm
Width	1.12 mm
Height	1.02 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Wire Wound Chip Inductor
Core Material	Ceramic
Self Resonant Frequency	6 GHz
Case Code - in	0603
Case Code - mm	1608
Factory Pack Quantity	4000
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

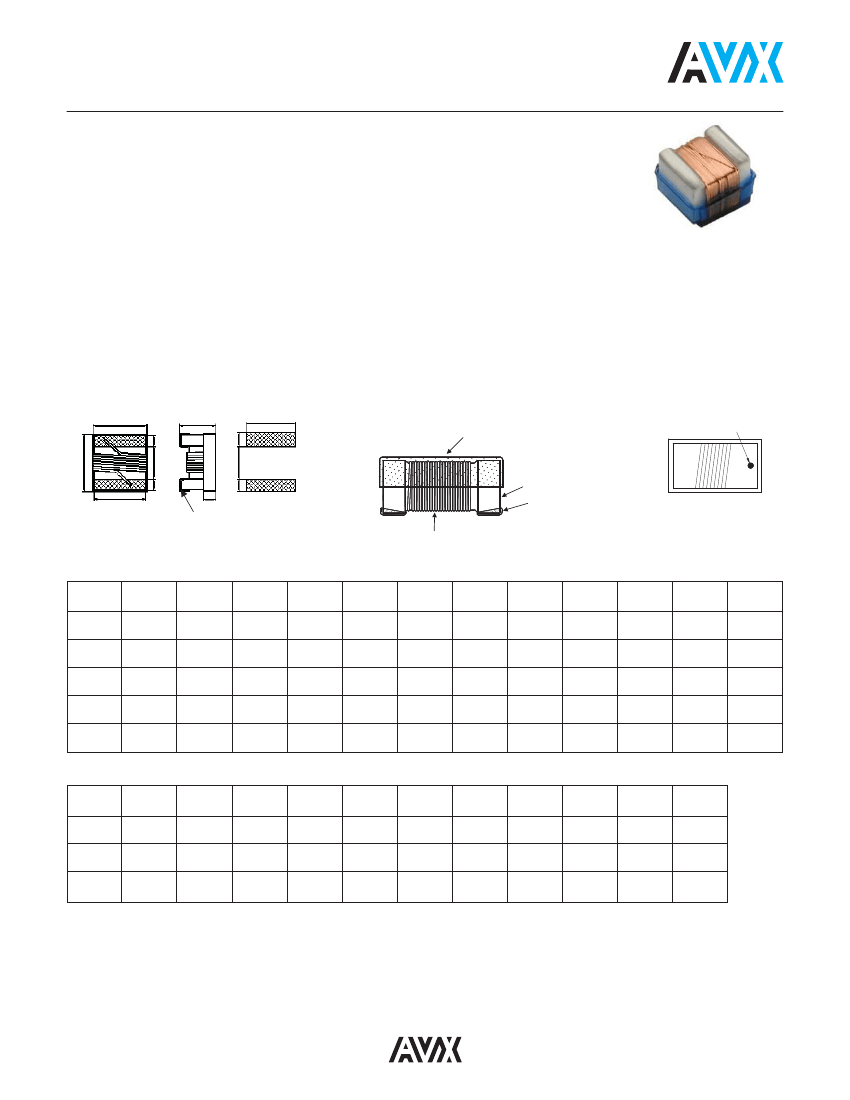

Wire Wound Chip Inductor

LCWC Series

FEATURES

• Ceramic base provides high SRF

• Ultra-compact inductors provide high Q factors

• High current range available

• Miniature SMD chip inductor for fully automated

assembly

• Outstanding endurance from Pull-up force,

mechanical shock and pressure

• Tighter tolerance down to ±2%

• -40ºC to +125ºC

APPLICATIONS

RF Products:

• Cellular Phone (CDMA/GSM/PHS)

• Cordless Phone (DECT/CT1CT2)

• Remote Control, Security System

• Wireless PDA

• Smart Phone

• WLL, Wireless LAN / Mouse /

Keyboard / Earphone

• VCO, RF Module & Other Wireless Products

• Base Station, Repeater

• GPS Receiver

Broad Band Applications:

• CATV Filter, Tuner

• Cable Modem/ XDSL Tuner

• Set Top Box

IT Applications:

• USB 2.0

• IEEE 1394

DIMENSIONS

Overall

CONSTRUCTION

UV Glue

COLOR CODING

Pad

Layout

Ceramic Core

Electrode

(Ag/Pd+Ni+Sn)

Magnet Wire

Terminal

Color Coding

Terminal Wraparound:

Approx. 0.007 inches

0.18 (0.007) Both Ends

STANDARD

Type

Size

(inch)

0402

0603

0805

1008

1206

Max.

1.27

(0.050)

1.80

(0.071)

2.29

(0.090)

2.92

(0.115)

3.45

(0.136)

Max.

0.76

(0.030)

1.12

(0.044)

1.73

(0.068)

2.79

(0.110)

1.90

(0.075)

Max.

0.61

(0.024)

1.02

(0.040)

1.52

(0.060)

2.13

(0.084)

1.40

(0.055)

Ref.

0.15

(0.006)

0.38

(0.015)

0.51

(0.020)

0.65

(0.026)

0.50

(0.020)

0.51

(0.020)

0.76

(0.030)

1.27

(0.050)

2.03

(0.080)

1.60

(0.063)

0.23

(0.009)

0.33

(0.013)

0.44

(0.017)

0.51

(0.020)

0.50

(0.020)

0.56

(0.022)

0.86

(0.034)

1.02

(0.040)

1.52

(0.060)

2.20

(0.087)

0.66

(0.026)

1.02

(0.040)

1.78

(0.070)

2.54

(0.100)

1.93

(0.076)

0.50

(0.020)

0.64

(0.025)

1.02

(0.040)

1.02

(0.040)

1.02

(0.040)

0.46

(0.018)

0.64

(0.025)

0.76

(0.030)

1.27

(0.050)

1.78

(0.070)

mm (inches)

Max.

1.12

(0.044)

1.73

(0.068)

2.79

(0.110)

Max.

1.02

(0.040)

1.52

(0.060)

2.03

(0.080)

Ref.

0.38

(0.015)

0.51

(0.020)

0.65

(0.026)

0.76

(0.030)

1.27

(0.050)

2.03

(0.080)

0.33

(0.013)

0.44

(0.017)

0.51

(0.020)

0.86

(0.034)

1.02

(0.040)

1.52

(0.060)

1.02

(0.040)

1.78

(0.070)

2.54

(0.100)

0.64

(0.025)

1.02

(0.040)

1.02

(0.040)

0.64

(0.025)

0.76

(0.030)

1.27

(0.050)

mm (inches)

Weight (g)

(1000pcs)

0.8

3.46

12.13

30.73

0402

0603

0805

1008

1206

HIGH CURRENT/HIGH Q

Type

Size

(inch)

0603

0805

1008

Max.

1.80

(0.071)

2.29

(0.090)

2.92

(0.115)

0603

0805

1008
