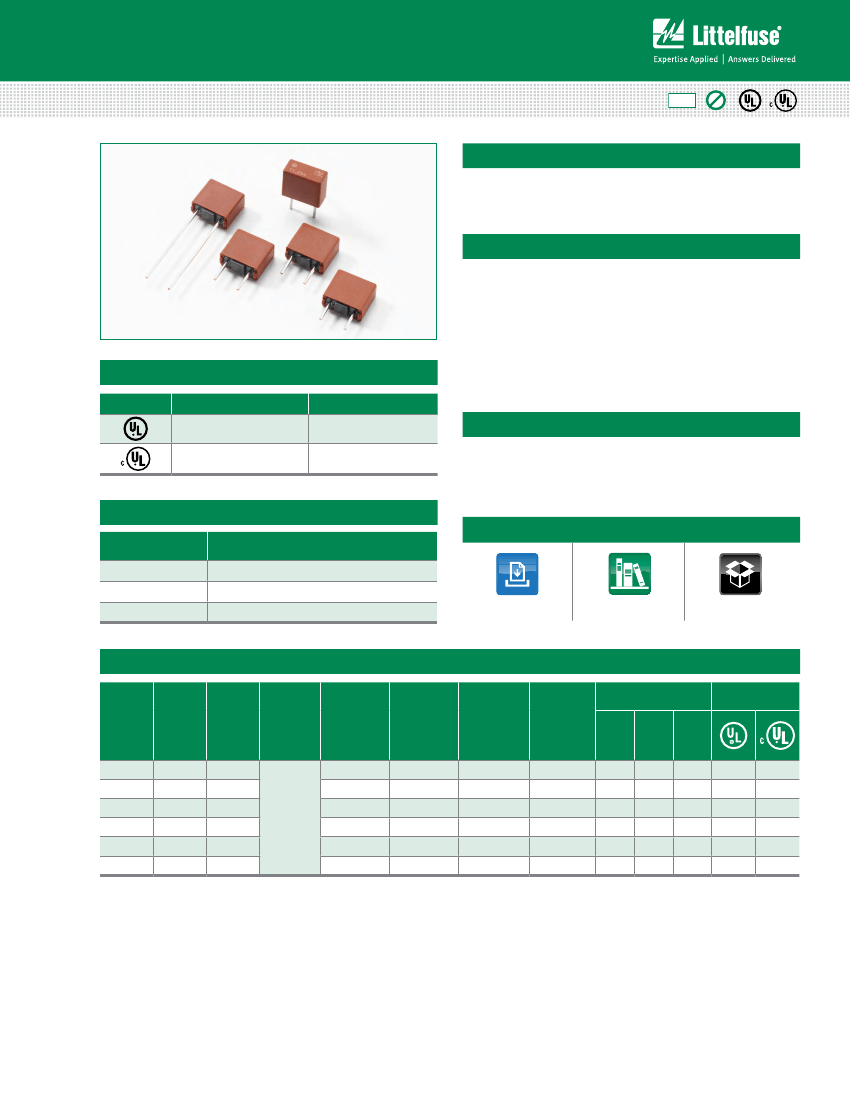

Radial Lead Fuses
TE5 > Transient Tolerant Fuse > 397 Series
397 Series, TE5 Transient Tolerant Fuse
Description
RoHS
Pb
The 397 Series TE5 Fuses are SLO BLO
®
type, 125V rated
and designed in accordance to UL248-14.
Features
• Surge Proof for telecom
applications
• Reduced PCB space
requirements
• Direct solderable or
plug-in versions
• Shock safe casing
Ampere Range
• Vibration resistant
• Lead-free, Halogen free
and RoHS compliant
• Available from 0.35A
to 1.5A
Agency Approvals
Agency
Agency File Number
E67006
E67006
0.35
A - 1.5A
0.35
A - 1.5A
Applications
• Battery chargers
• Consumer Electronics
• Telecom Applications
• Power supplies
• Industrial controllers
Electrical Characteristics
% of Ampere
Rating
200%
570%
1700%
Additional Information
Opening Time
60 Seconds,
Min.
80 ms.
Min.;
2 Sec.
Max.
200 s.,
Max.
Datasheet
Resources
Samples
Electrical Characteristics
Nominal
Cold
Resistance
(Ohms)
0.5665
0.3424
50A@125
VAC
0.1616
0.1000
0.0716
0.0522
Voltage
Drop
1.0×I
N
max. (mV)
400
340
300
240
200
190
Power
Dissipation
1.0×I
N
max. (mW)
140
170
240
240
250
285
Melting
Integral
10×I
N
min. (A
2
s)
0.60
1.10
3.26
4.85
7
.34
10.91
Surge Amplitude
(A)
1
Bellcore
0.5665
ITU
Agency
Approvals
Amp
Code
Rated
Current
Voltage
Rating
Breaking
Capacity
0350
0500
0800
1100
1125
1150
1
350 mA
500 mA
800 mA
1.00 A
1.25 A
1.50 A
125 V
125 V
125 V
125 V
125 V
125 V
25
30
60
78
100
155
15
17
31
40
50
78
29
38
50
65
67
67
x
x
x
x
x
x
x
x
x
x
x
x
FCC 47 Part 68:
Minimum pulse load quantity is 2 pulses at a test generator output of 800 V and 10x560µs waveform.
ITU-T K.20:
Minimum pulse load quantity is 30 pulses at a test generator output of 1000 V, 67 A and 10x700µs waveform.
Bellcore GR-1089: Minimum pulse load quantity is 50 pulses at a test generator output of 1000 V and 10x1000µs.
Notes:
1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
2) Resistance is measured at 10% of rated current, 25°C.
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice. Application testing is strongly recommended.
Revised: 01/06/16
Radial Lead Fuses
TE5 > Transient Tolerant Fuse > 397 Series

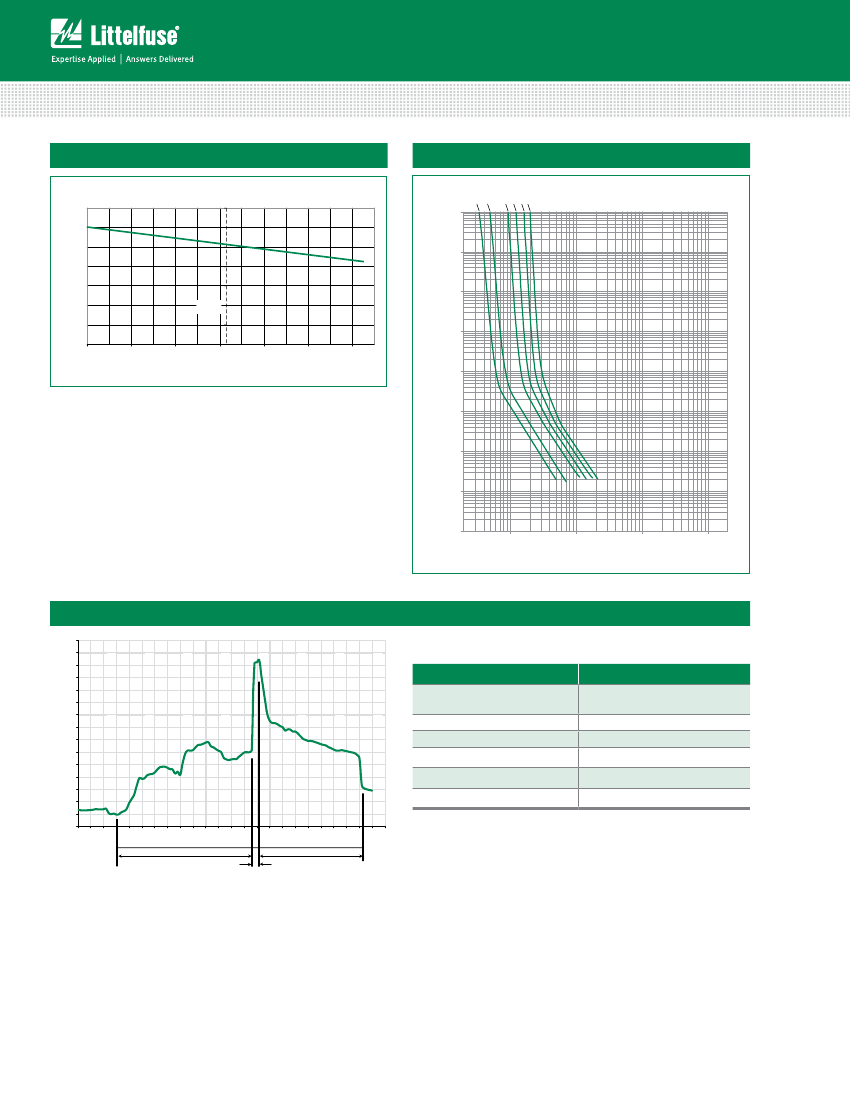

Temperature Re-rating Curve
Average Time Current Curves
0.350A
0.500A
0.800A
1.00A
1.25A
1.50A
140
120
100000
PERCENT OF RATING
100
80
60
40
20
0
-40
-20
0
20
40
60
80
AMBIENT TEMPERATURE (°C)
10000
1000
23°C
TIME IN SECONDS
100
10
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
1
0.100
0.010
0.001
0.20
1
10
100
1000
CURRENT IN AMPERES
Soldering Parameters - Wave Soldering
300
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/06/16
Radial Lead Fuses
TE5 > Transient Tolerant Fuse > 397 Series
Product Characteristics
Materials
Lead Pull Strength
Solderability
Soldering Heat
Resistance
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6, UL 94V-0
Round Pins: Copper, Tin-plated
10 N (IEC 60068-2-21)
260ºC, ≤ 3s. (Wave)
350ºC, ≤ 1s. (Soldering Iron)
260ºC, 10s. (IEC 60068-2-20)
350ºC, 3s. (Soldering Iron)
Operating Temperature
Climatic Category
Stock Conditions
-40ºC to +85ºC (consider de-rating)
-40ºC to +85ºC/21 days
(IEC 60068-1,-2-1,-2-2,-78)
+10ºC to +60ºC RH,
≤ 75% yearly average, without dew,
maximum value for 30 days-95%
24 cycles at 15 min. each
(EN 60068-2-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
Vibration Resistance
Dimensions
8.5
max. 8
max.4
Part Numbering System
397 xxxx 0000
Series
0.5 min
Amp Code
L
0.6
1.5
Refer to Amp Code column of
Electrical Characteristics Table
Packaging Code
0000 Tape/Ammopack (1,400 pcs.)
0440 Short Leads - Bulk (1,400 pcs.)
5.08
Dimensions (mm)
Holes in PCB
Long Leads (L=18.8 mm)
Short Leads (L=4.3 mm)
Packaging
Packaging Option
397 Series
Tape & Ammopack
Short Leads
Packaging Specification
N/A
N/A
Quantity
1,400
1,400
Quantity &
Packaging Code
0000
0440
Taping Width
N/A
N/A
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/06/16
1 +0.1
