ATV30C201JB-HF

Description
ESD Suppressors / TVS Diodes 3000W 200V BIDIRECTION AEC-Q101
CategoryCircuit protection
File Size122KB,6 Pages
ManufacturerComchip Technology
Websitehttp://www.comchiptech.com/
Download Datasheet Parametric View All

ATV30C201JB-HF Online Shopping

Suppliers Part Number Price MOQ In stock
ATV30C201JB-HF - - View Buy Now

ATV30C201JB-HF Overview

ESD Suppressors / TVS Diodes 3000W 200V BIDIRECTION AEC-Q101

ATV30C201JB-HF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerComchip Technology
Product CategoryESD Suppressors / TVS Diodes
RoHSIn Transition
PolarityBidirectional
Number of Channels1 Channel
Termination StyleSMD/SMT
Breakdown Voltage221 V
Working Voltage200 V
Clamping Voltage324 V
Ipp - Peak Pulse Current9.26 A
Cd - Diode Capacitance-
Package / CaseDO-214AB-2
Pd - Power Dissipation6 W
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 150 C
QualificationAEC-Q101

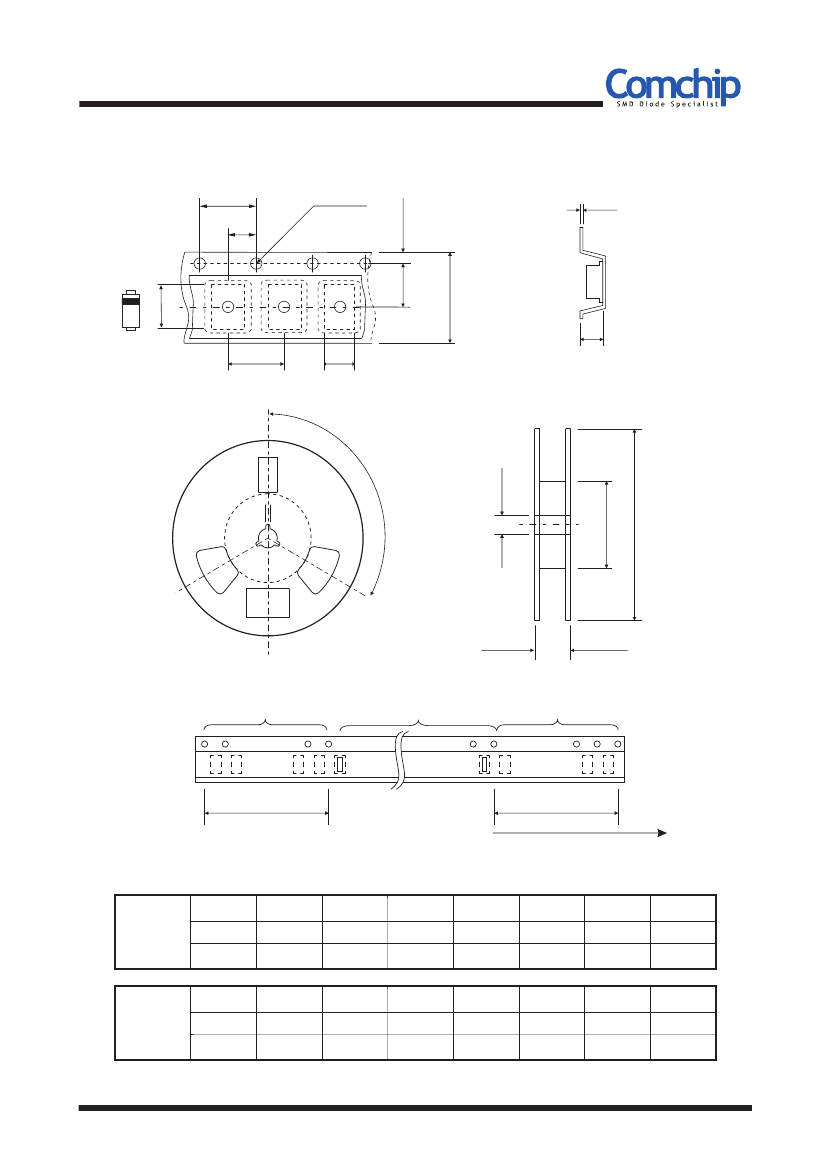

PackagingReel
Factory Pack Quantity3000
Vf - Forward Voltage5 V
SMD Transient Voltage Suppressor
ATV30C5V0-HF Thru. ATV30C441-HF
Working Peak Reverse Voltage: 5.0 to 440 Volts
Power Dissipation: 3000 Watts
RoHS Device
Halogen Free
Features
- Glass passivated chip.
- 3000W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%
- Low leakage.
- Uni and Bidirectional unit.
- Excellent clamping capability.
- Comply with AEC-Q101
- Very fast response time.
- UL recognized file # E349157
-
Range: ATV30C5V0J(B)
thru. ATV30C171J(B)
R
SMC/DO-214AB
0.280(7.02)
0.260(6.52)
0.126(3.16)
0.114(2.86)
0.245(6.15)
0.220(5.52)
0.320(8.02)
0.305(7.64)
0.012(0.30)
0.006(0.15)
0.103(2.59)
0.079(1.98)
0.060(1.51)
0.030(0.75)
0.008(0.20)
0.000(0.00)
Mechanical Data
- Case: DO-214AB/SMC molded plastic.
- Epoxy: UL 94V-0 rate flame retardant
- Terminals: Solderable per MIL-STD-750, method 2026.
- Polarity: Color band denoted cathode
end except bipolar.
- Weight:
0.230 gram
(approx.)
Dimensions in inches and (millimeter)
Circuit Diagram
Bi-directional
Uni-directional
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Peak power dissipation with a 10/1000μs
waveform (Note 1)
Peak pulse current with a 10/1000μs
waveform (Note 1)
Power dissipation on infinite heatsink
at T
L
=75°C
Peak forward surge current, 8.3ms single
half sine-wave unidirectional only (Note 2)
Maximum instantaneous forward voltage
at 100A for unidirectional only (Note 3)
Operation junction and storage
temperature range
Symbol
P
PP
I
PP
P
D
I
FSM
V
F
T
J
, T
STG
Value
3000
See Next Table
6.0
300
3.5/5.0
-55 to +150
Units
W
A
W
A
V
°C

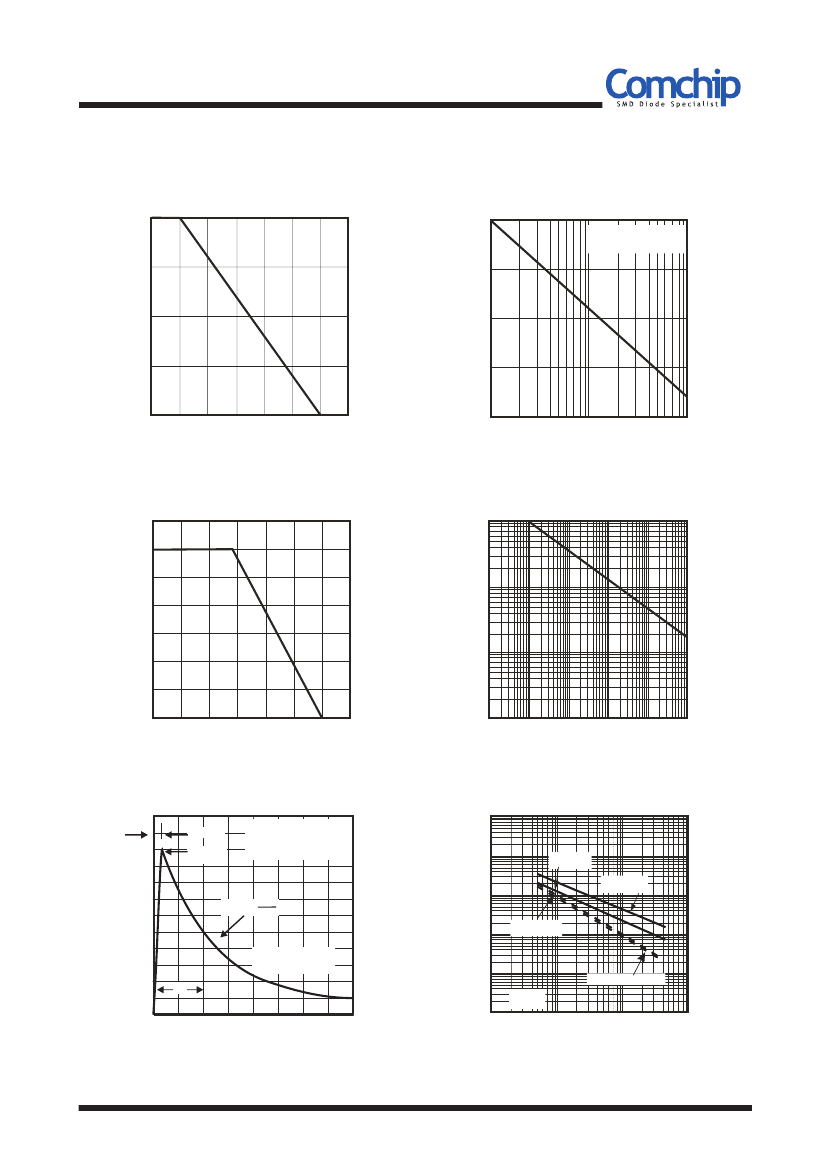

Notes: 1. Non-repetitive current pulse, per Fig.5 and derated above T
A
=25°C, per Fig.1
2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
3. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV03
REV:B
Page 1
Comchip Technology CO., LTD.
