NT
Features
■
Fast switching
■
Automatic reset
■
SMB package
■
Suitable for industrial lighting environments
■
RoHS compliant*
Applications
■
LED streetlights
■
LCD backlighting
■
Display lighting
■
Intrinsically safe lighting
*R
oH
S
CO
M
PL
IA

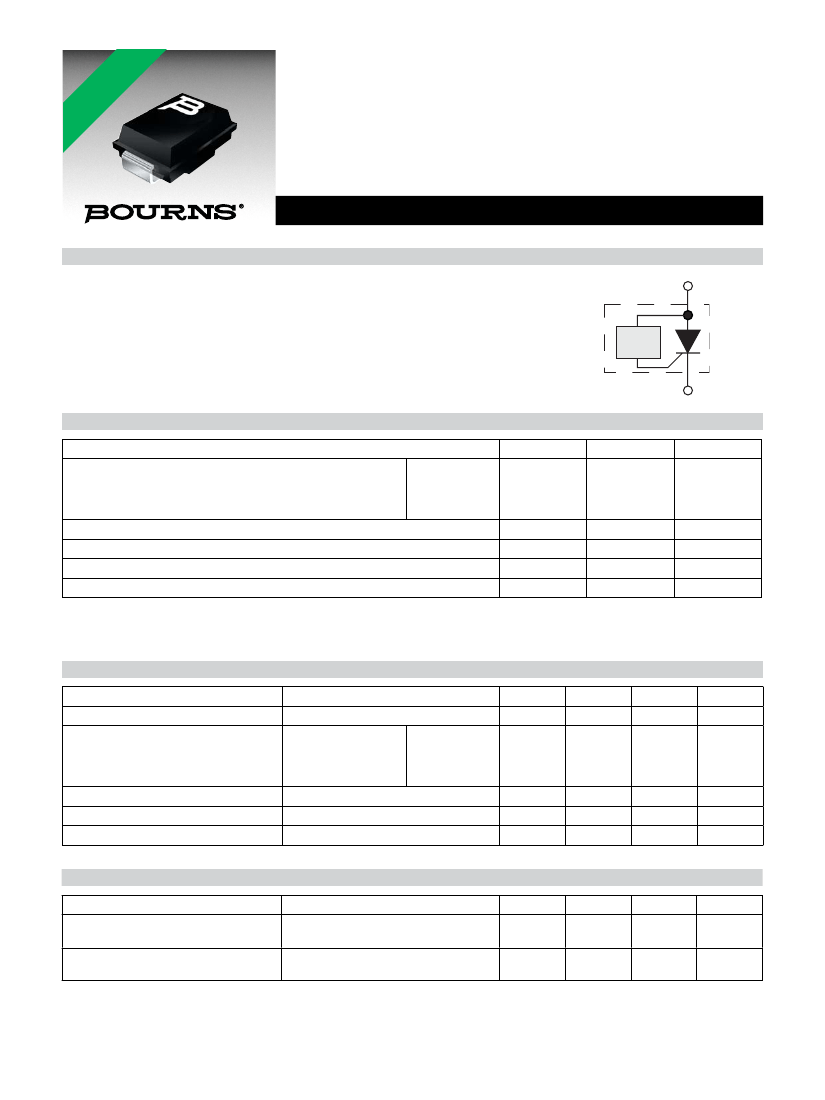

LSPxxxxBJR Series LED Shunt Protector
General Information
Bourns
®
LSP Series protectors are electronic shunts that provide a current bypass
when an LED element in an LED string fails open circuit. This ensures the remaining
string of LEDs will continue to function. There are many cases where high reliability
of the LED lighting must be maintained, such as LCD backlighting, transport lighting,
avionics, intrinsically safe and low maintenance lighting.
The LSP Series is available in surface mount package DO-214AA (SMB) size format.
Cathode
Anode
LSPxx00
Control
Circuit
Absolute Maximum Ratings (@ T
A
= 25 °C Unless Otherwise Noted)
Rating
LSP0600
LSP0900
LSP1300
LSP1800
Symbol
Value
6
9
13
18
1
-40 to +150
-65 to +150
260
Unit
Repetitive peak off-state voltage
VDRM
IT
TJ
Ts
V
Average on-state current (Note 1)
Operating junction temperature
Storage temperature
Lead temperature, soldering (10 s)
A
°C
°C
°C
Notes:
1. Using 75 mm x 75 mm 4-Layer PCB (EIA/JESD51-7).
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
IDRM Repetitive peak off-state current
V(BO) Breakover voltage
IH
IBO
VT
Holding current
Breakover current
On-state voltage
Test Conditions
VD = VDRM
dv/dt = 750 V/ms,
RSOURCE = 300
IT = 1 A, di/dt = 30 mA/ms
di/dt = 0.8 A/ms
IT = 1 A
LSP0600
LSP0900
LSP1300
LSP1800
6
9
13
18
5
30
75
1.2
Min.
Nom.
Max.
10
16
18
26
33
Unit
µA
V
mA
mA
V
Thermal Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
Junction to free air thermal resistance
Junction to free air thermal resistance
Test Conditions
EIA/JESD51-3 PCB, I
T
= 350 mA,
T
A
= 25 °C
EIA/JESD51-7, 75 mm x 75 mm 4-Layer
PCB, I
T
= 1.0 A, T
A
= 25 °C
Min.
Nom.
230
90
Max.
Unit
°C/W
°C/W
JANUARY 2011 - REVISED FEBRUARY 2012
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
LSPxxxxBJR Series LED Shunt Protector
V-I Characteristic
+i
V
T
On-state Voltage vs. Junction Temperature
1.05
I
T
V
(BO)
I
H
I
D
V
D
I
DRM
V
DRM
I
(BO)
1.00
On-State Voltage (V)
0.95
-v
+v
0.90
0.85
Characteristics not defined
in this quadrant.
0.80
25
50
75
100
125
150
TJ - Junction Temperature (°C)
-i
Normalized Breakover Voltage vs. Junction Temperature
1.06
1.05
1.04
1.03
Typical Application
Normalized Breakover Voltage (V)
Current
Source
LED1
1.02
1.01
1.00
0.99
0.98
25
50
75
100
125
150
LED2
LSP0600
Control
Circuit
LSP0600
Control
Circuit
TJ - Junction Temperature (°C)
LSP0600
Control
Circuit
LEDn
LSP0600
Control
Circuit
JANUARY 2011 - REVISED FEBRUARY 2012
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Note: The interaction between the Bourns
®
LSP device and the
power supply for the LED string dictates the power supply architec-
ture. Proper care must be taken in the design of the power supply
architecture to ensure that the Bourns
®
LSP devices operate as
intended and the design maintains integrity.
LSPxxxxBJR Series LED Shunt Protector
Product Specifications
Typical Part Marking
Top Side Marking
LSP0600BJR-S ....................................................................LSP060
LSP0900BJR-S ....................................................................LSP090
LSP1300BJR-S ....................................................................LSP130
LSP1800BJR-S ....................................................................LSP180
K
A
How to Order
LSP 0600 BJ R - S
Model Series
LED Shunt Protector
Off-State Voltage
0600 = 6 V
0900 = 9 V
1300 = 13 V
1800 = 18 V
Package
BJ = SMB DO-214AA Package
Standard Packaging
R = Tape and Reel Packaging (3,000 pcs./reel)
Termination
S = RoHS Compliant
Cathode Bar
Unit .................................... Epoxy molded SMB D0-214AA package
Mold Material .......................................................................UL94V-0
Terminations ..................... 100 % matte tin-plated over copper alloy
Unit Weight ...........................................................................102 mg.
Packaging Specifications
Standard ........................................................................... EIA-481-1
Tape Width.............................................................. 12 mm (.472 in.)
Reel Diameter..................................................... 330 mm (12.99 in.)
Part Alignment ......................Cathode bar adjacent to sprocket hole
Quantity per Reel.......................................................... 3,000 pieces
Asia-Pacific:
Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
Europe:
Tel: +41-41 768 5555 • Fax: +41-41 768 5510
The Americas:
Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com
JANUARY 2011 - REVISED FEBRUARY 2012
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
