Special Purpose Fuses
LA100P Semiconductor Fuses
1000 VAC • Very Fast Acting • 15 – 1000 Amperes

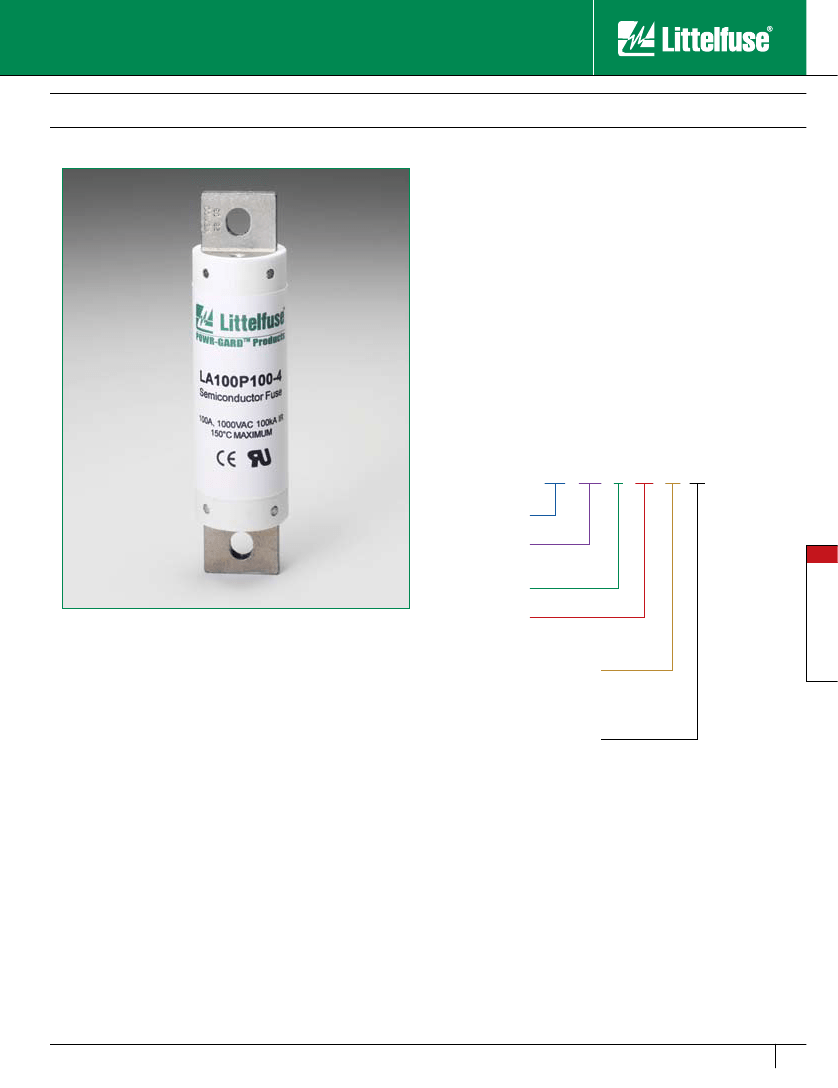

Littelfuse LA100P semiconductor protection fuses are rated 1000V,
extending the range of protection for UPS systems, AC and DC drives,
reduced voltage motor starters and similar applications where lower I
2
t
and superior reliability are needed. With ratings from 15-1000 amperes,
a wide range of high voltage applications can be served.
Features
• Low I
2
t minimizes damage to protected components on short-circuit.
• Controlled arc voltage reduces stress to circuit components during
fuse clearing.
Applications
Protection of UPS systems, AC/DC drives, reduced voltage motor
starters and other 1000V or less semiconductor devices.
Ordering Information
LA 100 P 80 -4 TI
Littelfuse
Voltage
(1000)
Special Purpose Fuses
Style
Ampere Rating
Mounting Type
Ferrule
Blades/Bolt-in
1
4
Integral Blown-
Fuse Indicator
Trigger Indicator
TI
Note: Mounting types and integral blown fuse indicators are optional for
specified ratings.
Specifications
Voltage Rating:
Interrupting Rating:
Ampere Range:
Approvals:
AC: 1000 Volts
DC: 750 Volts
100,000 Amperes
15 – 1000 Amperes
UL Recognized under the components program.
© 2005 Littelfuse
•
POWR-GARD
™
Products Catalog
www.littelfuse.com
99
Special Purpose Fuses
LA100P Semiconductor Fuses
1000 VAC • Very Fast Acting • 15 – 1000 Amperes
Catalog Numbers & Technical Data
Ampere
Rating
15
20
25
30
35
40
50
50
60
60
70
80
80
100
100
125
125
150
150
Littelfuse
Catalog
Number
LA100P15-1
LA100P20-1
LA100P25-1
LA100P30-1
LA100P35-4
LA100P40-4
LA100P50-4
LA100P50-4TI
LA100P60-4
LA100P60-4TI
LA100P70-4TI
LA100P80-4
LA100P80-4TI
LA100P100-4
LA100P100-4TI
LA100P125-4
LA100P125-4TI
LA100P150-4
LA100P150-4TI
Maximum
Mounting
Watts Loss @
Clearing I
2
t @1000
Type
Rated Current (W)
VAC (A
2
S x 10
3
)
1
0.6
3.4
1
0.8
5.9
1
1,3
9
1
1.5
12.8
4
2.2
7.3
4
2.9
8.3
4
4.5
11
4TI
4.5
11
4
6.5
13
4TI
6.5
13
4TI
8.8
13
4
12
14
4TI
12
14
4
18
18
4TI
18
18
4
28
23
4TI
28
23
4
41
28
4TI
41
28
Ampere
Rating
200
200
225
250
300
300
350
350
400
400
500
500
600
600
650
700
800
800
1000
Littelfuse
Maximum
Mounting
Watts Loss @
Catalog
Clearing I
2
t @1000
Type
Rated Current (W)
Number
VAC (A
2
S x 10
3
)
LA100P200-4
4
72
36
LA100P200-4TI
4TI
72
36
LA100P225-4
4
91
40
LA100P250-4
4
110
46
LA100P300-4
4
160
55
LA100P300-4TI
4TI
160
55
LA100P350-4
4
220
65
LA100P350-4TI
4TI
220
65
LA100P400-4
4
290
70
LA100P400-4TI
4TI
290
70
LA100P500-4
4
450
90
LA100P500-4TI
4TI
450
90
LA100P600-4
4
650
110
LA100P600-4TI
4TI
650
110
LA100P650-4
4
780
120
LA100P700-4
4
880
125
LA100P800-4
4
1200
140
LA100P800-4TI
4TI
1200
140
LA100P1000-4
4
1900
190
Figure 1
Special Purpose Fuses
Figure 2
Figure 3
Figure 4
Dimensions
Amperes
15 – 30
35 – 60
65 – 100
125 – 200
225 – 400
500 – 600
650 – 800
1000
Mount. Type
1
4, 4TI
4, 4TI
4, 4TI
4, 4TI
4, 4TI
4, 4TI
4
Fig. No.
1
2
2
2
2
2
3
4
Dimensions in Inches (mm in parentheses)
A
2.53
(66.8)
5.00
(127)
5.00
(127)
5.72
(145)
5.72
(145)
7.72
(196)
7.44
(189)
8.22
(209)
B
0.56
(14.2)
1.00
(25.4)
1.22
(31)
2.00
(38.1)
2.00
(50.8)
2.50
(63.5)
2.88
(73.2)
3.50
(88.9)
C
–
Dimensions for reference only.
D
–
E
–
F
–
G
–
H
–
J
–
–
–
–
–
–
3.50
(173)
3.50
(173)
3.47
(88.1)
3.47
(88.1)
3.47
(88.1)
3.94
(100)
4.47
(114)
4.31
(109)
4.31
(109)
4.78
(121)
4.78
(121)
5.88
(149)
5.94
(151)
6.59
(167)
4.19
(106)
4.19
(106)
4.16
(106)
4.16
(106)
5.56
(147)
–
5.84
(148)
0.31
(7.9)
0.31
(7.9)
0.41
(10.4)
0.41
(10.4)
0.53
(13.5)
0.63
(16)
0.63
(16)
0.75
(19.1)
1.00
(25.4)
1.00
(25.4)
1.50
(25.4)
2.00
(50.8)
2.00
(50.8)
2.75
(69.9)
0.13
(3.3)
0.19
(4.8)
0.25
(6.4)
0.25
(6.4)
0.38
(9.7)
0.38
(9.7)
0.50
(12.7)
0.31
(7.9)
1.38
(35.1)
Contact Littelfuse for characteristic curves.
100
www.littelfuse.com
© 2005 Littelfuse
•
POWR-GARD
™
Products Catalog
