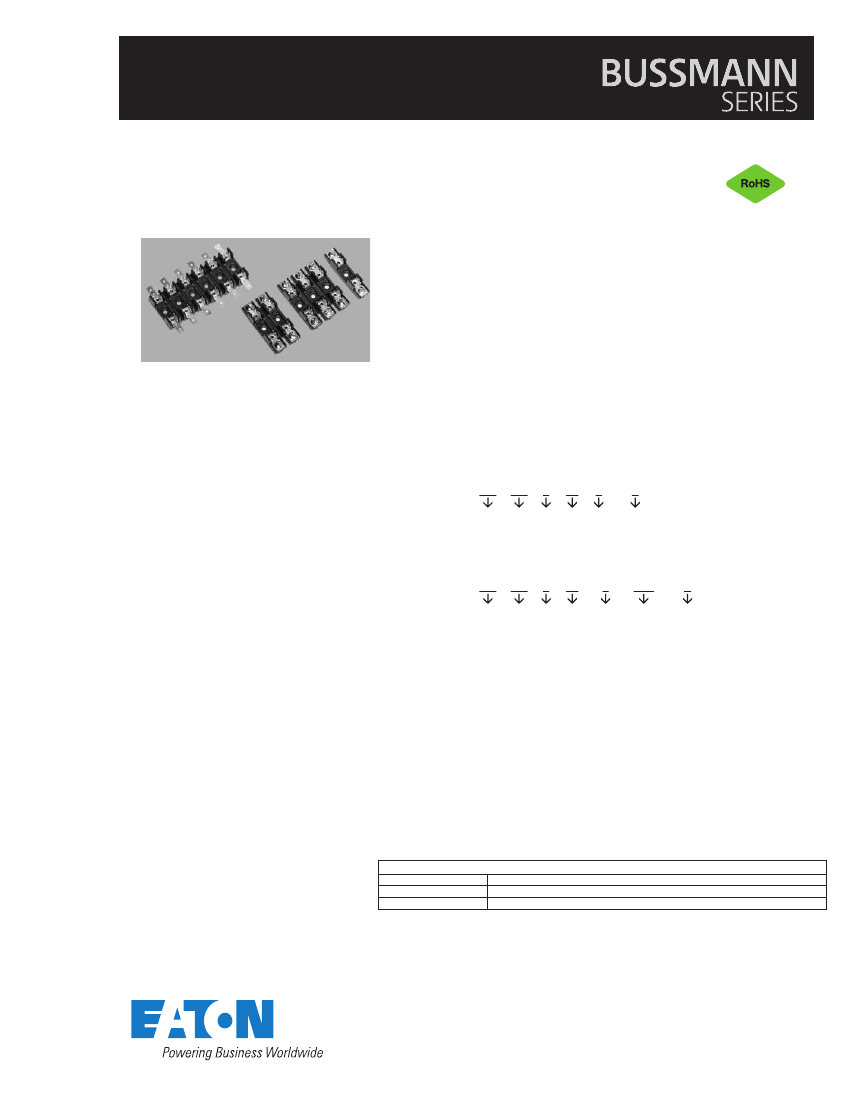

Technical Data
2101
Effective
June
2017
Supersedes
December
2007
S-8000
1/4"
x
1 1/4"
Fuse
blocks
Agency information
•
UL Recognized: E14853
•
CSA Certified: 47235
•
•
Relative Temperature Index (RTI)
o
Bolt-in 130°C
o
Snap-in 110°C
Environmental data
Product features
•
•
•
•
•
•
•
For 1/4" x 11/4" (6.3 x 32mm) fuses
Bolt-in and snap-in mounting available
Tight cluster mounting
All types of terminal configurations
Clips made of bright tin-plated spring-bronze
Anti-rotational pin provided
Flame retardant thermoplastic meets UL 94V0
Ordering information
• Specify packaging, product, and
option code
Bolt-in Mounting Example:
BK/S-8102-6-R
BK/
1
S-8
2
1
3
02
4
6 - R
5
7
Snap-in Mounting Example:
BK/S-8001-1-SNP-R
BK/
1
S-8
2
0
3
01 - 1 - SNP -
4
5
6
R
7
1. Packaging Code:
2. Series Number:
3. Type Terminal:
4. Terminal Angle:
5. Number of Poles:
6. Mounting Style:
7. RoHS Compliant Version
*Available only in single pole
BK/
S-8
0 = Solder
1 =
3
/
16
" quick connect
2 =
1
/
4
" quick connect
3 = Screw
01 = Straight (0°)
02 = 40° Angle
03 = Side*
(1 – 12)
1X = One pole, No Mounting Stud
SNP = Snap-in Mounting*
-R
Catalog Number Pre x
Blank
BK/
Description
Varies with number of poles. Contact customer service.
Varies with number of poles. Contact customer service.
Packaging Code
Effective
June
2017
Technical Data
2101
S-8000
1/4" x 1 1/4" Fuse blocks
Multiple Pole
CSA Max. Amps
21
13
16
25
No. of
Poles
1
2
3
4
5
6
7
8
9
10
11
12
Specifications
Series
S-8000
S-8100
S-8200
S-8300
Volts
300Vac/dc
300Vac/dc
300Vac/dc
300Vac/dc
UL Max Amps
30
20
30
30
Mounting Dimensions
Inches
A
–
1
1
/
8
"
1
3
/
4
"
2
3
/
8
"
3"
3
5
/
8
"
4
1
/
4
"
4
7
/
8
"
5
1
/
2
"
6
1
/
8
"
6
3
/
4
"
7
3
/
8
"
B
–
5
/
8
"
1
1
/
4
"
1
7
/
8
"
2
1
/
2
"
3
1
/
8
"
3
3
/
4
"
4
3
/
8
"
5"
5
5
/
8
"
6
1
/
4
"
6
7
/
8
"
Millimeters
A
B
–
–
28.6
15.9
44.4
31.8
60.3
47.6
76.2
63.5
92.1
79.4
108.0
95.2
123.8
111.1
139.7
127.0
155.6
142.9
171.4
158.8
187.3
174.6

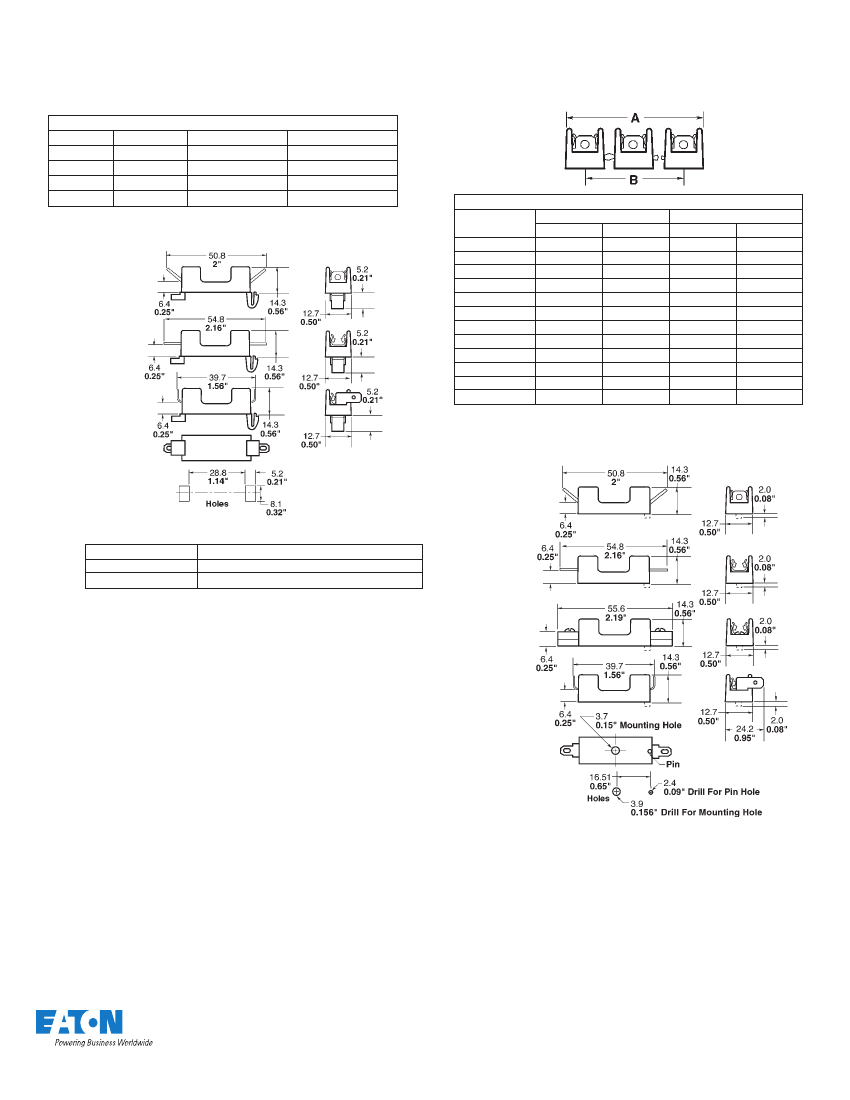

Dimensions - mm/in.
S-8000 Single-Pole Snap-In Mounting Series
40° Terminal
0°
Terminal
Side
Terminal
Mounting
Dimensions - mm/in.
S-8000 Single-Pole Bolt-In Mounting Series
40° Terminal
Component
Clip
Body
Material
Spring-Bronze, Bright Tin-Plate
Thermoplastic
0°
Terminal
Screw
Terminal
Side
Terminal
Mounting
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
2101
BU-SB07222
June
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
