Surge arrester
3-electrode arrester
B88069X8820B102
T61-C600X
Features
Very fast response time
Maximum current rating
Stable performance over life
Low capacitance
High insulation resistance
RoHS-compatible
Electrical specifications
DC spark-over voltage
1) 2) 4)
Applications
Branch Exchange (MDF)
Line protection
Station protection
420 ... 700
V
Impulse spark-over voltage
4)
at 100 V/µs - for 99 % of measured values
- typical values of distribution
at 1 kV/µs
- for 99 % of measured values
- typical values of distribution
50 Hz, 1 s
5)
50 Hz, 0.18 s (9 cycles)
5)
8/20 µs
5)
8/20 µs
5)
10/350 µs
5)
< 900
< 800
< 1000
< 900
20
130
20
40
5
> 10
< 1.5
< 0.2
~ 35
~1
~ 200
~ 3.5
-40 ... +90
40/ 90/ 21
600 YY O
600
YY
O
V
V
V
V
A
A
kA
kA
kA
GΩ
pF
µs
V
A
V
g
°C
Service life
10 operations
1 operation
10 operations
[5x (+) & 5x (-)]
1 operation
1 operation
Insulation resistance at 100 V
dc 4)
Capacitance at 1 MHz
4)
Transverse delay time
3)
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, green negative
- Nominal voltage
- Year of production
- Non radioactive
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Issue 04 / 2008-02-28
Surge arrester
3-electrode arrester
B88069X8820B102
T61-C600X
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode.
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845

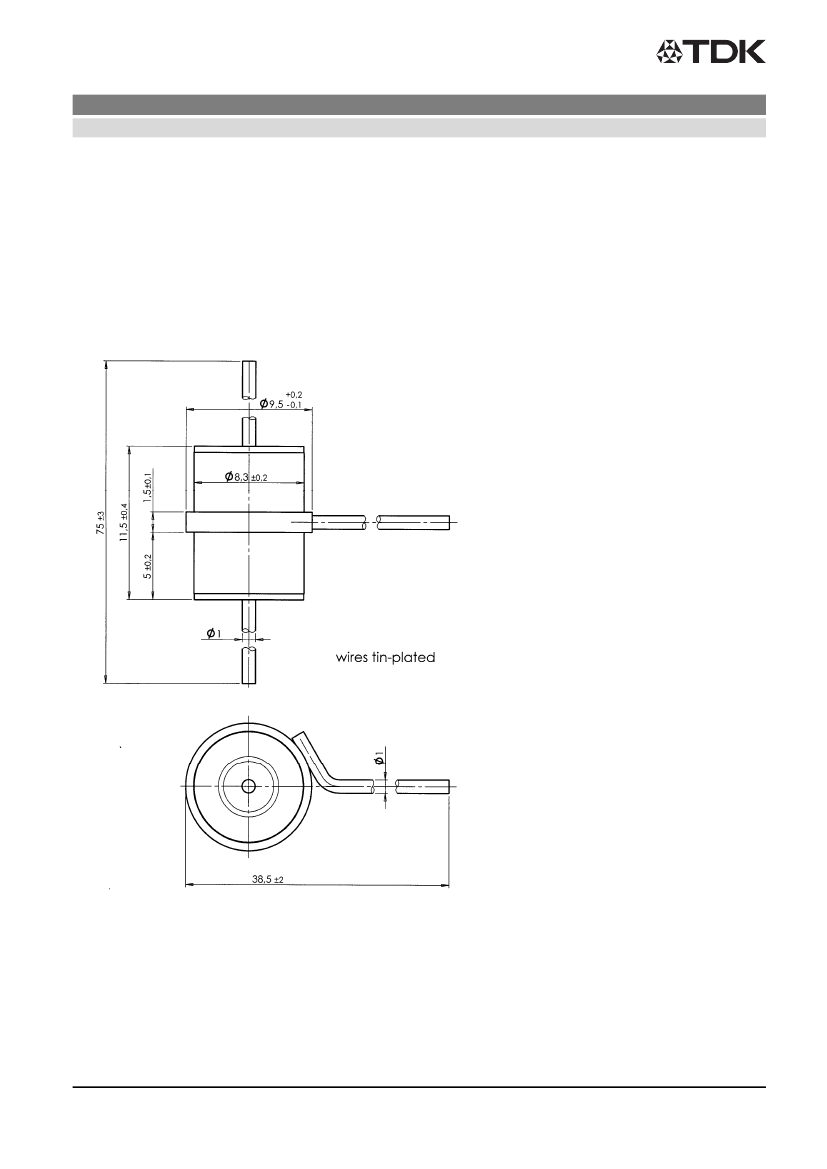

Dimensional drawing
Not to scale
Dimensions in mm
Non controlled document
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the lead
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
KB AB E / KB AB PM
