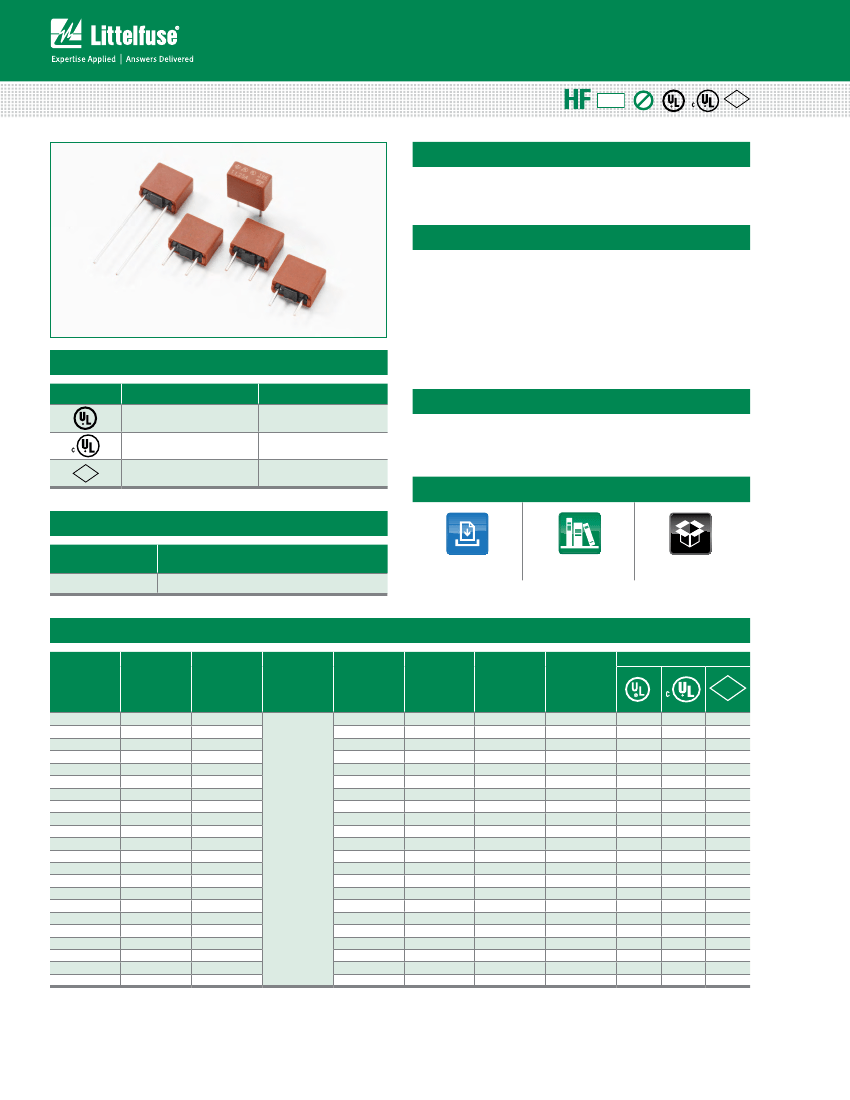

Radial Lead Fuses
TE5
®
> Time-Lag Fuse > 396 Series
396 Series, TE5
®
Time-Lag Fuse
Description
RoHS
Pb
PS
E
The 396 Series TE5
®
fuses are time-lag type, 125V rated,
and are designed in accordance to UL 248-14.
Features
• Halogen free, Lead-free
and RoHS compliant
• Reduced PCB space
requirements
• Direct solderable or
plug-in versions
Ampere Range
• Internationally approved
• Low internal resistance
• Shock safe casing
• Vibration resistant
• Available from 0.05A
to 6.3A
Agency Approvals
Agency
Agency File Number
Applications
• Battery chargers
• Consumer Electronics
Additional Information
• Power supplies
• Industrial controllers
E67006
E67006
PS
E
0.05A - 6.3A
0.05A - 6.3A
1A - 5A
JET1896-31007-1005
Electrical Characteristics
% of Ampere
Rating
200%
Opening Time
60 Seconds,
Max.
Datasheet
Resources
Samples
Electrical Characteristics
Rated
Current
50mA
63mA
80mA
100mA
125mA
160mA
200mA
250mA
315mA
400mA
500mA
630mA
800mA
1.00A
1.25A
1.60A
2.00A
2.50A
3.15A
4.00A
5.00A
6.30A
Voltage
Rating
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
Breaking
Capacity
Nominal
Cold
Resistance
(Ohms)
12.5000
8.7900
6.0090
3.8400
2.9000
1.7700
1.2000
0.7500
0.5450
0.3750
0.2470
0.1850
0.1250
0.0868
0.0666
0.0502
0.0398
0.0297
0.0216
0.0164
0.0112
0.0087
Voltage
Drop
1.0×I
N
max. (mV)
900
800
700
600
550
480
390
350
300
250
220
210
160
155
145
130
125
120
110
110
95
95
Power
Dissipation
1.0×I
N
max. (mW)
45
50
55
60
70
80
80
90
95
100
110
135
130
155
185
210
250
300
350
400
475
570
Melting
Integral
10×I
N
max. (A
2
s)
0.011
0.017
0.02
0.04
0.05
0.09
0.14
0.26
0.32
0.58
0.86
1.15
1.92
3.25
4.69
6.76
11.90
17
.81
26.29
38.40
71.25
144.87
Agency Approvals
PS
E
Amp Code
0050
0063
0080
0100
0125
0160
0200
0250
0315
0400
0500
0630
0800
1100
1125
1160
1200
1250
1315
1400
1500
1630
100A@125
VAC
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Notes:
1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
2) Resistance is measured at 10% of rated current, 25ºC.
© 2016 Littelfuse, Inc.
Application testing is strongly recommended. Specifications are subject to change without notice.
Revised: 01/06/16
Radial Lead Fuses
TE5
®
> Time-Lag Fuse > 396 Series

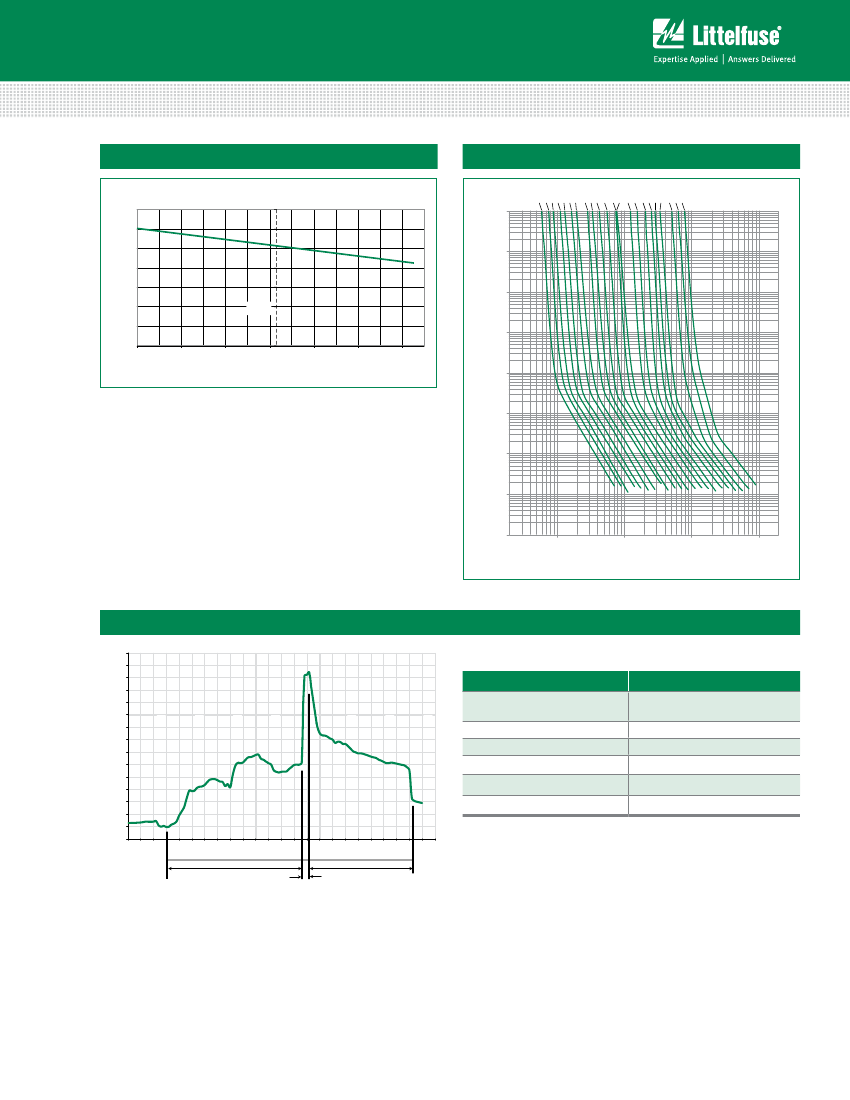

Temperature Re-rating Curve
Average Time Current Curves
0.050A
0.063A
0.080A
0.100A
0.125A
0.160A
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
1.00A
1.25A
1.60A
2.00A
2.50A
3.15A
4.00A
5.00A
6.30A
140
120
100000
PERCENT OF RATING
100
80
60
40
20
0
-40
-20
0
20
40
60
80
AMBIENT TEMPERATURE (°C)
10000
1000
23°C
TIME IN SECONDS
100
10
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
1
0.100
0.010
0.001
0.02
0.100
1
10
100
CURRENT IN AMPERES
Soldering Parameters - Wave Soldering
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/06/16
Radial Lead Fuses
TE5
®
> Time-Lag Fuse > 396 Series
Product Characteristics
Materials
Lead Pull Strength
Solderability
Soldering Heat
Resistance
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6, UL 94 V-0
Round Pins: Copper, Tin-plated
10 N (IEC 60068-2-21)
260ºC, ≤ 3s. (Wave)
350ºC, ≤ 1s. (Soldering Iron)
260ºC, 10s. (IEC 60068-2-20)
350ºC, 3s. (Soldering Iron)
Stock Conditions
Operating Temperature
Climatic Category
-40ºC to +85ºC (Consider re-rating)
-40ºC to +85ºC/21 days
(IEC 60068-1,-2-1,-2-2,-2-78)
+10ºC to +60ºC
RH ≤ 75% yearly average, without
dew, maximum value for 30 days-
95%
24 cycles at 15 min. each
(IEC 60068-2-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
Vibration Resistance
Dimensions
8,5
max. 8
max.4
Part Numbering System
396 xxxx 0000
Series
Amp Code
0,5 min
L
Æ 0,6
1,5
Refer to Amp Code column of
Electrical Characteristics Table
Packaging Code
0000 Tape/Ammopack (1,400 pcs.)
0440 Short Leads - Bulk (1,400 pcs.)
5,08
Long Leads (L=18.8mm)
Short Leads (L=4.3mm)
Holes in the printed
in PCB
Holes
circuit board
Packaging
Packaging Option
396 Series
Tape & Ammopack
Short Leads
Packaging Specification
N/A
N/A
Quantity
1,400
1,400
Quantity &
Packaging Code
0000
0440
Taping Width
N/A
N/A
1 +0,1
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/06/16
