SolidMatrix
®
Surface Mount Fuses
SB Series (Slow Blow), 1206 Size

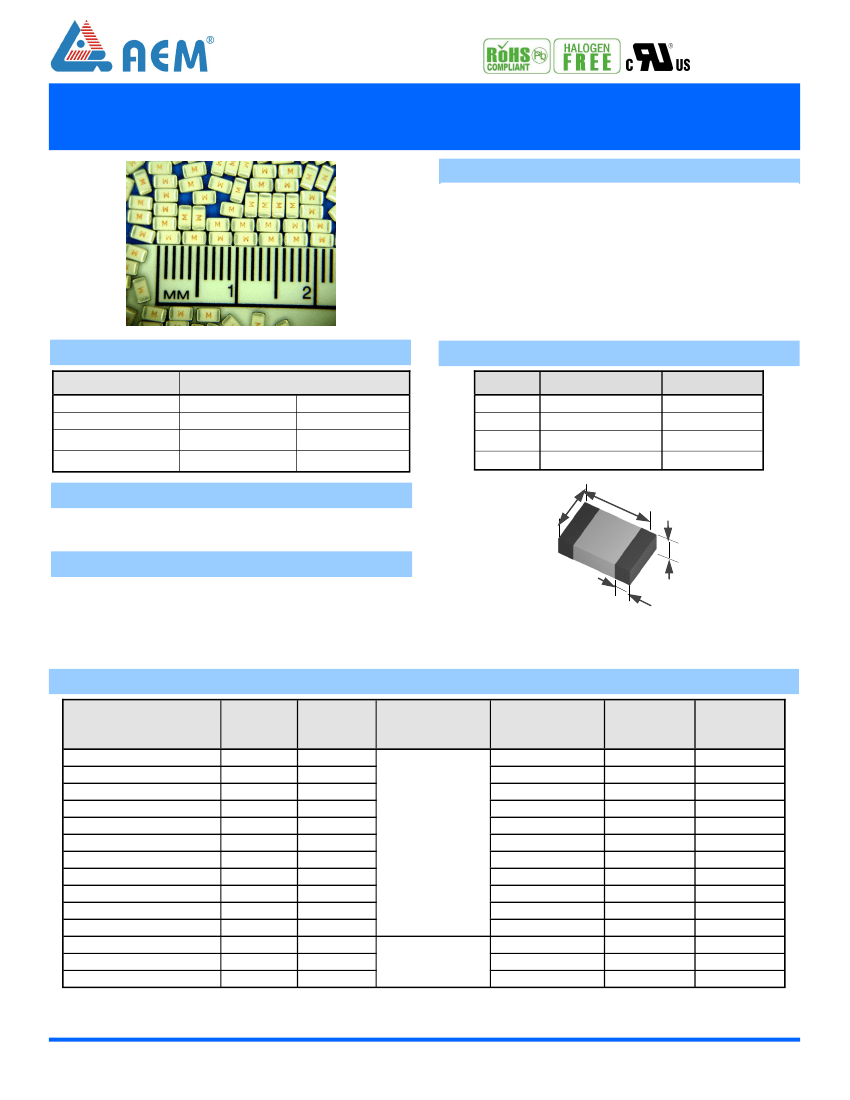

Features:

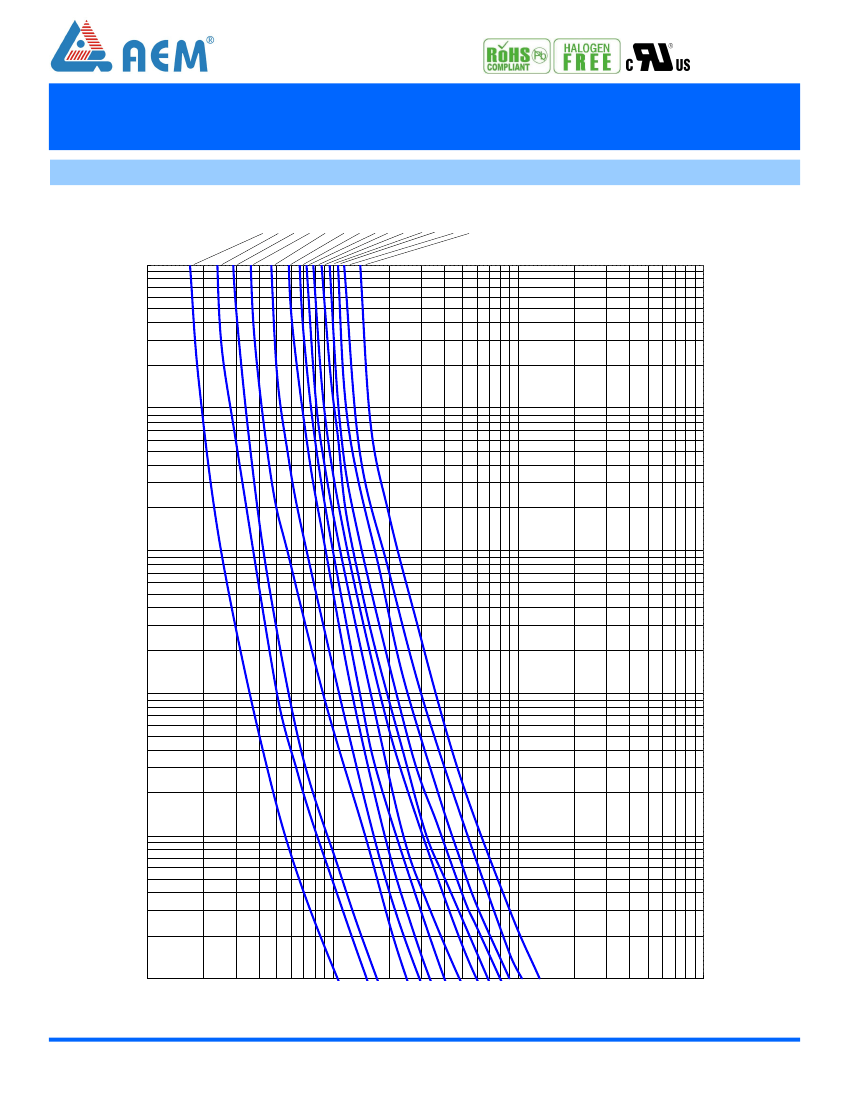

Clearing Time Characteristics:
% of current rating
100%
200%
300%
800%
High inrush current withstanding capability
Multilayer monolithic structure with glass ceramic body
and silver fusing element
Silver termination with nickel and pure-tin solder plating,
providing excellent solderability
Compatible with both wave and reflow soldering processes
Operating temperature range: -55° to +125° (with de-
C
C
rating)
Shape and Dimensions:
Unit
L
120 seconds max.
3 seconds max.
0.05 seconds max.
W
T
B
Clearing time at 25°
C
4 hours min.
1 second min.
0.1 seconds min.
0.002 seconds min.
Inch
0.126 ± 0.008
0.063 ± 0.008
0.038 ± 0.008
0.020 ± 0.010
mm
3.20 ± 0.20
1.60 ± 0.20
0.97 ± 0.20
0.51 ± 0.25
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
W
L
Patents:
Patent numbers “US6,034,589”, “US6,602,766”, “US7,268,661
B2”, “ZL00134544.3”, “ZL02114719.1”, “ZL200410104280.7”,
“ZL201020551352.3”, “ZL201020551360.8”,
“ZL201010299185.2”, “ZL201220030614.0”,
“ZL201210020693.1”.
T
B
Ordering Information:
Part Number
F1206SB1000V063T
F1206SB1250V063T
F1206SB1500V063T
F1206SB2000V063T
F1206SB2500V032T
F1206SB3000V032T
F1206SB3500V032T
F1206SB4000V032T
F1206SB4500V032T
F1206SB5000V032T
F1206SB5500V024T
F1206SB6000V024T
F1206SB7000V024T
F1206SB8000V024T
Current
Rating
(A)
1.0
1.25
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
Voltage
Rating
(VDC)
63
63
63
63
32
32
32
32
32
32
24
24
24
24
Interrupting
Ratings
Nominal Cold
DCR (Ω)
1
0.360
0.200
0.150
0.088
0.065
0.034
0.028
0.024
0.020
0.018
0.014
0.011
0.010
0.009

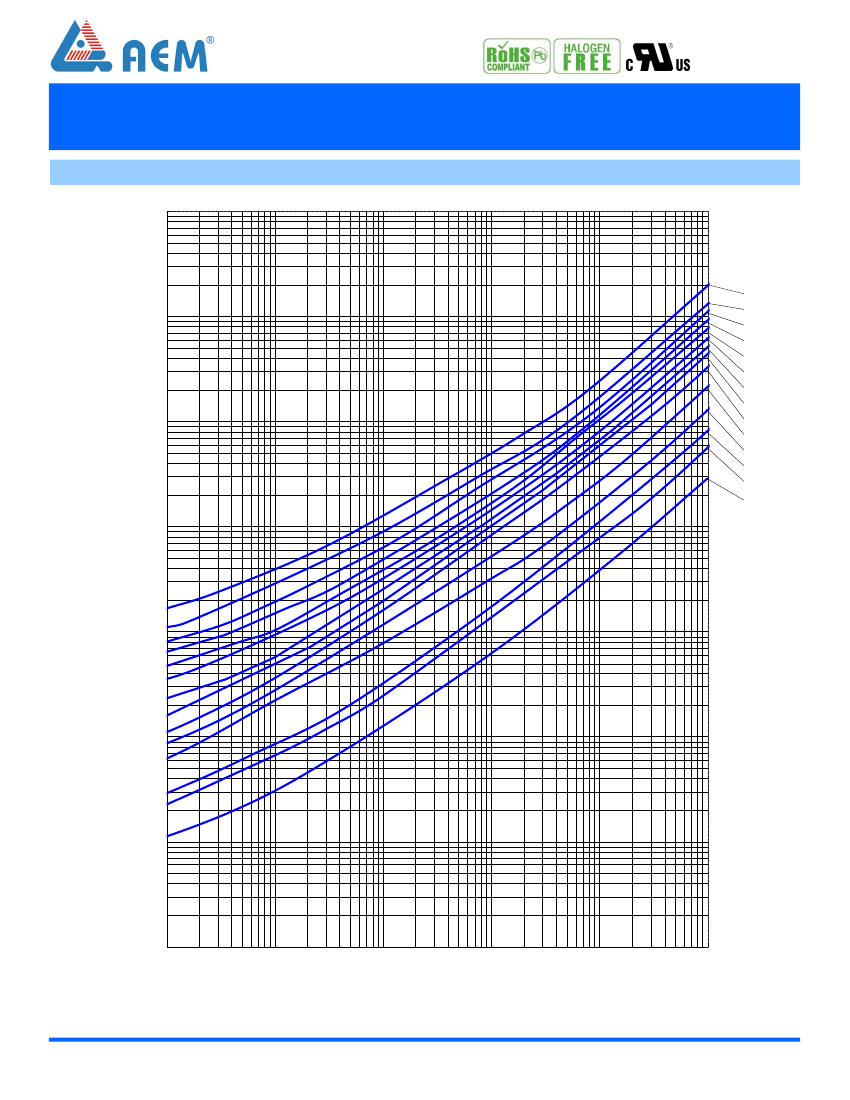

Nominal I
2
t
(A
2
s)
2
0.11
0.22
0.23
0.63
0.90
1.20
1.60
2.20
3.60
5.30
6.40
8.50
10.0
16.9
Marking
(Optional)
3
50 A at rated
voltages
60 A at rated
voltage
E
F
G
I
J
K
L
M
T
N
U
O
P
R
1. Measured at ≤ 10% rated current and 25
o
C ambient.
2. Melting I
2
t at 0.001 second pre-arcing time.
3. Red Marking Character Code.
