Surge Protection Module

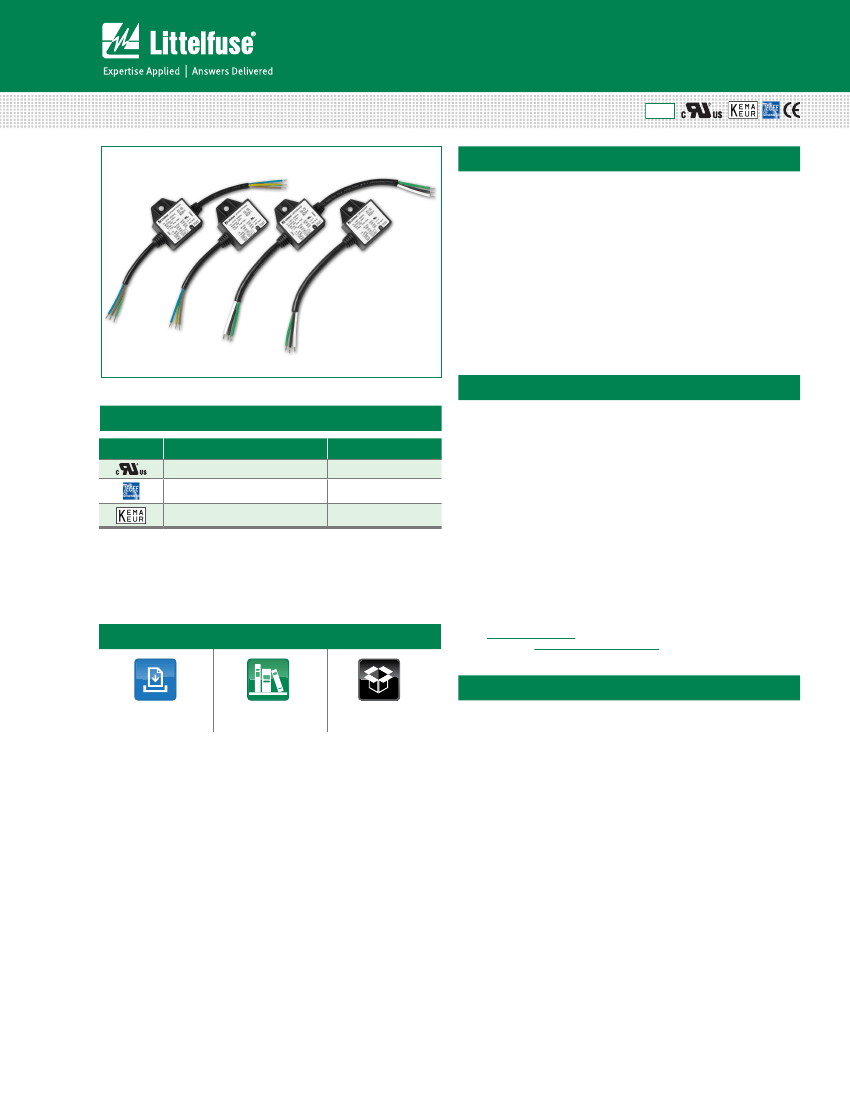

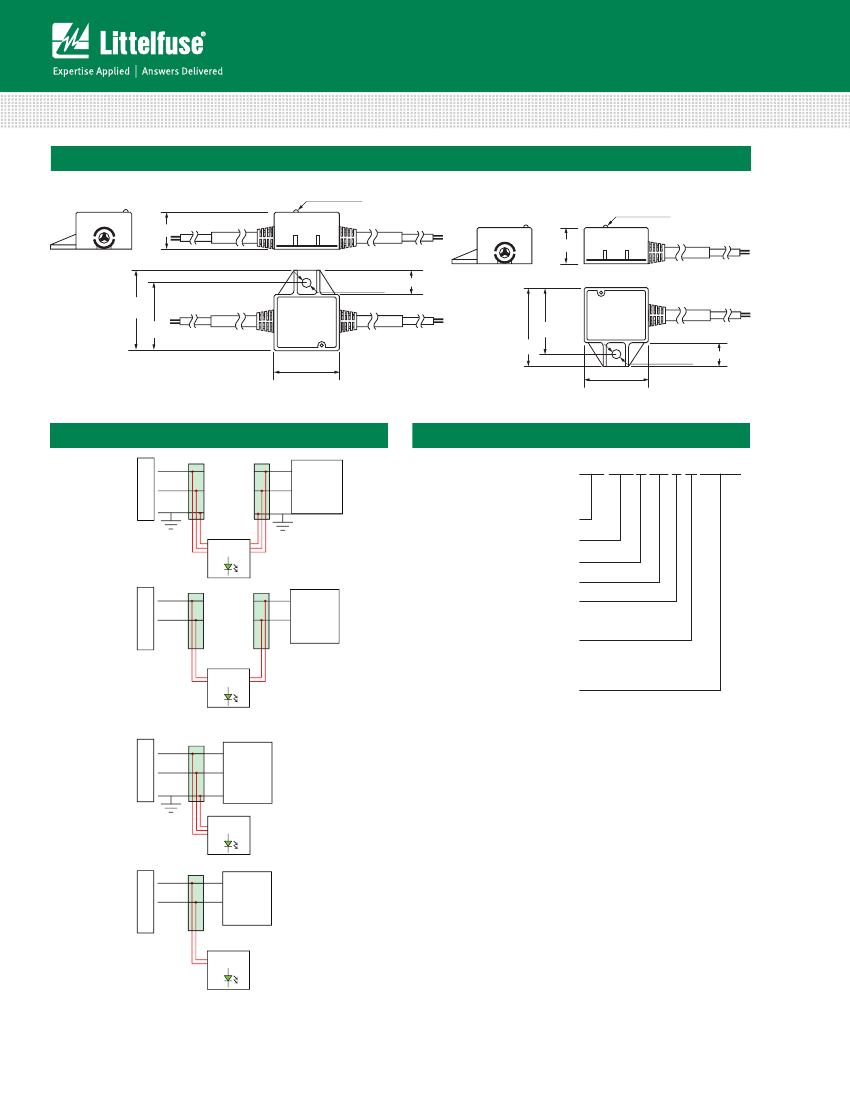

LED Lighting Surge Protection Module > LSP05GI
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
LSP05GI Series
Continuous:
Steady State Applied Voltage:
Max AC Voltage Range (V
M(AC)RMS
)
Continuous Current
Transient:
Maximum Discharge Current, 8/20μs Waveform (I
max
)
Nominal Discharge Current, 8/20µs Waveform (I
n
)
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Isolation Voltage Capability (When the thermal disconnect opens)
Insulation Resistance
10,000
5,000
-40 to +85
-40 to +85
600
>1,000
150 to 510
3.5
Units
V
A
A
A
°C
°C
V
MΩ
CAUTION: Stresses above those listed in ‘Absolute Maximum Ratings’ may cause permanent damage to the device. This is a stress only rating and operation of
the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
LSP05GI Series Device Ratings and Specifications
Operating
Voltage
(VAC)
120
240
277
347
480
120
240
277
480
MCOV/U
C 1
(VAC)
Maximum
Discharge
Current
2
I
max
(A)
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
Nominal Discharge
Current
3
I
n
(A)
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
MLV
4
(V)
L
-N:650
L
-G:1280
N-G:1230
L-N:1080
L
-G:1230
N-G:1340
L 1260
-N:
L 1260
-G:
N-G:1300
L 1530
-N:
L 1550
-G:
N-G: 1410
L 1800
-N:
L 1900
-G:
N-G: 1410
L-N: 650
L-G: 3150
N-G: 3210
L 1080
-N:
L-G: 3170
N-G: 3430
L 1260
-N:
L 3160
-G:
N-G: 3310
L-N: 1800
L-G: 3090
N-G: 3090
U
p
(V)
5
Safety Compliance
IEC/EN
61643-11
--
X
X
--
--
--
--
--
--
UL1449
X
X
X
--
--
X
X
X
--
Part Number
LSP05GI120*
LSP05GI240*
LSP05GI277*
LSP05GI347*
LSP05GI480*
LSP05GI120*H†
LSP05GI240*H†
LSP05GI277*H†
LSP05GI480*H†
* = S or P
150
275
320
420
510
150
275
320
510
--
L 1300
-N:
L
-G/PE: 2400
N-G/PE: 2200
L 1400
-N:
L
-G/PE: 2400
N-G/PE: 2200
--
--
--
--
--
--
† = Module with ‘H’ designation features 1500Vac Hi-Pot withstand capability in common mode (L-G and N-G).
Glossary:
1. MCOV/U
C
: Maximum Continuous Operating Voltage - maximum r.m.s. voltage that could be continuously applied to the SPD.
2. Maximum Discharge Current I
max
(A): The maximum discharge current is a measure of the SPDs maximum capability; single impulse of discharge current uses the 8/20µs
current waveform. All Devices pass maximum discharge current with possible, safe opening of thermal disconnect.
3. Nominal Discharge Current I
n
(A): The nominal discharge current is a measure of the SPDs endurance capability; 15 impulses of discharge current uses the 8/20µs current waveform.
4. MLV: UL1449 Measured limiting voltage; the highest value of residual voltage measurements during the application of impulses of 8/20µs nominal discharge current (I
n
);
an average voltage value of 15 impulses.
5. U
p
: IEC 61643-11 Voltage protection level; the highest value of residual voltage measurements during the application of impulses of 8/20µs nominal discharge current (I
