Bussmann
®
LOW-PEAK
®
Time-Delay Fuses
Class CC – 600 Volt, ⁄Ω™ to 30 Amps
Dimensional Data
LP-CC
General Information:

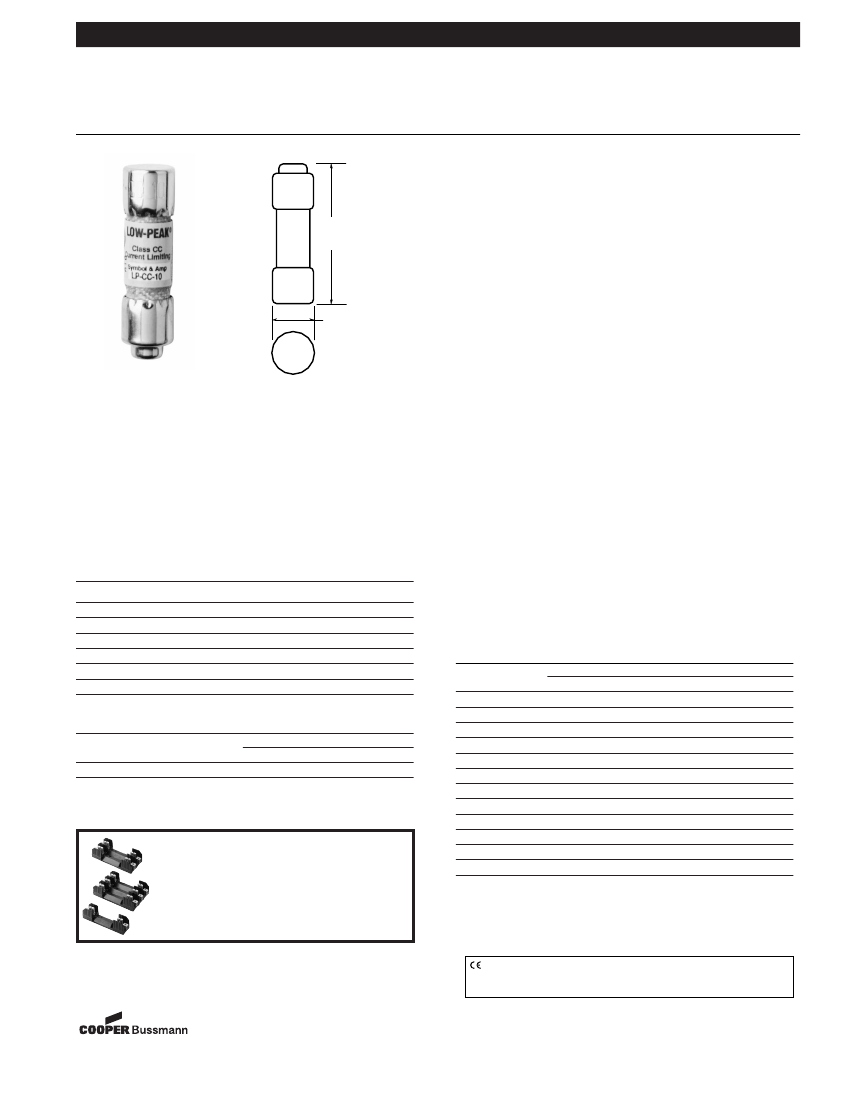

LP-CC LOW-PEAK Yellow™ Fuse
• A superior all-purpose, space-saving branch circuit fuse
that meets most protection requirements up to 30A.
• Very compact; physical size is only
⁄‹Ω£™∑ ≈ 1⁄Ω™∑
(10.3mm
≈
38.1mm) with rejection tip.
• The unique yellow color makes it easy to tell that the correct
fuse type is installed.
• Faster response to damaging short-circuit currents and
higher interrupting rating than mechanical overcurrent
protective devices.
200,000A Interrupting Rating
• Maximum interrupting rating for available fault current in
today's large capacity systems.
• Helps ensure that future growth will not obsolete the system.
Dual Characteristics
• Time-delay to avoid unwanted fuse openings from surge
currents.
• Fast speed of response under short-circuit conditions for a
high degree of current-limitation.
•
ADVANTAGE:
The LOW-PEAK
®
fuse can be sized close
to full load ratings for maximum overload and short-circuit
protection.
•
ADVANTAGE:
Can be used where either a time-delay or
a fast-acting fuse is needed, making selection easier and
reducing spare fuse inventories for substantial cost reduction.
Superior Motor Protection
• For protection of small horsepower motor circuits.
• Proper sizing can provide Type “2” coordinated protection
for NEMA and IEC motor controllers.
• Motors receive maximum protection against burnout from
overloads and single phasing.
Current-Limiting Effects
Prospective Short- *Let-Through Current (Apparent RMS Symmetrical)
Circuit Current
1⁄Ω¢A
2°Ω¡ºA
15A
20A
25A
30A
1,000
100
140
165
210
260
290
315
340
350
390
420
525
135
210
255
340
435
525
610
650
735
785
830
1,100
240
350
420
540
680
800
870
915
1,050
1,130
1,210
1,600
305
440
570
700
870
1,030
1,150
1,215
1,300
1,500
1,600
2,000
380
575
690
870
1,090
1,300
1,390
1,520
1,650
1,780
2,000
2,520
435
580
710
1,000
1,305
1,520
1,700
1,820
1,980
2,180
2,400
3,050
3,000
5,000
Weight*
Lbs.
.193
Kg.
.088
10,000
20,000
30,000
40,000
50,000
60,000
1.5" (±0.031)
(38.1mm)
.41" (±0.005)
(10.3mm)
Catalog Symbol:
LP-CC
Time-Delay, Current-Limiting
Ampere Rating:
⁄Ω™
to 30A
AC Voltage Rating:
600V (or less)
Interrupting Rating:
200,000A RMS Sym.
Agency Information:
UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273
CSA Certified, C22.2 No. 248.4, Class 1422-02, File 53787
DC Voltage Rating:
300Vdc (or less)
⁄Ω™
-2
°/⁄‚
A and 20-30A, 20,000 AIR, UL 198L
150Vdc or less 3-15A, 20,000 AIR, UL 198L
Catalog Numbers
LP-CC-⁄Ω™
LP-CC-flꭧ
LP-CC-°Ω¡º
LP-CC-1
LP-CC-1⁄Ω•
LP-CC-1⁄Ω¢
LP-CC-1›Ω¡º
LP-CC-1⁄Ω™
LP-CC-1flꭧ
LP-CC-1°Ω¡º
LP-CC-2
LP-CC-2⁄Ω¢
LP-CC-2⁄Ω™
LP-CC-2°Ω¡º
LP-CC-3
LP-CC-3¤Ω¡º
LP-CC-3⁄Ω™
LP-CC-4
LP-CC-4⁄Ω™
LP-CC-5
LP-CC-5flꭧ
LP-CC-6
LP-CC-6⁄Ω¢
LP-CC-7
LP-CC-7⁄Ω™
LP-CC-8
LP-CC-9
LP-CC-10
LP-CC-12
LP-CC-15
LP-CC-20
LP-CC-25
LP-CC-30
—
—
Carton Quantity and Weight
Ampere
Ratings
0-30
*Weight per carton.
Carton
Qty.
10
Recommended fuseblocks/fuseholders for
Class CC 600V fuses
See Data Sheets listed below
• Open fuseblocks - 1105
• Finger-safe fuseholders - 1109, 1102, 1103, 1151
• Panel-mount fuseholders - 2114, 2113
• In-line fuseholders - 2126
80,000
100,000
200,000
*RMS Symmetrical Amperes Short-Circuit
NOTE: To calculate Ip (Ipeak) multiply IRMS value
≈
2.3.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
10-2-02
SB02295
Form No. LP-CC
Page 1 of 2
Data Sheet: 1023
Bussmann
®
LOW-PEAK
®
Time-Delay Fuses
Class CC – 600 Volt, ⁄Ω™ to 30 Amps
3
3⁄Ω™
4
4⁄Ω™
6
8
10
12
15
20
25
30
AMPERE
RATING

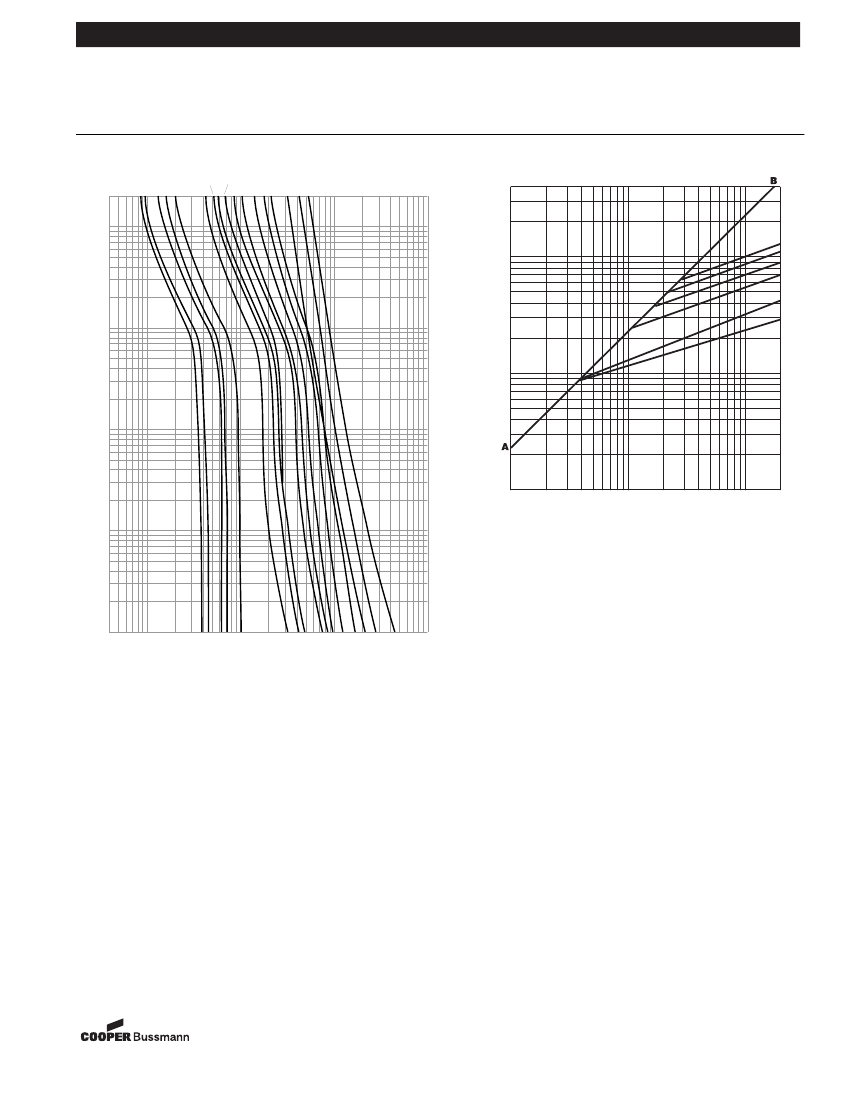

INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPS
