Technical Data
4377
Effective
May
2017
Supersedes
January
2012
CB61F
Surface Mount Device

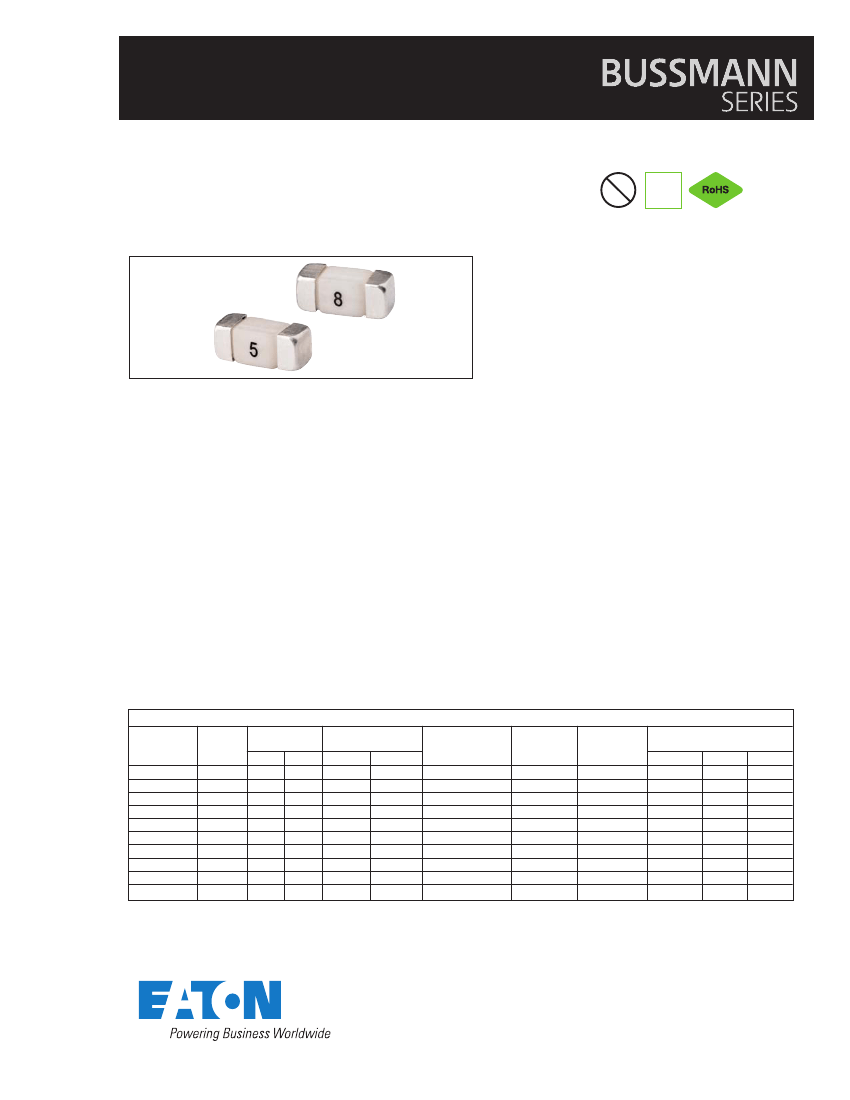

Fast-acting surface mount Brick™ fuses
Pb
HF
FREE
HALOGEN
Applications
Primary circuit protection:
•
•
•
•
•
•
•
Product features
•
•
•
•
•
•
•
•
•
•
High Interrupting Ratings: 50A @ 125Vac / 300A @ 125Vdc
Wide Selection: ratings from 2 to 15 amps providing a range of
solutions for applications requiring fast-acting performance
CQC Approved: Meets the growing market demand.
cULus Certified and PSE Level 1 Certified
Excellent Environmental Integrity: lead-free, halogen free and
RoHS compliant, and present no disposal issues at end of life.
Solder immersion compatible
Wire-in-Air design
LCD/PDP TVs
Notebooks
Telecom/PoE
Industrial applications
LCD Monitors
Servers
Medical equipment
LCD backlight inverters
Power supplies
White goods
Environmental data
•
•
Agency information
•
•
•
•
cULus: Standard UL 248-14, Guide JDYX, File E 19180 and Guide
JDYX7, File E19180
PSE: JET 1641-31007-1003 (2A-5A),JET 1641-31007-1004
(6.3A-10A), JET 1641-31007-1005 (12-15A)
CQC: CQC09012040316 (2A-6.3A & 8A-10A)
•
Ordering
•
•
Mechanical Shock: MIL-STD-202G, Method 213B,
Test Condition C (100 G’s peak for 6 milliseconds;
half-sine waveform)
Mechanical Vibration: MIL-STD-202G, Method
201,Test Condition A (10-55Hz, 0.06 inch, total
excursion)
Insulation Resistance: MIL-STD-202, Method 302,
Test Condition A (after opening) 10,000 ohms
minimum
Resistance to Solder Heat: MIL-STD-202G, Method
210F, Test Condition D (10 sec, at 260°C); Test
Condition A (350°C, 5s) for hand solder
Thermal Shock: MIL-STD-202, Method 107G, Test
Condition B (-65°C to +125°C)
Specify product and packaging code
Catalog
Number
CB61F2A
CB61F3A
CB61F4A
CB61F5A
CB61F6.3A
CB61F7A
CB61F8A
CB61F10A
CB61F12A
CB61F15A
Current
Ratings
(amps)
2
3
4
5
6.3
7
8
10
12
15
Voltage
Ratings
Vac Vdc
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
Interrupting
Ratings (amps)*
125Vac 125Vdc
100
100
100
100
100
100
100
100
50
50
300
300
300
300
300
300
300
300
300
300
Speci cations
Typical Cold
Resistance
(Ω)**
0.039
0.025
0.017
0.013
0.010
0.009
0.008
0.006
0.005
0.004
Typical
Melting
I
2
t (A
2
s)***
0.85
2.08
4.4
7.7
13.7
15.6
19.5
36
40
56
Typical
Voltage
Drop
(mV)
‡
100
100
93
90
90
85
90
90
90
85
Agency
Approvals
cULus
PSE
CQC
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* AC Interrupting Rating (measured at designated voltage, 100% power factor); DC Interrupting Rating
(measured at designated voltage, time constant of less than 50
microseconds, battery source)
** Typical Cold Resistance (measured at 10% of rated current)
*** Typical Melting I2t (measured with a battery bank at rated DC voltage, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)
‡ Typical Voltage Drop (measured at rated current after temperature stabilizes)
CB61F
Fast-acting surface mount Brick™ fuses
Technical Data
4377
Effective
May
2017

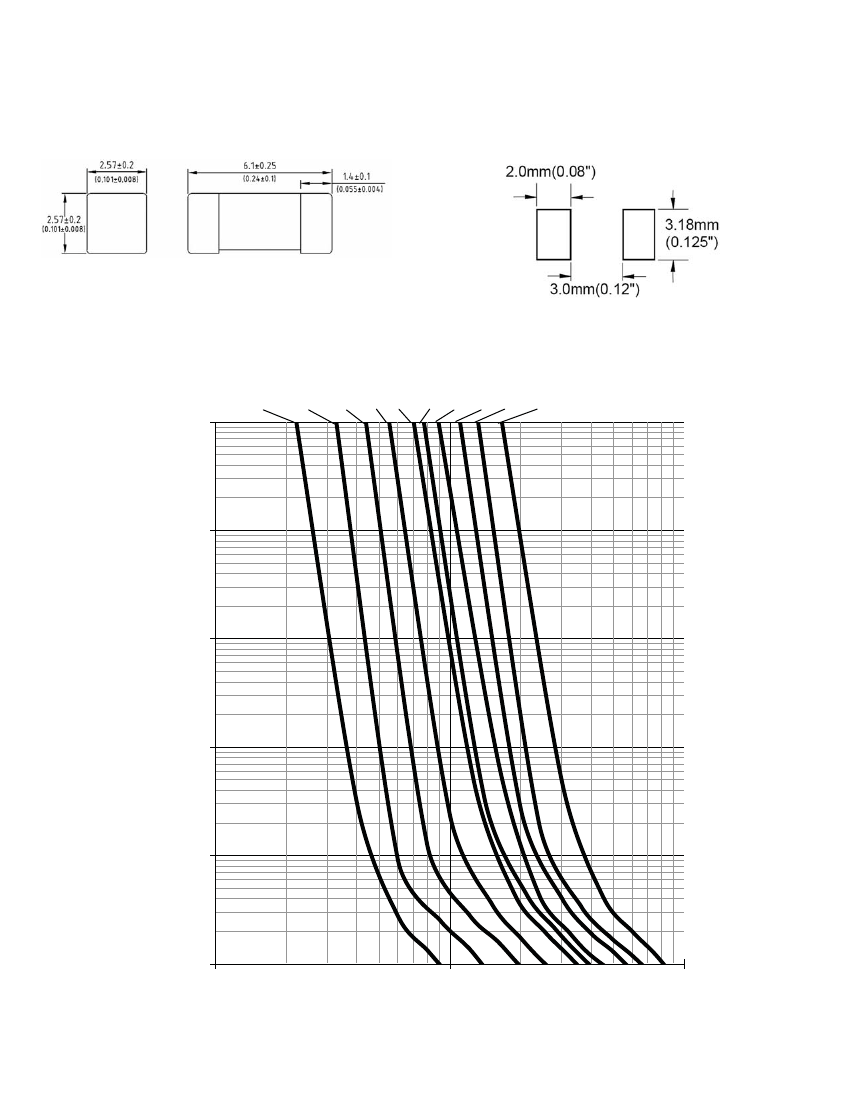

Soldering Characteristics
Wave Immersion
• Reservoir Temperature: 260° C
• Time in Reservoir : 10 Seconds Maximum
Infrared Reflow
• Temperature: 260° C
• Time: 30 Seconds Maximum
Hand Soldering
• Maximum tip temperature: 350°C
• Maximum soldering time: 5 seconds max

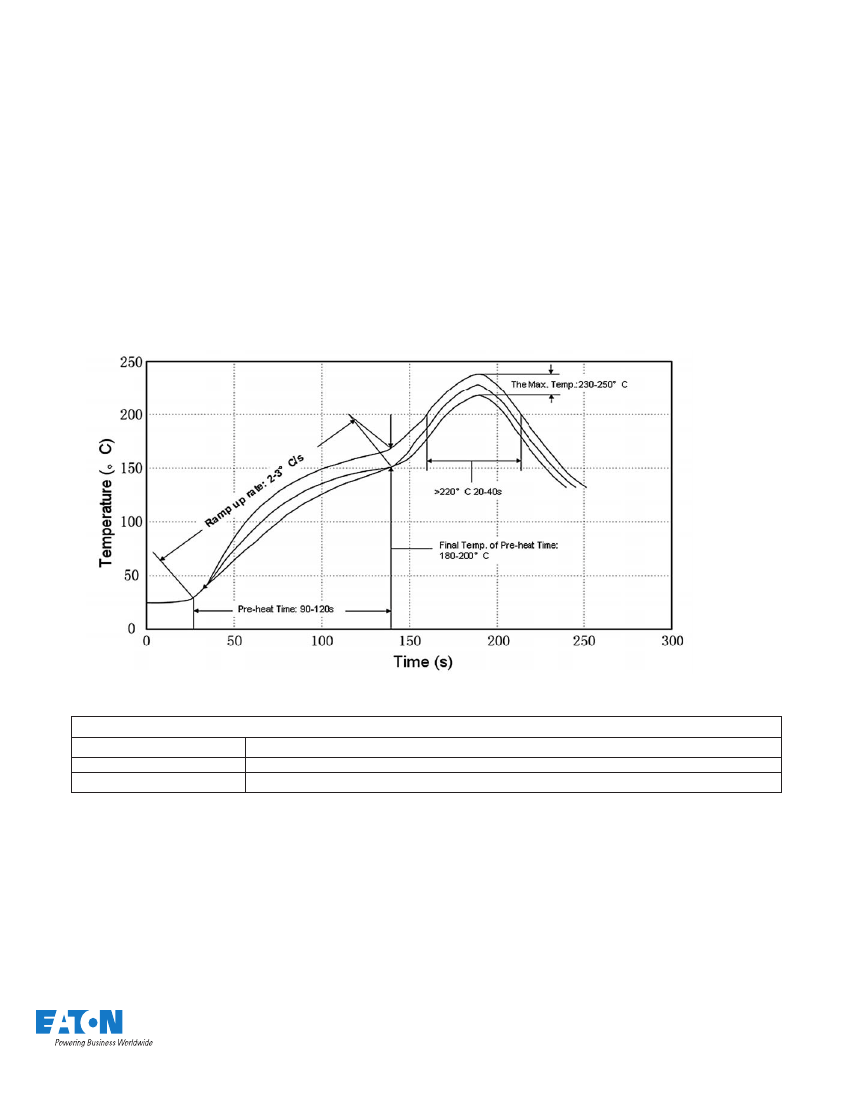

Recommend Reflow Profile
Packaging Code
Packaging Code Suffix
-TR1
-TR2
Description
1000 Fuses in Tape and Reel on 7 inch (178mm) diameter reel
5000 Fuses in Tape and Reel on 13 inch (330mm) diameter reel
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
4377 BU-SB111447
May
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
