Thermal-magnetic (TM and AS-line)
https://www.schurter.com /PG20

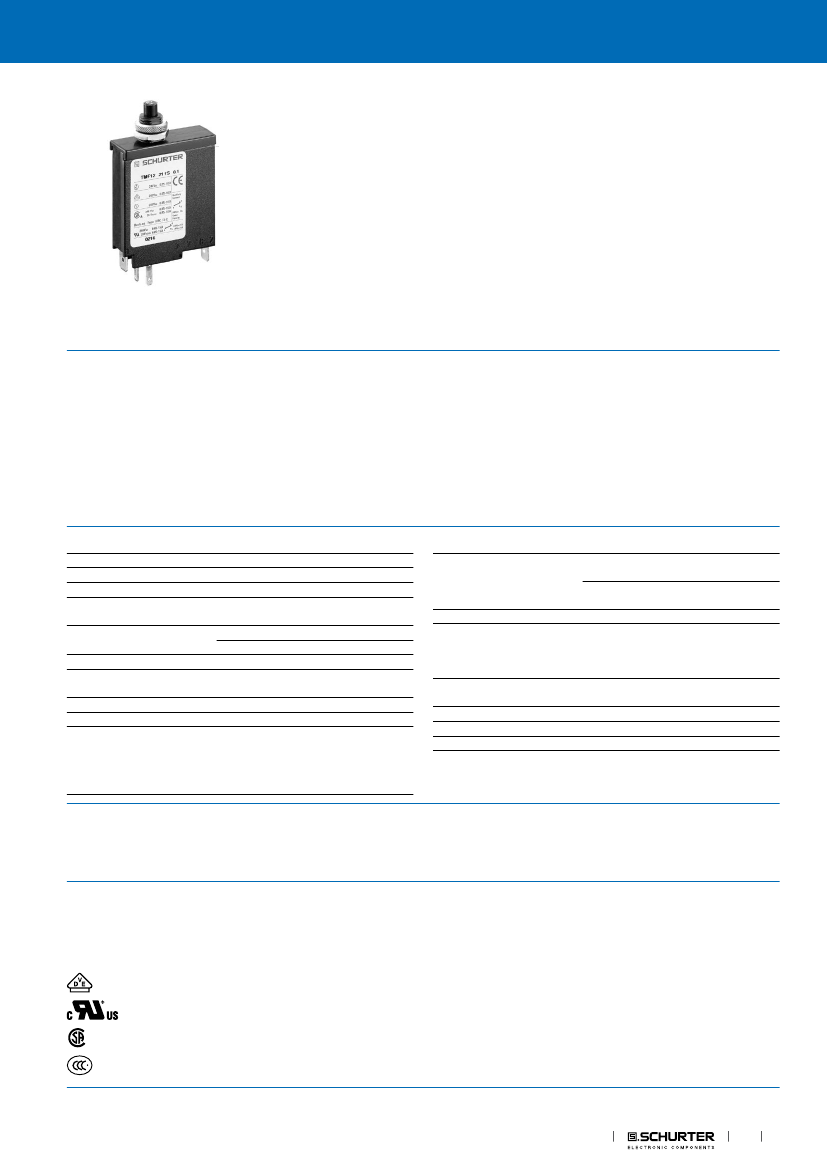

TM12-221
Circuit Breaker for Equipment thermal-magnetic, Threaded neck type, Manual ON/OFF, Quick connect ter-
minals
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
-
-
Threaded neck type
Thermal-magnetic circuit breaker
1-pole
Manual ON/OFF type
Insensitive to shock or vibration
Quick connect terminals 6.3 x 0.8 mm
Compact design
Positively trip-free release
Available with cover
Different mounting possibilities
Applications
-
-
-
-
Power supplies
Uninterruptible power supply
Power tools
Household appliances
Weblinks
Unique Selling Proposition
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Product News
Technical Data
Rated Voltage AC
Rated Voltage DC
Rated current range AC
Conditional short circuit ca-
pacity
Short circuit capacity Icn
␣
Degree of Protection
Dielectric Strength
Insulation Resistance
Endurance typical
Endurance minimum
240 V; 50/60 Hz
28 V
0.05 - 15 A , see approbations
IEC: Inc, PC1, AC 240 V: 1 kA
AC 240 V : 200 A
AC/DC 28 V : 400 A
from front side IP 40 acc. to IEC 60529
50 Hz: > 1.5 kV
Impulse 1.2/50
μs:
> 2.5 kV
500 VDC > 100 MΩ
2 x Ir: 5000 switching cycles
Manual ON/OFF type
AC : 2 x Ir , cos
φ
0.6 :
DC : 2 x Ir , L/R = 2 - 3 ms :
5000 switching cycles
Overload
␣
Ambient temperature
Vibration Resistance
IEC: min. 40 trips
@ 6 x Ir, cos
φ
0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos
φ
0.75
-5 °C to 60 °C
± 1.5 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Fc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Fc
100 G / 6 ms
acc. to IEC 60068-2-27, test Ea
Thermal-Magnetic
Manual ON/OFF
ca. 10 g
Shock Resistance
Tripping Type
Actuation Type
Weight
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: TM12
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
CQC Approvals
Certification Body
VDE
UL
CSA
CQC
Description
VDE Certificate Number:
UL File Number:
CSA Certification Record:
CCC File Number:
Circuit Breakers
1
TM12-221
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Thermal-magnetic (TM and AS-line)
https://www.schurter.com /PG20
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
TMx12-211
M 10x1
Ø 5.7
18
14.7
8
48.5
– 0.2
+0.5
1
2
3 7 8 2
4
10
36
42
– 0.2
6.3
11.5
42
SW
1
14.5
3
2
Circuit Breakers
Thermal-magnetic (TM and AS-line)
https://www.schurter.com /PG20
TM12-221
Typical internal resistance TMF12
Rated Current [A]
0.05
0.50
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
Internal Resistance [Ω]
335.00
4.37
1.23
0.369
0.181
0.097
0.055
0.044
0.0231
0.0227
0.0142
0.0123
0.012
0.012
0.0108
0.0091
0.0089
0.0071
Typical internal resistance TMT12
Rated Current [A]
0.05
0.50
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
Internal Resistance [Ω]
260.00
4.03
1.006
0.323
0.161
0.086
0.0494
0.0396
0.0257
0.0249
0.0129
0.0112
0.0111
0.0111
0.0109
0.0092
0.0090
0.0075
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient temperature [°C]
-5
0
10
23
30
40
50
60
Correction factor
0.87
0.90
0.95
1.00
1.05
1.12
1.20
1.30
Example: Rated current = 5 A; Environmental temperature = 50 °C; --> Correction factor =
1.2; Resulting current = 6.0 A
Circuit Breakers
5
