PFMF2002

Description
Resettable Fuses - PPTC PFMF PTC FUSE SMT 2A (1812)
CategoryCircuit protection
File Size344KB,4 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Download Datasheet Parametric Compare View All

PFMF2002 Online Shopping

Suppliers Part Number Price MOQ In stock
PFMF2002 - - View Buy Now

PFMF2002 Overview

Resettable Fuses - PPTC PFMF PTC FUSE SMT 2A (1812)

PFMF2002 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerSCHURTER
Product CategoryResettable Fuses - PPTC
Mounting StylePCB
Termination StyleSMD/SMT
Hold Current2 A
Maximum Voltage8 VDC
Trip Current4 A
Current Rating - Max40 A
Resistance0.02 Ohms
Package / Case1812 (4532 metric)
PackagingCut Tape
PackagingMouseReel
PackagingReel
TypeResettable Fuses
Maximum Operating Temperature+ 85 C
Pd - Power Dissipation0.8 W
Factory Pack Quantity2000
Unit Weight0.000635 oz
Resettable Fuses
https://www.schurter.com /PG01_1
PFMF
Surface Mount Fuse, PTC, 1812 footprint, 4.6 x 3.2 mm, 60 VDC
6.0 - 60.0 VDC · 0.1 - 2.6 A
Description
Approvals and Compliances
- 100% compatible with the PFMD typeDirectly solderable on printed
circuit boards
Applications
-
-
-
-
-
Hard disk drives
PC motherboards
PC peripherals
PCMCIA cards
USB port protection
References
Weblinks
Packaging Details
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product
Technical Data
V max
Imax
I hold
Attachment
Allowable Operation Tempe-
rature
Material: Terminals
Weight
Storage Conditions
Product Marking
6.0 - 60.0 VDC
10 - 100 A
0.1 - 2.6 A
PCB,SMT
-40 °C to 85 °C
Electroless Nickel under Immerion Gold
0.025 g
0 °C to 40 °C, max. 70% r.h.
I hold, Data Code
Soldering Methods
Solderability
Resistance to Soldering Heat
Passing Aging
Humidity Aging
Thermal Shock
Vibration
Resistance to Solvents
Reflow
Soldering Profile
245 °C / 3 sec
260 °C / 10 sec
+85 °C, 1000 Hours -> +/- 5% Typical
Resistance Change
+85 °C, 85% r.h., 1000 Hours -> +/-
5% Typical Resistance Change
+85 °C to -40 °C, 20 Times -> +/- 10%
Typical Resistance Change
MIL-STD-883C, Method 2007.1, Test
Condition A
MIL-STD-202, Methode 215

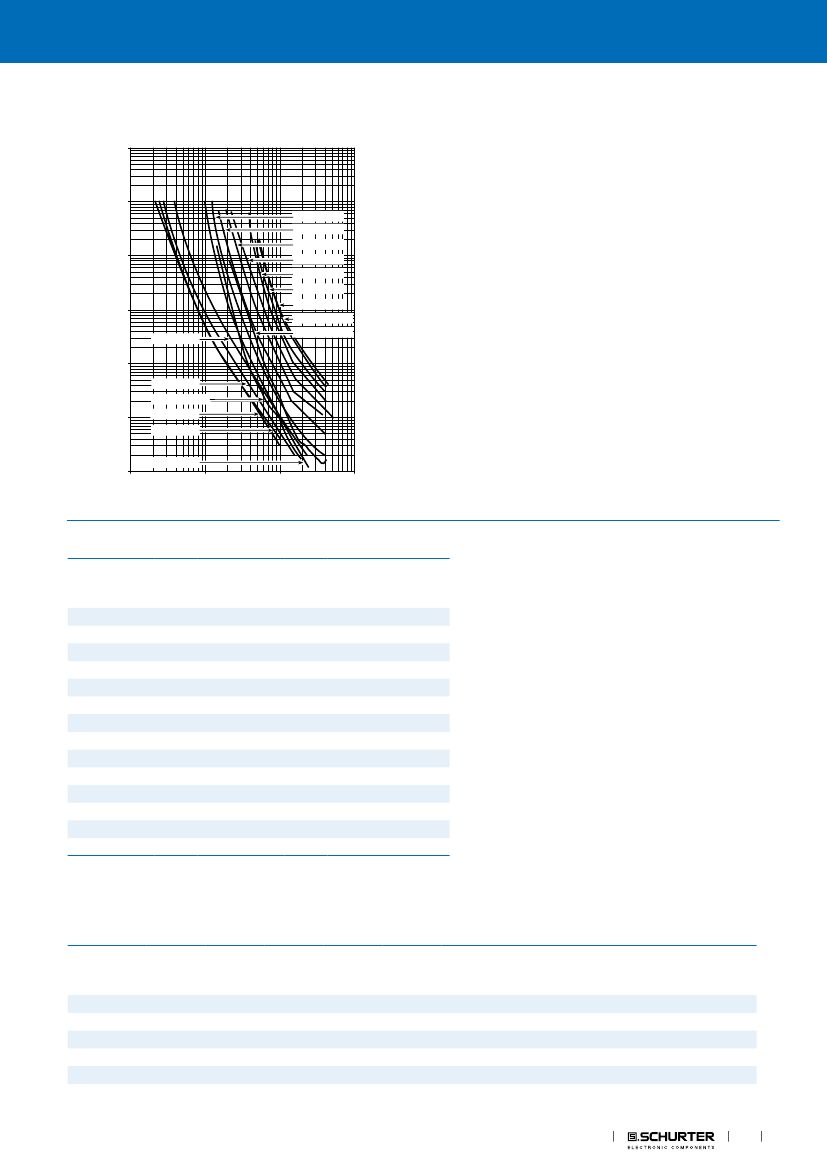

Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: PFMF
Approval Logo
Certificates
TUEV Approvals
UL Approvals
Certification Body
TUEV
UL
Description
Technischer Überwachungsverein
UL File Number: E172175
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 1434
CSA 22.2 No. 0 TIL No. CA-3A
Description
Thermistor-type devices
General requirements - Canadian electrical code, part II
Fuses
1

PFMF2002 Related Products

PFMF2002 PFMF0752 PFMF0102 PFMF1252 PFMF1102 PFMF1602 PFMF0302
Description Resettable Fuses - PPTC PFMF PTC FUSE SMT 2A (1812) Crystals 32.768KHz 12.5pf 3.2 x 1.5 x 0.9mm Resettable Fuses - PPTC PFMF PTC FUSE SMT 100 mA (1812) Resettable Fuses - PPTC PFMF PTC FUSE SMT 1.25A (1812) Resettable Fuses - PPTC PFMF PTC FUSE SMT 1.1A (1812) Resettable Fuses - PPTC PFMF PTC FUSE SMT 1.6A (1812) Resettable Fuses - PPTC PFMF PTC FUSE SMT 300 mA (1812)
Manufacturer SCHURTER SCHURTER SCHURTER SCHURTER SCHURTER SCHURTER SCHURTER
Product Category Resettable Fuses - PPTC Resettable Fuses - PPTC Resettable Fuses - PPTC Resettable Fuses - PPTC Resettable Fuses - PPTC Resettable Fuses - PPTC Resettable Fuses - PPTC
Mounting Style PCB PCB PCB PCB PCB PCB PCB
Termination Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Hold Current 2 A 0.75 A 0.1 A 1.25 A 1.1 A 1.6 A 0.3 A
Maximum Voltage 8 VDC 13.2 VDC 60 VDC 6 VDC 6 VDC 8 VDC 30 VDC
Trip Current 4 A 1.5 A 0.3 A 2.5 A 2.2 A 2.8 A 0.6 A
Current Rating - Max 40 A 100 A 40 A 100 A 100 A 100 A 10 A
Resistance 0.02 Ohms 0.11 Ohms 0.7 Ohms 0.035 Ohms 0.04 Ohms 0.035 Ohms 0.3 Ohms
Package / Case 1812 (4532 metric) 1812 (4532 metric) 1812 (4532 metric) 1812 (4532 metric) 1812 (4532 metric) 1812 (4532 metric) 1812 (4532 metric)
Type Resettable Fuses Resettable Fuses Resettable Fuses Resettable Fuses Resettable Fuses Resettable Fuses Resettable Fuses
Maximum Operating Temperature + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C
Pd - Power Dissipation 0.8 W 0.8 W 0.8 W 0.8 W 0.8 W 0.8 W 0.8 W
Factory Pack Quantity 2000 2000 1500 2000 2000 2000 1500
Unit Weight 0.000635 oz 0.000705 oz 0.000635 oz 0.000635 oz 0.000635 oz 0.000635 oz 0.000635 oz
Product Attribute Attribute Value - - Attribute Value Attribute Value Attribute Value Attribute Value
Packaging Reel Cut Tape Cut Tape Reel Reel Reel Reel
