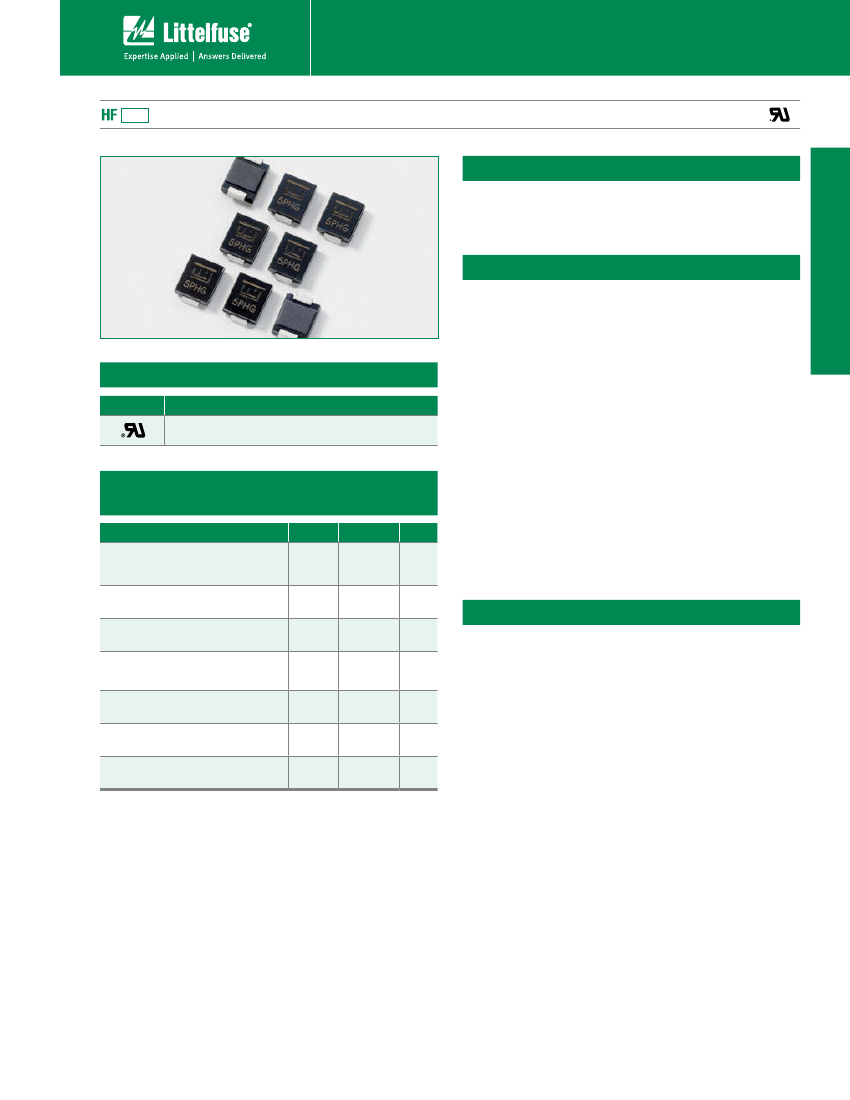

Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
RoHS
5.0SMDJ Series
Description
The 5.0SMDJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
typically less than 1.0ps
from 0V to BV min
applications to optimize
board space
capability
resistance
less than 5μA
R
above 22V
soldering guaranteed:
260°C/40 seconds at
terminals
Underwriters Laboratory
Flammability 94V-O
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
temperature coefficient
ΔV
BR
= 0.1% x V
BR
@25°C x ΔT
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25
O
C by 10x1000μs waveform
(Fig.1)(Note 1), (Note 2)
Power Dissipation on infinite heat
sink at T
A
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
only
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
5000
6.5
300
5.0
-65 to 150
15
75
Unit
W
W
A
V
°C
°C/W
°C/W
junction
capability at 10×1000μs
waveform, repetition rate
(duty cycles):0.01%
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Notes:
1. Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25
O
C per Fig. 2.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only,duty cycle=4 per minute maximum.
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to http://www.Littelfuse.com/series/5.0SMDJ.html for current information.
59
Revision: January 09, 2009
5.0SMDJ Series
5.0SMDJ Series
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Electrical Characteristics
Part
Number
(Uni)
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
Part
Number
(Bi)
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Marking
UNI
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5RGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
BI
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Reverse
Stand off
Voltage
V
R
(Volts)
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167
.00
178.00
189.00
MAX
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Maximum Maximum
Agency
Clamping
Peak
Reverse
Approval
Voltage V
C
Pulse
Leakage I
R
@ I
pp
Current I
pp
@ V
R
(V)
(A)
(μA)
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
252.00
233.00
216.00
205.00
193.00
181.00
172.00
155.00
141.00
129.00
119.00
110.00
103.00
93.90
86.10
77
.60
72.10
68.80
64.70
60.70
57
.50
53.50
51.70
48.60
44.30
41.40
39.70
36.50
34.30
30.90
28.30
26.00
24.00
20.60
19.30
18.20
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For Bidirectional type having V
R
of 20 volts and less,the I
R
limit is double.
5.0SMDJ Series
60
Revision: January 09, 2009
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to http://www.Littelfuse.com/series/5.0SSMDJ.html for current information.
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series

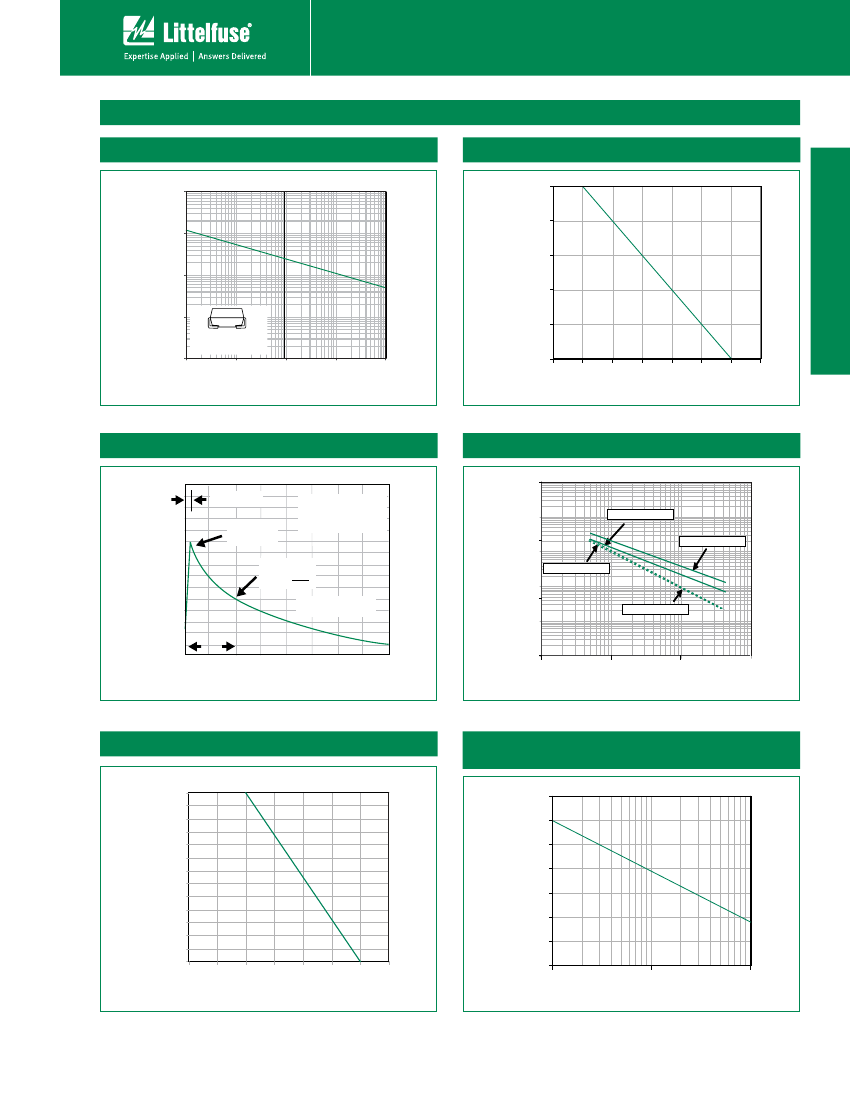

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
1000
100
Peak Pulse Power (P
PP
) or
Current (I
PP
) Derating in
Percentage %
P
PPM
-Peak Pulse Power (KW)
80
100
60
10
40
1
0.31x0.31" (8.0x8.0mm)
20
0.1
Copper Pad Area
0
0.000001
0.00001
0.0001
0.001
0.0000001
0
25
50
75
100
125
150
175
t
d
-Pulse Width (Sec.)
T
A
-Ambient temperature (ºC)
Figure 3 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10μsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to
50%
of IPPM
Figure 4 - Typical Junction Capacitance
100000
10000
Bi-directional V= OV
100
Uni-directional V= OV
Half Value
IPPM
IPPM
2
Cj (pF)
1000
Uni-directional @ VR
( )
10/1000μsec. Waveform
as defined by R.E.A
100
Bi-directional @ VR
50
10
td
0
0
1.0
2.0
t-Time (ms)
3.0
4.0
1
1.0
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
Figure 5 - Steady State Power Derating Curve
Figure 6 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
350
I
FSM
- Peak Forward Surge Current (A)
300
250
200
150
100
50
0
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (ºC)
P
M(AV)
, Steady State Power Dissipation (W)
1
10
Number of Cycles at 60 Hz
100
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to http://www.Littelfuse.com/series/5.0SMDJ.html for current information.
61
Revision: January 09, 2009
5.0SMDJ Series
5.0SMDJ Series
Figure 1 - Peak Pulse Power Rating Curve
Figure 2 - Pulse Derating Curve
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Soldering Parameters
Reflow Condition
T
P
t
p
Ramp-up
Critical Zone
T
L
to T
P
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp
(T
L
) to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Time (min to max) (t
s
)
150°C
200°C
Temperature (T)
T
L
T
s(max)
t
L
3°C/second max
3°C/second max
217°C
260
+0/-5
°C
Ramp-down
T
s(min)
t
s
Preheat
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
6°C/second max
8 minutes Max.
280°C
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102D
Environmental Specifications
Temperature Cycle
Pressure Cooker
High Temp. Storage
HTRB
Thermal Shock
JESD22-A104
JESD 22-A102
JESD22-A103
JESD22-A108
JESD22-A106
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
Dimensions
A
Inches
Min
0.114
0.260
0.220
0.079
0.030
-
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
-
7
.750
0.152
3.300
2.400
-
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
C
B
C
D
E
B
H
D
F
E
J
F
G
H
I
J
K
L
G
K
L
I
5.0SMDJ Series
62
Revision: January 09, 2009
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to http://www.Littelfuse.com/series/5.0SSMDJ.html for current information.
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Part Numbering System
5.0SMDJ
XXX C A
Part Marking System
Cathode Band
5%
VOLTAGE TOLERANCE
BI-DIRECTIONAL
VOLTAGE
SERIES
F
Littelfuse Logo
Marking Code
Packaging
Part number
5.0SMDJxxxXX
Component
Package
DO-214AB
Quantity
3000
Packaging
Option
Packaging
Specification
EIA STD RS-481
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to http://www.Littelfuse.com/series/5.0SMDJ.html for current information.
63
Revision: January 09, 2009
5.0SMDJ Series
5.0SMDJ Series
XXXX
京公网安备 11010802033920号
EEWORLD
