67491-1032 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 67491-1032

67491-1032: DescriptionI/O Connectors 7Ckt Vert Signal Hdr; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

67491-1032 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	67491-1032	-	-	View	Buy Now

67491-1032 Overview

I/O Connectors 7Ckt Vert Signal Hdr

67491-1032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

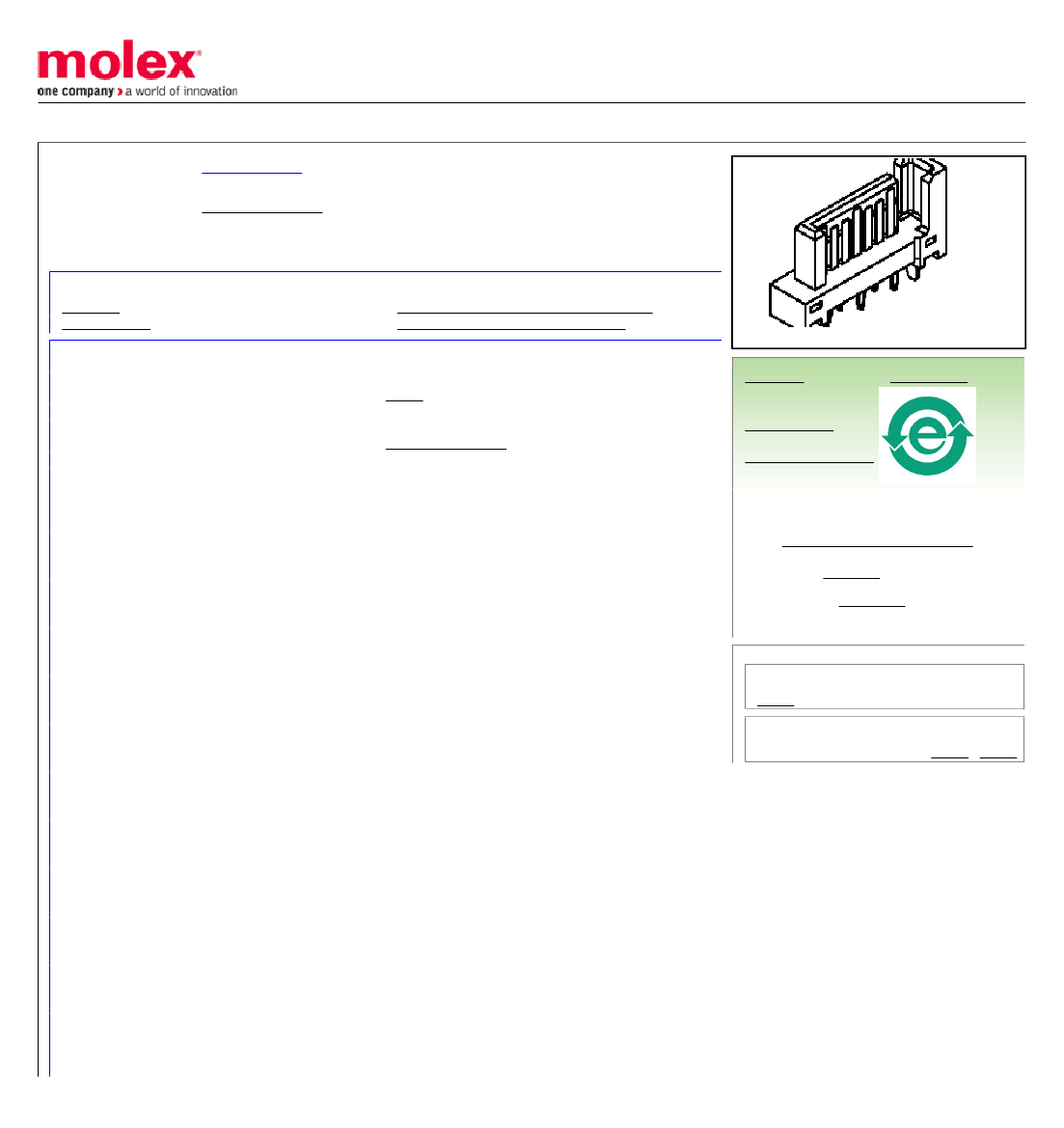

This document was generated on 10/25/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

67491-1032

Active

Serial ATA Products

1.27mm Pitch Serial ATA High Speed Header, Through Hole, Vertical, 7 Circuits,

0.38µm Gold (Au) Selective Plating, with 2.05mm PC Tail Length, for 1.60mm PCB,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-67491-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

MolexKits

Overview

Product Name

UPC

PCB Headers

67491

Board-to-Board, Signal, Wire-to-Board

Yes

Serial ATA Products

Serial ATA

822348677566

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

Yes

Gold

Tin

1.228/g

Vertical

2.05mm

Yes

1.60mm

Tray

1.27mm

0.381µm

1.270µm

Yes

-35°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

67491Series

Mates With

Serial ATA Signal Connector 67489 , 88755

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.5A

15V DC
