171574-7807 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 171574-7807

171574-7807: DescriptionHigh Speed / Modular Connectors Impact Ortho Direct 4Px8C Top Guide; CategoryThe connector The connector; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

171574-7807 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	171574-7807	-	-	View	Buy Now

171574-7807 Overview

High Speed / Modular Connectors Impact Ortho Direct 4Px8C Top Guide

171574-7807 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Is Samacsys	N
body width	0.996 inch
subject depth	1.673 inch
body length	0.992 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.3336 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.074 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.8796 mm
Termination type	PRESS FIT
Total number of contacts	96
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

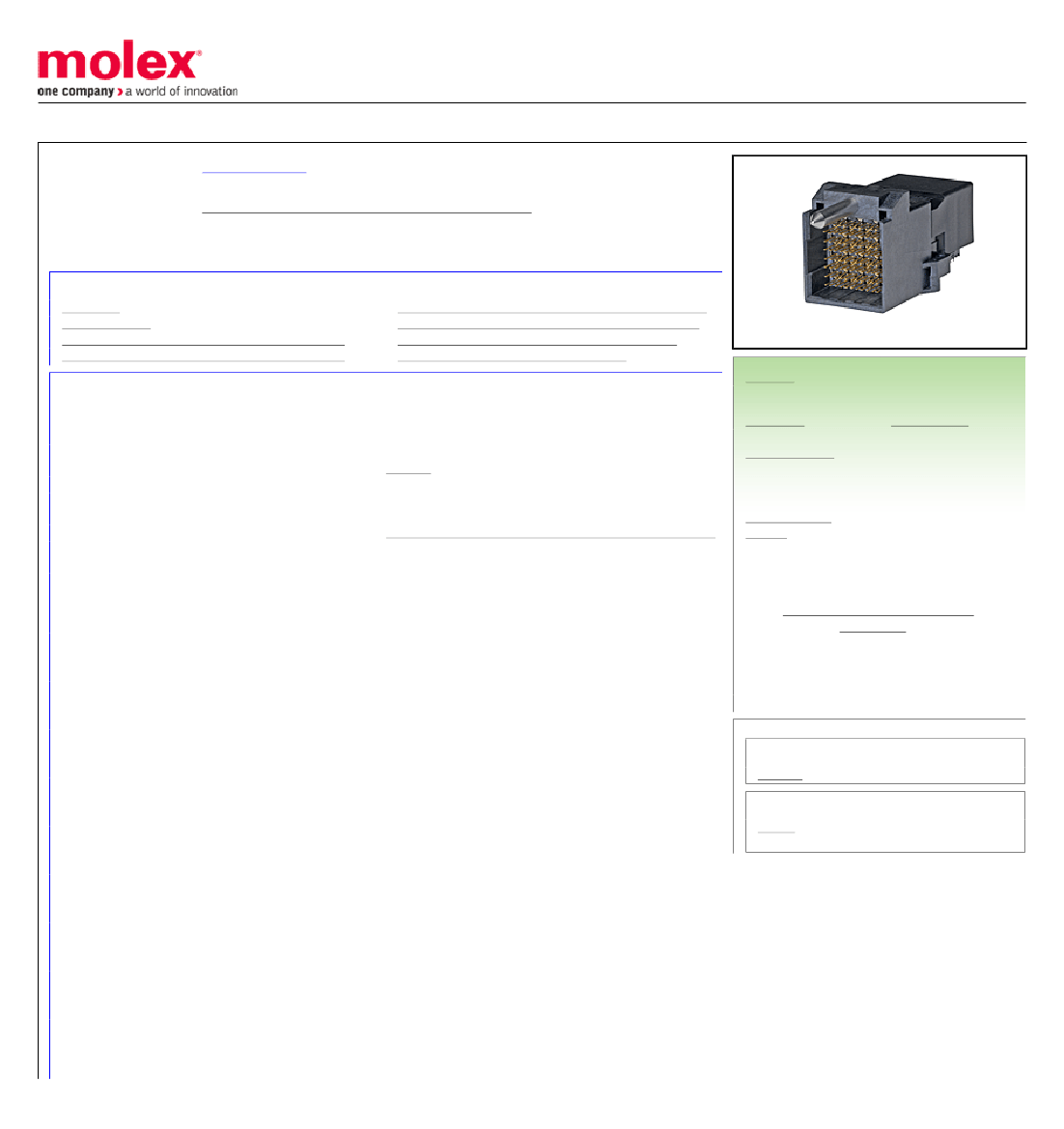

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1715747807

Active

Impact™ Backplane Connectors and Cable Assemblies

Impact 100 Ohm Right-Angle Orthogonal Direct Header, 4-Pair, Top Guide, Bottom

Endwall, with Outrigger, 8 Column, 32 Differential Pair, Pin Length 4.90mm, 0.39mm

Plated Through-Hole, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45499-002-001 (PDF)

Product Specification PS-76060-999-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Application Specification AS-76060-9999-001 (PDF)

Application Specification AS-76850-990-001 (PDF)

Packaging Specification PK-70873-8020 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

E29179

Backplane Connectors

171574

Orthogonal Direct

TM-622018799

PCB Header

Impact™ Backplane Connectors and Cable Assemblies

Impact

887191128276

Black

200

Yes

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

22.208/g

Right Angle

1.20mm

Yes

1.00mm

Tray

1.35mm, 1.90mm, 2.15mm

0.762µm

Yes

-55°C to +85°C

Through Hole - Compliant Pin

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

171574 Series

Mates With

76850 Impact 100 Ohm Right Angle

Orthogonal Daughtercard
