Limit Switches EBXTHRDRLR SIDXIT 1M CBL
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size152KB,3 Pages
ManufacturerCrouzet
Download Datasheet Parametric View All

83876101 Online Shopping

Suppliers Part Number Price MOQ In stock
83876101 - - View Buy Now

83876101 Overview

Limit Switches EBXTHRDRLR SIDXIT 1M CBL

83876101 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCrouzet
Product CategoryLimit Switches
RoHSDetails
Contact FormSPDT
ActuatorPlunger
Current Rating10 A
Voltage Rating AC125 VAC, 250 VAC
Voltage Rating DC24 VDC
Operating Force10 N
NEMA Rating1, 3, 4, 6, 13
Termination StyleCable (1 m)
MountingCable
IP RatingIP66, IP67
Operating Temperature Range- 25 C to + 70 C
TypeEnclosed Limit Switch
Switch TypeLimit Switches
Factory Pack Quantity1
02/11/2015
www.crouzet.com

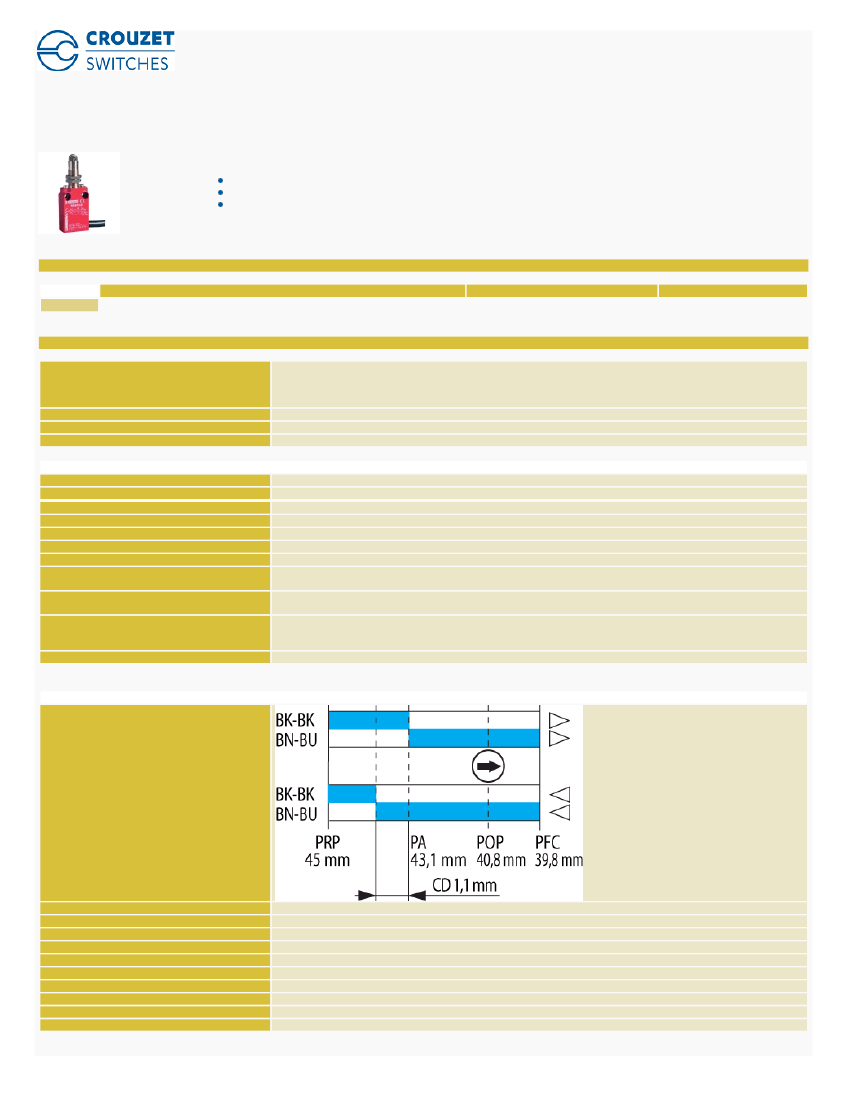

83870 with cable output Roller plunger - metal with threaded barrel Part number 83876101
IP 66/67
Metal case
cUL approval
Part numbers
Type
83 876 101
Roller plunger - metal with threaded barrel
Characteristics
Plunger with 90° roller
Type of output
Cable length 1 m
Specifications
Conformity to standards
IEC / EN 60947.5.1
Dimensional conformity : NFC 63145
Low voltage directive : 73/23/EEC and 93/68/EEC
Electric shock protection : NFC 20030 ou IEC 60536 class 1, degree of pollution 3
Protection against electric shocks
Degree of protection IEC 60529
Degree of protection according to NEMA 250
Type 1, 3, 4, 6, 13
Electrical characteristics
Connection
Operating temperature (°C)
Assigned impulse voltage (Uimp) - V
Assigned insulation voltage Ui (V)
Thermal current I (A)
Low-load switching - Minimum voltage (V)
Low-load switching - Minimum current (mA)
Assigned working characteristics (EN 60 947.5.1, UL
508)
Electrical life according to IEC 947-5-1 appendix C
Electrical protection
-25 →+70 °C
2500
500
10
10
100
A300 = AC15 240 V 3 A / 120 V 6 A Alternating current
Q150 = DC13 125 V 0.55 A Direct current
250 V 3 A AC15 500,000 operations
24 V 8 W DC13 500,000 operations
Integral protective earth conductor
Short-circuit protection device : IEC/EN 60947-5-1
Fuse 6 AgG
UL 508, UL 50
Approvals
Mechanical characteristics
Sequence
Snap action
Minimum operating force (N)
Minimum operating force (Nm)
Minimum total travel force (N)
Minimum total travel force (Nm)
Min. positive opening travel (N)
Min. positive opening travel (Nm)
Mechanical life (millions of operations)
Vertical approach speed
Horizontal approach speed (30° cam)
Weight (g)
10
-
30
-
28
-
28
1 mm/min →0,5 m/s
1 mm/min →0,3 m/s
200
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
