ZB6DA2

Description
Switch Actuators 16MM PB 65168-010
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size96KB,5 Pages
ManufacturerSCHNEIDER ELECTRIC
Download Datasheet Parametric View All

ZB6DA2 Online Shopping

Suppliers Part Number Price MOQ In stock
ZB6DA2 - - View Buy Now

ZB6DA2 Overview

Switch Actuators 16MM PB 65168-010

ZB6DA2 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerSCHNEIDER ELECTRIC
Product CategorySwitch Actuators
ColorBlack
ActuatorRectangular
IlluminationNone
MaterialPlastic
ProductStandard Switches
Termination StyleQuick Connect Terminal
Width16 mm
Mounting StylePanel
Cap ColorBlack
Factory Pack Quantity1

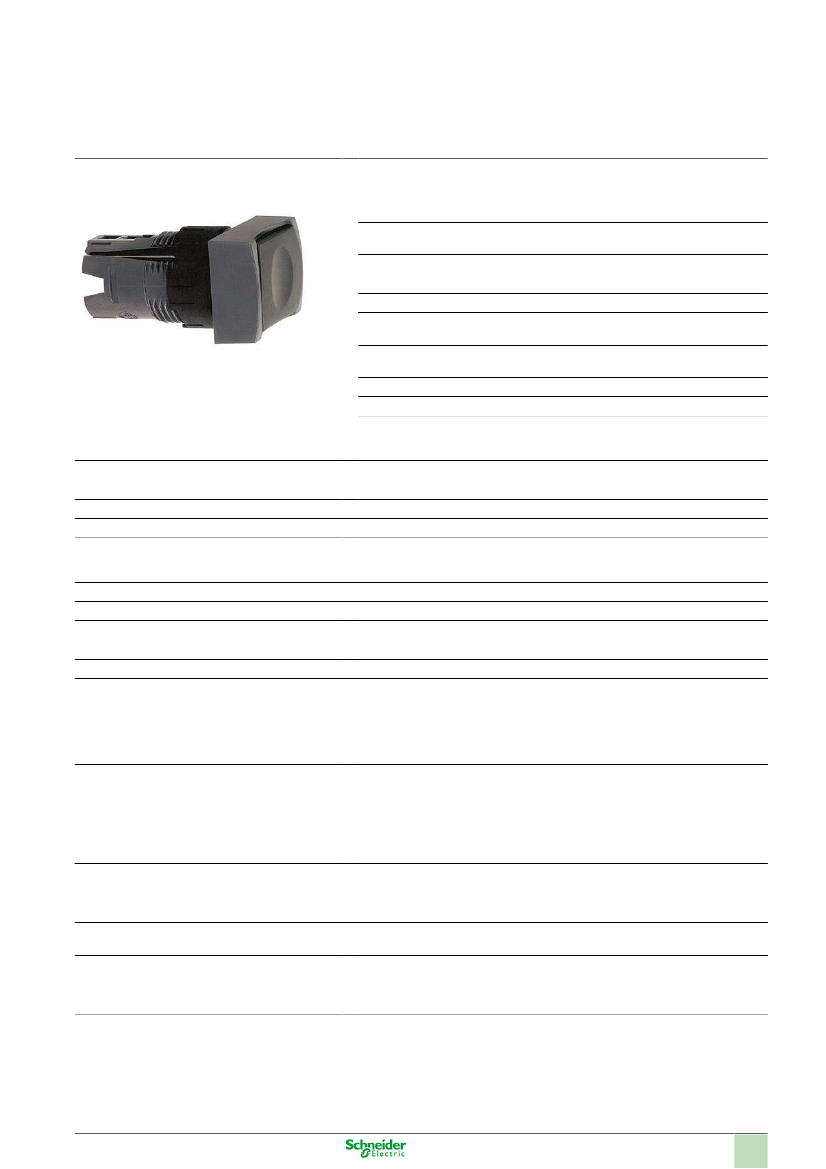

Product data sheet
Characteristics
ZB6DA2
black rectang flush pushbutton head Ø16
spring return unmarked
Main
Range of product
Product or component
type
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Harmony XB6
Head for non-illuminated push-button
ZB6
Plastic
16 mm
1
Rectangular
Spring return
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Black flush unmarked
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
24 mm
18 mm
33 mm
0.016 kg
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP65 conforming to IEC 60529
NEMA 4X conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4X conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 13 conforming to UL 50
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CCC
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC
60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC
60068-2-27
Standards
Product certifications
Vibration resistance
Shock resistance
Feb 18, 2018
