SRU6025-680Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SRU6025-680Y

SRU6025-680Y: DescriptionFixed Inductors 68uH 30% SMD 6025; CategoryPassive components inductor; File Size243KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SRU6025-680Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRU6025-680Y	-	-	View	Buy Now

SRU6025-680Y Overview

Fixed Inductors 68uH 30% SMD 6025

SRU6025-680Y Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	2624
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Is Samacsys	N
uppercase and lowercase codes	2624
structure	Shielded
core material	FERRITE
DC Resistance	0.365 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.5 mm
Package length	6.5 mm
Package form	SMT
Package width	6.2 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.4 A
self resonant frequency	8 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	ON CIRCLE
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Available in E6 series

■

Unit height of 2.8 mm

■

Current up to 3.5 A

■

RoHS compliant*

Applications

■

Input/output of DC/DC converters

■

Power supplies for:

100

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

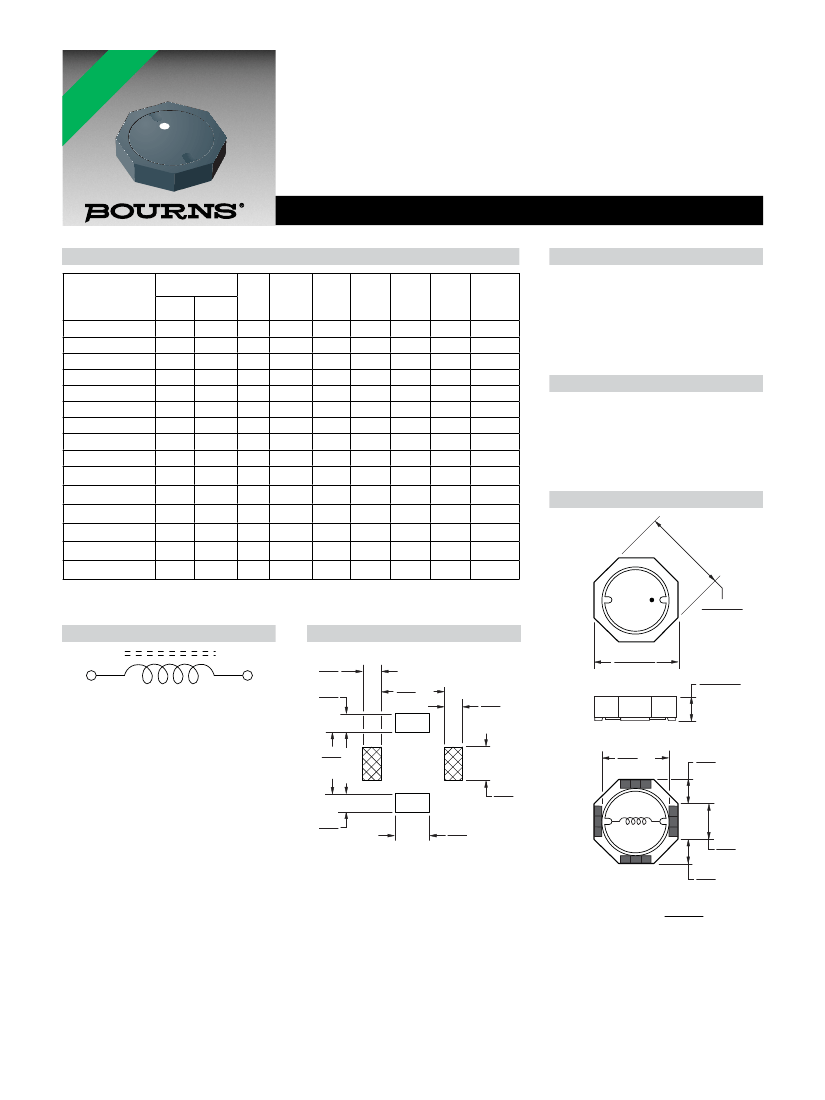

SRU6025 Series - Shielded SMD Power Inductors

Electrical Speciﬁcations

Bourns

Part Number

Inductance

@ 100 KHz

Tol.

(µH)

(%)

Ref.

Test

Freq.

(MHz)

SRF

Typ.

(MHz)

RDC

Max.

(mΩ)

I rms

Max.

(A)

I sat

Typ.

(A)

General Speciﬁcations

Test Voltage ....................................0.1 V

Reﬂow Soldering .. 230 °C, 50 sec. max.

Operating Temp. .........-40 °C to +125 °C

(Temperature rise included)

Storage Temp. ............-40 °C to +125 °C

Resistance to Soldering Heat

............................... 260 °C for 10 sec.

Materials

Core ....................Ferrite DR and RI core

Wire ............................Enameled copper

Terminal ....................................Ag/Ni/Sn

Rated Current..Ind. drop 35 % typ. at Isat

Temp. Rise.......30 °C max. at rated Irms

Packaging .................... 600 pcs. per reel

Product Dimensions

**K-

Factor

SRU6025-1R2Y

SRU6025-2R2Y

SRU6025-3R3Y

SRU6025-4R7Y

SRU6025-6R8Y

SRU6025-8R2Y

SRU6025-100Y

SRU6025-150Y

SRU6025-220Y

SRU6025-330Y

SRU6025-470Y

SRU6025-680Y

SRU6025-101Y

SRU6025-151Y

SRU6025-221Y

1.2

2.2

3.3

4.7

6.8

8.2

100

150

220

±30

7.96

2.52

120

130

180

250

365

500

770

1250

4.00

3.40

3.20

2.70

2.40

2.20

2.00

1.80

1.60

1.20

1.00

0.80

0.70

0.54

0.42

3.20

2.35

2.00

1.55

1.30

1.25

1.05

0.92

0.70

0.64

0.48

0.40

0.35

0.28

0.24

535

370

321

253

229

193

178

146

123

**K-Factor: To calculate core ﬂux density, Bp-p (gauss) = K x L(µH) x

I (peak-to-peak ripple current, A),

determine core loss from

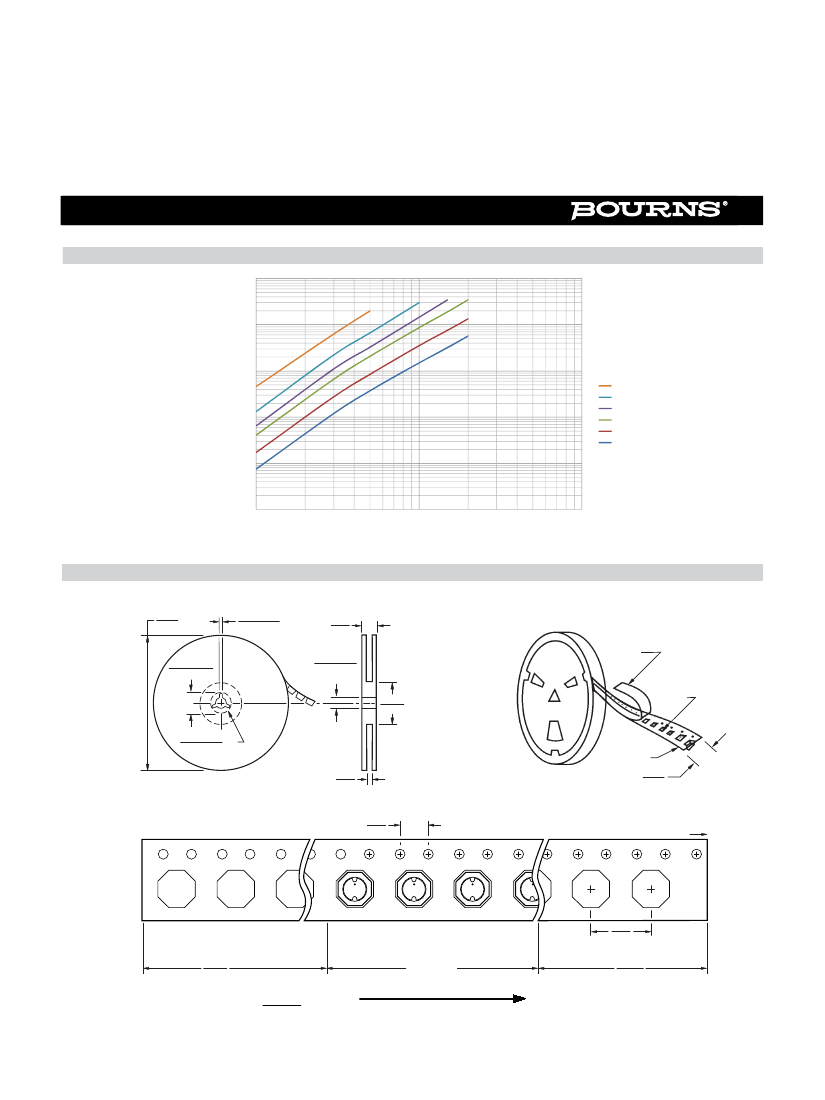

Core Loss vs. Flux Density

plot on page 2.

100

6.20 ± 0.30

(.244 ± .012)

Electrical Schematic

Recommended Layout

REF.

1.10

(.043)

1.10

(.043)

REF.

4.90

REF.

(.193)

1.10

(.043)

REF.

6.50 ± 0.30

(.256 ± .012)

2.50 ± 0.30

(.098 ± .012)

4.90

(.193)

REF.

2.40

(.094)

REF.

1.10

(.043)

REF.

2.40

REF.

(.094)

4.90

TYP.

(.193)

2.15

(.085)

TYP.

2.20

(.087)

TYP.

2.15

TYP.

(.085)

DIMENSIONS:

(INCHES)

* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device

performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

SRU6025-680Y Related Products

	SRU6025-680Y	SRU6025-100Y	SRU6025-330Y	SRU6025-151Y	SRU6025-2R2Y	SRU6025-4R7Y
Description	Fixed Inductors 68uH 30% SMD 6025	Fixed Inductors 10uH 30% SMD 6025	Fixed Inductors 33uH 30% SMD 6025	Fixed Inductors 150uH 30% SMD 6025	Fixed Inductors 2.2uH 30% SMD 6025	Fixed Inductors 4.7uH 30% SMD 6025
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
package instruction	2624	2624	2624	2624	2624	2624
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	18 weeks	18 weeks	18 weeks	18 weeks	18 weeks	18 weeks
uppercase and lowercase codes	2624	2624	2624	2624	2624	2624
structure	Shielded	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.365 Ω	0.057 Ω	0.18 Ω	0.77 Ω	0.024 Ω	0.035 Ω
Nominal inductance(L)	68 µH	10 µH	33 µH	150 µH	2.2 µH	4.7 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3
Number of functions	2	1	1	1	1	1
Number of terminals	4	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Package length	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT
Package width	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm
method of packing	TR	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch	TR, Embossed, 7 Inch
Maximum rated current	0.4 A	2 A	1.2 A	0.54 A	3.4 A	2.7 A
self resonant frequency	8 MHz	25 MHz	12 MHz	5 MHz	65 MHz	42 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	ON CIRCLE	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	30%	30%	30%	30%	30%
