STB0899
Multistandard advance demodulator STB0899
Digital TV satellite set-top boxes
DATA BRIEF
DESCRIPTION
The STB0899 advanced demodulator from
STMicroelectronics enables digital set-top boxes
to process base-band DVB-S2 signals into digital
video transport stream data. This data is then
ready to be fed directly to the STB decoder.
By incorporating the DVB-S standard, the
STB0899 supports seamless migration to DVB-S2
services.
The STB0899 and STB6100 silicon tuner may be
coupled with a decoder from ST’s OMEGA range,
thus forming a complete silicon solution for
DVB-S / DVB-S2 set-top boxes.
The interface between these devices has been
designed to ensure simple layouts and the lowest
possible bill of materials cost.
Package (208 pin PQFP package)
xxxx

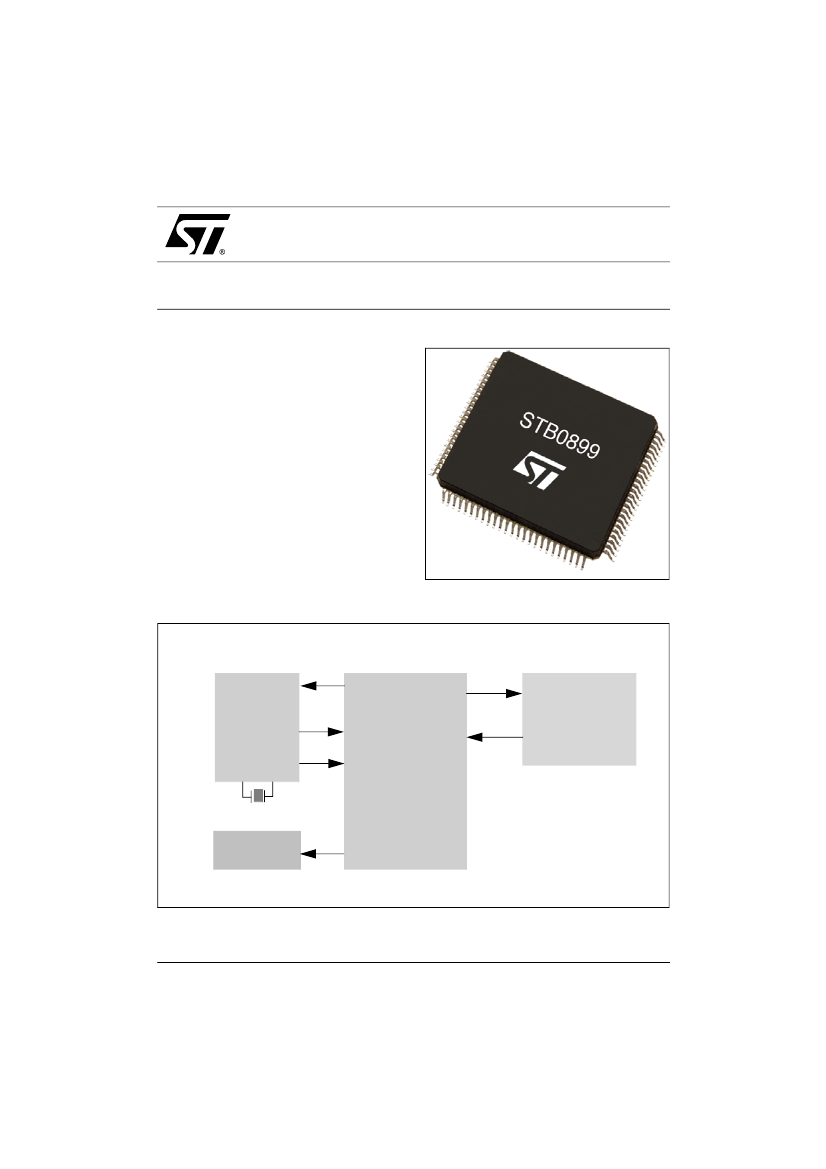

Figure 1. STB0899 DVB-S2 set-top box
Tuner
I²C
Demodulator
TS
Back-end chip
STB6100
I, Q
Clk
STB0899
OMEGA decoder
I²C
LNB power supply
LNBP22
DiSEqC
Rev. 1
December 2004
1/2
STB0899
FEATURES
■
DVB-Q2 demodulator and decoder
– QPSK, 8PSK, 4 + 12 APSK
– Hierarchical 8PSK enhanced processor
– DVB-S2 pilot processing
– LDPC and BCH decoding
– Supports all DVB-S2 bit rates
– DVB-S2 framing
■
■
■
Compatible with direct conversion tuners
– Dual 8-bit analogue conversion
– Dual
Σ∆
digital split AGC RF/BB
– Wide range carrier tracking loop
– Flexible clock generation
Transport decoder
– Compliant with DVB common interface
– 12-bit parallel and 7-bit serial interface
Legacy support for DVB-S and DIRECTV
QPSK modes
Digital carrier and timing recovery loops
®
■
■
DiSEqC 2.0 22 kHz to 100 kHz interface
TQPFP 100 exposed pad package
■
PART NUMBERING
Table 1. Order codes
Part Number
STB0899
EVALDVBS2
Description
DVB-S2
demodulator
Evaluation board
REVISION HISTORY
Table 2. Revision history
Date
December-2004
Revision
1
First issue
Description of changes
