5698302021: DescriptionFerrite Cores & Accessories 98 Pot Core P30/19 Ind 5800 nH 25% TOL; CategoryPassive components; File Size510KB，1 Pages; ManufacturerFair Rite

Download Datasheet Parametric View All

5698302021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5698302021	-	-	View	Buy Now

5698302021 Overview

Ferrite Cores & Accessories 98 Pot Core P30/19 Ind 5800 nH 25% TOL

5698302021 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Fair Rite
Product Category	Ferrite Cores & Accessories
RoHS	Details
Product	Ferrite Cores
Core	P Core
Core Size	30 x 19
Inductance	5.8 uH
Tolerance	25 %
Core Material	98
Packaging	Bulk
Inside Diameter	25 mm
Outside Diameter	30 mm
Outside Height	9.4 mm
Factory Pack Quantity	144
Unit Weight	1.199315 oz

Preview

Download Datasheet

View All

Pot Cores (5698302021)

Part Number: 5698302021

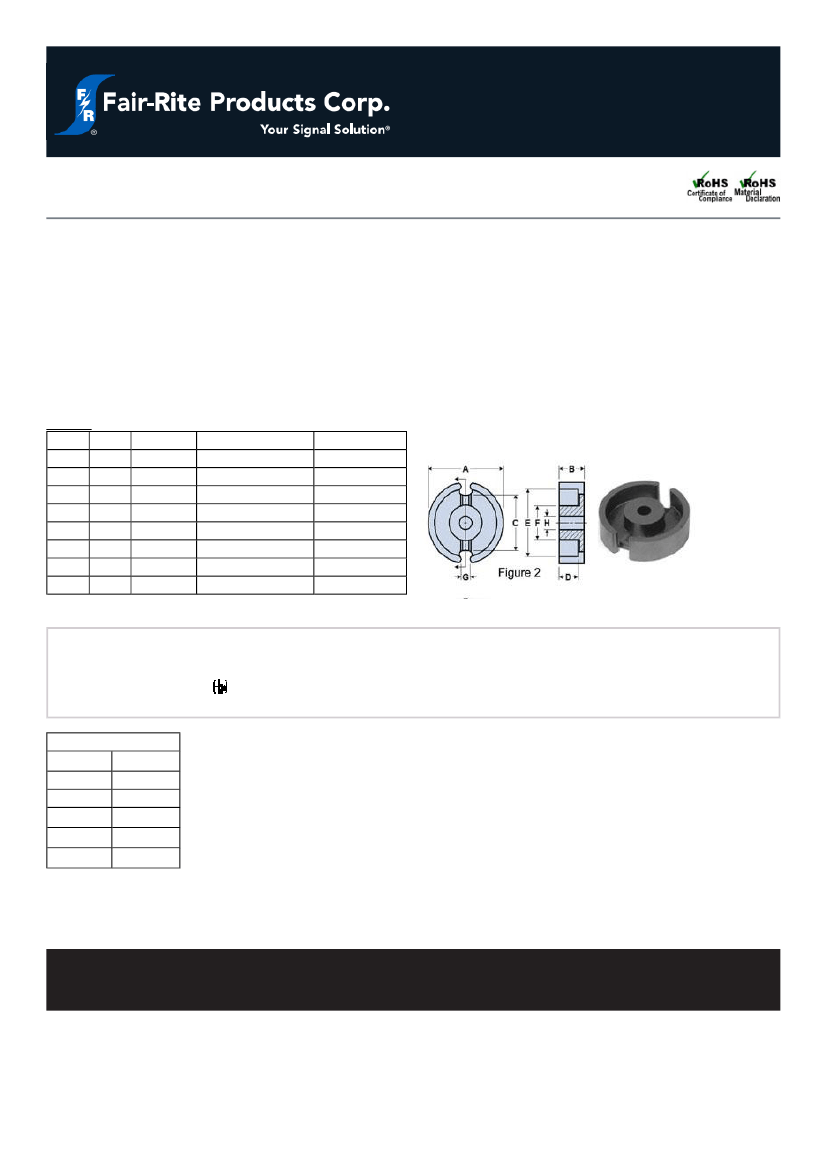

98 POT CORE SET

Pot cores have found application in all types of inductive devices. The core configuration provides a high degree of self-

shielding. It also facilitates gapping to enhance utility for a variety of magnetic designs.

Pot cores can be supplied with the center post gapped to a mechanical dimension or an A

value.

Weight indicated is per pair or set.

Weight: 34.000 (g)

Dim mm mm tol

±0.50

9.4

±0.20

20.6 min

6.6

±0.20

min

13.3 ±0.20

3.68 min

5.6

±0.20

nominal inch

1.181

0.37

0.811

0.26

0.984

0.524

0.145

0.22

inch misc.

min

Chart Legend

Σl/ A : Core Constant, l

: Effective Path Length, A

: Effective Cross- Sectional Area, V

Effective Core Volume

: Inductance Factor

Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade.

Electrical Properties

(nH)

5800 ±25%

Ae(cm ) 1.27

-1

Σl/ A(cm ) 3.56

(cm)

4.53

(cm )

5.75

min

(cm ) 1.14

value is measured at 1 kHz, B < 10 gauss.

Fair- Rite Products Corp.

•

One Commercial Row, Wallkill, New York 12589-0288

888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
