854823: DescriptionSignal Conditioning 86.6MHz BW 0.2MHz SAW Filter; CategoryAnalog mixed-signal IC filter; File Size35KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com; Environmental Compliance

Download Datasheet Parametric View All

854823 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854823	-	-	View	Buy Now

854823 Overview

Signal Conditioning 86.6MHz BW 0.2MHz SAW Filter

854823 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Qorvo
Reach Compliance Code	compliant
Maximum attenuation frequency (+/- delta f)	400 kHz
Attenuation frequency (+/-Δf) - minimum value	170 kHz
Attenuation at maximum frequency	28 dB
Center frequency or cutoff frequency (fo/fc)	86.6 MHz
filter type	SAW FILTER
high	1.911 mm
input resistance	50 OHM
Maximum insertion loss	6.5 dB
length	18.326 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω
physical size	L0.748XB0.256XH0.078 (inch)
width	6.272 mm
Base Number Matches	1

Preview

Download Datasheet

View All

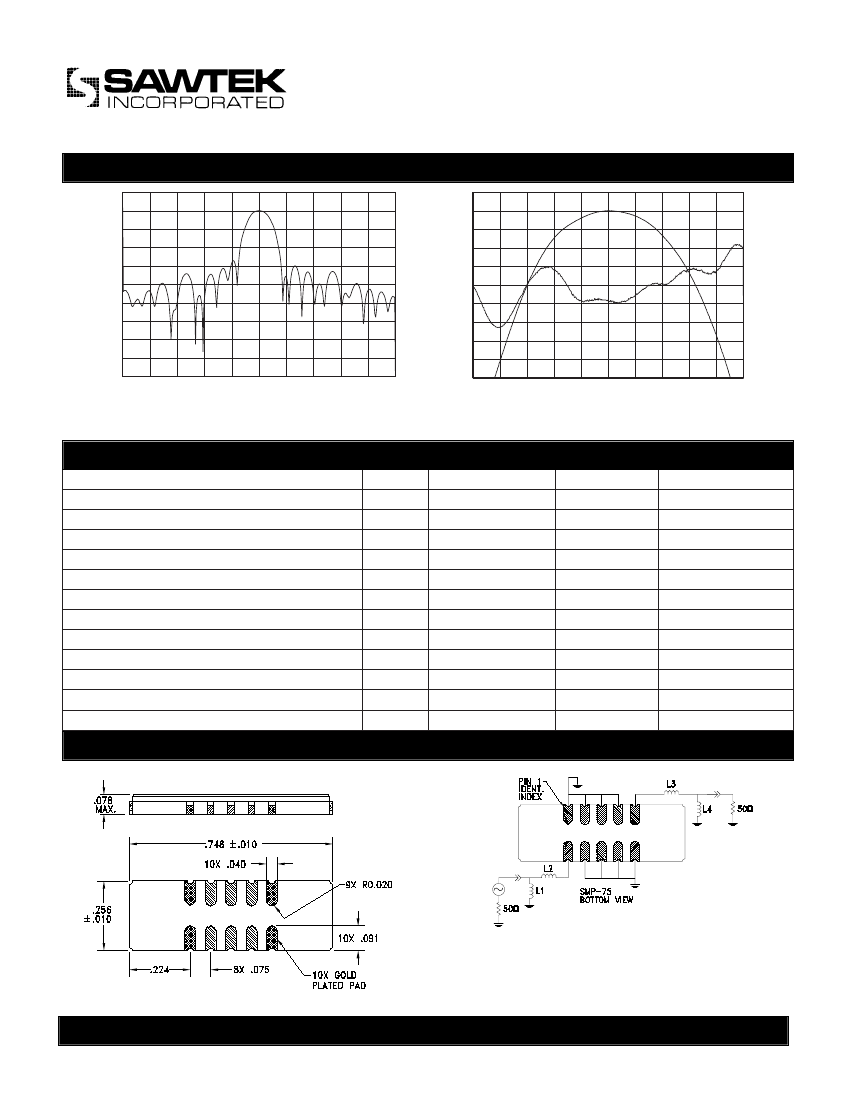

86.6 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal: 500 kHz/Div

84.1 84.6 85.1 85.6 86.1 86.6 87.1 87.6 88.1 88.6 89.1

Vertical: 10 dB/Div

1

0

-1

-2

-3

-4

-5

-6

-7

-8

-9

86.3

86.36

86.42

500

400

300

200

100

0

-100

-200

-300

-400

-500

86.78

86.84

-

6.5

-

86.8

-

87.4

1

200

-

2.0:1

-

85

86.9

for GSM / DCS / PCS Applications

Part Number 854823

Horizontal: 60 kHz/Div

Vertical: 1 dB/Div

Vertical: 50 nsec/Div

86.48

86.54

86.6

86.66

86.72

Parameter

Center Frequency

Insertion Loss at F

o

Lower 3.5 Point

Upper 3.5 Point

Lower 28 Point

Upper 28 Point

Amplitude Variation

Group Delay Variation

Ultimate Rejection

VSWR

Substrate Material

Temperature Range

Specifications

Unit

Minimum

MHz

dB

MHz

dB

nsec

dB

-

°C

-

86.4

-

85.8

-

33

-

-40

Typical

86.6

5.5

86.43

86.78

86.23

87

0.6

70

40

1.4:1

Quartz

25

Maximum

Package Outline

Matching Configuration

L1 = 47 nH , L2 = 82 nH

L3 = 130 nH , L4 = 47 nH

Nominal Source/Load Impedance = 50Ω

Package Style SMP-75

11/24/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
