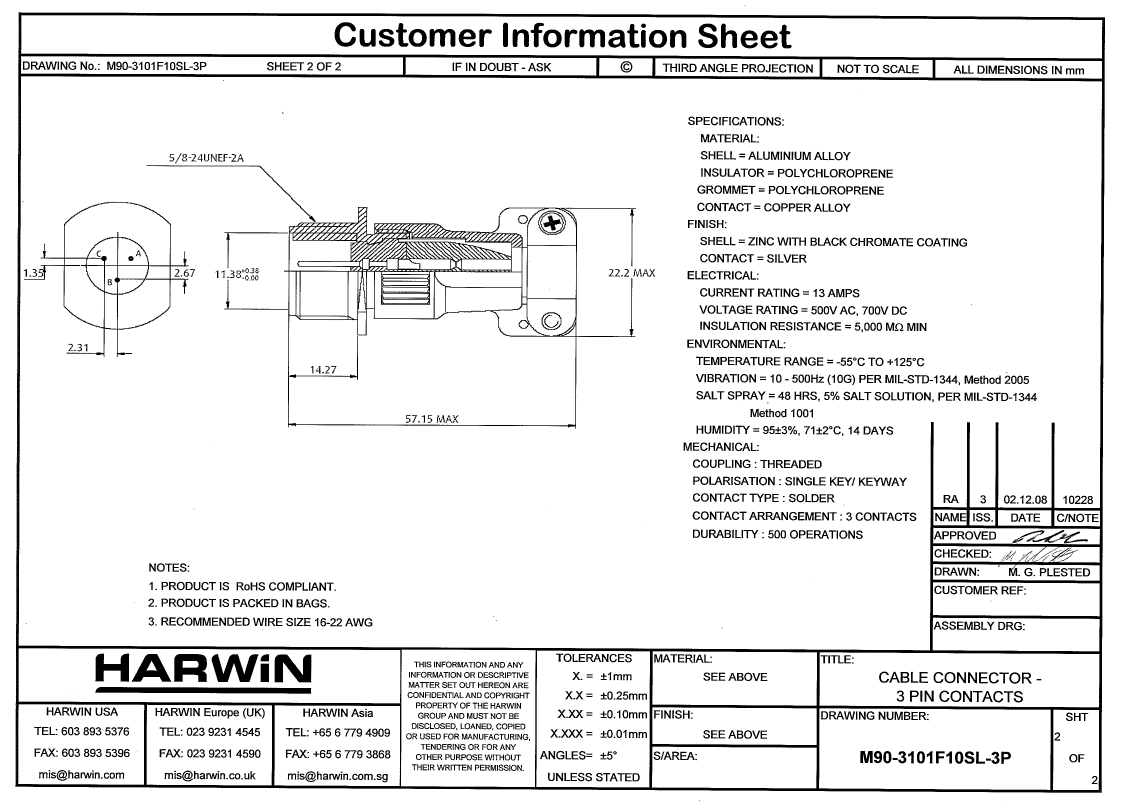

M90-3101F10SL-3P datasheet, PDF

M90-3101F10SL-3P: DescriptionCircular MIL Spec Connector 3P CABLE PLUG MIL-C-5015 COMPTBL; CategoryThe connector; File Size284KB，5 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M90-3101F10SL-3P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M90-3101F10SL-3P	-	-	View	Buy Now

Circular MIL Spec Connector 3P CABLE PLUG MIL-C-5015 COMPTBL

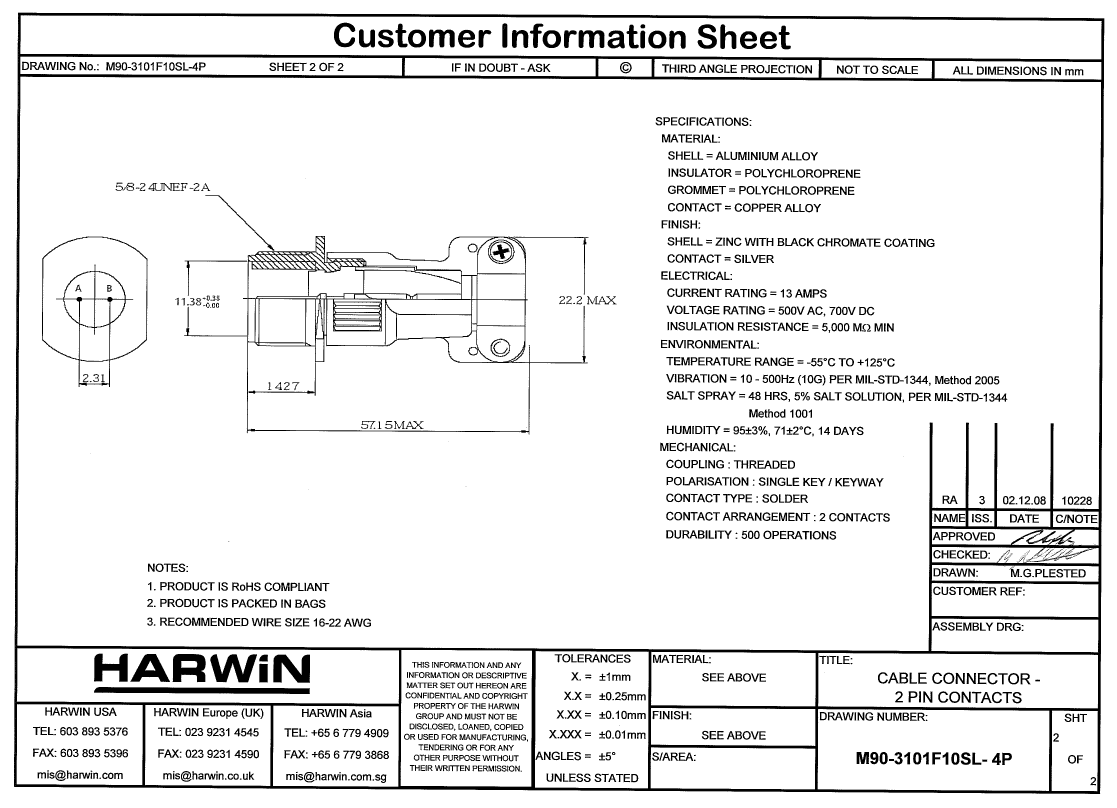

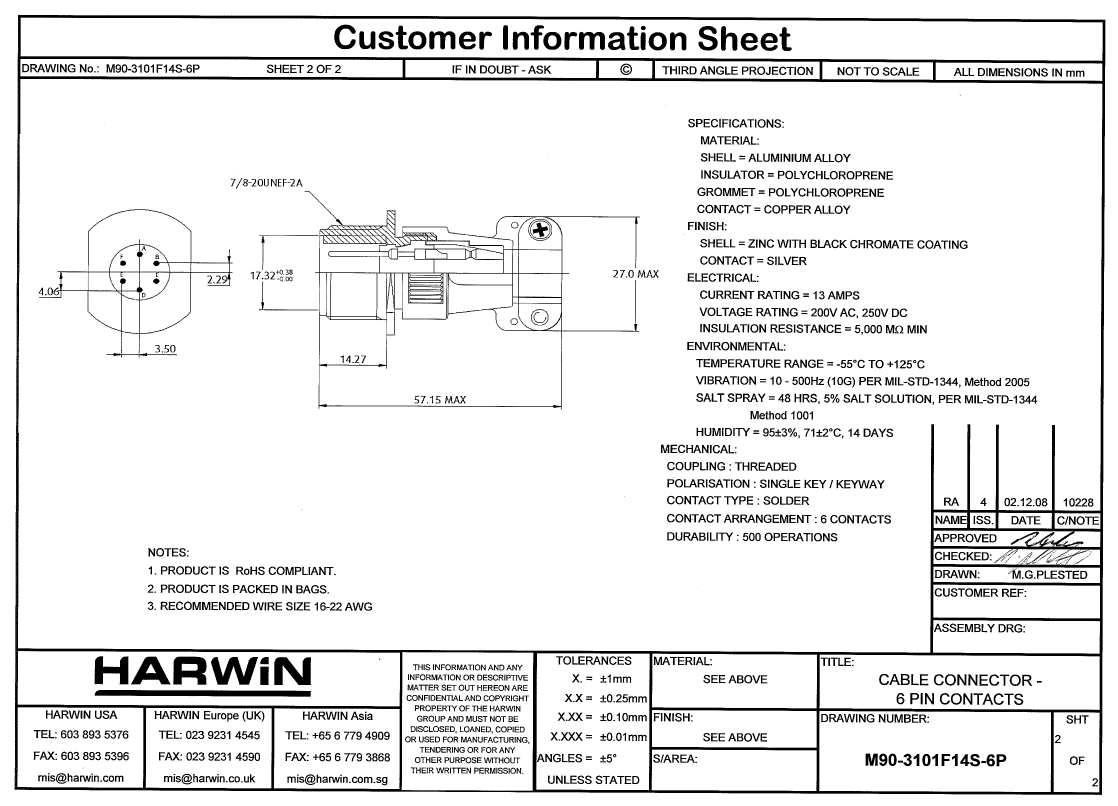

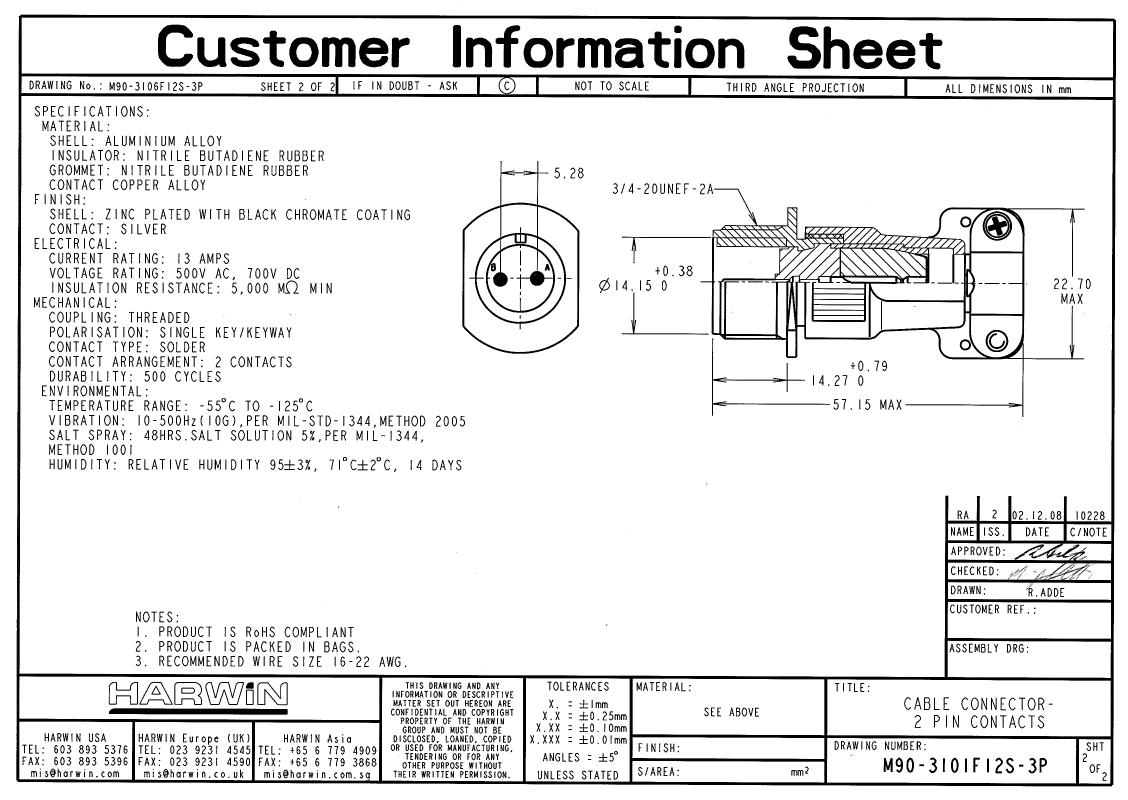

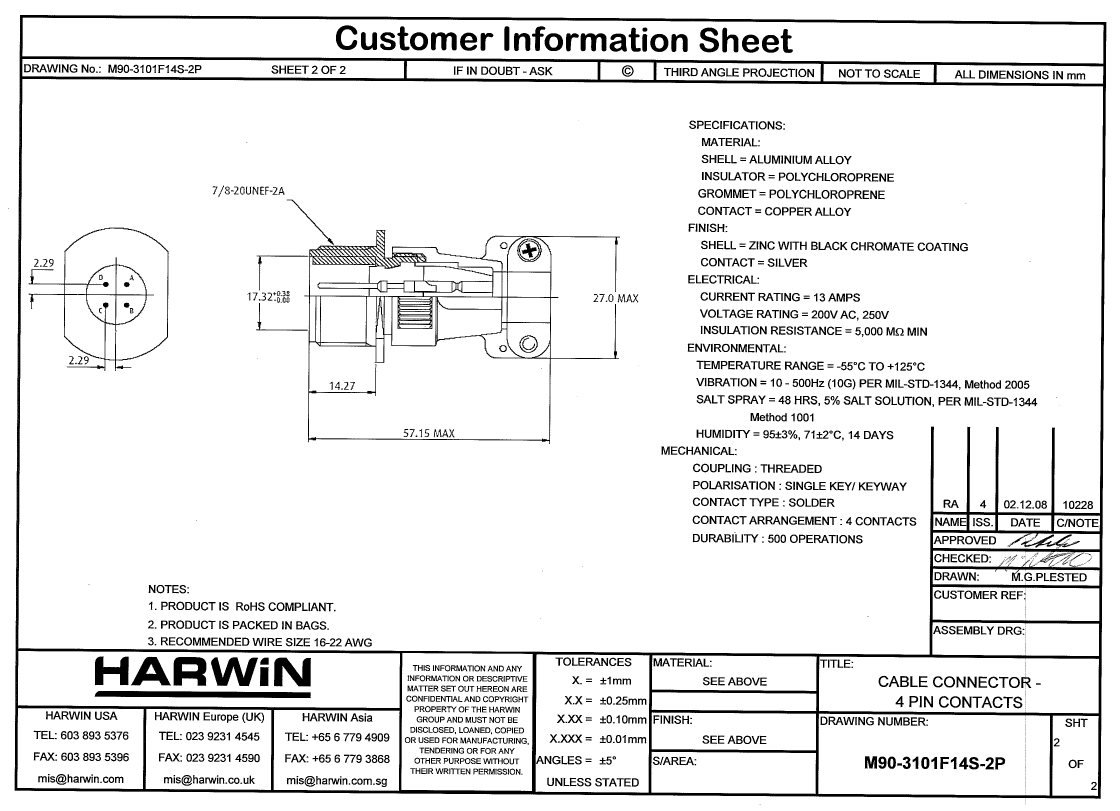

	M90-3101F10SL-3P	M90-3101F14S-2P	M90-3101F14S-6P
Description	Circular MIL Spec Connector 3P CABLE PLUG MIL-C-5015 COMPTBL	Circular MIL Spec Connector 4P CABLE PULG MIL-C-5015 COMPTBL	Circular MIL Spec Connector 6P CABLE PLUG MIL-C-5015 COMPTBL
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Harwin	Harwin	Harwin
Product Category	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector
RoHS	Details	Details	Details
Number of Positions	3 Position	4 Position	6 Position
Insert Arrangement	10SL-3	14S-2	14S-6
Contact Gender	Pin (Male)	Pin (Male)	Pin (Male)
MIL Type	MIL-DTL-5015	MIL-DTL-5015	MIL-DTL-5015
Product	Receptacles	Receptacles	Receptacles
Shell Size	10SL	14S	14S
Shell Style	In-Line	In-Line	In-Line
Mounting Style	Cable	Cable	Cable
Termination Style	Solder	Solder	Solder
Current Rating	13 A	13 A	13 A
Contact Plating	Silver	Silver	Silver
Mounting Angle	Straight	Straight	Straight
Voltage Rating	500 VAC / 700 VDC	200 VAC / 250 VDC	200 VAC / 250 VDC
Shell Plating	Zinc with Black Chromate	Zinc with Black Chromate	Zinc with Black Chromate
Mating Style	Threaded	Threaded	Threaded
Shell Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Factory Pack Quantity	100	100	100
Wire Gauge	22-16	22-16	22-16
