881739-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 881739-1

Preview

881739-1: DescriptionASS'Y JR P.TIMER 2W; CategoryThe connector The connector; File Size237KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

881739-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	881739-1	-	-	View	Buy Now

881739-1 Overview

ASS'Y JR P.TIMER 2W

881739-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Samacsys Description	ASS\'Y JR P.TIMER 2W
Other features	POLARISED
body width	0.885 inch
subject depth	1.457 inch
body length	0.984 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
empty shell	NO
Filter function	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Total number of contacts	2
UL Flammability Code	94-HB
Base Number Matches	1

Preview

Download Datasheet

View All

8

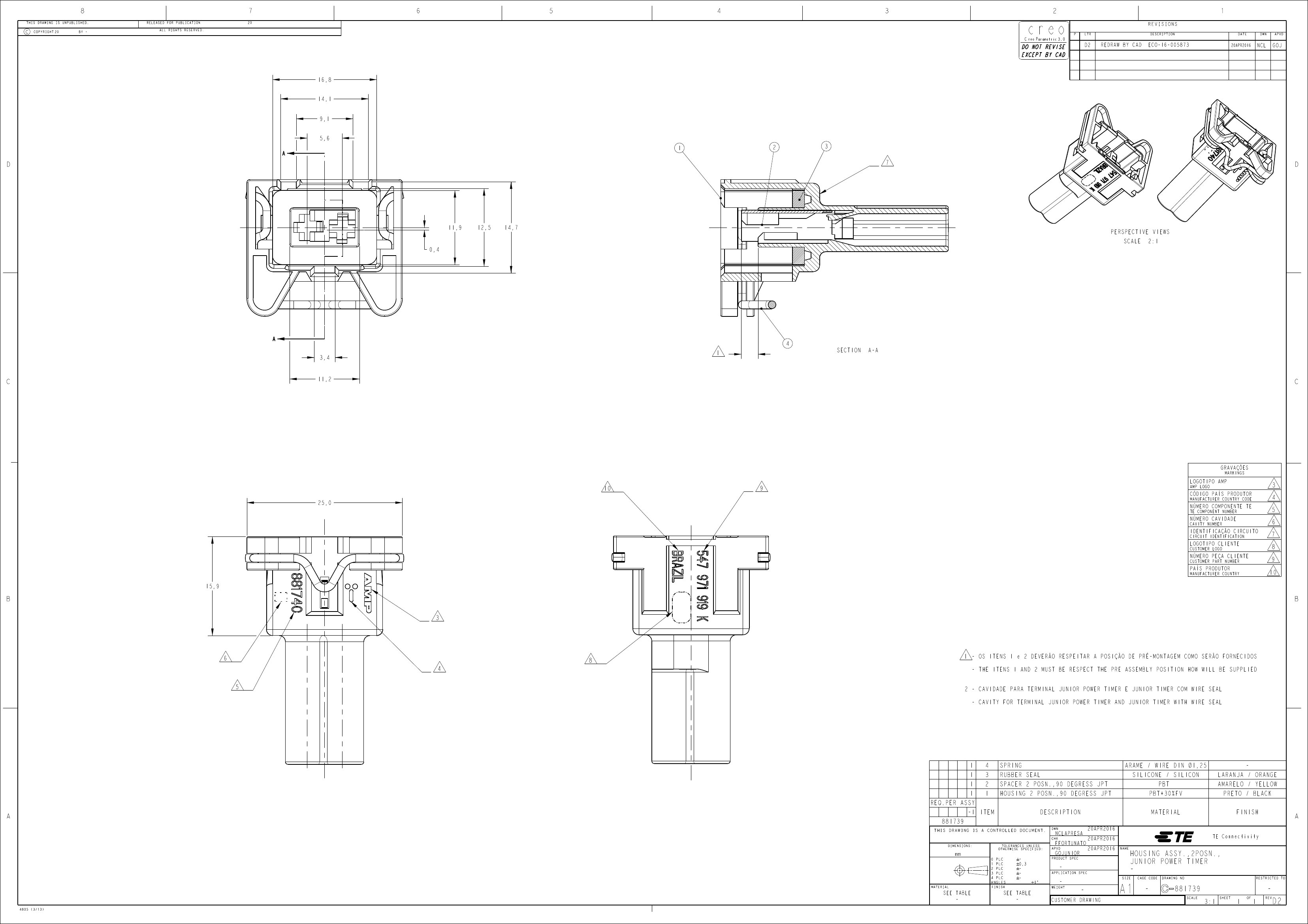

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

20

6

5

4

3

2

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT 20

BY -

DO NOT REVISE

EXCEPT BY CAD

C

reo

P

arametric

3.0

creo

D2

REDRAW BY CAD

ECO-16-005873

20APR2016

NCL

GOJ

16,8

14,1

9,1

5,6

1

2

3

D

7

D

11,9

0,4

12,5

14,7

PERSPECTIVE VIEWS

SCALE

2:1

3,4

1

.

4

SECTION

A-A

C

11,2

C

GRAVAÇÕES

MARKINGS

10

25,0

9

LOGOTIPO AMP

AMP LOGO

CÓDIGO PAÍS PRODUTOR

MANUFACTURER COUNTRY CODE

TE COMPONENT NUMBER

3

4

5

6

7

8

9

10

NÚMERO COMPONENTE TE

NÚMERO CAVIDADE

CAVITY NUMBER

IDENTIFICAÇÃO CIRCUITO

CIRCUIT IDENTIFICATION

LOGOTIPO CLIENTE

CUSTOMER LOGO

CUSTOMER PART NUMBER

NÚMERO PEÇA CLIENTE

PAÍS PRODUTOR

MANUFACTURER COUNTRY

15,9

B

3

B

6

4

5

8

1

- OS ITENS 1 e 2 DEVERÃO RESPEITAR A POSIÇÃO DE PRÉ-MONTAGEM COMO SERÃO

- THE ITENS 1 AND 2 MUST BE RESPECT THE PRE ASSEMBLY POSITION HOW WILL BE

2 - CAVIDADE PARA TERMINAL JUNIOR POWER TIMER E JUNIOR TIMER COM WIRE SEAL

- CAVITY FOR TERMINAL JUNIOR POWER TIMER AND JUNIOR TIMER WITH WIRE SEAL

FORNECIDOS

SUPPLIED

1

REQ.PER ASSY

1

4

3

2

1

SPRING

RUBBER SEAL

ARAME / WIRE DIN Ø1,25

SILICONE / SILICON

PBT+30%FV

MATERIAL

20APR2016

NAME

SPACER 2 POSN.,90 DEGRESS JPT

HOUSING 2 POSN.,90 DEGRESS JPT

DESCRIPTION

DWN

CHK

PBT

LARANJA / ORANGE

AMARELO / YELLOW

PRETO / BLACK

FINISH

TE Connectivity

-

A

881739

-1 ITEM

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NCLAPRESA

FFORTUNATO

GOJUNIOR

-

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0,3

-

PRODUCT SPEC

APPLICATION SPEC

1°

SEE TABLE

-

SEE TABLE

-

WEIGHT

-

CUSTOMER DRAWING

A1

SIZE

HOUSING ASSY.,2POSN.,

JUNIOR POWER TIMER

-

CAGE CODE

DRAWING NO

RESTRICTED TO

-

881739

SCALE

4805 (3/13)

3:1

SHEET

1

OF

1

REV

-

D2
