RJ Field – RJF TV
Environmentaly Sealed Receptacles
Description
RJField allows you to use an Ethernet D Class / Cat.5e
connection for 10 BaseT, 100 BaseTX or 1000 BaseT networks in
harsh environments:
• Sealed against fluid and dust (IP67) in mated and unmated
conditions
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Mechanical Coding / Polarization (4 positions)
With the patented RJStop® system you can use
a standard RJ45
cordset
in a metallic plug which will protect it from shocks, dust
and fluids.
RJ
No hazardous in-field cabling and grounding!
Sealed Receptacle
In some applications, a
transversal sealing
for the receptacle is a
« must ». This will prevent fluids and dust to go through the
receptacle when plug or cap are not mated to the receptacle.

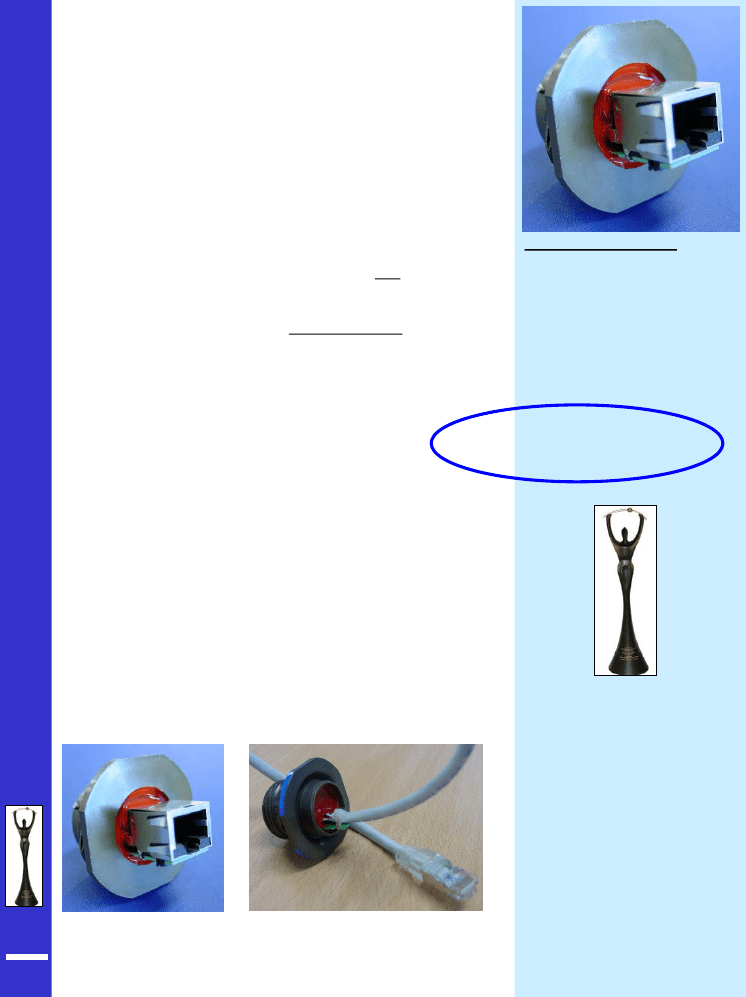

The version “S” (sealed solution) has a compound at the
rear of the receptacle as shown on the examples below.
This feature is available both in RJF and RJF TV shells (please
consult the relevant data sheet for product details and
accessories).
In addition, the
Sealed RJF TV
have been successfully tested in
very high vibration
corresponding to airplanes applications.
Examples :
DOC-000047-ANG-D - Nov. 2004
Environmental sealing:
Protection of equipment against
ingress of solid foreign bodies
and dust as well as water
(temporary dive-in)
IP (International Protection) and 2
figures (e.g. 67) means protection
class.
Field receptacle
sealed to IP67
Electronica 2004 :
RJField awarded « Component
Product of the Year »
Applications
• Outdoor Equipments
• Airplanes Equipments
• Tactical Radios
• Shelters
• Rugged computers
• Data Acquisition and
Transmission in Harsh
Environment
1
RJF 7SA1 G
RJF TV 7SA2 G 05 100BTX
Amphenol Pcd –
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273 Fax : + 1 978-532-680
http://www.rjfield.com
Amphenol
Amphenol
®
®
Main Characteristics
•
Same as the RJF and RJF TV series … a complete IP67 sealing feature
of the receptacle (even with no plug or no protective cap mated) is added.
IP 67 means immersion during 30 min. under 1 meter of water (watertight).
•
Outside dimensions are the same as the standard RJF and RJF TV series.
•
Important Note
: Due to the compound, the coding of the connector
must be done in the factory : use the codes A, B, C or D in the Part Number.
•
Vibrations
: The compounded versions of the RJF TV have been tested in
vibration following the NAS 1599 Aeronautic specification (Ambient temperature) :
5 - 3000 Hz, 20g, 2,5 mm [.1 inch] double amplitude, 3 axes, 12 hours
Note : This specification exceeds MIL-C-26500 requirements.
Part Number Code
Series
RJF TV
RJF :
MIL-C-26482 bayonet
RJFTV :
MIL-C-38999 series III
Shell Type
2S :
Sealed Square Flange Receptacle
7S :
Sealed Jam Nut Receptacle

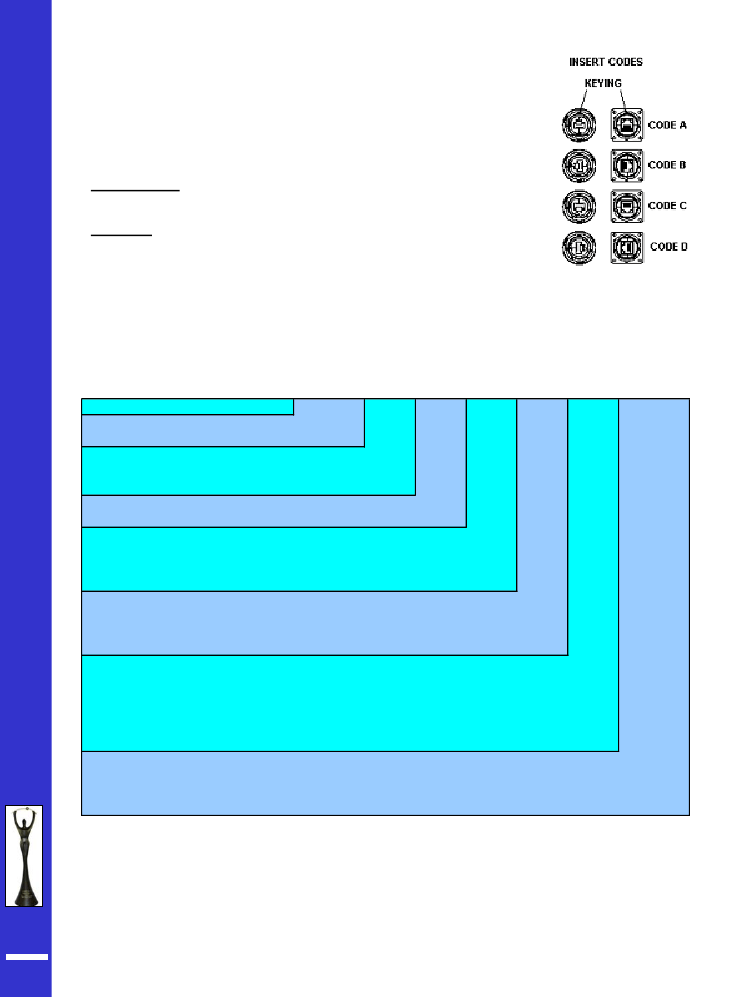

Coding
A,B,C,D
Back Terminations (For Receptacles only)
1 :
Female RJ45
2 :
RJ45 Cordset
HOW TO ORDER
7S
A
2
G
03
100 BTX
Shell Finishes
B :
Black Coating
N :
Nickel (Note : with this version, receptacle inserts are metallized)
G :
Olive Drab Cadmium (Note : with this version, receptacle inserts are metallized)
Cordset Length (For Receptacles with "2" Back Termination only)
03 :
0.3 meters [11.81 inches]
05 :
0.5 meters [19.68 inches]
10 :
1 meter [39.37 inches]
15 :
1.5 meters [59.05 inches]
Cabling Configuration (For "2" Receptacles only)
100BTX :
10/100 Base TX
568A
568B
Examples : - Bayonet, A coding, Olive Drab Cadmium Jam Nut sealed receptacle with female RJ45 Back termination : RJF 7SA 1 G
- Bayonet, A coding, Black square flange sealed receptacle, Female RJ45 Back termination: RJF 2SA 1 B
- Series III, A coding, Olive Drab Cadmium Jam Nut sealed receptacle, 1.5m [59.05”] 100 BTX cordset : RJF TV 7SA 2 G15 100BTX
2
Amphenol Pcd –
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273 Fax : + 1 978-532-680
http://www.rjfield.com
