54LS27J datasheet, PDF - EEWORLD Datasheet

54LS27J: DescriptionNOR Gate, TTL, CDIP14,; Categorylogic logic; File Size76KB，1 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric View All

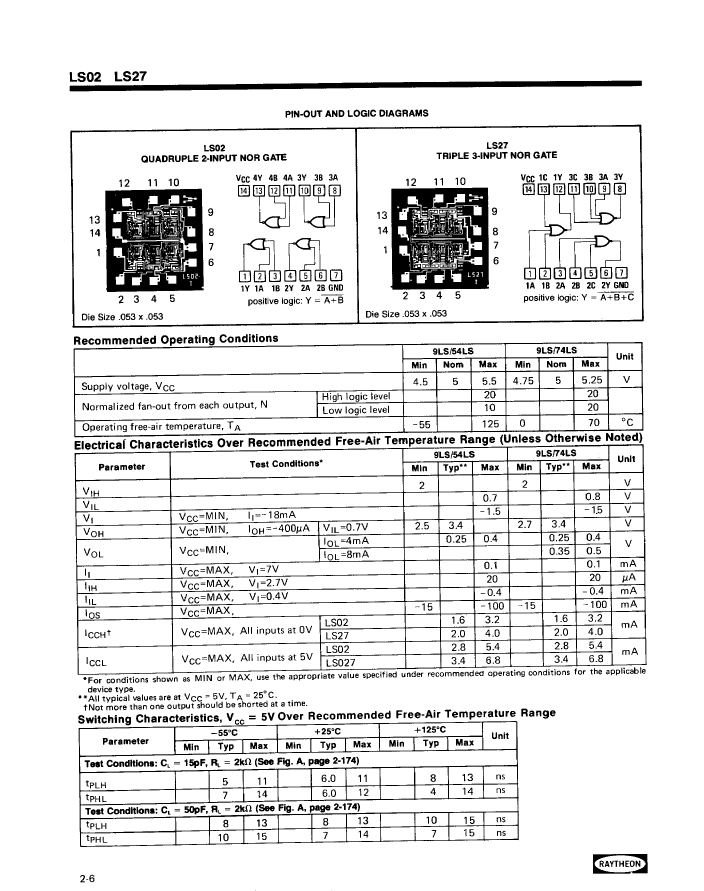

54LS27J Overview

NOR Gate, TTL, CDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.008 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	6.8 mA
Prop。Delay @ Nom-Sup	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
