TABLE 1: VERTICAL THRU
2
NOTES
1
1. MATERIAL:
BODY: LCP, UL94V-0
LATCH: PPA, UL94V-0
CONTACTS: COPPER ALLOY.
2. PLATING:
50-150 " NICKEL UNDERPLATE
30 = 30 " GOLD MIN. ON
WIPING AREA WITH 200 "
MATTE TIN ON SOLDER TAIL
00 = GOLD FLASH ON WIPING
AREA WITH
100-140 " MATTE TIN ON
SOLDER TAIL.
3. MATING COMPATIBILITY:
3M 1.27mm (0.050"), 451
SERIES RIBBON CABLE SOCKET.
TECH SHEET 2436
4. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM
FOR COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY)
5. IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES
PRECEDENT.
6. REFERENCE PRODUCT SPEC:
3M DOC ID# 78-5102-0091-4

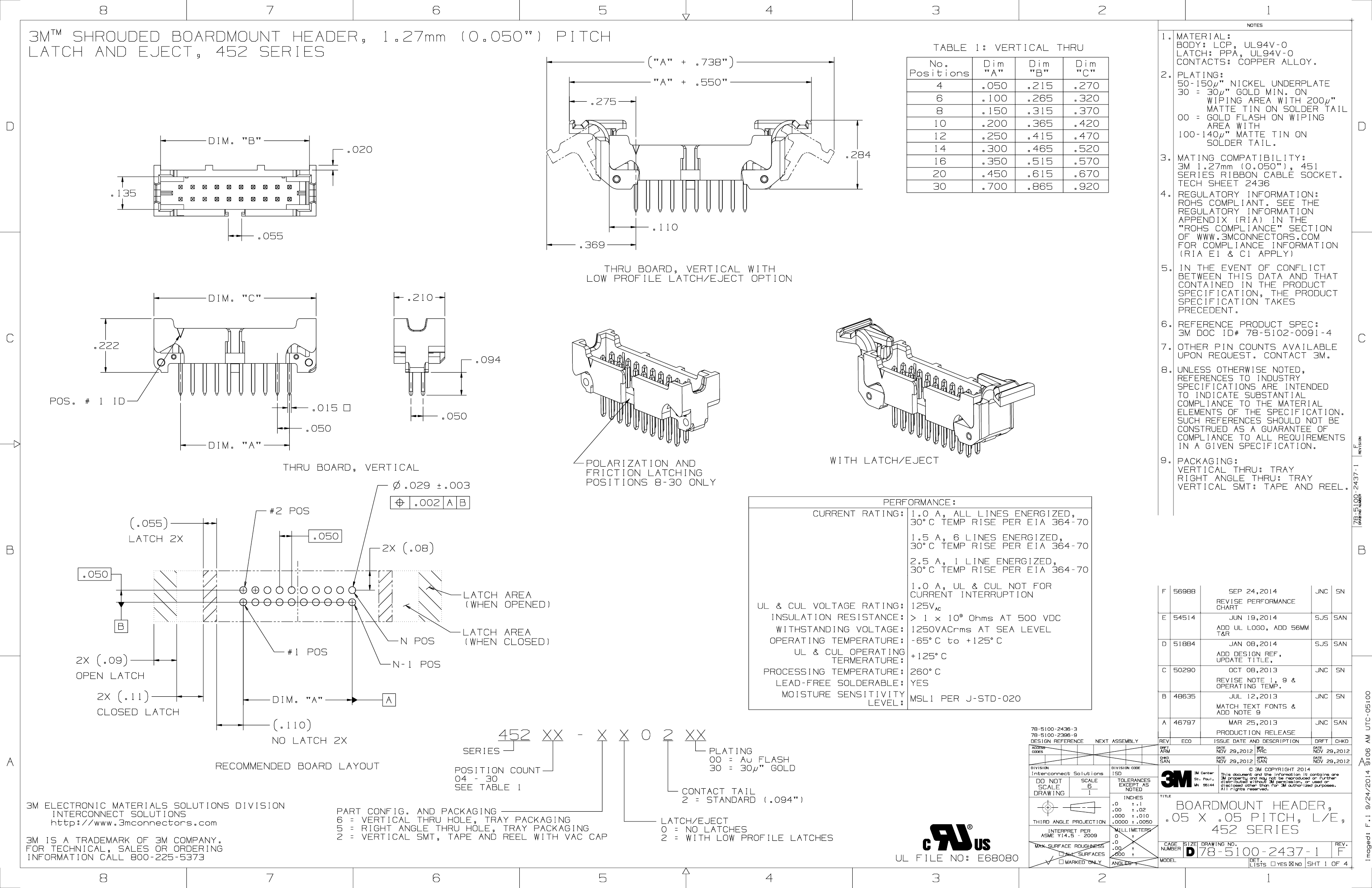

3M SHROUDED BOARDMOUNT HEADER, 1.27mm (0.050") PITCH
LATCH AND EJECT, 452 SERIES
"A" + .738"
"A" + .550"
.275
D
DIM. "B"
.020
.284
.135
No.
Positions
4
6
8
10
12
14
16
20
30
Dim
"A"
.050
.100
.150
.200
.250
.300
.350
.450
.700
Dim
"B"
.215
.265
.315
.365
.415
.465
.515
.615
.865
Dim
"C"
.270
.320
.370
.420
.470
.520
.570
.670
.920
D
.110
.055
.369
THRU BOARD, VERTICAL WITH
LOW
PROFILE LATCH/EJECT OPTION
DIM. "C"
.210
C
.222
.094
7. OTHER PIN COUNTS AVAILABLE
UPON REQUEST. CONTACT 3M.
8. UNLESS OTHERWISE NOTED,
REFERENCES TO INDUSTRY
SPECIFICATIONS ARE INTENDED
TO INDICATE SUBSTANTIAL
COMPLIANCE TO THE MATERIAL
ELEMENTS OF THE SPECIFICATION.
SUCH REFERENCES SHOULD NOT BE
CONSTRUED AS A GUARANTEE OF
COMPLIANCE TO ALL REQUIREMENTS
IN A GIVEN SPECIFICATION.
C
POS. # 1 ID
.015
.050
DIM. "A"
THRU BOARD, VERTICAL
.029
#2 POS
.055
LATCH 2X
.050
2X
.08
.050
.003
.002 A B
PERFORMANCE:
CURRENT RATING: 1.0 A, ALL LINES ENERGIZED,
30 C TEMP RISE PER EIA 364-70
1.5 A, 6 LINES ENERGIZED,
30 C TEMP RISE PER EIA 364-70
2.5 A, 1 LINE ENERGIZED,
30 C TEMP RISE PER EIA 364-70
B
.050
LATCH AREA
(WHEN OPENED)
B
N POS
2X
.09
#1 POS
N-1 POS
LATCH AREA
(WHEN CLOSED)
OPEN LATCH
2X
.11
DIM.
"A"
.110
NO
LATCH 2X
A
MSL1 PER J-STD-020
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 9
JNC
SN
CLOSED LATCH
A
46797
ECO
MAR
25,2013
JNC SAN
DRFT
DATE
452 XX - X X 0 2 XX
SERIES
POSITION COUNT
04 - 30
SEE TABLE 1
PLATING
00 = Au FLASH
30 = 30 " GOLD
CONTACT TAIL
2 = STANDARD (.094")
LATCH/EJECT
0 = NO LATCHES
2 = WITH LOW PROFILE LATCHES
78-5100-2436-3
78-5100-2396-9
DESIGN REFERENCE
ACCESS
CODES
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
DATE
MFG
CHKD
ARM
CHKD
NOV 29,2012 PRC
APPVL
NOV 29,2012
DATE
A
RECOMMENDED BOARD LAYOUT
SAN
DIVISION
DIVISION CODE
NOV 29,2012 SAN
3M Center
St. Paul,
MN
NOV 29,2012
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.0050
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
DO
NOT
SCALE
DRAWING
SCALE
6
1
55144
C
3M COPYRIGHT 2014
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
PART CONFIG. AND PACKAGING
6 = VERTICAL THRU HOLE, TRAY PACKAGING
5 = RIGHT ANGLE THRU HOLE, TRAY PACKAGING
2 = VERTICAL SMT, TAPE AND REEL WITH VAC CAP
THIRD ANGLE PROJECTION
R
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
BOARDMOUNT HEADER,
.05 X .05 PITCH, L/E,
452 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
78-5100-2437-1
DET.
LISTS
YES
NO
F
SHT 1 OF 4
8
7
6
5
4
3
2
1
Imaged: F.1 9/24/2014 9:06 AM UTC-05:00
UL & CUL VOLTAGE RATING:
INSULATION RESISTANCE:
WITHSTANDING VOLTAGE:
OPERATING TEMPERATURE:
UL & CUL OPERATING
TERMERATURE:
PROCESSING TEMPERATURE:
LEAD-FREE SOLDERABLE:
MOISTURE SENSITIVITY
LEVEL:
1.0 A, UL & CUL NOT FOR
CURRENT INTERRUPTION
125V
AC
> 1 x 10
9
Ohms AT 500 VDC
1250VACrms AT SEA LEVEL
-65 C to +125 C
+125 C
260 C
YES
F
56988
SEP 24,2014
REVISE PERFORMANCE
CHART
JNC
SN
E
54514
JUN 19,2014
ADD UL LOGO, ADD 56MM
T&R
SJS SAN
D
51884
JAN 08,2014
ADD DESIGN REF,
UPDATE TITLE,
SJS SAN
C
50290
OCT 08,2013
REVISE NOTE 1, 9 &
OPERATING TEMP.
JNC
SN
78-5100-2437-1
POLARIZATION AND
FRICTION LATCHING
POSITIONS 8-30 ONLY
WITH LATCH/EJECT
9. PACKAGING:
VERTICAL THRU: TRAY
RIGHT ANGLE THRU: TRAY
VERTICAL SMT: TAPE AND REEL.
B
DRAWING NUMBER
REVISION
F
8
TM
7
6
5
4
3
2
1

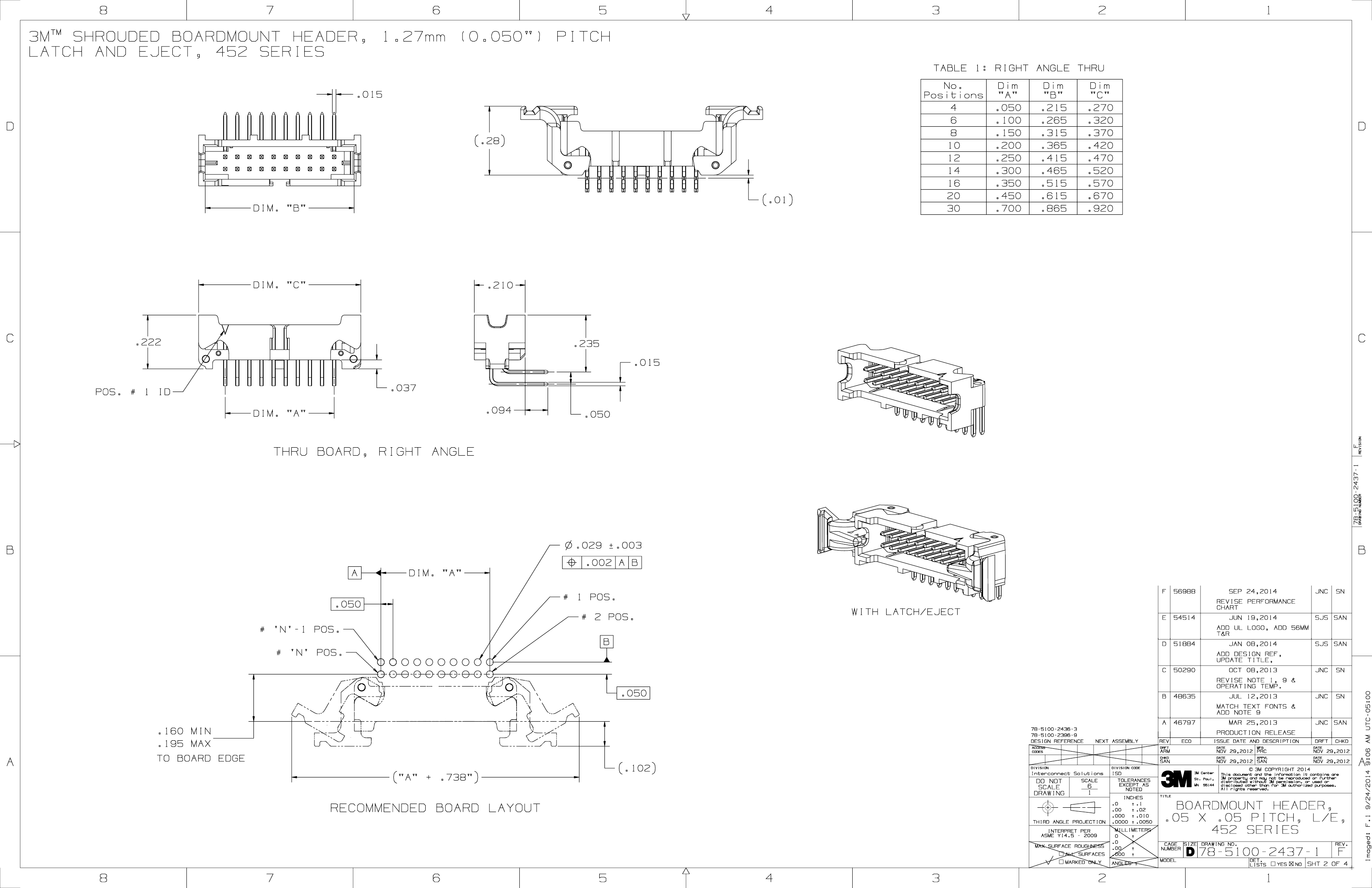

3M SHROUDED BOARDMOUNT HEADER, 1.27mm (0.050") PITCH
LATCH AND EJECT, 452 SERIES
TABLE 1: RIGHT ANGLE THRU
.015
No.
Positions
4
6
8
10
12
14
16
20
30
Dim
"A"
.050
.100
.150
.200
.250
.300
.350
.450
.700
Dim
"B"
.215
.265
.315
.365
.415
.465
.515
.615
.865
Dim
"C"
.270
.320
.370
.420
.470
.520
.570
.670
.920
D
.28
D
DIM. "B"
.01
DIM. "C"
.210
C
.222
.235
.015
C
POS. # 1 ID
DIM. "A"
.037
.094
.050
REVISION
DRAWING NUMBER
THRU BOARD, RIGHT ANGLE
B
A
.050
# 'N'-1 POS.
DIM. "A"
.029
.003
.002 A B
F
56988
SEP 24,2014
REVISE PERFORMANCE
CHART
E
54514
JUN 19,2014
ADD UL LOGO, ADD 56MM
T&R
SJS SAN
JNC
SN
# 1 POS.
# 2 POS.
B
WITH LATCH/EJECT
D
51884
JAN 08,2014
ADD DESIGN REF,
UPDATE TITLE,
SJS SAN
# 'N' POS.
C
50290
OCT 08,2013
REVISE NOTE 1, 9 &
OPERATING TEMP.
JNC
SN
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 9
JNC
SN
A
46797
ECO
MAR
25,2013
JNC SAN
DRFT
DATE
.160 MIN
.195 MAX
78-5100-2436-3
78-5100-2396-9
DESIGN REFERENCE
ACCESS
CODES
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
DATE
MFG
CHKD
ARM
CHKD
NOV 29,2012 PRC
APPVL
NOV 29,2012
DATE
A
TO BOARD EDGE
.102
"A" + .738"
DIVISION
DIVISION CODE
SAN
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.0050
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
3M Center
St. Paul,
MN
NOV 29,2012 SAN
NOV 29,2012
DO
NOT
SCALE
DRAWING
SCALE
6
1
55144
C
3M COPYRIGHT 2014
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
RECOMMENDED BOARD LAYOUT
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
BOARDMOUNT HEADER,
.05 X .05 PITCH, L/E,
452 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-2437-1
DET.
LISTS
YES
NO
F
SHT 2 OF 4
8
7
6
5
4
3
2
1
Imaged: F.1 9/24/2014 9:06 AM UTC-05:00
.050
78-5100-2437-1
F
B
8
TM
7
6
5
4
3
2
1

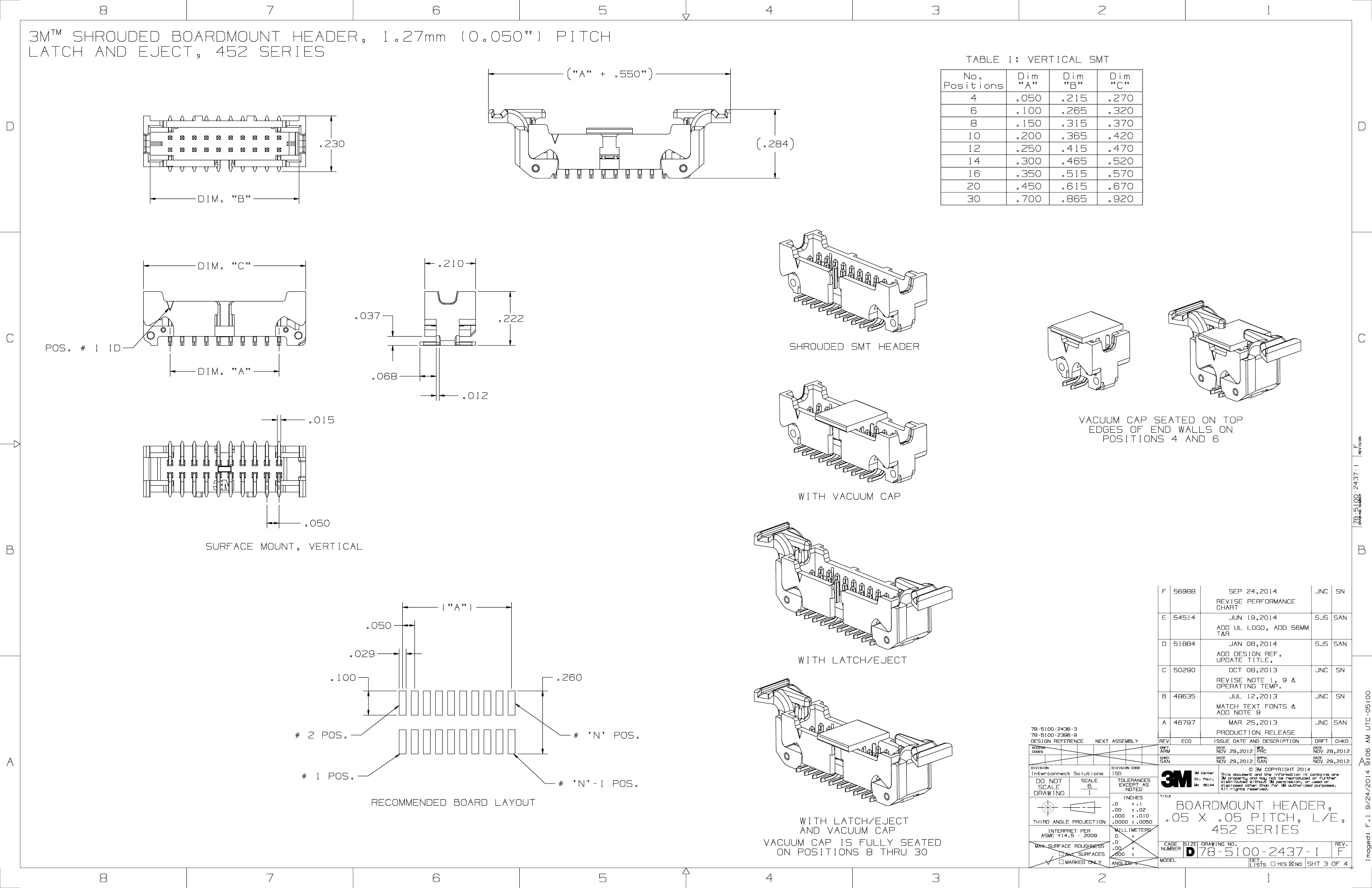

3M SHROUDED BOARDMOUNT HEADER, 1.27mm (0.050") PITCH
LATCH AND EJECT, 452 SERIES
"A" + .550"
TABLE 1: VERTICAL SMT
No.
Positions
4
6
8
10
12
14
16
20
30
Dim
"A"
.050
.100
.150
.200
.250
.300
.350
.450
.700
Dim
"B"
.215
.265
.315
.365
.415
.465
.515
.615
.865
Dim
"C"
.270
.320
.370
.420
.470
.520
.570
.670
.920
D
.230
.284
D
DIM. "B"
DIM. "C"
.210
.037
.222
SHROUDED SMT HEADER
C
POS. # 1 ID
DIM. "A"
.068
.012
.015
C
.050
B
SURFACE MOUNT, VERTICAL
B
F
56988
SEP 24,2014
REVISE PERFORMANCE
CHART
JNC
SN
("A")
E
54514
JUN 19,2014
ADD UL LOGO, ADD 56MM
T&R
SJS SAN
.050
D
51884
JAN 08,2014
ADD DESIGN REF,
UPDATE TITLE,
SJS SAN
.029
.100
.260
WITH LATCH/EJECT
C
50290
OCT 08,2013
REVISE NOTE 1, 9 &
OPERATING TEMP.
JNC
SN
DRAWING NUMBER
WITH VACUUM CAP
78-5100-2437-1
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 9
A
46797
ECO
REVISION
F
JNC
SN
JNC SAN
DRFT
DATE
VACUUM CAP SEATED ON TOP
EDGES OF END WALLS ON
POSITIONS 4 AND 6
MAR
25,2013
# 2 POS.
# 'N' POS.
78-5100-2436-3
78-5100-2396-9
DESIGN REFERENCE
ACCESS
CODES
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
DATE
MFG
CHKD
ARM
CHKD
NOV 29,2012 PRC
APPVL
NOV 29,2012
DATE
A
# 1 POS.
RECOMMENDED BOARD LAYOUT
WITH LATCH/EJECT
AND VACUUM CAP
VACUUM CAP IS FULLY SEATED
ON
POSITIONS 8 THRU 30
# 'N'-1 POS.
SAN
DIVISION
DIVISION CODE
NOV 29,2012 SAN
3M Center
St. Paul,
MN
NOV 29,2012
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.0050
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
DO
NOT
SCALE
DRAWING
SCALE
6
1
55144
C
3M COPYRIGHT 2014
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
BOARDMOUNT HEADER,
.05 X .05 PITCH, L/E,
452 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-2437-1
DET.
LISTS
YES
NO
F
SHT 3 OF 4
8
7
6
5
4
3
2
1
Imaged: F.1 9/24/2014 9:06 AM UTC-05:00
8
TM
7
6
5
4
3
2
1

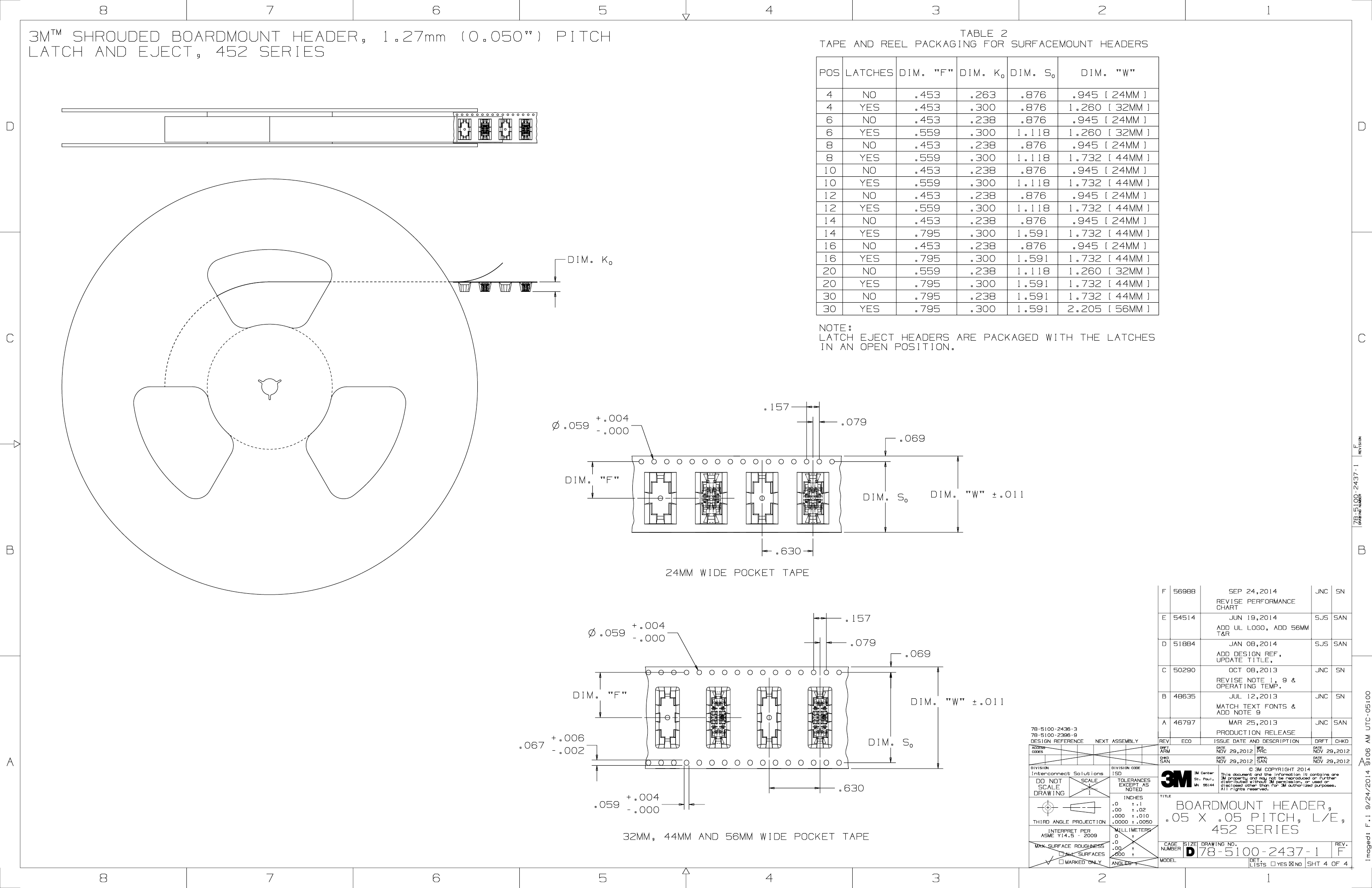

3M SHROUDED BOARDMOUNT HEADER, 1.27mm (0.050") PITCH
LATCH AND EJECT, 452 SERIES
TABLE 2
TAPE AND REEL PACKAGING FOR SURFACEMOUNT HEADERS
POS LATCHES DIM. "F" DIM. K
O
DIM. S
0
4
4
6
6
8
8
10
10
12
12
14
14
16
16
20
20
30
30
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
DIM. "W"
.945 [24MM]
1.260 [32MM]
.945 [24MM]
1.260 [32MM]
.945 [24MM]
1.732 [44MM]
.945 [24MM]
1.732 [44MM]
.945 [24MM]
1.732 [44MM]
.945 [24MM]
1.732 [44MM]
.945 [24MM]
1.732 [44MM]
1.260 [32MM]
1.732 [44MM]
1.732 [44MM]
2.205 [56MM]
D
DIM. K
O
.453
.453
.453
.559
.453
.559
.453
.559
.453
.559
.453
.795
.453
.795
.559
.795
.795
.795
.263
.300
.238
.300
.238
.300
.238
.300
.238
.300
.238
.300
.238
.300
.238
.300
.238
.300
.876
.876
.876
1.118
.876
1.118
.876
1.118
.876
1.118
.876
1.591
.876
1.591
1.118
1.591
1.591
1.591
D
C
NOTE:
LATCH EJECT HEADERS ARE PACKAGED WITH THE LATCHES
IN AN OPEN POSITION.
C
.157
+.004
.059
-.000
.079
REVISION
DRAWING NUMBER
.069
DIM. "F"
DIM. S
0
DIM. "W"
.011
B
.630
24MM WIDE POCKET TAPE
F
56988
SEP 24,2014
REVISE PERFORMANCE
CHART
JNC
SN
+.004
.059
-.000
.157
.079
.069
E
54514
JUN 19,2014
ADD UL LOGO, ADD 56MM
T&R
SJS SAN
D
51884
JAN 08,2014
ADD DESIGN REF,
UPDATE TITLE,
SJS SAN
C
50290
OCT 08,2013
REVISE NOTE 1, 9 &
OPERATING TEMP.
JNC
SN
78-5100-2437-1
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 9
A
46797
ECO
F
B
DIM. "F"
DIM. "W"
.011
78-5100-2436-3
78-5100-2396-9
DESIGN REFERENCE
ACCESS
CODES
JNC
SN
MAR
25,2013
JNC SAN
DRFT
DATE
+.006
.067
-.002
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
DIM. S
0
ISSUE DATE AND DESCRIPTION
DATE
DATE
MFG
CHKD
ARM
CHKD
NOV 29,2012 PRC
APPVL
NOV 29,2012
DATE
A
.630
+.004
.059
-.000
32MM, 44MM AND 56MM WIDE POCKET TAPE
SAN
DIVISION
DIVISION CODE
NOV 29,2012 SAN
3M Center
St. Paul,
MN
NOV 29,2012
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.0050
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
DO
NOT
SCALE
DRAWING
SCALE
1
1
55144
C
3M COPYRIGHT 2014
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
BOARDMOUNT HEADER,
.05 X .05 PITCH, L/E,
452 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-2437-1
DET.
LISTS
YES
NO
F
SHT 4 OF 4
8
7
6
5
4
3
2
1
Imaged: F.1 9/24/2014 9:06 AM UTC-05:00
京公网安备 11010802033920号
EEWORLD
