216-7224-55-1902 datasheet, PDF

Datasheet> All Categories > The connector> socket> 216-7224-55-1902

216-7224-55-1902: DescriptionSOIC16, IC SOCKET; CategoryThe connector socket; File Size384KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

216-7224-55-1902 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	216-7224-55-1902	-	-	View	Buy Now

216-7224-55-1902 Overview

SOIC16, IC SOCKET

216-7224-55-1902 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1655891714
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	16 (2 x 8) Pos SOIC Socket Gold Through Hole
Samacsys Manufacturer	3M
Samacsys Modified On	2023-12-28 12:40:55
YTEOL	6.87
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD OVER NICKEL
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	SOIC16
Shell material	POLYETHERSULFONE
JESD-609 code	e4
Number of contacts	16

Preview

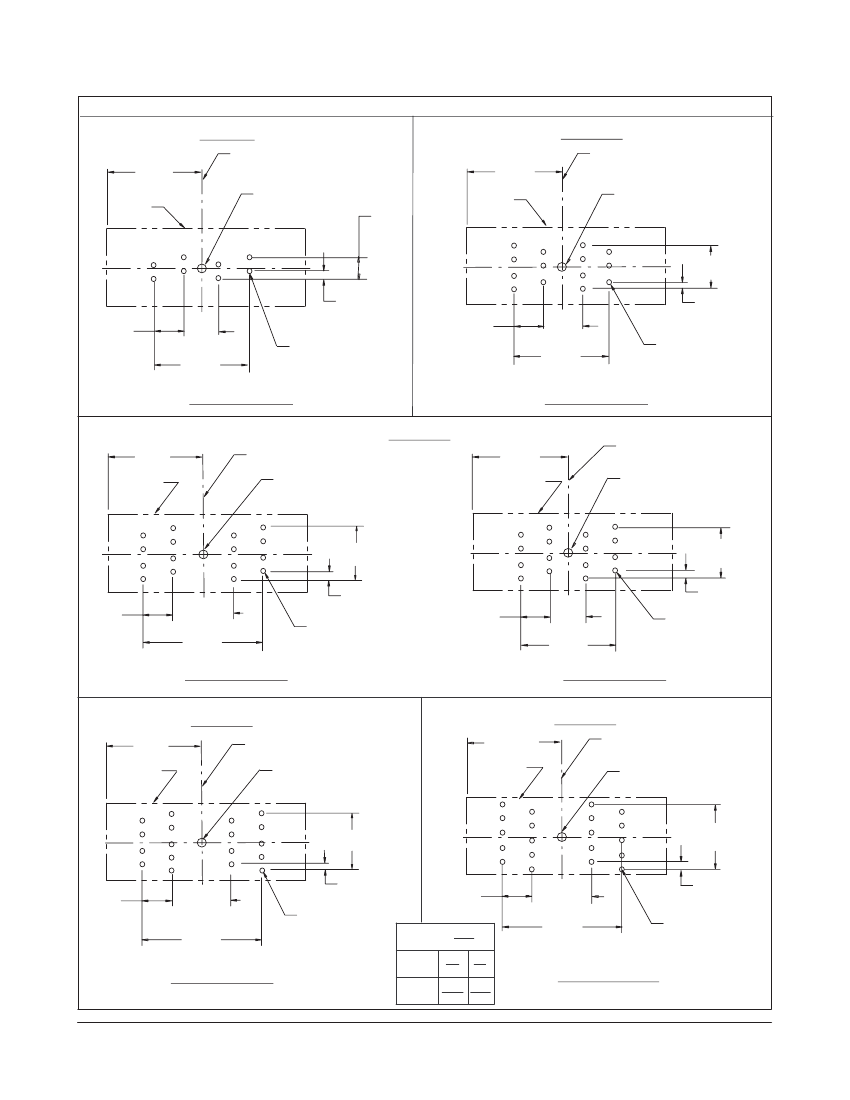

Download Datasheet

View All

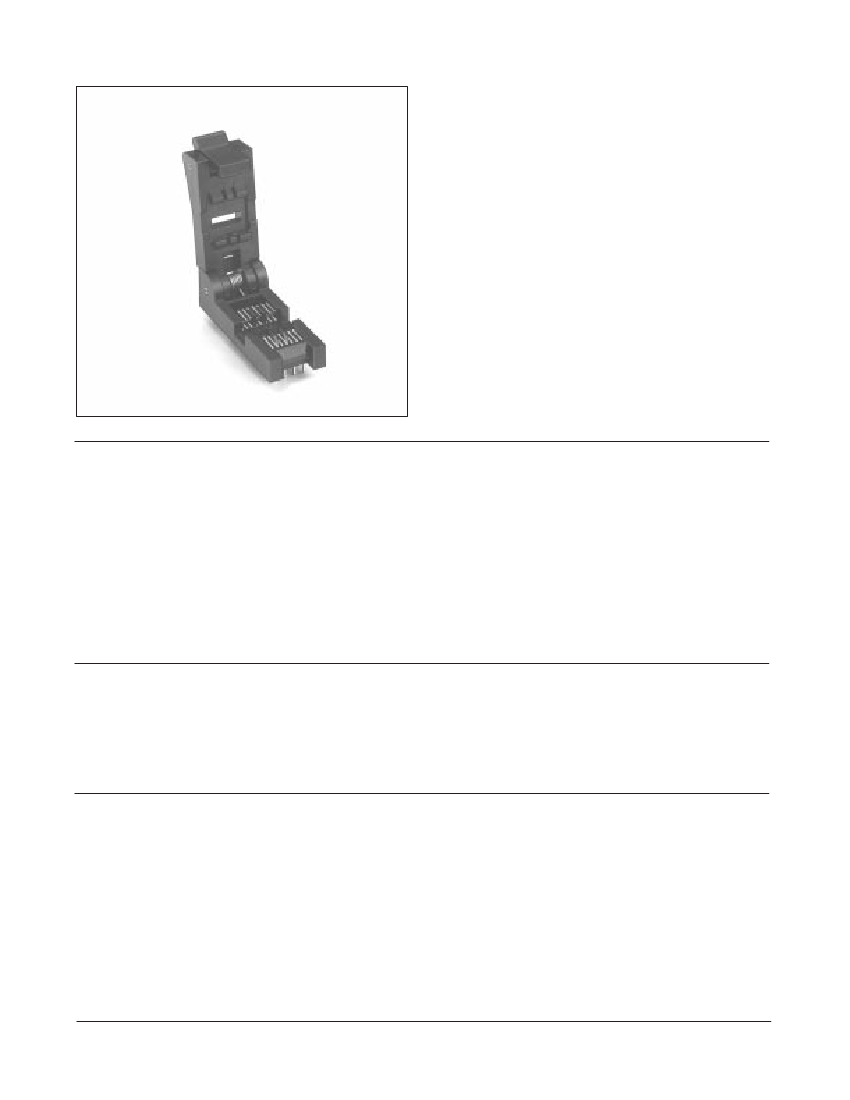

Test & Burn-In SOIC Sockets

• Lid can be actuated from top or front and is

compatible with automated load/unload

equipment

• Compact envelope and side to side stackability

maximize board density

• Tweezer slot for easy manual loading/unloading

• Lid applies 80 grams normal force per lead for

maximum electrical reliability

• Accepts Gull Wing JEDEC device sizes in .150"

(3.81 mm) and .300" (7.62 mm) body widths

Date Issued: February 19, 2001

TS-0338-09

Sheet 1 of 4

Physical

Insulation

Material:

Flammability:

Color:

Marking:

Contact

Material:

Plating:

Glass Filled Polyethersulfone

UL 94V-0

Black

3M Logo & Part Number Identifier

Beryllium-Copper

" (0.76

m) Gold over 50

" (1.3

m) Nickel

Environmental

Current Rating:

1 Amp

Insulation Resistance:

> 1

at 500 Vdc

Withstanding Voltage:

1000 Vrms at Sea Level

Environmental

Operating Temperature Rating:

- 55° to + 150°C

∞C

∞

3M Electronic Handling and Protection Division

6801 River Place Blvd.

Austin, TX 78726-9000

For technical, sales or ordering information call

800-328-0411

or visit our website:

http://www.3M.com/ehpd

216-7224-55-1902 Related Products

	216-7224-55-1902	208-7391-55-1902	218-7223-55-1902	216-7383-55-1902	228-7474-55-1902	D12/CRCW0805-P50294K0.5%ET6E3
Description	SOIC16, IC SOCKET	SOIC8, IC SOCKET	IC & Component Sockets BURN-IN SOIC SOCKET 18 Leads	SOIC16, IC SOCKET	SOIC28, IC SOCKET	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 294000ohm, 150V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	RATED AC VOLTAGE (V): 150, SEMI-PRECISION
JESD-609 code	e4	e4	e4	e4	e4	e3
Objectid	1655891714	1655891705	-	1655891715	1655891748	8071818810
Samacsys Description	16 (2 x 8) Pos SOIC Socket Gold Through Hole	IC & Component Sockets BURN-IN SOIC SOCKET 8 Leads	-	IC & Component Sockets BURN-IN SOIC SOCKET 16 Leads	IC & Component Sockets BURN-IN SOIC SOCKET 28 Leads	-
Samacsys Manufacturer	3M	3M	-	3M	3M	-
Samacsys Modified On	2023-12-28 12:40:55	2019-11-06 15:29:53	-	2019-07-05 06:56:51	2023-09-16 06:25:15	-
YTEOL	6.87	7	-	7	6.87	8
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	-
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD (30) OVER NICKEL (50)	Gold (Au) - with Nickel (Ni) barrier	GOLD OVER NICKEL	-
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	-
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	-
Type of equipment used	SOIC16	SOIC8	SOIC18	SOIC16	SOIC28	-
Shell material	POLYETHERSULFONE	POLYETHERSULFONE	POLYETHERSULFONE	POLYETHERSULFONE	POLYETHERSULFONE	-
Number of contacts	16	8	18	16	28	-
