48ASDP1S1V2RBT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 48ASDP1S1V2RBT

48ASDP1S1V2RBT: DescriptionSlide Switches SLIDE,DPDT,O-N-O,VB,-TAB,LF , thru-hole mount, mounting tabs, RoHs Compliant; CategoryTopical application Mechanical and electrical/engineering/automation; File Size151KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

48ASDP1S1V2RBT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	48ASDP1S1V2RBT	-	-	View	Buy Now

48ASDP1S1V2RBT Overview

Slide Switches SLIDE,DPDT,O-N-O,VB,-TAB,LF , thru-hole mount, mounting tabs, RoHs Compliant

48ASDP1S1V2RBT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Grayhill
Product Category	Slide Switches
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

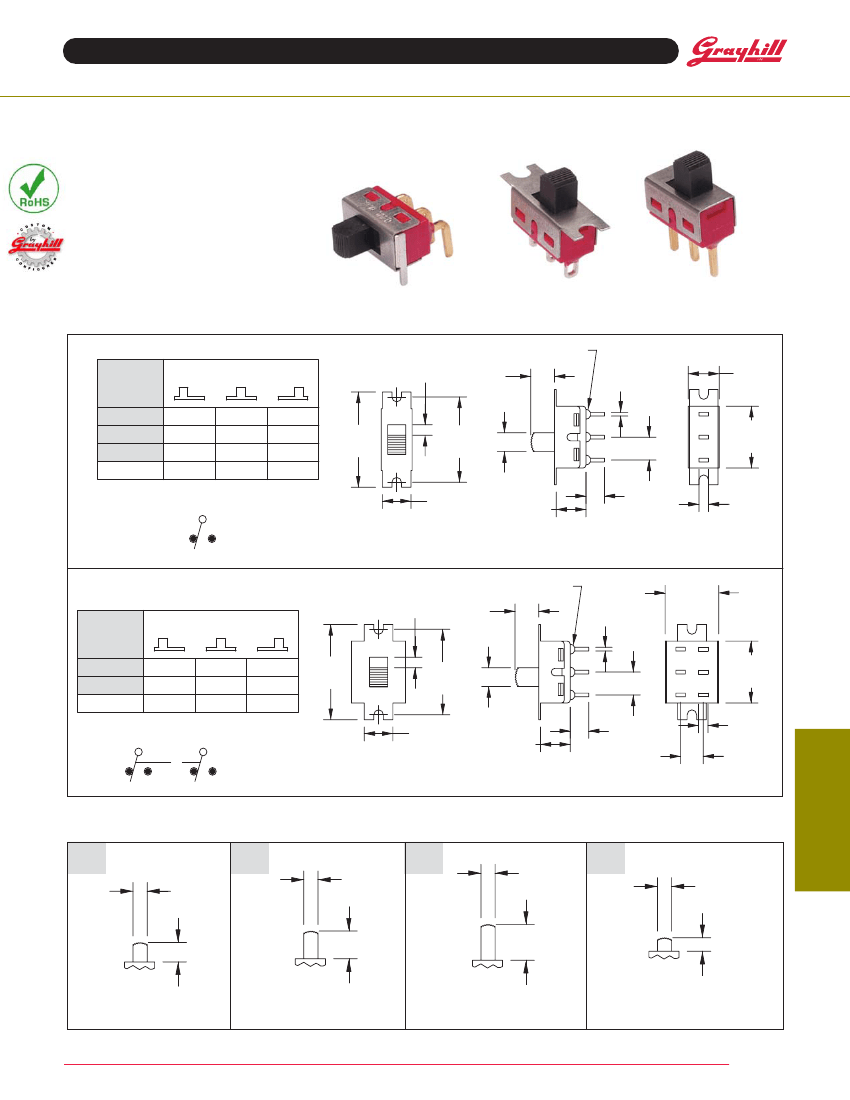

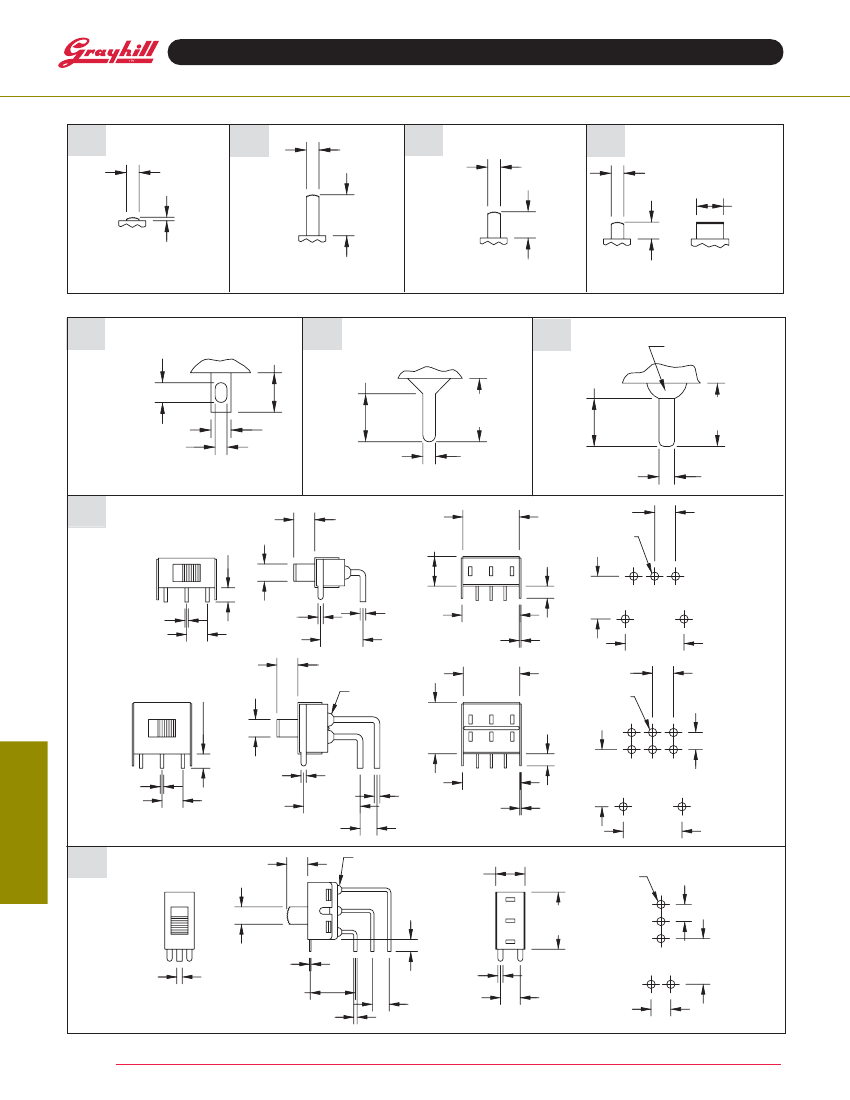

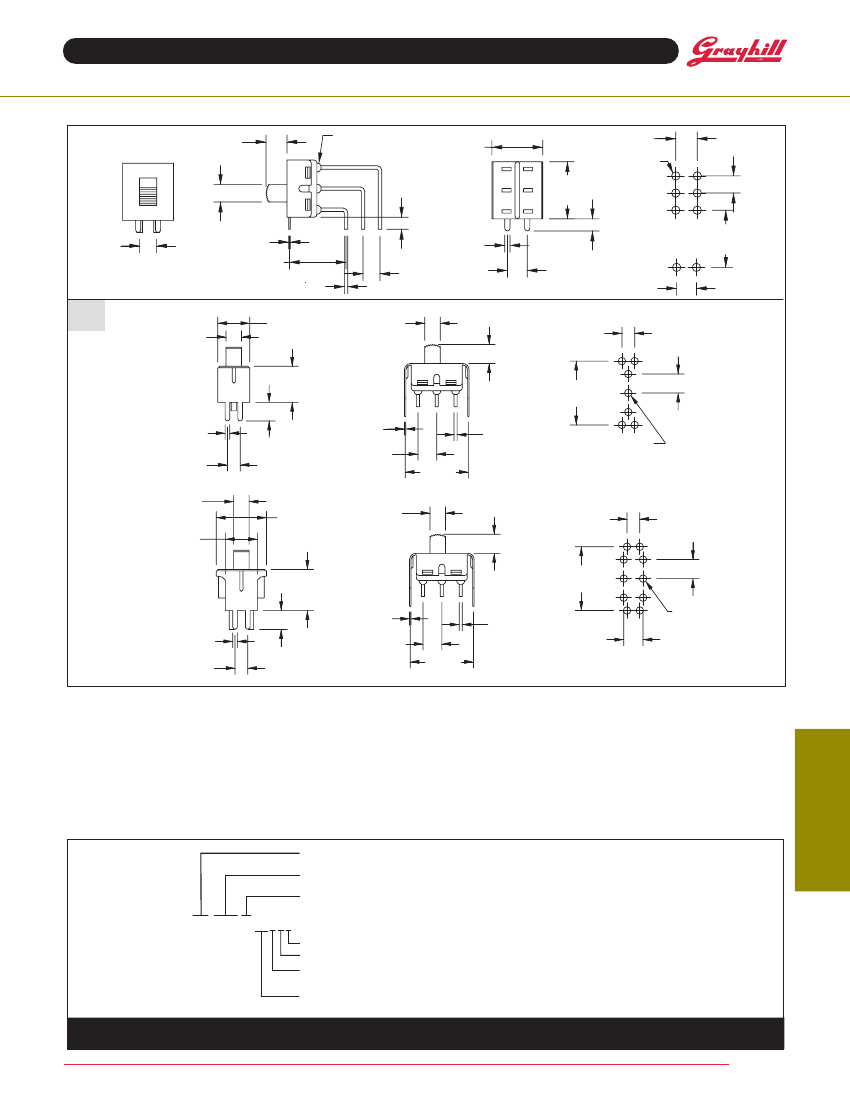

Series 48A: Slide Switches

SERIES 48A

Slide Switches

FEATURES

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuations and

Terminations

DIP Switches

MODELS

SPDT

In inches (and millimeters)

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.260

(6.60)

MODEL

NO.

SSP1

SSP2

SSP3

TERM. COMM.

SWITCH POSITION

2-1

02COMM.

NONE

OFF

OPEN

(ON)

2-3

.770

(19.56)

.690

(17.53)

.152

(3.86)

.500

(12.70)

()=MOMENTARY

.240

(6.10)

.250

(6.35)

.155

(3.94)

.080

(2.03)

SCHEMATIC

DPDT

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.450

(11.43)

MODEL

NO.

SDP1

SDP3

TERM. COMM.

SWITCH POSITION

2-1,5-4

NONE

OFF

OPEN 2-3,5-6

()=MOMENTARY

05COMM.

.770

(19.56)

.690

(17.53)

.152

(3.86)

.250

(6.35)

.500

(12.70)

02COMM.

.240

(6.10)

.155

(3.94)

.080

(2.03)

.190

(4.83)

3 4

SCHEMATIC

Slide Switches

ACTUATOR OPTIONS

Std

In inches (and millimeters)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.200

(5.08)

.285

(7.24)

.370

(9.40)

.140

(3.56)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Slide

48ASDP1S1V2RBT Related Products

	48ASDP1S1V2RBT	48ASDP1S3V2RAT	48ASDP1S6M1QAT	48ASSP1S4M6QAT	48ASSP1S1M2RAT	48ASSP1S1M7RAT	48ASDP1S1M1RBT	48ASSP1S3M1QAT
Description	Slide Switches SLIDE,DPDT,O-N-O,VB,-TAB,LF , thru-hole mount, mounting tabs, RoHs Compliant	Slide Switches SLIDE,DPDT,O-N-O,VB,+ TAB,LF , solder lug, mounting tabs, RoHS Compliant	Slide Switches SLIDE,DPDT,O-N-O,SL,+TAB,LF , right angle PC mount, horizontal actuation, RoHS Compliant	Slide Switches SLIDE,SPDT,O-N-O,RAH,-TAB,LF , lug, RoHS Compliant	Slide Switches SLIDE,SPDT,O-N-O,PC,+TAB,LF , thru-hole mount, RoHS Compliant	Slide Switches SLIDE,SPDT,O-N-O,RAV,+TAB,LF , right angle vertical PC mount, RoHS Compliant	Slide Switches SLIDE,DPDT,O-N-O,SL,-TAB,LF , lug, RoHS Compliant	Slide Switches Slide Switch, SPDT, ON-NONE-ON, RoHS Compliant
