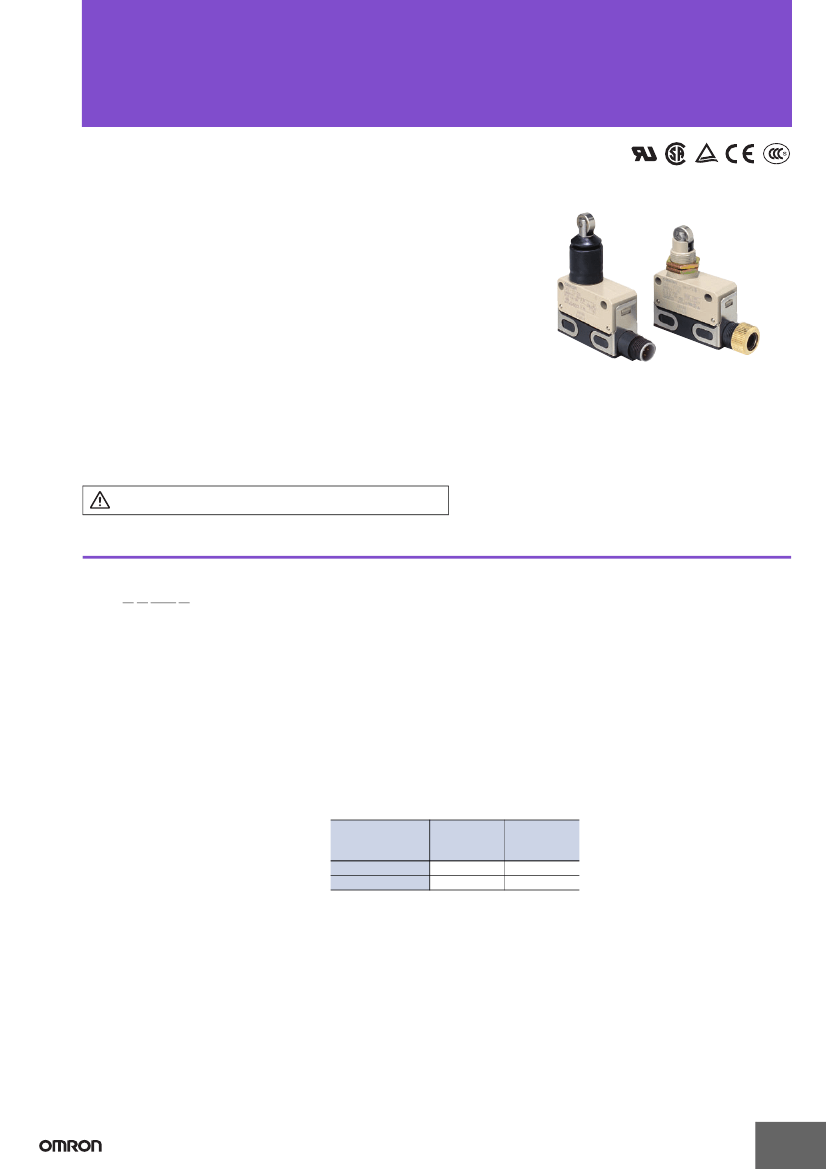

Small Sealed Switch
D4E-@N
Slim and Compact Switch with Better Seal
and Ensuring Longer Service Life than D4E
•
Flat springs with an improved lever ratio of the built-in switch ensure
smooth snap action and long life expectancy.
•
Protection cover protects the built-in switch from dust and oil. Plunger
incorporates a tough seal cap that lasts for a long time.
•
One touch connector eliminates need for tedious wiring operations and
reduces downtime for wiring and maintenance (models with standard,
easy-to-use screw terminals are also available).
•
Minute load model with gold cladding is optimal for electronic control.
•
Molded terminal types as well as molded terminal types with operating
indicator lamps are available for screw terminal systems.
•
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for Information on approved models.)
•
No difference in mounting pitch and characteristics between D4E-@N
and D4E models.
Be sure to read
Safety Precautions
on page 9 to 10 and
Safety Precautions for All Limit Switches.
CSM_D4E-_N_DS_E_4_1
Model Number Structure
Model Number Legend
(Not all combinations are possible. Ask your OMRON representative for details.)
D4E-@@@@@N
(1)(2) (3) (4)
(1) Rated Current
1: 5 A at 125 VAC
(1 A at 125 VAC/30 VDC for model with a
connector)
2: 0.1 A at 125 VAC
(0.1 A at 125 VAC/30 VDC for model with a
connector)
(3) Terminals
00:
10:
20:
21:
22:
23:
24:
AC connector
DC connector
Screw terminals without a cable
Screw terminals with a cable (right-hand)
Screw terminals with a cable (left-hand)
Molded terminals with a cable (right-hand)
Molded terminals with a cable (left-hand)
(Cable is S-FLEX VCTF 3 m)
(4) Operation Indicator
None: Without operation indicator
L:
Neon lamp (250 VAC)
L2: LED (24 VDC)
Note: Only the molded terminal models can be
equipped with an operation indicators.
(2) Actuator
A:
B:
C:
D:
E:
F:
G:
H:
Roller plunger
Crossroller plunger
Plunger
Sealed roller plunger
Sealed crossroller plunger
Sealed plunger
Roller lever
One-way action roller lever
Note: The terminal specifications in model numbers are
not the same for D4E-N and D4E Switches.
Comparison of New and Old Molded
Terminal Models
Model
Location of
lead outlet
Right-hand
Left-hand
D4E-N
D4E-@@23N
D4E-@@24N
D4E
D4E-@@21
D4E-@@23
1
D4E-@N
Ordering Information
Type
One-touch connector type
General-purpose
Micro load
General-purpose
without cable
Screw terminal type
Micro load
General-purpose
without cable
with cable
Micro load with
cable
Actuator
Roller plunger
Crossroller
plunger
Plunger
Sealed roller
plunger
Sealed crossroller
plunger
Sealed plunger
Roller lever
One-way action
roller lever
Model
D4E-1A@0N
D4E-1B@0N
D4E-1C@0N
D4E-1D@0N
D4E-1E@0N
D4E-1F@0N
D4E-1G@0N
D4E-1H00N
Model
D4E-2A10N
D4E-2B10N
D4E-2C@0N
D4E-2D10N
Model
D4E-1A20N
D4E-1B20N
D4E-1C20N
D4E-1D20N
D4E-1E20N
D4E-1F20N
D4E-1G20N
D4E-1H20N
Model
D4E-2A20N
D4E-2B20N
D4E-2C20N
D4E-2D20N
D4E-2E20N
D4E-2F20N
D4E-2G20N
D4E-2H20N
Model
D4E-1A21N
D4E-1B21N
D4E-1C21N
D4E-1D21N
D4E-1E21N
D4E-1F21N
D4E-1G21N
D4E-1H21N
Model
D4E-2A21N
D4E-2B21N
D4E-2C21N
D4E-2D21N
D4E-2E21N
D4E-2F21N
D4E-2G21N
---
D4E-2F10N
D4E-2G10N
---
---
Note: 1. When ordering, specify the current type by replacing the blank box of the model number with 0 for AC connector or 1 for DC connector.
2. For the plunger and lever actuator models, the NC and NO terminal indicators are reversed.
3. Models are also available with molded terminals and with molded terminals and operation indicators. Refer to page 8.
Plug
Select one of the specified Connector Plugs from the following table.
Applicable limit
switches
D4E-@@00N
D4E-@@10N
Current
Type
AC
DC
Type
Straight
4
No. of
conductors
Cable length
2m
5m
2m
5m
Plug
XS2F-A421-D90-A
XS2F-A421-G90-A
XS2F-D421-D80-A
XS2F-D421-G80-A
Specifications
Approved Standards
Agency
UL
CSA
TÜV Rheinland
CCC (CQC)
Standard
File No.
UL508
E76675
CSA C22.2 No. 14
LR45746
EN60947-5-1
R9551015
GB14048.5
2003010305086795
Approved models
D4E-@@20N Switches only except for Indicator-equipped Switches
D4E-@@20N Switches only except for Indicator-equipped Switches
Ask your OMRON representative for information on approved models.
Ask your OMRON representative for information on approved models.
Ratings
Rated
voltage
125 VAC
250 VAC
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
Standard load
Non-inductive load (A)
Inductive load (A)
Resistive load
Lamp load
Inductive load
Motor load
NC
NO
NC
NO
NC
NO
NC
NO
5 (1)
5 (1)
5 (1)
5 (1)
5 (1)
0.5
0.25
1.5 (1)
1.5 (1)
---
---
---
---
---
3 (1)
3 (1)
1.5 (1)
1.5 (1)
1.5 (1)
0.05
0.03
2 (1)
1
---
---
---
---
---
1 (1)
0.5
Micro load
Non-inductive load (A)
Resistive load
NC
NO
0.1
---
0.1
0.1
0.1
---
---
Inrush
current
NC
10 A max.
NO
10 A max.
Note: 1. The above current ratings are for a
standard current and the values in
parentheses are for models with a
connector.
2. Inductive loads have a power factor of 0.4
min. (AC) and a time constant of 7 ms
max. (DC).
3. Lamp load has an inrush current of 10
times the steady-state current.
4. Motor load has an inrush current of 6
times the steady-state current.
Micro load
Minimum Standard load
applicable
160 mA at 5
1 mA at 5 VDC
load
VDC
2
D4E-@N
Approved Standard Ratings
UL/CSA
A300
Voltage
120 V
240 V
Carry
current
10 A
Current (A)
Make
Break
60 A
6A
30 A
3A
Volt-amperes (VA)
Make
Break
7,200
720
TÜV (EN60947-5-1), CCC (GB14048.5)
D4E-1 G 23 L N
I II III IV
Model
I
1
1
1
1
1
1
1
2
2
2
2
2
2
2
II
@
@
@
@
@
@
@
@
@
@
@
@
@
@
III
00
10
20, 21, 22
23, 24
23, 24
23, 24
23, 24
00
10
20, 21, 22
23, 24
23, 24
23, 24
23, 24
L
L1
L2
L3
IV
Applicable category
and ratings
AC-14 0.5 A/125 VAC
DC-12 0.5 A/30 VDC
AC-15 2A/250 VAC
DC-12 2A/48 VDC
AC-15 2A/250 VAC
DC-12 2A/12 VDC
DC-12 2A/24 VDC
DC-12 2A/48 VDC
AC-14 0.1A/125 VAC
DC-12 0.1A/30 VDC
AC-14 0.1A/125 VAC
DC-12 0.1A/48 VDC
AC-14 0.1A/125 VAC
DC-12 0.1A/12 VDC
DC-12 0.1A/24 VDC
DC-12 0.1A/48 VDC
Thermal current
(Ithe)
5A
5A
5A
5A
5A
5A
5A
0.5 A
0.5 A
0.5 A
0.5 A
0.5 A
0.5 A
0.5 A
Indicator
---
---
---
Neon lamp
LED
LED
LED
---
---
---
Neon lamp
LED
LED
LED
Note: 1.
@:Actuator
variation of item II
2. AC-14 0.5 A/125 VAC means as follows:
3. Applicable category: AC-14
Rated operating current (I
e
): 0.5 A
Rated operating voltage (U
e
): 125 VAC
L
L1
L2
L3
Characteristics
Degree of protection
Mechanical
Durability
*
Electrical
IP67
10,000,000 operations min.
500,000 operations min.
(5 A at 250 VAC, resistive load)
5,000,000 operations min.
(10 mA at 24 VDC, resistive load)
0.1 mm/sec to 0.5 m/sec
Mechanical: 120 operations/min
Electrical: 30 operations/min
50/60 Hz
100 MΩ min. (at 500 VDC)
15 mΩ max. (initial value for the built-in switch when
tested alone)
1,000 VAC, 50/60 Hz for 1 min
Engineering Data
General-purpose Models
Electrical Durability (cosφ=1)
Operating temperature: +5°C to +30°C
Operating humidity: 40% to 70%RH.
Durability (
×
10
4
operations)
1,000
700
500
300
Operating frequency: 30 operations/min
cosφ= 1
250 VAC
100
70
50
30
Operating speed
Operating frequency
Rated frequency
Insulation resistance
Contact resistance
Dielectric
strength
Between terminals of
same polarity
Between each terminal and non-
1,500 VAC, 50/60 Hz for 1 min/Uimp at 2.5 kV
current-carrying metal part
(EN60947-5-1)
250V
3 (EN60947-5-1)
10 A fuse (type gG or gI, IEC60269 approved)
100 A (EN60947-5-1)
5 A (EN60947-5-1)
Class II (grounding not required with double insulation)
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
min.
300 m/s
2
min.
−10°C
to +80°C (with no icing)
35% to 95%RH
Approx. 86 g (in case of roller plunger)
10
7
5
3
Rated insulation voltage (Ui)
Pollution degree (operating environment)
Short-circuit protective device (SCPD)
Conditional short-circuit current
Conventional enclosed thermal current (I
the
)
Protection against electric shock
Vibration
resistance
Shock
resistance
Malfunction
Destruction
Malfunction
1
0
1
2
3
4
5
6
7
Switching current (A)
8
9
10
Note: 1. The above values are initial values.
2. The above ratings may vary depending on the
model. Contact your OMRON representative
for further details.
* Durability values are calculated at an operating
temperature of +5
°
C to +35
°
C, and an operating
humidity of 40% to 70%RH.
Ambient operating temperature
Ambient operating humidity
Weight
Structure and Nomenclature
Structure
Movable Plunger
Rubber Cap (NBR)
· Rubber cap provides a tight seal and
ensures a long service life and
smooth reset at low temperatures.
Bearing
· The bearing load strength has been increased to prevent faulty
resetting of the bearing, which may occur when the roller is
pressed with excessive force.
Built-in Switch
· Switch cover ensures high insulation between the terminals
and die-cast. Double insulation means that grounding is
unnecessary. Meets UL, CSA, and EN standards.
· Prevents the movable piece from being pushed in too far, and
thereby contributes to a longer service life.
Die-cast Case
· Zinc die-cast case is anti-corrosive and tough.
Wiring Ease
· Wired made easier using
(D4CC-type) plug-in connector.
Screw Terminal
· Screw terminal incorporates a M3 screw with a toothed washer.
Seal Packing (NBR)
· Seal packing withstands a pressure of 186 kPa.
Terminal Protection Cover
· D4E-@N has a wide wiring space of
10 mm horizontally.
3
D4E-@N

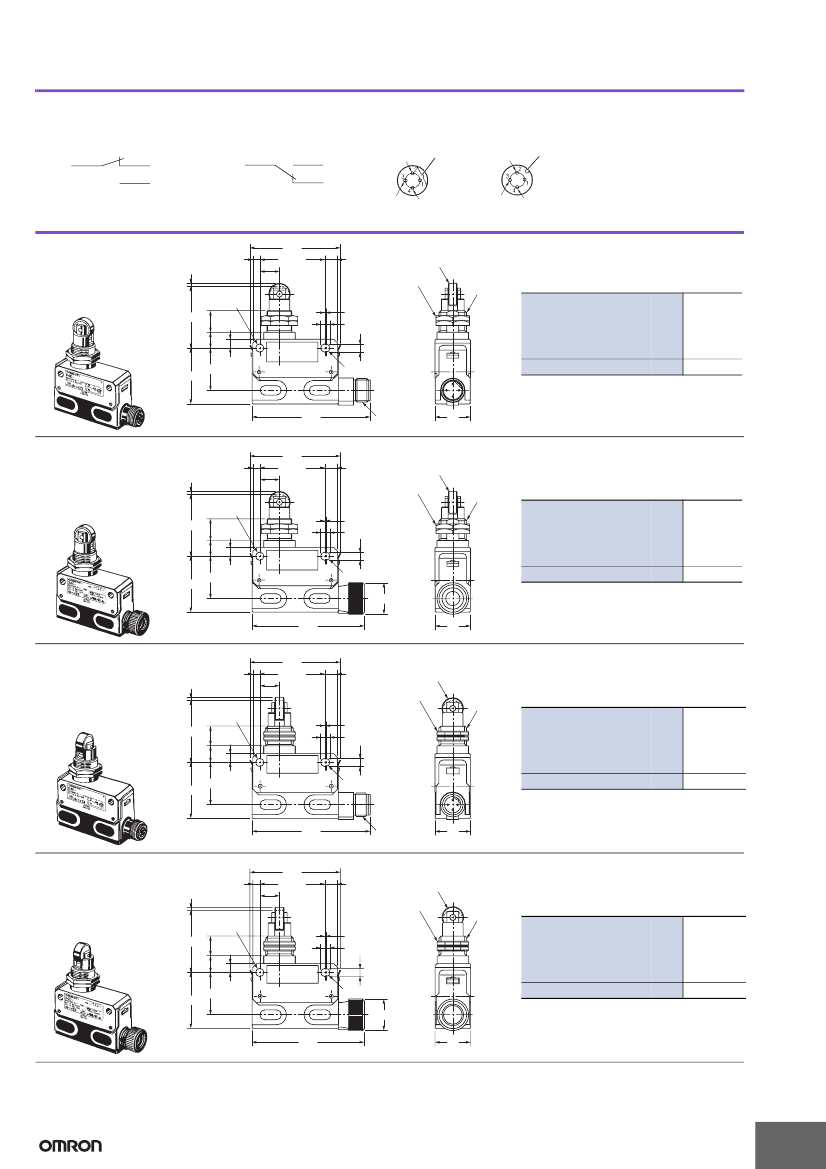

Contact Form
Screw Terminal Type
Plunger
(COM) 1
2 (NC)
4 (NO)
Lever
(COM) 1
4 (NO)
2 (NC)
Connector Type
For AC
For DC
NC
Positioning
piece *
NC
* The position of the positioning
Positioning
piece is not always the same. If
piece *
using an L-shaped connector
causes problems in application,
use a straight connector.
COM NO
COM NO
Dimensions and Operating Characteristics

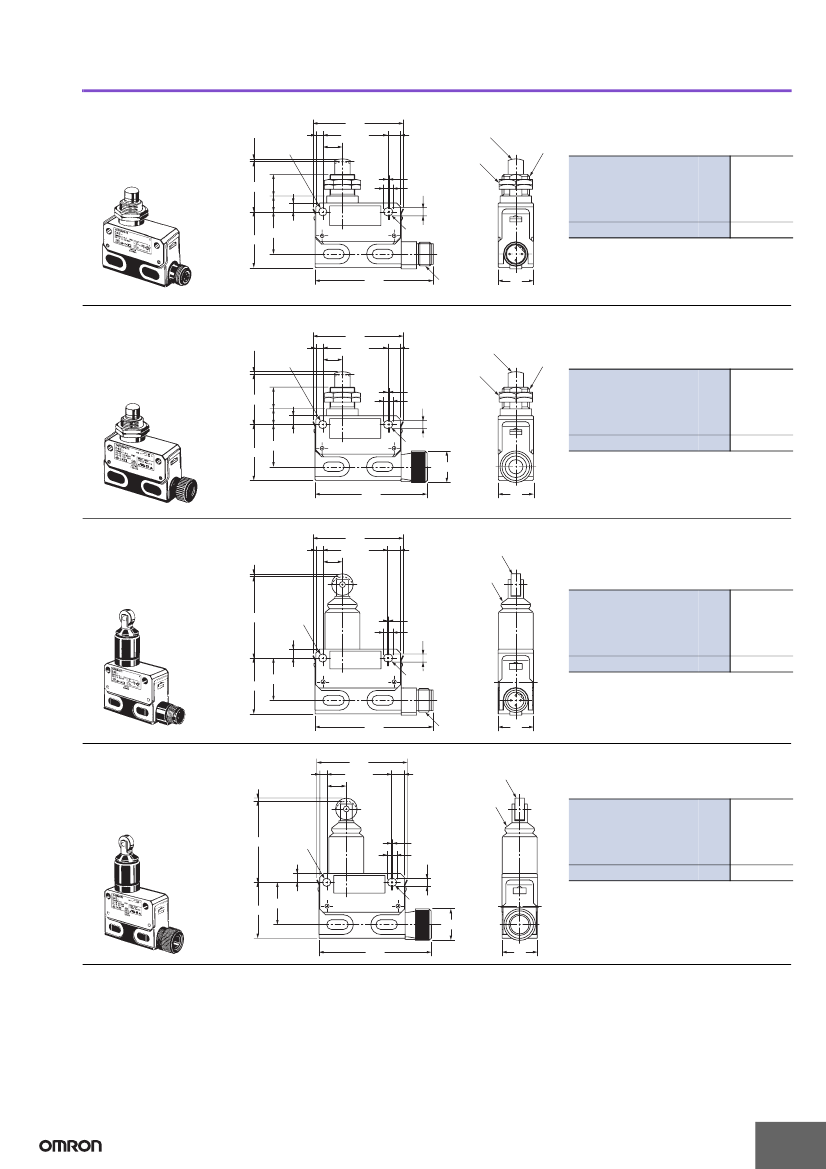

Roller Plunger
D4E-1A00N
D4E-2A00N
D4E-1A10N
D4E-2A10N
3.5
PT
4.2
+0.2
dia.
0
holes
OP
11
8
4.5
28.4
21.5
Two, 2.1R
10
(46)
33
±
0.15
11 dia.
×
4.7 stainless
sintered alloy roller
Two, panel mounting nut
2.5 mm thickness, 17 mm
M14
×
1
width across flats
6.5
0.5
4.7 holes
4.2
+0.2
dia.
0
(Unit: mm)
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
11.77 N
RF min.
4.90 N
PT max.
1.5 mm
OT min.
3 mm
MD
(0.1 mm)
OP
31.4±0.8 mm
( ) :Reference Value
(60)
M12
×
1
18
Roller Plunger
D4E-1A20N *1
D4E-2A20N *1
D4E-1A21N *2
D4E-2A21N *2
(46)
3.5
PT
4.2
+0.2
dia.
0
holes
OP
11
8
4.5
28.4
21.5
10
33
±
0.15
11 dia.
×
4.7 stainless
sintered alloy roller
Two, panel mounting nut
2.5 mm thickness, 17 mm
M14
×
1
width across flats
6.5
0.5
4.7 holes
4.2
+0.2
dia.
0
Two, 2.1R
16 dia.
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
11.77 N
RF min.
4.90 N
PT max.
1.5 mm
OT min.
3 mm
MD
(0.1 mm)
OP
31.4±0.8 mm
( ) :Reference Value
(57)
18
Cross Roller Plunger
D4E-1B00N
D4E-2B00N
D4E-1B10N
D4E-2B10N
3.5
PT
10
(46)
33
±
0.15
6.5
4.2
+0.2
dia.
0
holes
OP
11
8
4.5
28.4
21.5
11 dia.
×
4.7 stainless
sintered alloy roller
Two, panel mounting nut
2.5 mm thickness, 17 mm
width across flats
M14
×
1
0.5
4.7 holes
4.2
+0.2
dia.
0
Two, 2.1R
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
31.4±0.8 mm
( ) :Reference Value
(60)
M12
×
1
18
Cross Roller Plunger
D4E-1B20N *1
D4E-2B20N *1
D4E-1B21N *2
D4E-2B21N *2
(46)
3.5
PT
4.2
+0.2
dia.
0
holes
OP
11
8
4.5
28.4
21.5
10
33
±
0.15
6.5
11 dia.
×
4.7 stainless
sintered alloy roller
Two, panel mounting nut
2.5 mm thickness, 17 mm
width across flats
M14
×
1
0.5
4.7 holes
4.2
+0.2
dia.
0
Two, 2.1R
16 dia.
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
31.4±0.8 mm
( ) :Reference Value
(57)
18
Note: Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
*1. A 5.8-dia. to 7.6-dia. cable can be applied to the seal rubber for the lead wire outlet.
*2. A 3-m lead wire cable equivalent to the 3-conductor VCTF S-FLEX cable (0.75 mm
2
, 7 mm in dia.) is provided.
4
D4E-@N
Plunger
D4E-1C00N
D4E-2C00N
D4E-1C10N
D4E-2C10N
(46)
PT
3.5
4.2
+0.2
dia.
0
holes
10
33
±
0.15
6.5
7.8 dia. stainless
steel plunger
M14
×
1
OP
11
8
4.5
Two, panel mounting nut
2.5 mm thickness, 17 mm
width across flats
0.5
4.7 holes
4.2
+0.2
dia.
0
28.4
21.5
Two, 2.1R
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
25.4±0.8 mm
( ) :Reference Value
(60)
M12
×
1
18
Plunger
D4E-1C20N
D4E-2C20N
D4E-1C21N
D4E-2C21N
*1
*1
*2
*2
PT
3.5
4.2
+0.2
dia.
0
holes
10
(46)
33
±
0.15
6.5
7.8 dia. stainless
steel plunger
M14
×
1
OP
11
8
4.5
Two, panel mounting nut
2.5 mm thickness, 17 mm
width across flats
0.5
4.7 holes
4.2
+0.2
dia.
0
28.4
21.5
Two, 2.1R
16 dia.
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
25.4±0.8 mm
( ) :Reference Value
(57)
18
Sealed Roller Plunger
D4E-1D00N
D4E-2D00N
D4E-1D10N
D4E-2D10N
3.5
PT
10
(46)
33
±
0.15
6.5
11 dia.
×
4.7 stainless
sintered alloy roller
Sealed rubber
OP
4.2
+0.2
dia.
0
holes
0.5
4.7 holes
4.2
+0.2
dia.
0
4.5
28.4
21.5
Two, 2.1R
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
41.3±0.8 mm
( ) :Reference Value
(60)
M12
×
1
18
Sealed Roller Plunger
D4E-1D20N *1
D4E-2D20N *1
D4E-1D21N *2
D4E-2D21N *2
3.5
PT
10
(46)
33
±
0.15
6.5
11 dia.
×
4.7 stainless
sintered alloy roller
Sealed rubber
OP
4.2
+0.2
dia.
0
holes
0.5
4.7 holes
4.2
+0.2
dia.
0
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD
OP
11.77 N
4.90 N
1.5 mm
3 mm
(0.1 mm)
41.3±0.8 mm
4.5
28.4
21.5
Two, 2.1R
16 dia.
( ) :Reference Value
(57)
18
Note: Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
*1. A 5.8-dia. to 7.6-dia. cable can be applied to the seal rubber for the lead wire outlet.
*2. A 3-m lead wire cable equivalent to the 3-conductor VCTF S-FLEX cable (0.75 mm
2
, 7 mm in dia.) is provided.
5
Embedded System
京公网安备 11010802033920号
EEWORLD
