SONG CHUAN
832HA
Features

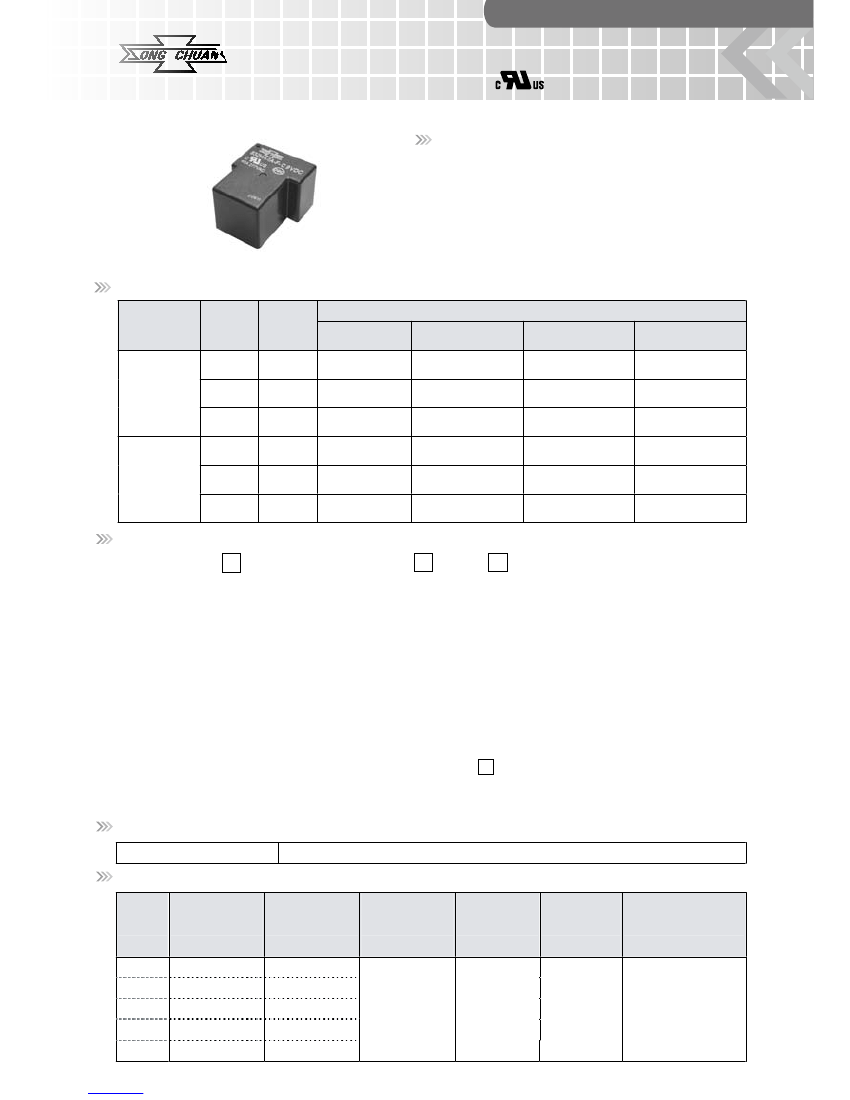

Heavy duty 40A general purpose PCB Power Relay.
Available for top faston, flux tight, sealed versions.
UL Class F as standard.
Special design for UPS, power supply of high rating
application.
Comply with RoHS-Directive
2011/65/EU.
Type List
Terminal
style
Contact Insulation
form
1A
(SPNO)
1B
(SPNC)
1C
(SPDT)
1A
(SPNO)
1B
(SPNC)
1C
(SPDT)
system
F
F
F
F
F
F
Open type
832HA-1A-F
832HA-1B-F
832HA-1C-F
Flux tight
832HA-1A-F-C
832HA-1B-F-C
832HA-1C-F-C
Designation
Sealed type
832HA-1A-F-V
832HA-1B-F-V
832HA-1C-F-V
Sealed type
washable
832HA-1A-F-S
832HA-1B-F-S
832HA-1C-F-S
PCB terminal
WP (PCB
terminal &
Quick
terminal)
832HAWP-1A-F 832HAWP-1A-F-C 832HAWP-1A-F-V 832HAWP-1A-F-S
832HAWP-1B-F 832HAWP-1B-F-C 832HAWP-1B-F-V 832HAWP-1B-F-S
832HAWP-1C-F 832HAWP-1C-F-C 832HAWP-1C-F-V 832HAWP-1C-F-S
Ordering Information
832
1
1. 832
2. HA
HA
2
3
-
1A
4
-
F
5
-
6
7
6. Blank
C
V
S
C1
S1
-- Open type
-- Flux tight
-- Sealed type
-- Sealed type washable
-- With flanged cover
-- Sealed type washable with flanged
cover
-- Coil voltage (please refer to the
coil rating data for the availability)
-- Basic series designation
-- High power type
3. Blank -- PCB terminal
W
-- Quick terminal
WP
-- PCB terminal & Quick terminal
4. 1A
1B
1C
5. F
-- Single pole normally open
-- Single pole normally closed
-- Single pole double throw
-- Class F
7.
Contact Rating
Resistive load
NO: 40A 240VAC ; NC: 40A 240VAC
Coil Rating (DC)
Rated
voltage
(V)
5
6
12
24
48
Rated current
±10 % at 23
(mA)
185
150
77
36
18
Coil resistance Max. continuous
±10 % at 23
( )
27
40
155
660
2560
voltage
at 70
110 % of
rated
voltage
Pick up
Drop out
Power consumption
at rated
voltage
voltage(Max.) voltage(Min.)
at 23
80 % of
rated
voltage
at 23
10 % of
rated
voltage
approx. 0.93W
Downloaded from
DatasheetLib.com
- datasheet search engine
171
SONG CHUAN
832HA
Specification
Contact material
Contact resistance
(1)
Operate time
(1)
AgSnO alloy
50m
Max. (1A/6VDC by 4 pipes m
meter)
15 ms Max.
10 ms Max.
(1)
Release time
(1)
Insulation resistance
Surge voltage withstand
Dielectric strength
(1)
Vibration resistance
Shock resistance
1000 M
Min. (DC 500V)
: 6KV 1.2X50μS
: AC 1500V , 50/60Hz 1min.
: AC 2500V , 50/60Hz 1min.
10 ~ 55Hz , amplitude 1.5 mm
10 ~ 55Hz , amplitude 1.5 mm
10G
100G
2,000,000 operations
(frequency 18,000 operations/hr)
NO:30,000 operations NC:10,000 operations
(frequency 900 operations/hr)
-55 ~ +70 (no freezing)
Between contact and coil
Between open contact
Between contact and coil
Operating extremes
Damage limits
Operating extremes
Damage limits
Mechanical
Life expectancy
Electrical
Operating ambient temperature
Weight
Note
(1)
initial value
Approx. 22 g (open type), 27g (with cover), 36g (WP) , 38g (W)
Safety Approval
Certified
File No.
UL / CUL
E88991
Safety Approval Rating
UL / CUL
NO: 40A 277VAC
NC: 40A 277VAC

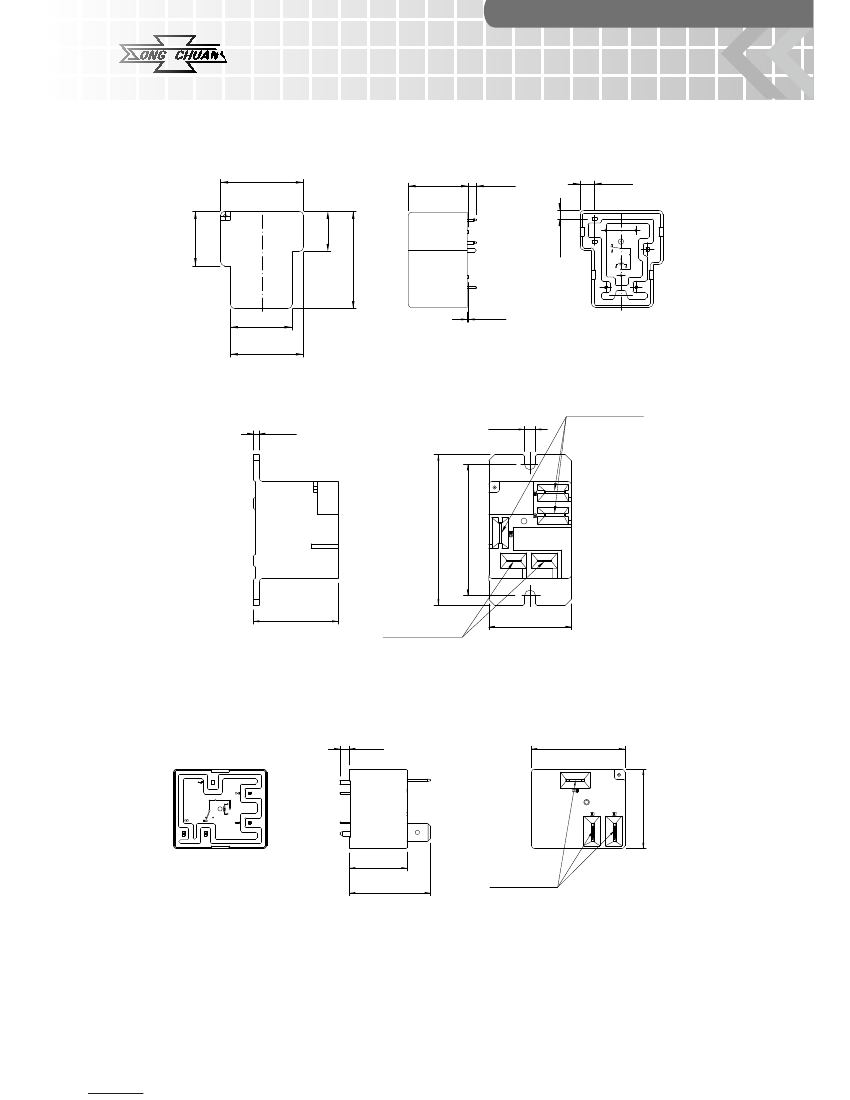

Outline Dimensions
832HA(OPEN)
24.1MAX
(0.949)
17.3MAX
(0.681)
3.3
(0.130)
29MAX
Downloaded from
DatasheetLib.com
- datasheet search engine
172
(1.142)
SONG CHUAN
832HA
832HA
27.5MAX
(1.083)
20.4MAX
(0.803)
3.3
(0.130)
4.8
(0.189)
(0.504)
(0.693)
12.8
32.2MAX
(0.098)
17.6
2.5
3
5
4
1
4
2
(1.268)
20
(0.787)
0.4
(0.016)
24.8
(0.976)
832HAW
6.35 X 0.8
2
(0.079)
3.6
(0.142)
(0.250)
(0.031)
Quick terminal
50MAX
(1.969)
28.2MAX
(1.110)
(1.713)
43.5
28MAX
4.75 X 0.5
(0.187)
(0.020)
(1.102)
Quick ternimal
832HAWP
3.4
(0.134)
32.5MAX
(1.280)
28MAX
20MAX
(0.787)
28.2MAX
(1.110)
6.35 X 0.8
(0.250)
(0.031)
Quick terminal
(1.102)
Downloaded from
DatasheetLib.com
- datasheet search engine
173
SONG CHUAN
832HA
Wiring Diagram
BOTTOM VIEW
1C
1B
1A
PC Board Layout
BOTTOM VIEW
832HA
832HAWP
5.15
(0.138)
(0.299)
3.5
2.1
7.6
(0.083)
(0.299)
(0.203)
2.1
(0.083)
(0.100)
7.6
(0.598)
(0.100)
15.2
3.8
(0.150)
(0.598)
2.54
15.2
14
(0.551)
1.1
(0.043)
3.8
(0.150)
14
(0.551)
17.8
(0.701)
17.8
(0.701)
1.1
(0.043)
Downloaded from
DatasheetLib.com
- datasheet search engine
174
————
All specifications subject to change.
Please contact Song Chuan for update.
————
2.54
