30-104: DescriptionPushbutton Switches PushBtn Switch SPST N.O. orange Btn; CategoryMechanical and electronic products switch; File Size77KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

30-104 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30-104	-	-	View	Buy Now

30-104 Overview

Pushbutton Switches PushBtn Switch SPST N.O. orange Btn

30-104 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Actuator type	PLUNGER
body height	13.72 mm
Body length or diameter	17.53 mm
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	.15A@24VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	24 V
Electrical life	500000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER

Preview

Download Datasheet

View All

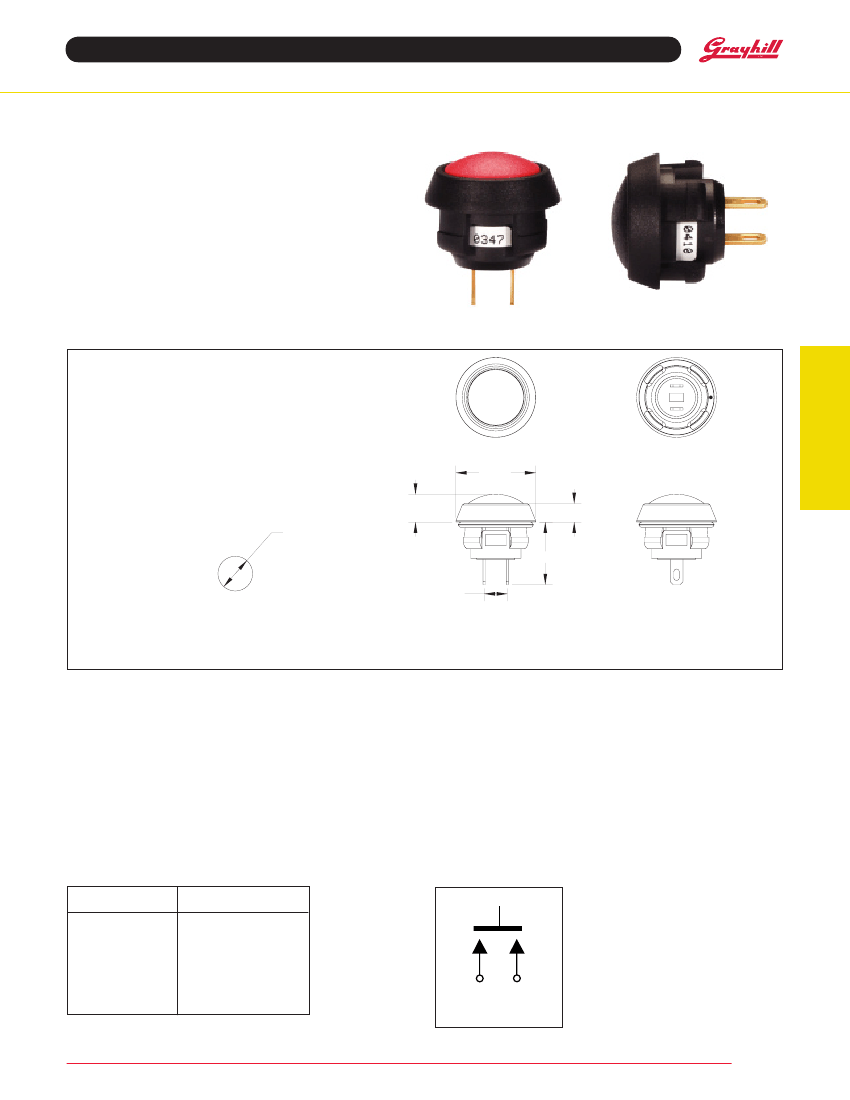

Butt Contact Pushbutton Switches

SERIES 30

Snap-in Panel Mounting

FEATURES

• Convenient Snap-in Panel Mounting

• Choice of 6 Button Colors

• SPST (Momentary Contact)

• Gold Plated Contacts

• Sealed

• Butt Contact System

DIMENSIONS

In inches (and millimeters)

(Unless otherwise noted, standard tolerances are +/- .020)

Pushbutton Switches

Ø.690

.240

Ø

.596 / .602

YYWW

.540

.160

GH

.200

RECOMMENDED PANEL CUT-OUT

SCALE: 1 TO 1

PANEL THICKNESS WITH "O" RING: .098-.106

PANEL THICKNESS WITHOUT "O" RING: .140-.144

SCALE 2.000

MATERIAL

• Button, Housing, Base and Plunger: Nylon, 45%

Glass-filled

• Terminal: Brass, gold-plated over nickel

• Shorting Bar: Brass, gold-plated over nickel

• Internal Seal: Silicone Rubber

• O-ring Seal: Silicone

• Spring: Tinned music wire

• Travel: .090 Nominal

• Travel Before Make: .035 Nominal

ORDERING INFORMATION

Part Number

30-100

30-101

30-102

30-103

30-104

30-105

Description

Black

Red

Green

Yellow

Orange

Blue

RATINGS

• Cycles: 500,000 Actuations

• Operating Temperature: -40

o

C to +80

o

C

• Shock: 100 G’s/ 6 Milliseconds

• Rating at 24 VDC: 150 Milliamps

• Voltage Breakdown: 1000 VAC between mutually

insulated parts

• Contact Resistance: 25 milliohms max on new

switch

• Insulation: 1,000

megaohms

minimum

CIRCUITRY

SPST

N.O.

SPST

N.O.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
