ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS
513 SERIES SWITCHES
MOMENTARY, SNAP ACTION
5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC
Caps Ordered Separately See Page 24.
Uses:
T-1 3/4 MIDGET
FLANGE BASE
INCANDESCENT LAMP
PART NO.
513-1601-604
513-1606-001
513-1611-001
513-1701-604
513-1706-001
513-1711-001
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
3/4" SQ.
ALL
5/8" SQ.
3/4" SQ.
CONTACT
CIRCUIT
SPDT
SPDT
SPDT
TWO CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
FIG
1
2
3
1
2
3

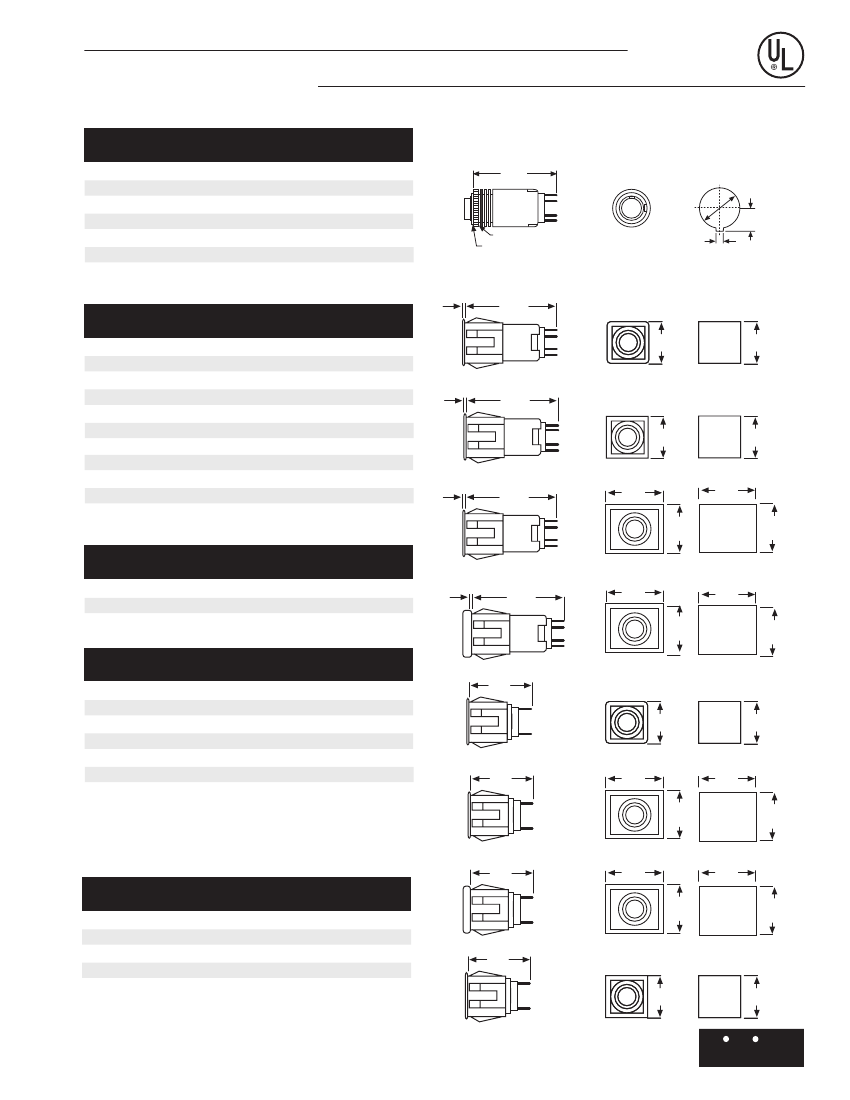

SIDE VIEW
37.28
[1.468]
FRONT VIEW
MOUNTING HOLE
[.501]
[.505]
DIA
7.16
[.282]
12.70 [.500] 32NS-2A THD.
KNURLED FLANGED NUT
2.39 [.094] x 12.93 [.509] MAX O.D.
REAR PANEL MOUNT BASE
1.96
[.077]
FIG 1
MOMENTARY ACTION
3 AMP; 125VAC/30VDC; GOLD PLATED CONTACT
1.14
[.045]
PART NO.
513-0101-604
513-0106-001
513-0109-001
513-0110-001
513-0111-001
513-0301-604
513-0306-001
513-0309-001
513-0310-001
513-0311-001
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
3/4" X 1"
3/4" X 1"
3/4" SQ.
ALL
5/8" SQ.
3/4" X 1"
3/4" X 1"
3/4" SQ.
CONTACT
CIRCUIT
SPST N.O.
SPST N.O.
SPST N.O.
SPST N.O.
SPST N.O.
TWO CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
46.23
[1.820]
MAX
20.65
[.813]
SQ.
19.25
±13
[.758±.005]
SQ.
FIG
1
2
4
5
3
1
2
4
5
3
1.14
[.045]
FIG 2
46.23
[1.820]
MAX
23.83
[.938]
SQ.
22.45
±.13
[.883±.005]
SQ.
FIG 3
1.14
[.045]
46.23
[1.820]
MAX
29.57
[1.16]
28.19
±.13
[1.110
±
.005]
MOMENTARY ACTION
5 TO 100 mA; 3 TO 12VDC; HEAVY GOLD PLATING
23.47
[.924]
22.10
±.13
[.870
±.005]
PART NO.
513-0601-604
513-0606-001
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
CONTACT
CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
FIG
1
2
FIG 4
5.94
[.234]
46.23
[1.820]
MAX
29.57
[1.16]
28.19
±.13
[1.110
±
.005]
ALTERNATE ACTION
5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC
23.47
[.924]
22.10
±.13
[.870
±.005]
PART NO.
513-1401-604*
513-1406-001**
513-1409-001**
513-1411-001**
513-1501-604*
513-1506-001**
513-1511-001**
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
3/4" X 1"
3/4" SQ.
ALL
5/8" SQ.
3/4" SQ.
CONTACT
CIRCUIT
SPDT
SPDT
SPDT
SPDT
TWO CIRCUIT
TWO CIRCUIT
TWO CIRCUIT
FIG
1
2
4
3
1
2
3
FIG 5
27.43
[1.08]
MAX
20.65
[.813]
SQ.
19.25
±13
[.758±.005]
SQ.
Fig. 6
27.43
[1.08]
MAX
29.57
[1.16]
28.19
±.13
[1.110
±
.005]
* Add 12.7 (.500) to length dimension
** Add 13.08 (.515) to length dimension
23.47
[.924]
22.10
±.13
[.870
±.005]
533 SERIES INDICATORS
PART NO.
533-0601
533-0901
533-1001 (w/built-in barrier)
533-1101
Fig. 7
27.43
[1.08]
MAX
29.57
[1.16]
28.19
±.13
[1.110
±
.005]
ACCEPTS
CAP SIZE
5/8" SQ.
3/4" X 1"
3/4" X 1"
3/4" SQ.
FIG
6
7
8
9
Fig. 8
23.47
[.924]
22.10
±.13
[.870
±.005]
27.43
[1.08]
MAX
Material & Finish: Base, Clear anodized aluminum;
Bezel, Heat resistant black plastic.
Neon and incandescent lamp information on Pages 35 and 36.
Dimensions in mm [inches]
