7000 series
Rocker and paddle switches

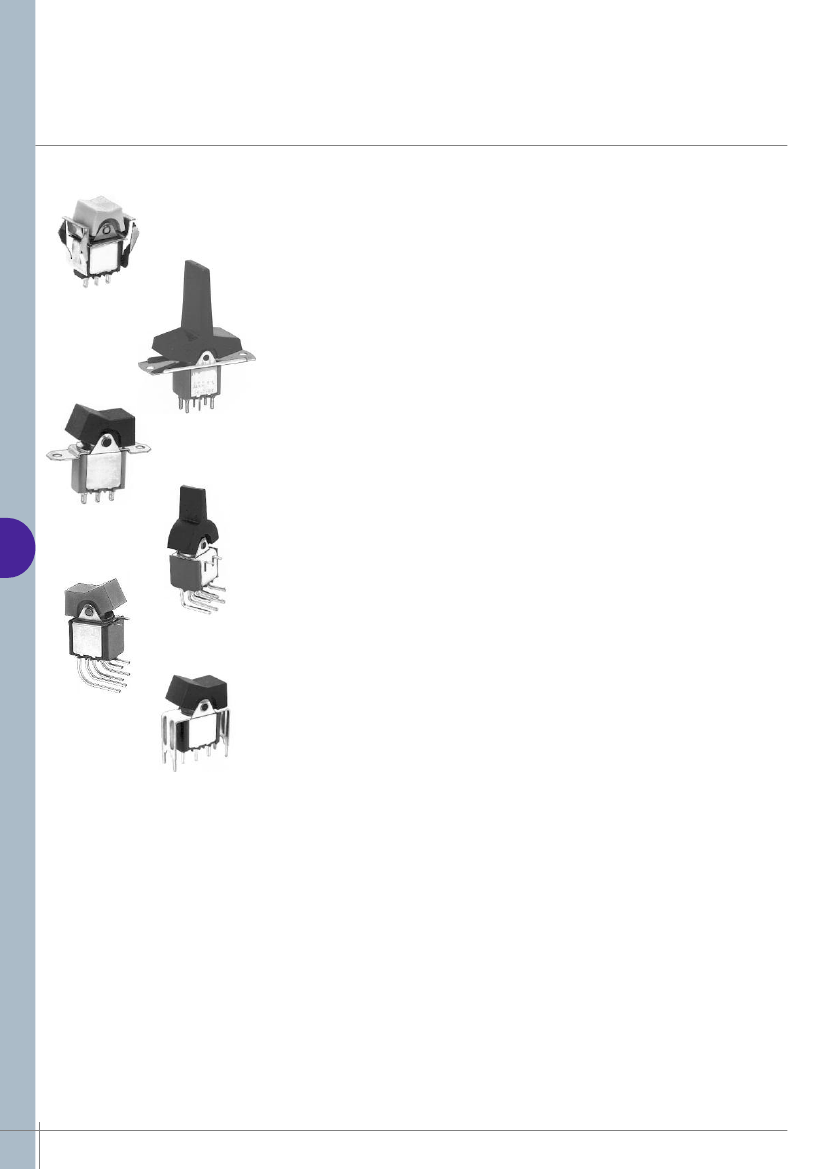

Distinctive features
K
Wide variety of actuators
Rockers and paddles in different sizes
Available in10 different colours
Two bezel types
K
4 terminal types
Solder lugs
Quick-connect terminals
Straight or right angle PC terminals
K
Many mounting styles for panel or PCB
D
Snap-in
By plate and screw
PCB mounting with or without bracket
K
4 contact materials
Silver and gold plated silver
Gold plated and silver plated brass
K
8 electrical functions, maintained or momentary
K
UL and CSA approved - for VDE refer to 57000
The company reserves the right to change specifications without notice.
D-24
www.apem.com
APEM
7000 series
Rocker and paddle switches
Specifications
ELECTRICAL SPECIFICATIONS
• Current/voltage rating with resistive load :
Contact
Silver A
Silver,
gold plated AD
Brass,
gold plated CD
4A 30VDC
4A 30VDC
Gold plating withstands up to 100mA 30VDC.
0,4 VA at 20VAC or DC
Maximum
Minimum
50mA 10VDC
10mA 50mV
10µA 5V
10mA 50mV
10µA 5V
Level *
III and IV
I to IV
I and II
• For inductive, lamp or capacitive loads, consult factory.
• Initial contact resistance : 10 mΩ
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals
1.500 Vrms 50 Hz min. between poles
1.500 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life : 50.000 cycles at full load
* For details, see technical information, end of catalogue.
MATERIALS
GENERAL SPECIFICATIONS
• Case : diallylphthalate (DAP) or
high temperature plastic material
(UL94-V0)
• Actuator : polyamide
• Housing : stainless steel or steel
tin plated
• Bracket : steel, tin plated
• Contacts
A
: silver
AD
: silver, gold plated
CD
: brass, gold plated
• Terminal seal : epoxy
• Low level or mechanical life : 100.000 cycles
• Panel thickness : 1 (.039) to 2,5 mm(.098)
• Operating temperature : -40°C to +85°C
D
AGENCY APPROVALS
3A 250VAC
6A 125VAC
For VDE, refer to 57000 series.
Availability
: consult factory for details of approved models.
Marking
: to order switches marked UL or CSA, complete appropriate box of
ordering format.
APEM
www.apem.com
D-25
7000 series
Rocker and paddle switches
Overview
7
SERIES
Number of poles
3
4
Single pole
Double pole
Blank
W
WW
Y
Y4
Y6
Y7
Z
}
}
}
}
Terminals
Solder lugs or straight PC depending
on model
Right angle, horizontal mounting
(7900 switches)
Right angle, vertical mounting
(7000 switches)
Bracket mounting
(7000 switches)
Quick-connect (7200 switches)
Consult factory for
three and four pole
models.
Mounting plate
N
Mounting with small plate
D
Terminals-mounting
0
2
Right angle terminals or straight PC
terminals with bracket
Straight PC or quick-connect terminals,
4,7 (.185) terminal spacing, snap-in
mounting
Straight PC terminals, 4 (.157) terminal
spacing, snap-in mounting
Solder lug terminals, snap-in mounting
Solder lug terminals, panel mounting
Straight PC or quick-connect terminals,
4,7 (.185) terminal spacing, panel
mounting
Right angle terminals
6
9
7
8
2
4
Electrical functions
ON
ON
MOM
ON
ON
-
OFF
OFF
OFF
-
ON
ON
MOM
MOM
MOM
Connections
for function 4
TH
(standard)
CT
(reversed)
. For functions 4, 41R, 42R
. Leave blank for all other
functions.
Momentary for
function 4
1R
ON ON MOM
2R
MOM ON MOM
Leave blank for other
functions.
4
6
7
9
ON
ON
ON
ON
ON MOM
∆
MOM ON MOM
∆
Function 4
. Must not have blank in
"connections" box.
.
∆
Must not have blank in
"momentary" box.
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- options in the same order as in above chart
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
D-26
www.apem.com
APEM
7000 series
Rocker and paddle switches
Overview
Contact materials
A
AD
CD
Silver
Silver, gold plated
Brass, gold plated
Special options
Blank
No special requirement
X653
Vertical right angle with
stand-off plate
Other, see following pages.
Actuators
Rockers
U530
U620
U730
U830
U1010
Paddles
U490
U610
U700
Large
Medium
Small
Medium
Large
Large
Narrow
Broad
D
Sealing
Blank
No sealing
B
Epoxy sealed
terminals
UL
CSA
Availability :
Consult factory for
details of approved
models.
For VDE, refer to
57000.
Approvals
Bezels - Mounting accessories
Bezels for rocker U730 or paddle U700
U1200
U1210
For LED
Accessories for panel mounting models
U543
U1022
Spacer + nut + screw
Spacer + nut + screw +
washer
Packaging unit
: 25 pieces.
APEM
www.apem.com
D-27
7000 series
Rocker and paddle switches

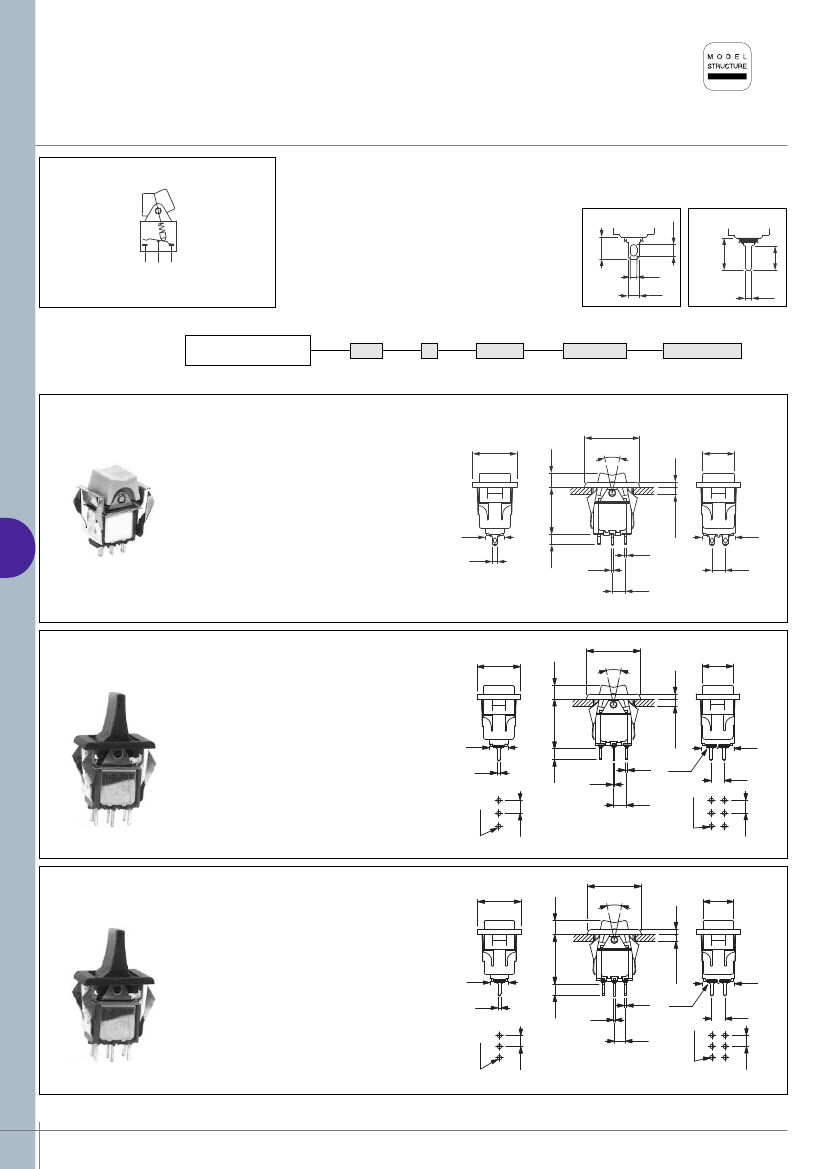

Snap-in mounting : 7600 - 7200 - 7400
• Solder lug or straight PC terminals
• Epoxy sealing standard on models
with straight PC terminals
3.70
(.145)
1.90
(.074)
1
2
3
1.80
(.070)
1.10
(.043)
MODEL
STRUCTURE
Shown with rocker U730 and bezel U1200
Solder lug terminals : 7600
5.20
(.204)
3.70
(.145)
D
Single pole
7636
7639
7637
7638
7632
Double pole
7646
7649
7647
7648
7642
7644*
7644 1R*
7644 2R*
ON
ON
MOM
ON
ON
ON
ON
MOM
-
OFF
OFF
OFF
-
ON
ON
ON
ON
ON
MOM
MOM
MOM
ON
MOM
MOM
16.50
(.649)
7.00
(.275)
2.50 Maxi
(.098 MAX)
2.00
(.078)
III
2-3
5-6
II
I
1-2
4-5
15.70
(.618)
III
19.50
(.767)
II
24˚
I
11.30
(.444)
1.80
(.070)
0.50
(.019)
1
2
3
0.80
(.031)
4.70
(.185)
12.00
(.472)
4.75
(.187)
Straight PC terminals - spacing 4,7 (.185) : 7200
III
2-3
5-6
Single pole
7236 B
7239 B
7237 B
7238 B
7232 B
Double pole
7246 B
7249 B
7247 B
7248 B
7242 B
7244 B*
7244 1R B*
7244 2R B*
ON
ON
MOM
ON
ON
ON
ON
MOM
II
I
1-2
4-5
ON
ON
MOM
MOM
MOM
ON
MOM
MOM
7.00
(.275)
19.50
(.767)
15.70
(.618)
5.20
(.204)
III
II I
24°
2.00
(.078)
11.30
(.444)
Ø1.60
(.063 DIA)
4.70
(.185)
-
OFF
OFF
OFF
-
ON
ON
ON
2.50 Maxi
(.098 MAX)
17.85
(.702)
12.00
(.472)
4.75
(.187)
1.10
(.043)
4.00
(.157)
1
0.50
(.019)
2
3
0.80
(.031)
Epoxy
Ø1.60
(.063 DIA)
4.70
(.185)
Straight PC terminals - spacing 4 (.157) : 7400
III
2-3
5-6
Single pole
7436 B
7439 B
7437 B
7438 B
7432 B
II
I
1-2
4-5
19.50
C72DT-A
(.767)
5.20
(.204)
15.70
(.618)
III
II
24°
I
2.00
(.078)
11.30
(.444)
Double pole
7.00
7446 B
ON
-
ON
(.275)
7449 B
ON OFF ON
1 2 3
1.10
7447 B
MOM OFF MOM
(.043)
0.50
(.019)
7448 B
ON OFF MOM
7442 B
ON
- MOM
7444 B*
ON ON ON
7444 1R B*
ON ON MOM
7444 2R B*
MOM ON MOM
* Function 4 : SP in DP case - specify CT or TH connections, see end of catalogue.
17.85
(.702)
4.00
(.157)
Ø1.60
(.063 DIA)
4.00
(.157)
C74DT-A
2.50 Maxi
(.098 MAX)
0.80
(.031)
Epoxy
Ø1.60
(.063 DIA)
4.00
(.157)
D-28
www.apem.com
4.00
(.157)
4.70
(.185)
12.00
(.472)
4.75
(.187)
APEM
9.80
(0.385)
1.10
(.043)
5.30
(.208)
4.00
(.157)
