Applied Motion Products, Inc.
404 Westridge Dr.
Watsonville, CA 95076, USA
1-800-525-1609
Tel (831) 761-6555

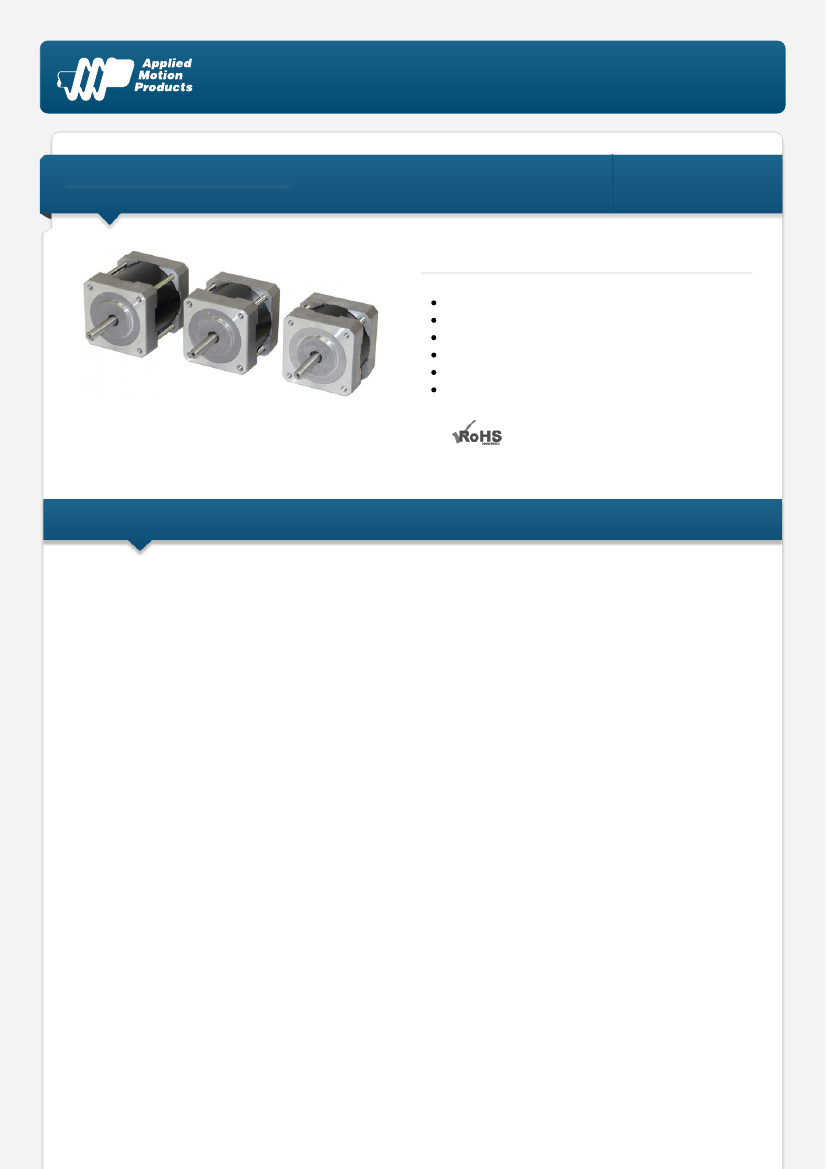

Product Datasheet
www.Applied-Motion.com
5017-009
NEMA 17 Step Motor
Product Features
Closeout sale in progress
Single shaft only
Limited quantity in stock
2-phase hybrid step motor
Standard NEMA 17 dimensions
1.8 degree step angle
Description
Product Description:
The 5017-009 stepper motor with single shaft (see
Note below)
is a two-phase hybrid step motor with a NEMA 17
frame size. The motor is no longer in production (and normally listed as archived on our website) but is being
offered in a closeout sale to clear our inventory. Once the remaining inventory of this motor is depleted the motor
will revert to being listed as archived on our website and will no longer be available for purchase. This makes the
motor a good choice for one-time applications, research & development work, and hobbyist projects.
Note:
Only the single-shaft version of this motor is available for purchase in the closeout sale. The double-shaft
version, 5017-009D, is not available. All sales are final.
Specifications
Part Number:
Frame Size:
Motor Type:
Motor Length:
Number of Lead
Wires:
Lead Wire
Configuration:
Lead Wire/Cable
Length:
Lead Wire Gauge:
Unipolar Holding
Torque:
Bipolar Holding
Torque:
Step Angle:
Bipolar Series
Current:
Bipolar Series
Resistance:
Bipolar Series
Inductance:
Unipolar Current:
Unipolar Resistance:
Unipolar Inductance:
Rotor Inertia:
Integral Gearhead:
Storage Temperature:
Operating
Temperature:
Insulation Class:
Shaft Run Out:
Radial Play:
End Play:
Perpendicularity:
Concentricity:
5017-009
NEMA 17
Standard torque
1.54 inches
6
flying leads, no connector
12 inches inches
22 AWG
22.2 oz-in
31.4 oz-in
1.8 deg
0.57 A/phase
15.0 Ohms/phase
26.0 mH/phase
0.80 A/phase
7.5 Ohms/phase
6.5 mH/phase
3.82E-04 oz-in-sec
2
No
-40 to 70 °C
-10 to 40 °C
Class B (130 ºC)
0.001 inch T.I.R. max
0.001 inch max w/ 4.4 lb load
0.001 inch max w/ 6.6 lb load
0.003 inches
0.002 inches
