500RDP1S1M6RE

Description
Slide Switches Slide Switch DPDT 0.4VA PCB R/A
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size468KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric Compare View All

500RDP1S1M6RE Online Shopping

Suppliers Part Number Price MOQ In stock
500RDP1S1M6RE - - View Buy Now

500RDP1S1M6RE Overview

Slide Switches Slide Switch DPDT 0.4VA PCB R/A

500RDP1S1M6RE Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerE-Switch
Product CategorySlide Switches
RoHSDetails
Contact FormDPST
Switch FunctionON - OFF
Contact Current Rating0.4 VA at 20 VAC/DC
Voltage Rating AC500 VAC
Termination StyleThrough Hole
Mounting StylePCB
IlluminationNon-Illuminated
Factory Pack Quantity1
Unit Weight0.034568 oz

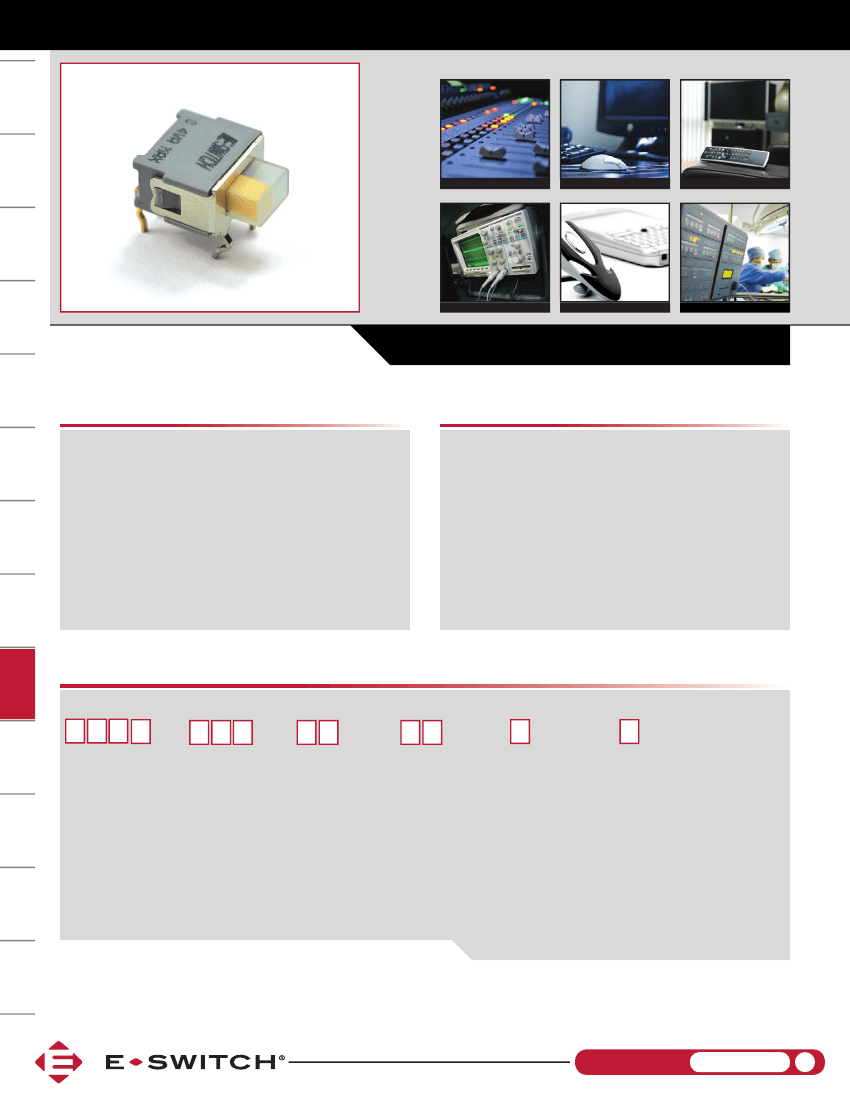

500r S
erieS
S
lide
S
witch
ANTI-VANDAL
SWITCHES
a
pplicationS
/ m
arketS
DETECTOR
SWITCHES
Audio / Visual
Computer Peripherals
Consumer Electronics
KEYLOCK
SWITCHES
DIP
SWITCHES
Instrumentation
Telecommunication
Medical Equipment
NAVIGATION
SWITCHES
RoHS
S
pecificationS
Electrical Rating:
0.4VA Max. @ 20V (AC or DC max)
Life Expectancy:
40,000 Cycles
Contact Resistance: 50mΩ
Max.
Insulation Resistance:
500 MΩ Min. at 250VDC
Dielectric Strength: 500VAC
RMS at Sea Level
Operating Temperature:
-20°C to 80°C
Operating Force:
2-position: 200 gf +/- 100 gf
3-position: 250 gf +/- 125gf
Travel:
2-position: 1.9mm
3-position: 0.95mm
f
eatureS
& b
enefitS
Offers IP67 sealing protection
up to 3-positions
SPDT and DPDT options
Gold contact
SLIDE
SWITCHES
ROTARY
SWITCHES
ROCKER
SWITCHES
PUSHBUTTON
SWITCHES
p
art
n
umber
c
onfigurator
Series
Function
Actuator
Terminal
Contact Material
Seal
SNAP ACTION
SWITCHES
500R
SP1
- On-None-On
SP3
- On-Off-On
DP1
- On-None-On
DP3
- On-Off-On
S1 -
2.80mm high
M2
- PC thru-hole
M6
- Right angle, PC
thru-hole
R
- Gold
E
- Epoxy
TOGGLE
SWITCHES
TACTILE
SWITCHES
CAP
OPTIONS
Specifications subject to change without notice
www.e-switch.com
800.867.2717
2

500RDP1S1M6RE Related Products

500RDP1S1M6RE 500RDP1S1M2RE 500RSP1S1M2RE 500RDP3S1M6RE
Description Slide Switches Slide Switch DPDT 0.4VA PCB R/A Slide Switches Slide Switch DPDT 0.4VA PCB Slide Switches Slide Switch SPDT 0.4VA PCB Slide Switches Slide Switch DPDT 0.4VA PCB R/A
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer E-Switch E-Switch E-Switch E-Switch
Product Category Slide Switches Slide Switches Slide Switches Slide Switches
RoHS Details Details Details Details
Contact Form DPST DPST SPST DP3T
Switch Function ON - OFF ON - OFF ON - ON ON - OFF - ON
Contact Current Rating 0.4 VA at 20 VAC/DC 0.4 VA at 20 VAC/DC 0.4 VA at 20 VAC/DC 0.4 VA at 20 VAC/DC
Voltage Rating AC 500 VAC 500 VAC 500 VAC 500 VAC
Termination Style Through Hole Through Hole Through Hole Through Hole
Mounting Style PCB PCB PCB PCB
Illumination Non-Illuminated Non-Illuminated Non-Illuminated Non-Illuminated
Factory Pack Quantity 1 1 1 1
