Limitless™
Wireless Operator Interface
WOI Series
Datasheet

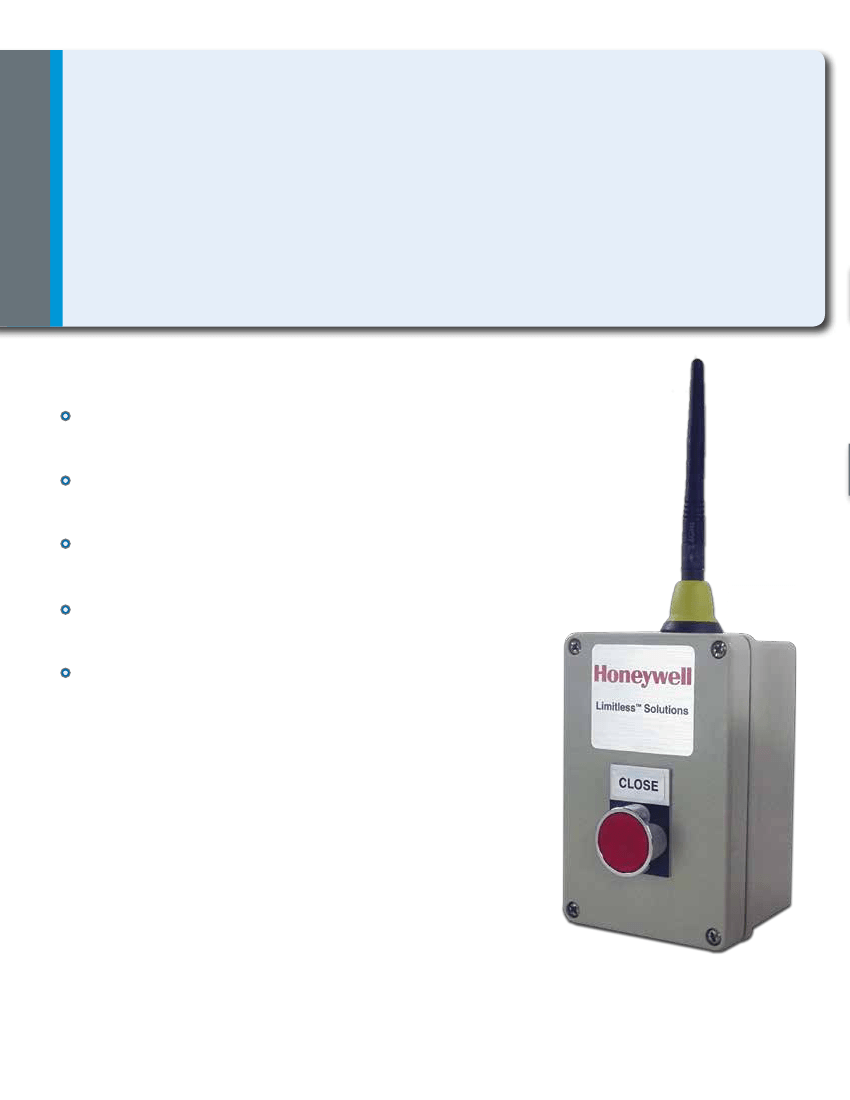

Limitless™ WOI Series
Wireless Operator Interface
The Limitless™ product line extends to include the wireless operator interface. With momentary or maintained contacts, the
wireless operator interface (WOI) can be used by an operator to provide control via a pushbutton or another user-chosen operator
type (i.e. 22 mm rotary switch, 22 mm key switch, etc.). The WOI Series adds a human interface device to the product-driven
interfaces of Limitless™ switches and receivers – wireless control from both person and position.
The WOI Series is especially beneficial for remote control and monitoring applications where wiring or wire maintenance is not
physically possible or economically feasible. Combining this greater flexibility with proven harsh-duty packaging can result in
increased efficiencies and ease in establishing a remote operator for use in a variety of applications, including turning equipment or
devices on or off, opening and closing doors/gates, stopping a production conveyor, indicating the need for service, and more.
What makes our wireless solutions better?
•
Enables control and/or notification in remote parts of
application/machinery/manufacturing plants, where wiring is
too costly or not possible
Flexibility for users to choose and install their desired 22 mm
operator type (i.e. 22 mm rotary switch, 22 mm key switch,
and more)
Ability to reconfigure and network multiple interfaces, or point-
to-point with personalized addresses which allows for adding,
subtracting, or relocating Limitless™ inputs easily
Reduced installation/maintenance costs with no wiring to
Limitless™ switches, conduit, strain relief, clips, connectors,
junction boxes, etc.
Eliminates issues with wire connection integrity on moving
equipment
INDUSTRY STANDARD
VALUE • RELIABLE
2
sensing.honeywell.com
Features
and Benefits
WIRELESS DESIGN
Radio (license-free and global): WPAN 802.15.4, 2.4 GHz, point-to-point to deliver
reliable, flexible, and secure wireless transmission.
Enables operator control
through the use of 22 mm pushbuttons from remote locations where wiring is too
costly or not practical (up to 305 m [1000 ft]).
WELL-SUITED FOR TOUGH ENVIRONMENTS
WOI Series features an
IP65 sealed
aluminum enclosure with d
irect or remote
mount antenna options.
Range of 305 m [1000 ft]
REMOTE CONTROL AND MONITORING
License-free RF wireless protocol standards (IEEE 802.15.4) allow for remote
control and monitoring of processes and equipment.
Designed for global
availability,
the WOI offers a wide variety of Limitless™ inputs with simple and
universal PLC connections.
Consumes ultra-low power to prolong battery life
DESIGN OPTIONS
End users may
install a desired operator
(22 mm rotary switch, key switch,
etc.) or utilize one of Honeywell’s pushbutton options: 22 mm flush, 29 mm
mushroom, or 40 mm mushroom (push-pull) round pushbutton. Offers the
ability to be used in conjunction with Limitless™ switches configured on a single
Limitless™ receiver.
RECONFIGURABLE
Able to reconfigure
multiple WOI inputs which easily allows for adding,
subtracting, or relocating of Limitless™ WOI switches.
Eliminates issues with
wire connection integrity
on moving equipment.
REDUCES COSTS
Reduces installation/maintenance costs
with no wires, conduit, strain relief,
clips, connectors, connection boxes, etc.
sensing.honeywell.com
3
Potential Applications
with elements of control, notification, and/or setup
INDUSTRIAL
•
•
•
•
•
•
•
CNC machinery
Door/Gate action
Material handling
Presses
Quality control functions
Stop/Start machinery
Valve/Solenoids
•
•
•
•
•
•
Conveyors
Lifts
Motor drives
Pumps
Specialty machines
Stop/Start production
TRANSPORTATION
•
Table 1. Specifications
Characteristic
Series name
Product type
Availability
Operating force
Parameter
WOI Series
Limitless™ Operator Interface Switches
Global, license-free bands
Momentary pushbutton: 6,2 N ±2 N [1.4 lb ±0.45 lb]
Maintained pushbutton: 7,0 N ±2 N [1.6 lb ±0.45 lb]
Pushbutton operators:
22 mm round flush momentary
29 mm mushroom head momentary
40 mm mushroom head maintained (push-pull);
No 22 mm pushbutton supplied, user provides suitable 22 mm pushbutton product with contact block
22 mm switch design (i.e. 22mm rotary switch, 22mm key switch, etc.) /gold contact, normally open and
normally closed contact blocks capable of reliably controlling a 30 mA @ 3.6 Vdc electrical load
Black, Green, Red*, Yellow
* not available for the 29 mm mushroom and 40 mm mushroom (push-pull) pushbuttons
Powder coated aluminum
WPAN 802.15.4; 2.4 GHz
Direct or remote mount antenna options; Omni directional
Nominal 305 m [1000 ft] clear line of sight between Limitless™ WOI switch and monitor/receiver
when using 2.2 dBi integral antennas
3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size (Est. life >1.5 years)
Manufactured by Green Energy p/n ER14335M
IP65
Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
IEC 60068-2-27; half sine, 50 g, 6 mS, 3 axis
IEC 60068-2-6; 10 Hz to 58 Hz w/ 1,50 mm peak-to-peak, 58-500 Hz @ 10g
-25 °C to 50 °C [-13 °F to 122 °F]
FCC 15.247
Industry Canada RSS 210
ETSI, CE mark
ACMA, C-Tick mark
Agricultural equipment
•
Movable machinery
Actuator type
Actuator/Contact blocks
(if user supplied)
Actuator colors
Housing material
Radio
Antenna type
Signal range*
Battery
Sealing
EMC
Shock
Vibration
Operating temperature
Agency approvals and
standards
* Actual range will vary depending upon antennas, cables, and site topography.
4
sensing.honeywell.com
Limitless™ Wireless Operator Interface

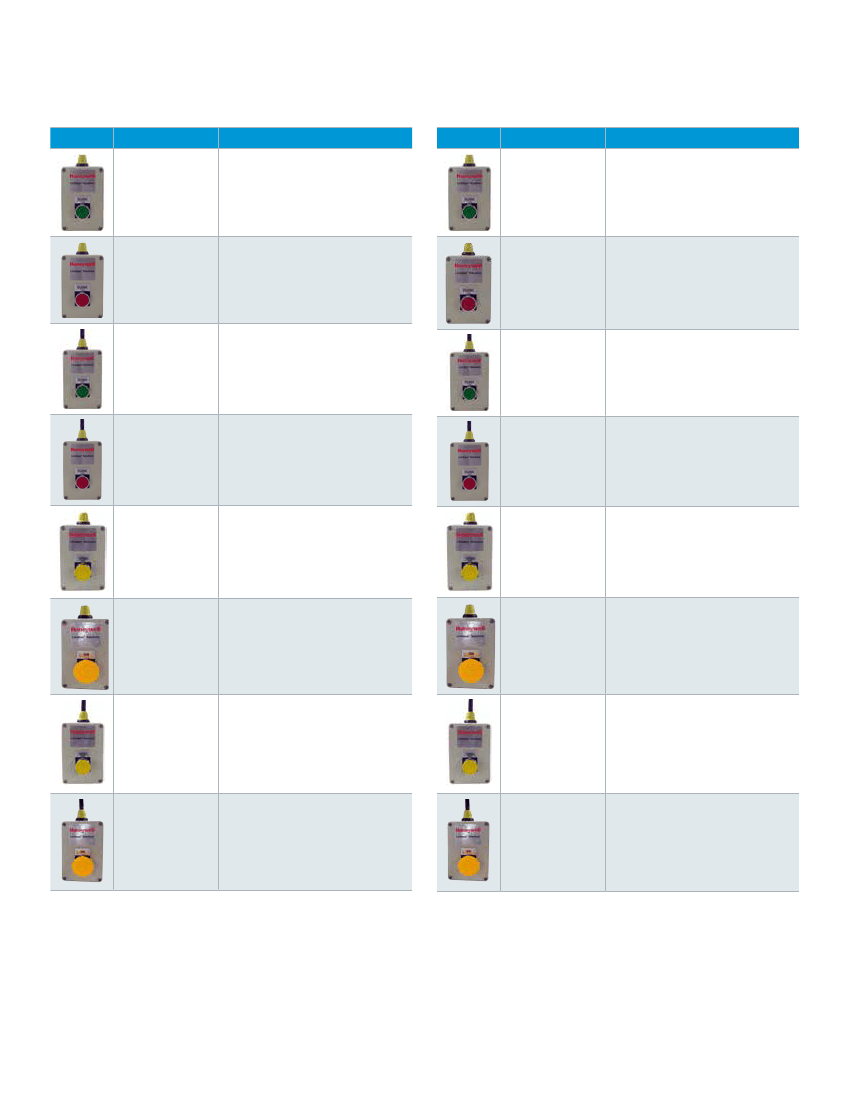

WOI SERIES ORDER GUIDE (STANDARD LISTINGS)
Part number
WOI1A00APAG
Description
Limitless™ WOI, no antenna, 22
mm round flush momentary green
pushbutton, for use in US/Canada
Part number
WOI1A00BPAG
Description
Limitless™ WOI, no antenna, 22
mm round flush momentary green
pushbutton, for use in all other
approved countries
Limitless™ WOI, no antenna, 22
mm round flush momentary red
pushbutton, for use in all other
approved countries
Limitless™ WOI, 0 dBi straight
antenna, 22 mm round flush
momentary green pushbutton, for
use in all other approved countries
Limitless™ WOI, 0 dBi straight
antenna, 22 mm round flush
momentary red pushbutton, for use
in all other approved countries
Limitless™ WOI, no antenna, 29
mm mushroom head momentary
yellow pushbutton, for use in all
other approved countries
Limitless™ WOI, no antenna, 40
mm maintained yellow pushbutton,
for use in all other approved
countries
WOI1A00APAR
Limitless™ WOI, no antenna, 22
mm round flush momentary red
pushbutton, for use in US/Canada
WOI1A00BPAR
WOI1A11APAG
Limitless™ WOI, 0 dBi straight
antenna, 22 mm round flush
momentary green pushbutton, for
use in US/Canada
Limitless™ WOI, 0 dBi straight
antenna, 22 mm round flush
momentary red pushbutton, for use
in US/Canada
Limitless™ WOI, no antenna, 29
mm mushroom head momentary
yellow pushbutton, for use in US/
Canada
Limitless™ WOI, no antenna, 40
mm maintained yellow pushbutton,
for use in US/Canada
WOI1A11BPAG
WOI1A11APAR
WOI1A11BPAR
WOI1A00APBY
WOI1A00BPBY
WOI1A00APCY
WOI1A00BPCY
WOI1A11APBY
Limitless™ WOI, 0 dBi straight
antenna, 29 mm mushroom head
momentary yellow pushbutton, for
use in US/Canada
WOI1A11BPBY
Limitless™ WOI, 0 dBi straight
antenna, 29 mm mushroom head
momentary yellow pushbutton, for
use in all other approved countries
WOI1A11APCY
Limitless™ WOI, 0 dBi straight
antenna, 40 mm maintained yellow
pushbutton, for use in US/Canada
WOI1A11BPCY
Limitless™ WOI, 0 dBi straight
antenna, 40 mm maintained yellow
pushbutton, for use in all other
approved countries
sensing.honeywell.com
5
