C1210C475K3R1C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> C1210C475K3R1C

C1210C475K3R1C: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT; CategoryPassive components; File Size4MB，17 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C1210C475K3R1C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C1210C475K3R1C	-	-	View	Buy Now

C1210C475K3R1C Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT

C1210C475K3R1C Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Capacitance	4.7 uF
Voltage Rating DC	25 VDC
Dielectric	X7R
Tolerance	10 %
Case Code - in	1210
Case Code - mm	3225
Height	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Termination	Metal Frame
Product	Stacked MLCCs
Length	3.2 mm
Package / Case	1210 (3225 metric)
Termination Style	SMD/SMT
Voltage Rating AC	-
Width	2.5 mm
Capacitance - nF	4700 nF
Class	Class 1
Factory Pack Quantity	1
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)

Overview

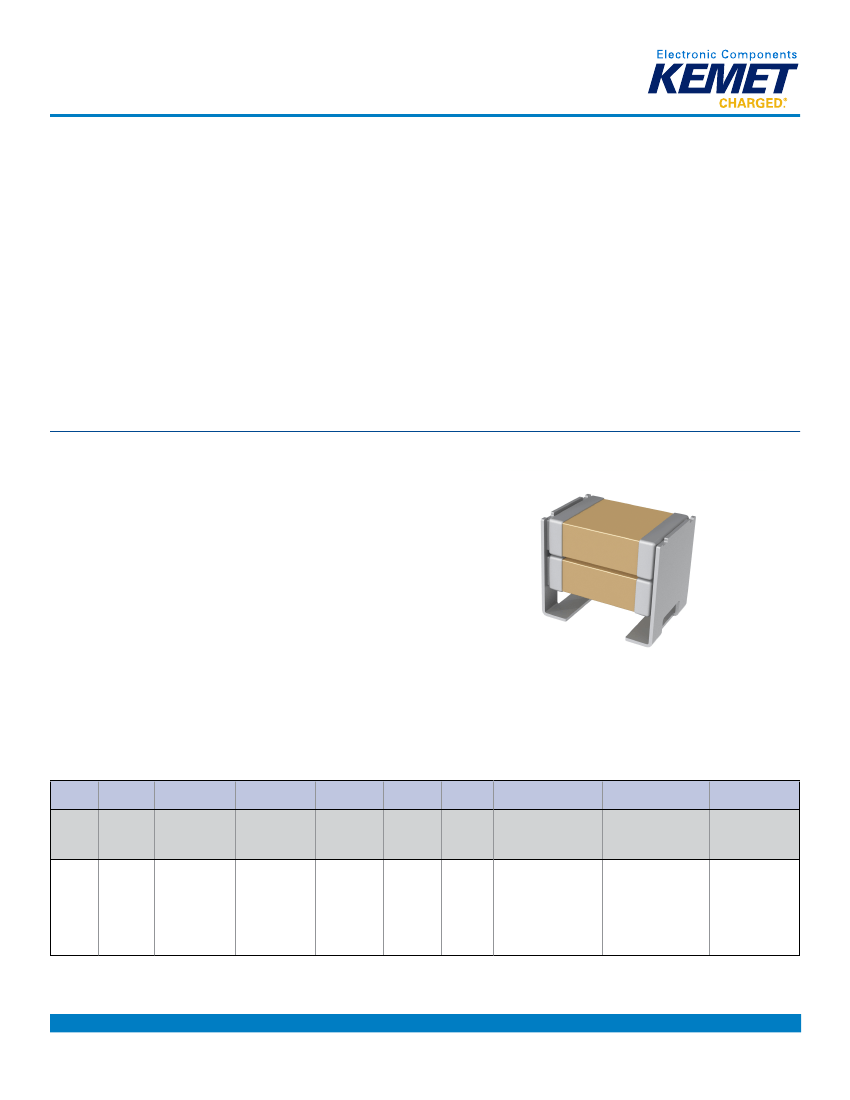

KEMET Power Solutions (KPS) Commercial Series stacked

capacitors utilize a proprietary lead-frame technology

to vertically stack one or two multilayer ceramic chip

capacitors into a single compact surface mount package.

The attached lead-frame mechanically isolates the

capacitor/s from the printed circuit board, therefore offering

advanced mechanical and thermal stress performance.

Isolation also addresses concerns for audible, microphonic

noise that may occur when a bias voltage is applied. A

two chip stack offers up to double the capacitance in

the same or smaller design footprint when compared to

traditional surface mount MLCCs devices. Providing up

to 10 mm of board flex capability, KPS Series capacitors

are environmentally friendly and in compliance with RoHS

legislation. Available in X7R dielectric, these devices are

capable of Pb-Free reflow profiles and provide lower ESR, ESL

and higher ripple current capability when compared to other

dielectric solutions.

Combined with the stability of an X7R dielectric, KEMET’s

KPS Series devices exhibit a predictable change in

capacitance with respect to time and voltage and boast a

minimal change in capacitance with reference to ambient

temperature. Capacitance change is limited to ±15% from

−55°C to +125°C.

Benefits

•

−55°C to +125°C operating temperature range

Reliable and robust termination system

EIA 1210, 1812, and 2220 case sizes

DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V,

and 250 V

Capacitance offerings ranging from 0.1 μF up to 47 μF

Available capacitance tolerances of ±10% and ±20%

Higher capacitance in the same footprint

Potential board space savings

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

2220

106

Leadframe Finish

7186

Packaging/

Grade

(C-Spec)

See

“Packaging

C-Spec

Ordering

Options Table”

below

Case Size

Specification/

Ceramic

(L" x W")

Series

1210

1812

2220

C = Standard

Rated

Capacitance Capacitance

Voltage Dielectric Failure Rate/Design

Code (pF)

Tolerance

(VDC)

Two

significant

digits +

number of

zeros

K = ±10%

M = ±20%

8 = 10

4 = 16

3 = 25

5 = 50

1 = 100

A = 250

R = X7R

1 = KPS Single

Chip Stack

2 = KPS Double

Chip Stack

C = 100% Matte Sn

Double chip stacks ("2" in the 13th character position of the ordering code) are only available in M (±20%) capacitance tolerance. Single chip stacks

("1" in the 13th character position of the ordering code) are available in K (±10%) or M (±20%) tolerances.

Additional leadframe finish options may be available. Contact KEMET for details.

One world. One KEMET

C1020_X7R_KPS_SMD • 8/11/2016
