1N4762D-BP: DescriptionZener Diode, 82V V(Z), 1%, 1W, Silicon, Unidirectional, DO-41, HEREMATIC SEALED, GLASS, DO-41G, 2 PIN; CategoryDiscrete semiconductor diode; File Size299KB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

1N4762D-BP Overview

Zener Diode, 82V V(Z), 1%, 1W, Silicon, Unidirectional, DO-41, HEREMATIC SEALED, GLASS, DO-41G, 2 PIN

1N4762D-BP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DO-41
package instruction	HEREMATIC SEALED, GLASS, DO-41G, 2 PIN
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-LALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	82 V
surface mount	NO
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1%
Working test current	3 mA
Base Number Matches	1

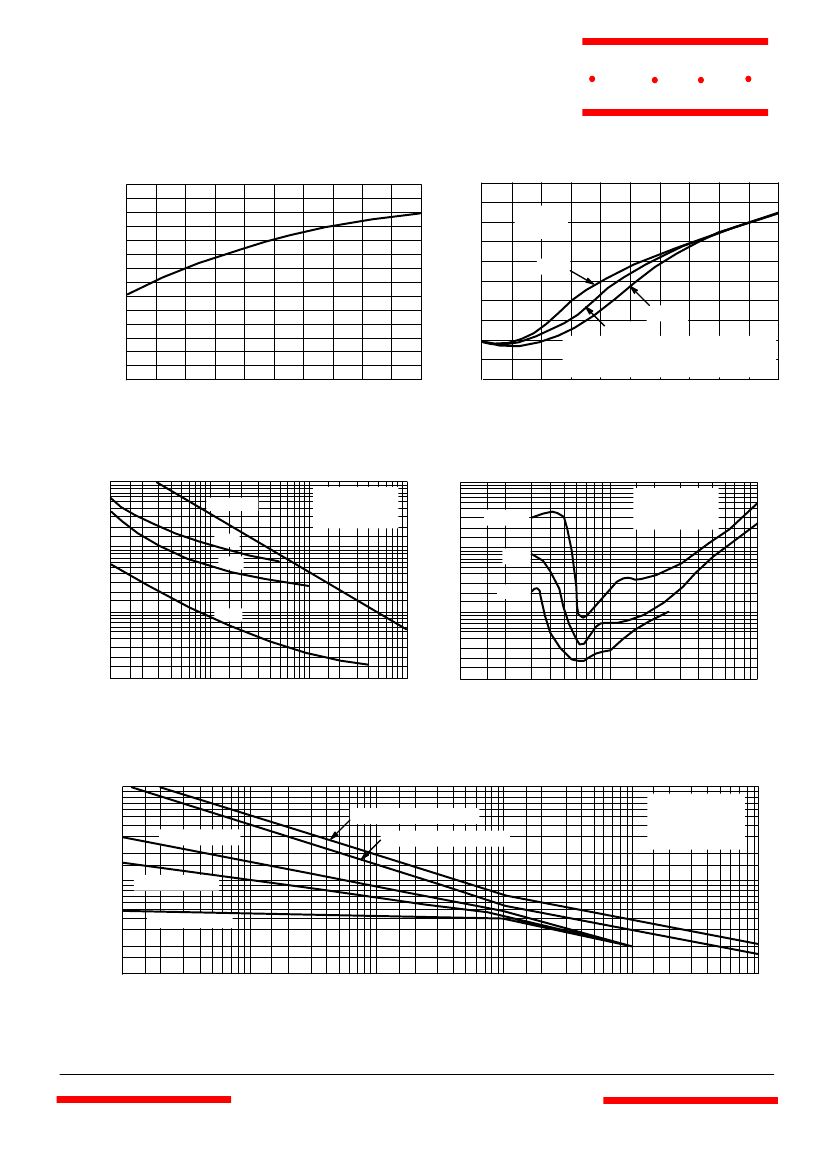

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

1N4728

THRU

1N4764

1.0 Watt

Zener Diode

3.3 to 100 Volts

DO-41G

Features

Hermetic Glass Package

Silicon Planar Zener Diodes

These diodes are also available in the MELF case with type

designation DL4728 thru DL4764

Mechanical Data

Case: DO-41 Molded Glass

Marking : Cathode band and type number

Weight: 0.309 grams (Approx.)

Maximum Ratings

Operating Temperature: -65 C to +200 C

Storage Temperature: -65 C to +200 C

For capacitive load, derate current by 20%

Cathode

Mark

Electrical Characteristics @ 25

C Unless Otherwise Specified

DC Power

Dissipation

Forward

Voltage

Drop

Thermal

Resistance

Power Derating

from 100

tot

1.0W

1.2V

100K/W

10mW/

Note 1

≤

DIMENSIONS

INCHES

DIM

MIN

0.166

0.080

0.026

1.000

MAX

0.205

0.107

0.034

-----

MIN

4.10

2.00

0.70

25.40

MAX

7.60

3.60

0.90

-----

Diameter

NOTE

Note:

(1) Valid provided that electrodes at a distance

of 10mm from case are kept at ambient

temperature.

Revision:

www.mccsemi.com

1 of 4

2008/01/01
