Signal Conditioning 140MHz BW 16MHz SAW Filter
CategoryAnalog mixed-signal IC    filter
File Size613KB,6 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Environmental Compliance
Related ProductsFound1parts with similar functions to 854919
Download Datasheet Parametric View All

854919 Online Shopping

Suppliers Part Number Price MOQ In stock
854919 - - View Buy Now

854919 Overview

Signal Conditioning 140MHz BW 16MHz SAW Filter

854919 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerQorvo
package instructionROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-12
Reach Compliance Codecompliant
Other featuresTAPE AND REEL
Center frequency or cutoff frequency (fo/fc)140 MHz
filter typeSAW FILTER
high1.96 mm
input resistance50 OHM
Maximum insertion loss11 dB
JESD-609 codee4
length13.3 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output impedance50 OHM Ω
physical sizeL13.3XB6.5XH1.96 (mm)/L0.524XB0.256XH0.077 (inch)
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
width6.5 mm
Data Sheet

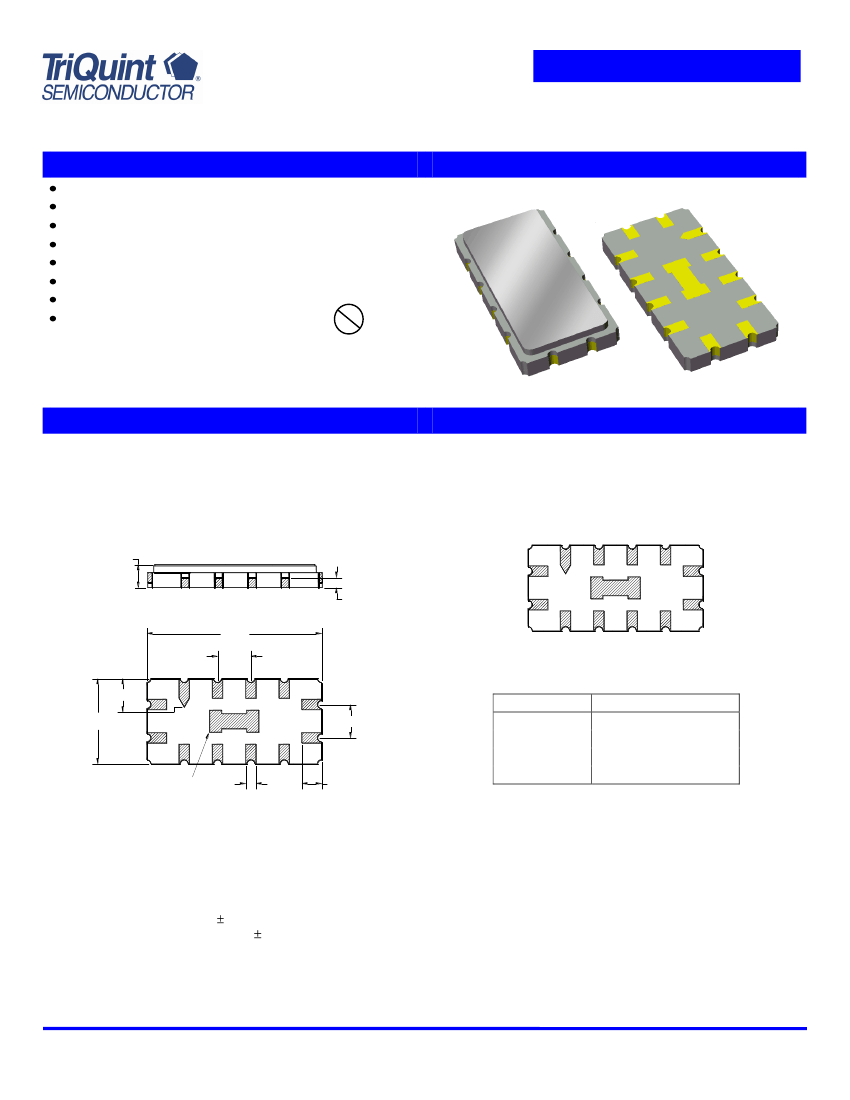

Features
For GPS applications
Usable bandwidth 16 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Part Number 854919
140 MHz SAW Filter
Pb
Package
Surface Mount 13.30 x 6.50 x 1.75 mm
SMP-53
Pin Configuration
Bottom View
This package includes a center pad.
Soldering of the center pad to PCB is not recommended and not required.
1
1.75 NOM.
1.96 MAX.
0.76
13.3
2.54
2
3
4
5
6
12
11
10
9
8
7
2.18
6.50
2.54
1.17 x 3.76
0.79
1.50
Single-ended Configuration
Pin No.
Description
11
Input
5
Output
1,2,3,4,6
Case Ground
7,8,9,10,12 Case Ground
Dimensions shown are nominal in millimeters
All tolerances are 0.15mm except overall
length and width 0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev C
07/10
© TriQuint Semiconductor
Page 1 of 6

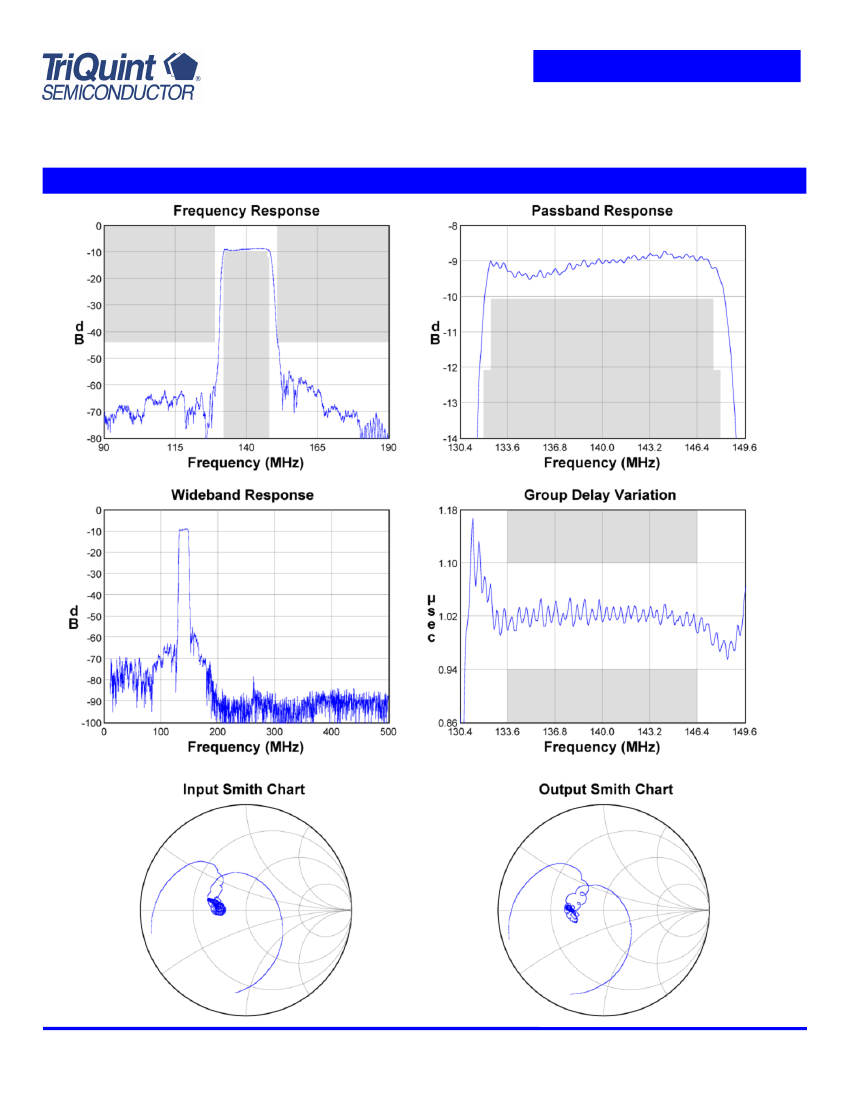

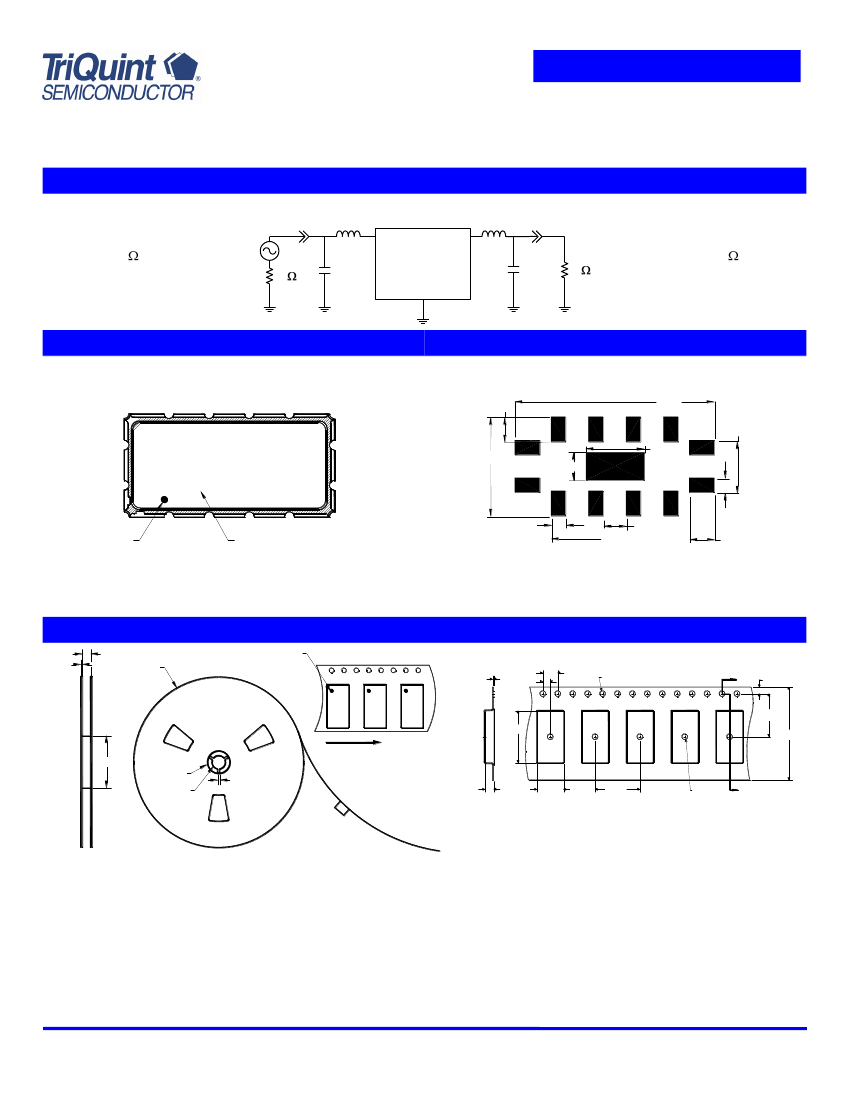

854919 Similar Products

Part Number Manufacturer Description
854919 Sawtek Inc SAW Filter, 1 Function(s), 140MHz, SMP-53, 12 PIN
