PR03000401008JPC00

Description
Metal Film Resistors - Through Hole
CategoryPassive components
File Size218KB,20 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

PR03000401008JPC00 Online Shopping

Suppliers Part Number Price MOQ In stock
PR03000401008JPC00 - - View Buy Now

PR03000401008JPC00 Overview

Metal Film Resistors - Through Hole

PR03000401008JPC00 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryMetal Film Resistors - Through Hole
Resistance1 Ohms
Power Rating2.5 W
Tolerance5 %
Temperature Coefficient250 PPM / C
Voltage Rating750 V
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 155 C
Diameter5.2 mm
Length16.7 mm
Termination StyleRadial
ProductMetal Film Resistors - Through Hole
TypePower Metal Film Leaded Resistors
Height-
Operating Temperature Range- 55 C to + 155 C
Lead Diameter0.58 mm
Lead Spacing20 mm
Unit Weight0.038801 oz
PR01, PR02, PR03

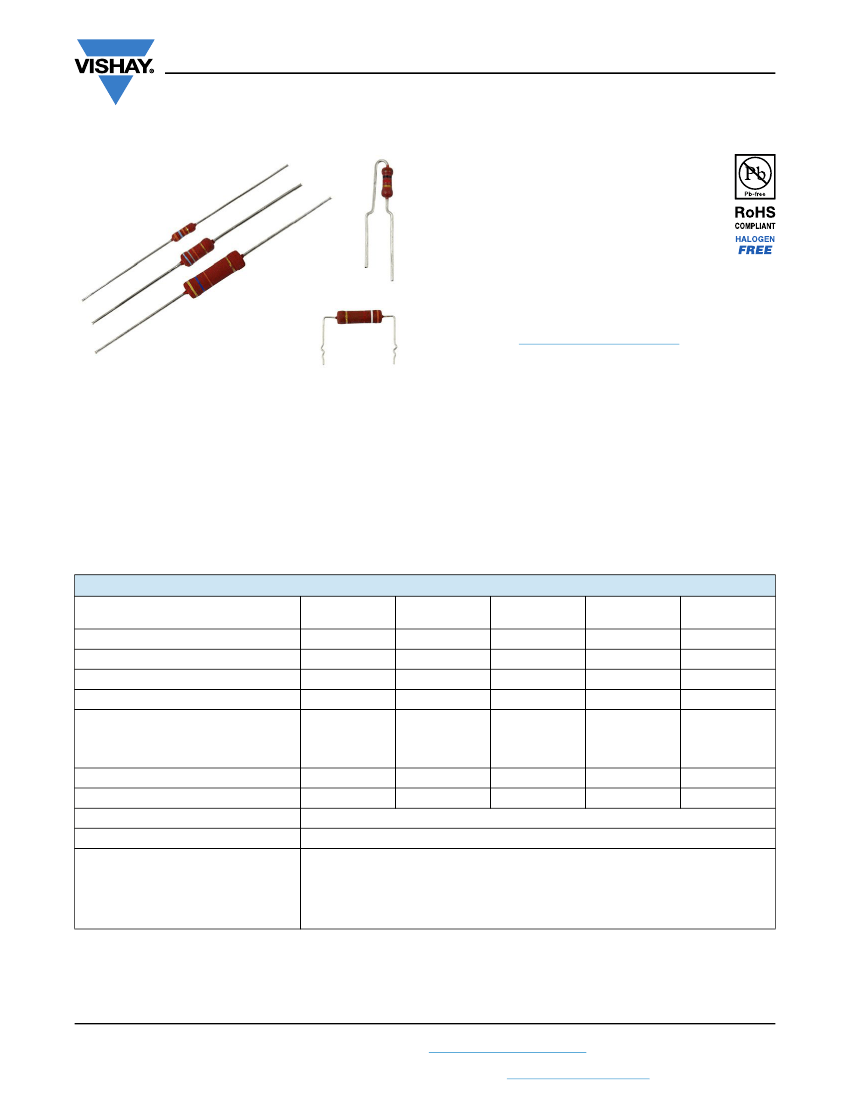

www.vishay.com
Vishay BCcomponents
Power Metal Film Leaded Resistors
FEATURES
• High power in small packages (1 W / 0207 size
to 3 W / 0617 size)
• Defined fusing characteristics
• Technology: metal film
• Meets active and passive flammability
requirements as defined in IEC 60115-1
• AEC-Q200 qualified (PR01 and PR02)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION
A homogeneous film of metal alloy is deposited on a high
grade ceramic body. After a helical groove has been cut in
the resistive layer, tinned connecting wires of electrolytic
copper or copper-clad iron are welded to the end-caps. The
resistors are coated with a red, non-flammable lacquer
which provides electrical, mechanical and climatic
protection. This coating is not resistant to aggressive fluxes
and cleaning solvents. The encapsulation is resistant to all
cleaning solvents in accordance with IEC 60068-2-45.
APPLICATIONS
• All general purpose power applications
• Automotive electronics
• Lighting ballast
TECHNICAL SPECIFICATIONS
DESCRIPTION
DIN size
Resistance range
(1)
Resistance tolerance
(2)
Temperature coefficient
Rated dissipation,
P
70
1
 R
R
<1
Thermal resistance (R
th
)
Operating voltage,
U
max.
AC/DC
E-series
Basic specification
Stability after:
Endurance test (1000 h,
P
70
)
Damp heat test (56 days)
Soldering (10 s, 260 °C)
R
max.: ± (5 %
R
+ 0.1
)
R
max.: ± (3 %
R
+ 0.1
)
R
max.: ± (1 %
R
+ 0.05
)
1W
0.6 W
135 K/W
350 V
2W
1.2 W
75 K/W
500 V
1.3 W
-
115 K/W
500 V
E24, E96 (± 1 %); E24 (± 5 %)
IEC 60115-1
3W
1.6 W
60 K/W
750 V
2.5 W
-
75 K/W
750 V
PR01
0207
0.22
to 1 M
± 1 %; ± 5 %
± 250 ppm/K
PR02
Cu-lead
0411
0.33
to 1 M
± 1 %; ± 5 %
± 250 ppm/K
PR02
FeCu-lead
0411
1
to 1 M
± 1 %; ± 5 %
± 250 ppm/K
PR03
Cu-lead
0617
0.68
to 1 M
± 1 %; ± 5 %
± 250 ppm/K
PR03
FeCu-lead
0617
1
to 1 M
± 1 %; ± 5 %
± 250 ppm/K
Notes
(1)
R
value is measured with probe distance of 24 mm ± 1 mm using 4-terminal method
(2)
1 % tolerance is available for
R
-range from 1
upwards
n
Revision: 07-Nov-17
Document Number: 28729
1
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
