-TDK-B65981A0000R095 datasheet, PDF

Datasheet> All Categories > Passive components> -TDK-B65981A0000R095

-TDK-B65981A0000R095: DescriptionFerrite Cores & Accessories PQ50/50 N95; CategoryPassive components; File Size206KB，6 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

-TDK-B65981A0000R095 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	-TDK-B65981A0000R095	-	-	View	Buy Now

-TDK-B65981A0000R095 Overview

Ferrite Cores & Accessories PQ50/50 N95

-TDK-B65981A0000R095 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK Corporation
Product Category	Ferrite Cores & Accessories
RoHS	Details
Product	Ferrite Cores
Type	Ungapped
Core	PQ Core
Core Size	50 x 50
Inductance	8200 nH
Tolerance	- 20 %, + 30 %
Core Material	N95
Packaging	Bulk
Factory Pack Quantity	36
Unit Weight	0.705479 oz

Preview

Download Datasheet

View All

Ferrites and Accessories

PQ 50/50

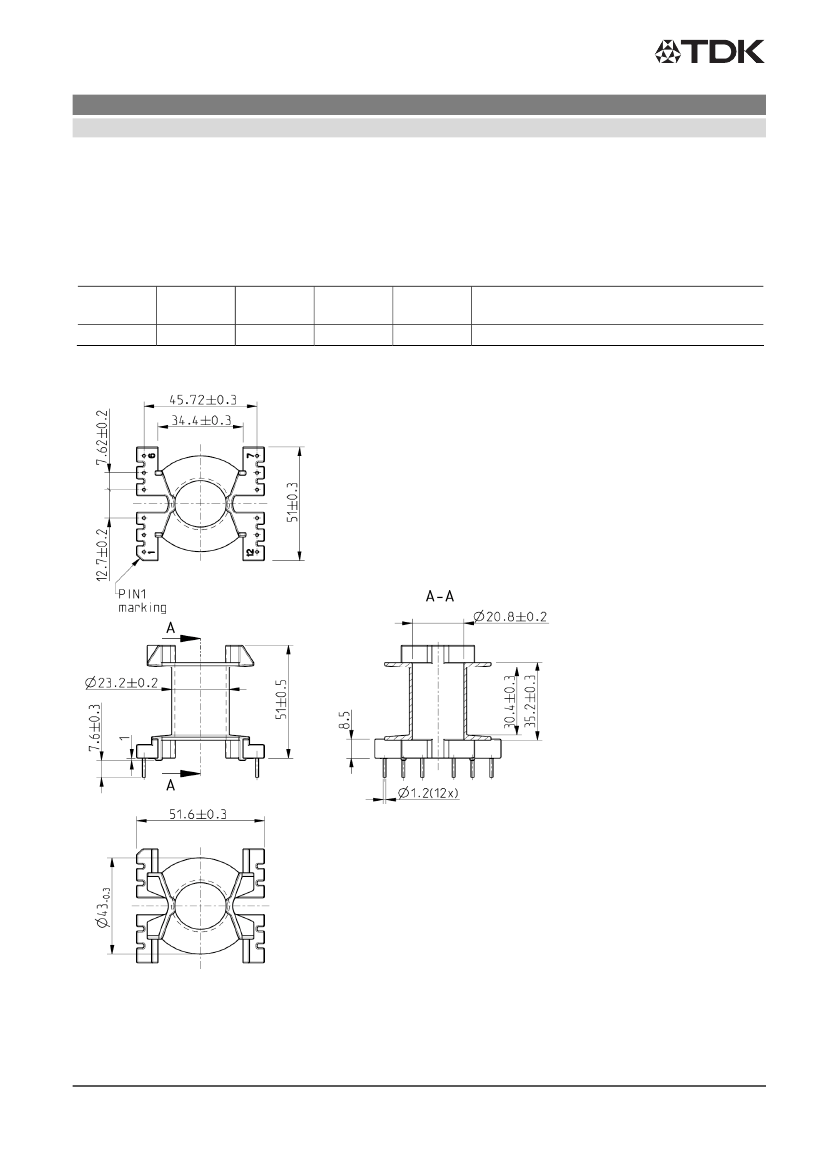

Cores and coil former

Series/Type:

Date:

Version:

B65981A, B65982E

2009-06-17

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the

table and then change the colour to "white" (or invisible). This ensures that the table disappears for the customer

PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or

footer when copying the content.

Identification/Classification 1:

(header 1 + top left header bar)

Identification/Classification 2:

(header 2 + bottom left header bar)

Ordering code:

(top right header bar)

Series/Type:

(top right header bar)

Ferrites and Accessories

PQ 50/50

B65981A, B65982E0012D001

PQ 50/50

Preliminary data (optional):

Preliminary data

(if necessary)



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained

Department:

therein without EPCOS' prior express consent is prohibited.

D PD

SMP IN FER

Date:

EPCOS AG is a TDK Group Company.

2009-06-17

Ferrites and accessories

Cautions and warnings

Mechanical stress and mounting

Ferrite cores have to meet mechanical requirements during assembling and for a growing number of

applications. Since ferrites are ceramic materials one has to be aware of the special behavior under

mechanical load.

As valid for any ceramic material, ferrite cores are brittle and sensitive to any shock, fast changing or

tensile load. Especially high cooling rates under ultrasonic cleaning and high static or cyclic loads can

cause cracks or failure of the ferrite cores.

For detailed information see Data Book 2007, chapter “General – Definitions, 8.1”.

Effects of core combination on AL value

Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent

that the initial permeability is dependent on the stress state of the core. The higher the stresses are in

the core, the lower is the value for the initial permeability. Thus the embedding medium should have

the greatest possible elasticity.

For detailed information see Data Book 2007, chapter “General – Definitions, 8.2”.

Heating up

Ferrites can run hot during operation at higher flux densities and higher frequencies.

NiZn-materials

The magnetic properties of NiZn-materials can change irreversible in high magnetic fields.

Processing notes

– The start of the winding process should be soft. Else the flanges may be destroyed.

– To strong winding forces may blast the flanges or squeeze the tube that the cores can no more be

mount.

– To long soldering time at high temperature (>300 °C) may effect coplanarity or pin arrangement.

– Not following the processing notes for soldering of the J-leg terminals may cause solderability

problems at the transformer because of pollution with Sn oxide of the tin bath or burned insulation

of the wire. For detailed information see Data Book 2007, chapter “Processing notes, 2.2”.

– The dimensions of the hole arrangement have fixed values and should be understood as a

recommendation for drilling the printed circuit board. For dimensioning the pins, the group of holes

can only be seen under certain conditions, as they fit into the given hole arrangement. To avoid

problems when mounting the transformer, the manufacturing tolerances for positioning the

customers’ drilling process must be considered by increasing the hole diameter.

SMP IN FER D PD

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 5

2009-06-17

Important notes

The following applies to all products named in this publication:

1. Some parts of this publication contain

statements about the suitability of our products for

certain areas of application.

These statements are based on our knowledge of typical

requirements that are often placed on our products in the areas of application concerned. We

nevertheless expressly point out

that such statements cannot be regarded as binding

statements about the suitability of our products for a particular customer application.

As a

rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them

than the customers themselves. For these reasons, it is always ultimately incumbent on the

customer to check and decide whether an EPCOS product with the properties described in the

product specification is suitable for use in a particular customer application.

2. We also point out that

in individual cases, a malfunction of electronic components or failure

before the end of their usual service life cannot be completely ruled out in the current state

of the art, even if they are operated as specified.

In customer applications requiring a very high

level of operational safety and especially in customer applications in which the malfunction or

failure of an electronic component could endanger human life or health (e.g. in accident

prevention or life-saving systems), it must therefore be ensured by means of suitable design of the

customer application or other action taken by the customer (e.g. installation of protective circuitry

or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or

failure of an electronic component.

The warnings, cautions and product-specific notes must be observed.

4. In order to satisfy certain technical requirements,

some of the products described in this

publication may contain substances subject to restrictions in certain jurisdictions (e.g.

because they are classed as hazardous).

Useful information on this will be found in our Material

Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed

questions, please contact our sales offices.

5. We constantly strive to improve our products. Consequently,

the products described in this

publication may change from time to time.

The same is true of the corresponding product

specifications. Please check therefore to what extent product descriptions and specifications

contained in this publication are still applicable before or when you place an order.

We also

reserve the right to discontinue production and delivery of products.

Consequently,

we cannot guarantee that all products named in this publication will always be available.

The aforementioned does not apply in the case of individual agreements deviating from the

foregoing for customer-specific products.

6. Unless otherwise agreed in individual contracts,

all orders are subject to the current version of

the “General Terms of Delivery for Products and Services in the Electrical Industry”

published by the German Electrical and Electronics Industry Association (ZVEI).

7. The trade names EPCOS, BAOKE, Alu-X, CeraDiode, CSMP, CSSP, CTVS, DSSP, MiniBlue,

MKK, MLSC, MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, SIFERRIT, SIFI, SIKOREL,

SilverCap, SIMDAD, SIMID, SineFormer, SIOV, SIP5D, SIP5K, ThermoFuse, WindCap are

trademarks registered or pending

in Europe and in other countries. Further information will be

found on the Internet at www.epcos.com/trademarks.

Page 5 of 5

-TDK-B65981A0000R095 Related Products

	-TDK-B65981A0000R095	-TDK-B65982E0012D001
Description	Ferrite Cores & Accessories PQ50/50 N95	Ferrite Cores & Accessories CF-PQ50/50-1S-12P
Product Attribute	Attribute Value	Attribute Value
Manufacturer	TDK Corporation	TDK Corporation
Product Category	Ferrite Cores & Accessories	Ferrite Cores & Accessories
RoHS	Details	Details
Product	Ferrite Cores	Hardware & Accessories
Type	Ungapped	Coil Former
Core	PQ Core	PQ Core
Core Size	50 x 50	PQ 50 x 50
Core Material	N95	PMC thermosetting plastics
Packaging	Bulk	Bulk
Factory Pack Quantity	36	72
Unit Weight	0.705479 oz	0.705479 oz
