• Rugged Construction • Established Reliability (QPL)
• Extended WVDC up to 1500 VDC
ATC, the industry leader, is announcing new improved ESR/ESL
performance for the 700 B Series RF/Microwave Capacitors. The
superior high self-resonance and zero TCC characteristic of this Series
provide excellent performance over a broad range of RF and microwave
applications requiring minimum drift, including RF power. Porcelain
and ceramic construction provide a rugged, hermetic package.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 10,000 (0.1 pF to 200 pF) @ 1 MHz.
Greater than 2000 (220 pF to 1000 pF) @ 1 MHz.
Greater than 2000 (1100 pF to 5100 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
0.1 pF to 470 pF:
10
6
Megohms min. @ +25°C at rated WVDC.
10
5
Megohms min. @ +125°C at rated WVDC.
Typical functional applications: Bypass, Coupling, Tuning and DC Blocking.
510 pF to 5100 pF:
Typical circuit applications: Filters, Oscillators, Timing and RF Power
10
5
Megohms min. @ +25°C at rated WVDC.
Amplifiers.
10
4
Megohms min. @ +125°C at rated WVDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
ENVIRONMENTAL TESTS
ATC 700 B Series Capacitors are designed and manufactured to meet and
exceed the requirements of EIA-198, MIL-PRF-55681 and MIL-PRF-123.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative humid-
ity for 240 hours min.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
0.1 to 200 pF: from -55°C to +175°C
220 to 5100 pF: from -55°C to +125°C
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
200% WVDC applied.
Voltage Applied:
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINAL STRENGTH:
Terminations for chips and pellets withstand a pull
of 5 lbs. min., 15 lbs. typical, for 5 seconds in direction perpendicular to the
termination surface of the capacitor. Test per MIL-STD-202, method 211.
ATC # 001-814 Rev.S, 9/14
ATC 700 B Capacitance Values
RATED WVDC CAP. CAP.
CAP. CAP.
TOL.
CODE (pF)
STD.
EXT. CODE (pF)
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
0.1
B
0.2
0.3
B, C
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
B, C, D 500
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
TOL.
RATED WVDC CAP. CAP.
STD.
EXT. CODE (pF)
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
TOL.
RATED WVDC CAP. CAP.
STD.
EXT. CODE (pF)
331
361
391
431
471
511
561
621
681
751
821
911
102
112
122
152
182
222
272
302
332
392
472
512
VOLT
TOL.
RATED WVDC
STD.
EXT.
1500
3.3
3.6
3.9
4.3
4.7
B, C, D
5.1
5.6
6.2
6.8
7.5
B, C, J
8.2
K, M
9.1
10
500
11
12
13
15
16
F, G, J,
K, M
18
20
22
24
27
30
1500
33
36
39
43
47
51
500
56
62
68
75
82
91
F, G, J
100
110
K, M
120
130
300
150
160
180
200
220
240
200
270
300
1500
EXT
1000
EXTENDED
N/A
330
360
390
200
430
470
510
100
560
620
680
750
820
910
F, G, J
1000
1100 K, M
1200
1500
1800
2200
50
2700
3000
3300
3900
4700
5100
EXTENDED VOLTAGE
EXTENDED VOLTAGE
VOLTAGE
N/A
EXTENDED VOLTAGE
VRMS = 0.707 x WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
Capacitance values in
bold
type indicate porcelain dielectric. All other capacitance values indicate ceramic dielectric.
All 700 B Capacitors are available laser marked with ATC's identification, capacitance code and tolerance.
NOTE: EXTENDED WVDC DOES NOT APPLY TO CDR PRODUCTS.
ATC PART NUMBER CODE
ATC700 B 33 1 J W 500 X
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
EXTENDED VOLTAGE
T
Packaging
T - Tape and Reel, 1000 pc. qty.*
TV - Vertical Orientation of Product,
Tape and Reel, 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
ATC Cap-Pac® packaging (100 pc. qty. std.) is also
available. For this option, leave last field blank.
Laser Marking
D
F
±1%
G
±2%
J
K
M
CAPACITANCE TOLERANCE
Code
Tol.
B
±0.1 pF
C
±0.25 pF ±0.5 pF
±5% ±10% ±20%
WVDC
Termination Code
The above part number refers to a 700 B Series (case size B) 330 pF capacitor,
J tolerance (±5%), 500 WVDC, with W termination (Tin/Lead, Solder Plated over Nickel Barrier), laser marking and ATC Cap-Pac
®
packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to
parts referenced without the “ATC” prefix. Customers are free to use either
in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
A M E R I C A N
2
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
ww w.a tc e r a m ics .c o m

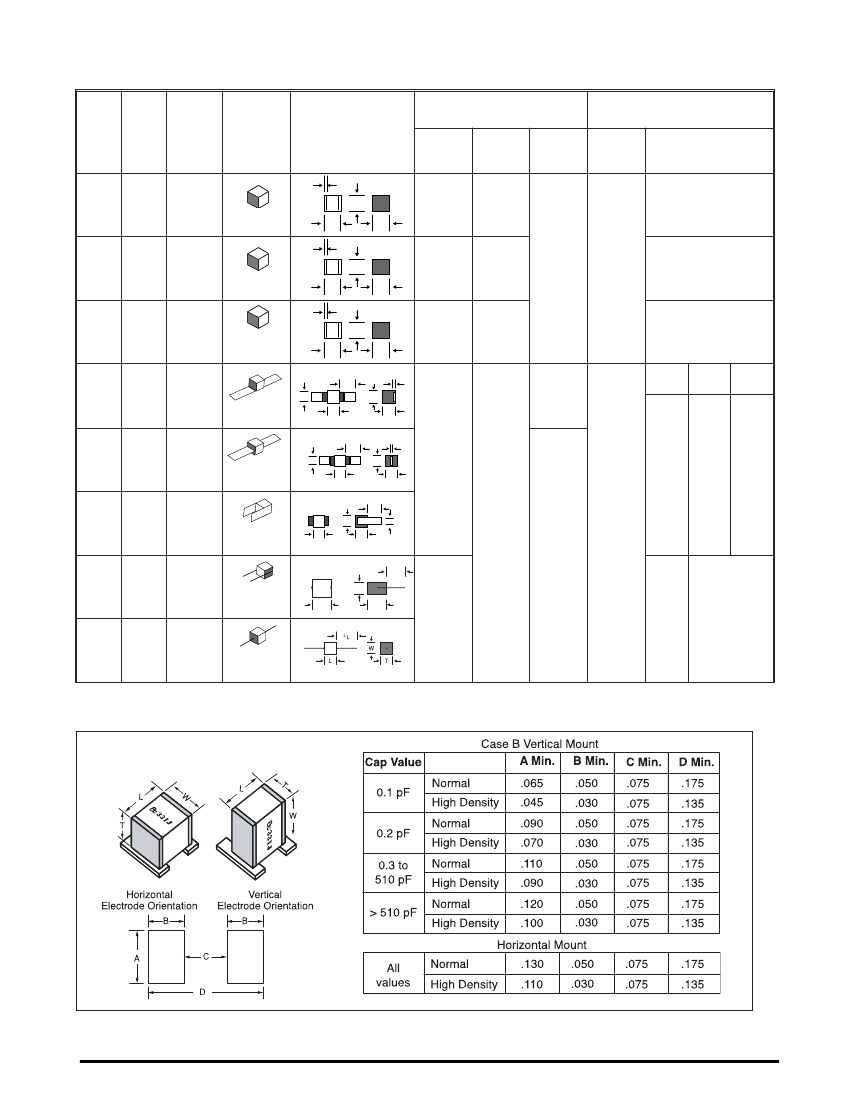

ATC 700 B Capacitors: Mechanical Configurations
