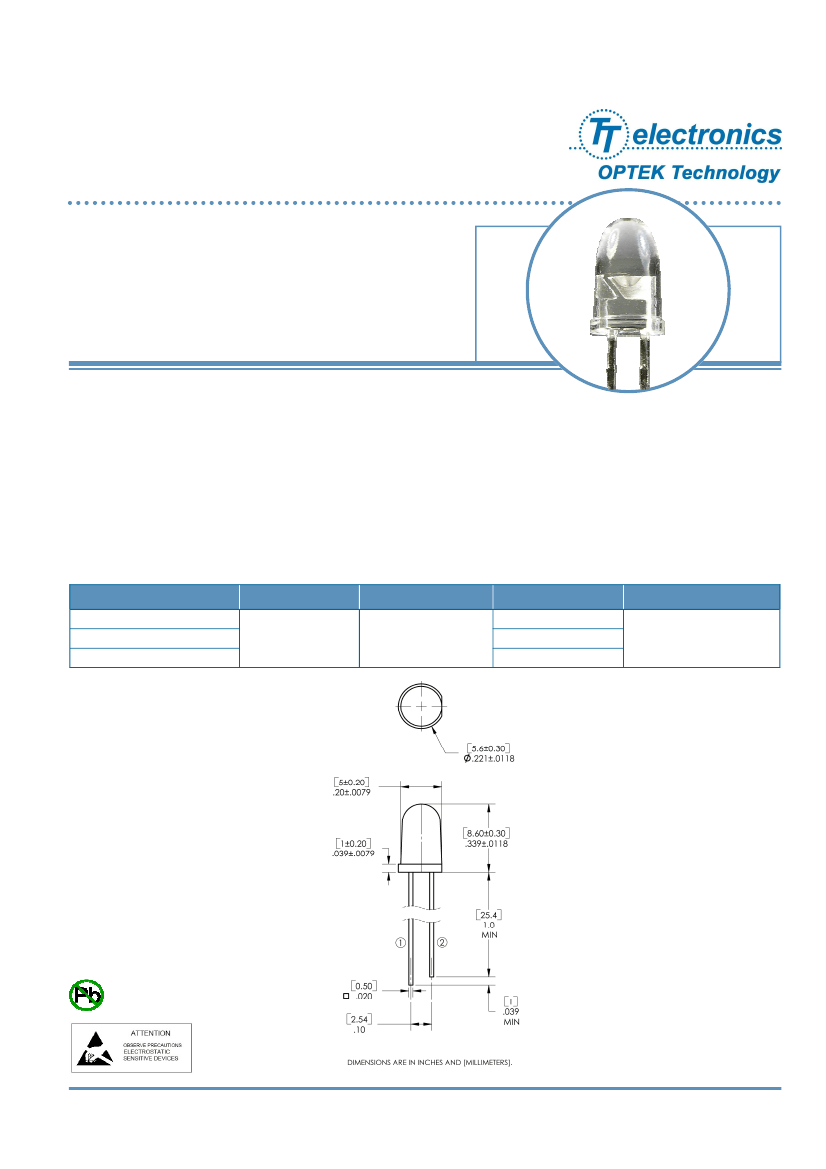

High-Intensity Red LED in Plastic
T-1¾ Package
OVLGS0CxB9
x
x
x
x
Narrow Beam Angle
High Luminous Intensity
Water Clear Plastic Package
Red (631nm)
Product Photo Here
The OVLGS0CxB9 is a high intensity AlInGaP LED mounted in a clear plastic T-1¾ package. The device incorpo-
rates an integral molded lens that enables a narrow beam angle and provides an even emission pattern. Designed
to produce light over a wide range of drive currents, this LED is useful in applications requiring higher on-axis
brightness than that achievable with standard lamps.
Applications
x
Indoor/Outdoor Applications
x
Message Boards
x
Store Front Signage
x
Indicators
Part Number
OVLGS0C6B9
OVLGS0C7B9
OVLGS0C8B9
Material
AlInGaP
Emitted Color
Red
Intensity Typ. mcd
6300
8000
10000
Lens Color
Water Clear
RoHS
1 ANODE
2 CATHODE
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0505
Page 1
T-1¾ High-Intensity Red LED
OVLGS0CxB9
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Storage Temperature Range
Operating Temperature Range
Reverse Voltage
Continuous Forward Current
2
Peak Forward Current (10% Duty Cycle, 1KHz)
Power Dissipation
Lead Soldering Temperature (3mm from the base of the epoxy bulb)
1
Electrostatic Discharge
Note:
1. Solder time less than 5 seconds at temperature extreme.
-40 ~ +100 °
C
-40 ~ +85 °
C
5V
50 mA
100 mA
120 mW
260 °
C
2000 V
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
SYMBOL
PARAMETER
x=6
I
v
Luminous Intensity
7
8
V
F
I
R
P
D
MIN
4000
5000
6300
----
----
----
----
----
TYP
6300
8000
10000
2.0
----
624
631
6
MAX
----
----
----
2.4
10
----
----
----
UNITS
CONDITIONS
mcd
V
µA
nm
nm
deg
I
F
= 20mA
Forward Voltage
Reverse Current
Peak Wavelength
Dominant Wavelength
50% Power Angle
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
2 ½H-H
Issue 1.0
Page 2
0505
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
T-1¾ High-Intensity Red LED
OVLGS0CxB9

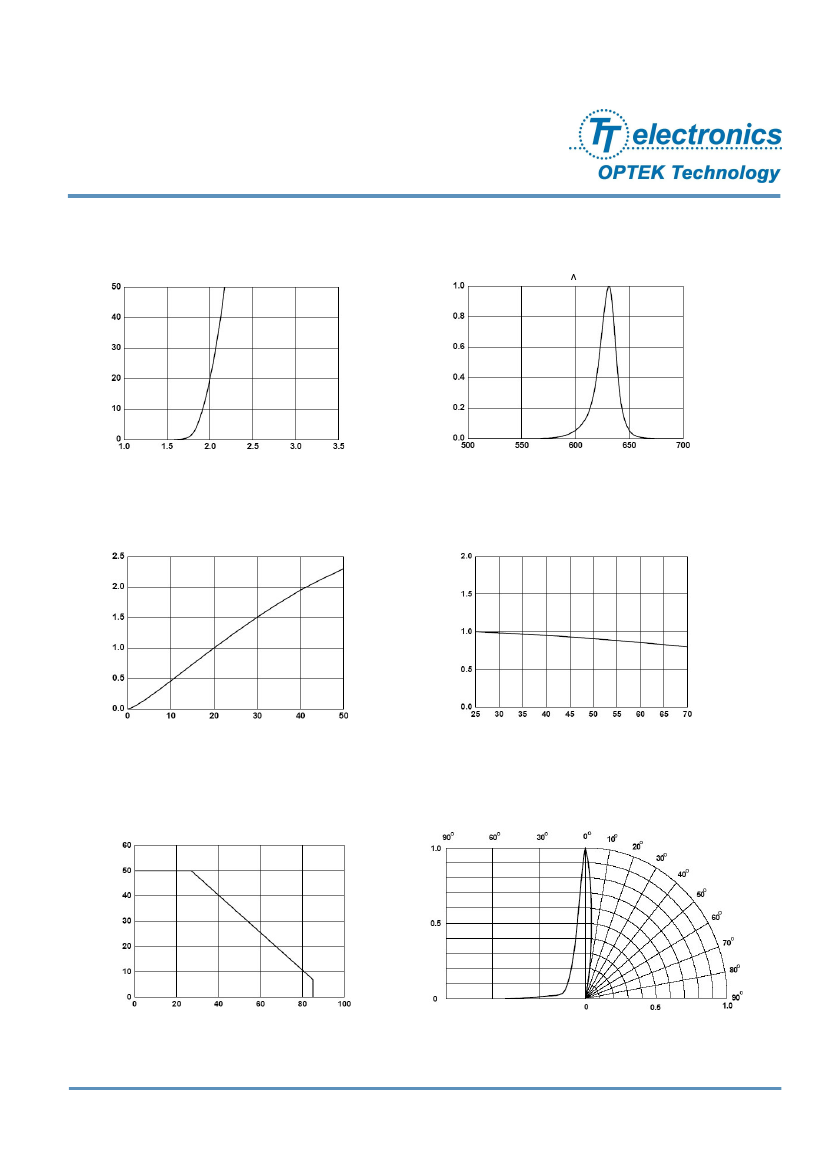

Typical Electro-Optical Characteristics Curves
Half Power
WL = 20nm
mA
%
V
mA
Forward Current vs. Forward Voltage
Relative Luminous Intensity vs. Wavelength
%
%
mA
°
C
Relative Luminous Intensity vs. Forward Current
Relative Luminous Intensity vs. Ambient
Temperature
mA
%
Forward Current vs. Ambient Temperature
°
C
Relative Intensity vs. Radiation Angle
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0505
Page 3
T-1¾ High-Intensity Red LED
OVLGS0CxB9
Issue
Change Description
Approval
Date
1.0
Initial Release
J. Haynie
6/7/05
Issue 1.0
Page 4
0505
OPTEK Technology Inc. —
