DSM-5-3.3-D12: DescriptionDual Output Mixed Voltage, DSM Models; File Size174KB，7 Pages; ManufacturerETC

Download Datasheet View All

DSM-5-3.3-D12 Overview

Dual Output Mixed Voltage, DSM Models

Preview

Download Datasheet

View All

PRELIMINARY

INNOVATION and EXCELLENCE

Dual Output

Mixed Voltage, DSM Models

Surface-Mount, 3.3V and 5V

15Watt, DC/DC Converters

Features

Regulated 5V and 3.3V outputs

5V @ 2.65Amps/3.3V @ 3 Amps capability

15 Watts total output power

Small 1" x 2" x 0.52" SMT package

Available input voltage ranges:

10-18V, 18-36V or 36-75V

No-load stable operation

UL1950 and EN60950 safety approvals

mark available (75V-input models)

Continuous short-circuit protection

Fully isolated, 1500Vdc guaranteed

–40 to +100°C operating temperature

Input under and overvoltage shutdown

Output OVP, thermal shutdown

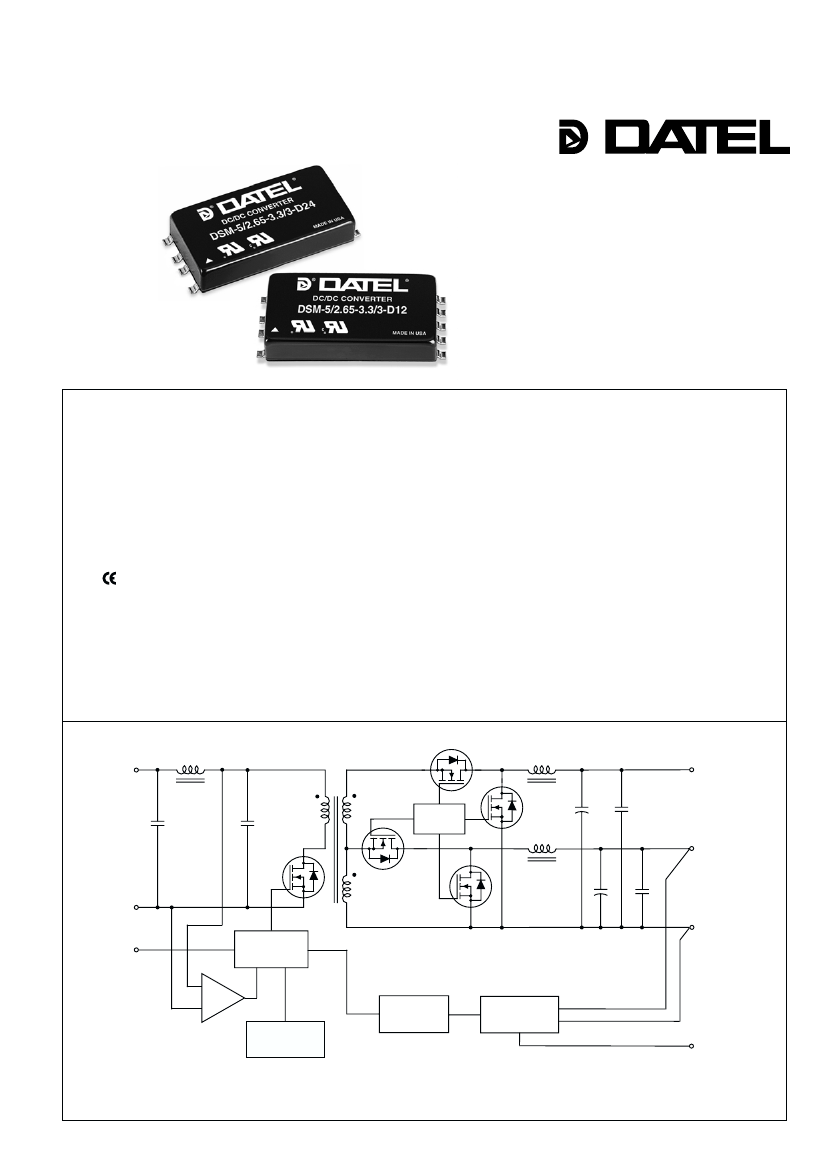

For surface-mount applications requiring 15 Watts of power from 5V and 3.3V,

DATEL offers a new power sharing DC/DC converter capable of meeting your

output current requirements. The DSM-5/2.65-3.3/3-D48 (36-75V input), DSM-

5/2.65-3.3/3-D24 (18-36V input) and DSM-5/2.65-3.3/3-D12 (10-18V input) are fully

isolated DC/DC converters capable of delivering any combination of 5V and 3.3V

output current up to a combined total of 15 Watts of output power.

Housed in a 1" x 2" x 0.52" metal, surface-mount package coated with

electrically non-conductive ﬁnish, these converters are regulated by a 3.3V control

loop that provides load regulation of ±0.5% for 3.3V output and ±2% for 5V

output. All models include input Pi ﬁltering, input overvoltage and undervoltage

shutdown circuitry, output overvoltage protection, output short-circuit and current-

limiting protection, and thermal shutdown. All models provide trim capability and

an on/off control function or sync control. Fully synchronous output rectiﬁcation

provides high efﬁciency (86%) and a stable output under no-load conditions.

DSM power sharing modules offer low output ripple and noise perfor-

mance, 1500 Vdc isolation voltage, and are fully speciﬁed for –40 to +100°C

operation. These devices meet IEC950, UL1950 and EN6950 safety stan-

dards; CB reports are available on request. "D48" models are CE marked

(meets LVD requirements)

+INPUT

+5V OUTPUT

SWITCH

CONTROL

+3.3V OUTPUT

–INPUT

OUTPUT

RETURN

ON/OFF

CONTROL

(SYNC)

PWM

CONTROLLER

OPTO

ISOLATION

UV & OV

COMPARATORS

THERMAL

SHUTDOWN

REFERENCE &

ERROR AMP

TRIM

Figure 1. Simpliﬁed Schematic
