8105-RC

Description
Common Mode Chokes / Filters 7mH
CategoryAnalog mixed-signal IC    filter
File Size88KB，1 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

8105-RC Online Shopping

Suppliers Part Number Price MOQ In stock
8105-RC - - View Buy Now

8105-RC Overview

Common Mode Chokes / Filters 7mH

8105-RC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerBourns
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time16 weeks
CertificationUL
Maximum DC resistance0.12 Ω
filter typeDATA LINE FILTER
high30.48 mm
inductance7000 µH
length30.48 mm
Installation typeTHROUGH HOLE MOUNT
Number of functions2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
physical sizeL30.48XB15.24XH30.48 (mm)/L1.20XB0.6XH1.2 (inch)
Rated current2.8 A
width15.24 mm

Preview

Download Datasheet
CO
M
PL
IA
NT

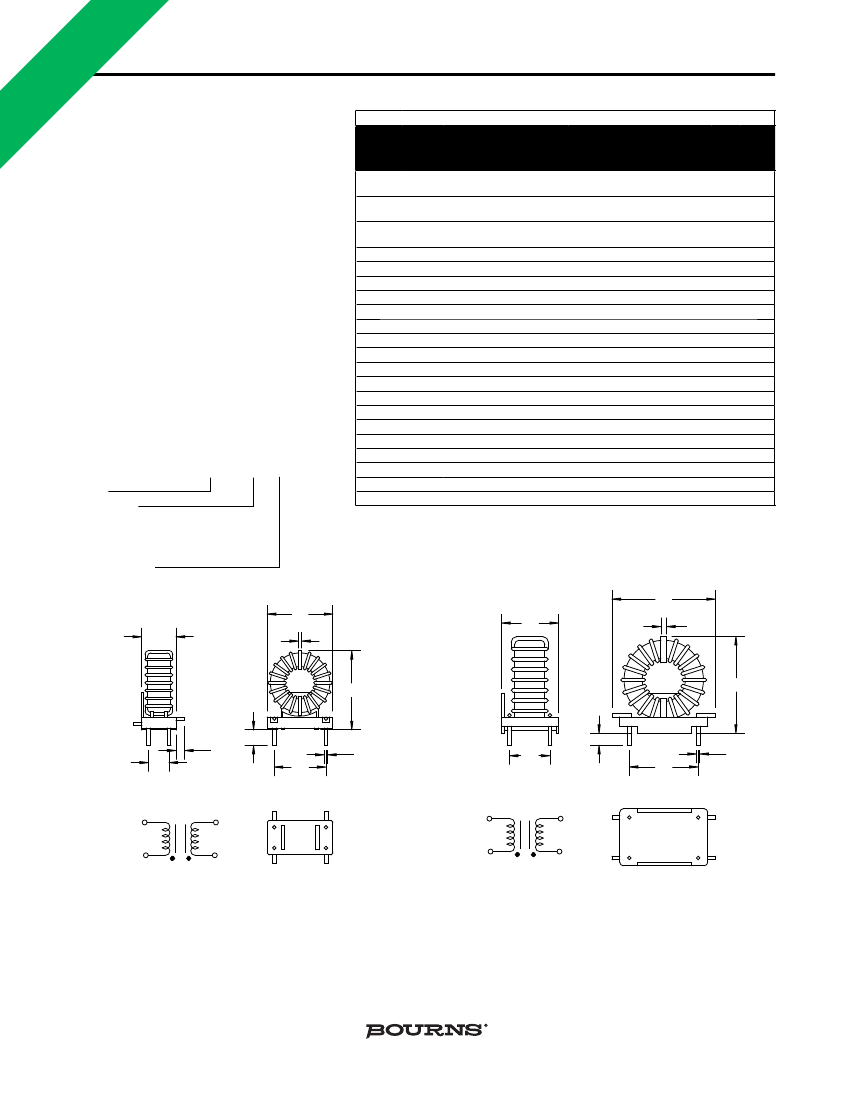

Common Mode Inductors (with Optional Header)
8100 Series
Part
Number
L (mH)
Min. @
1 KHz
I (A)*
Max.
DCR
(Ω)
Max.
Leakage
Inductance
(μH) Typ.
Dim.
A
Max.
Dim.
B
±0.01
0.455
MAX.
0.455
MAX.
0.455
MAX
0.606
0.606
0.606
0.606
0.606
0.815
0.815
0.815
0.815
0.815
0.815
0.815
0.815
0.815
0.815
0.917
0.917
0.917
Dim.
C
±0.015
Dim.
D
±0.015
Dim.
E
Max.
Dim.
F
Max.
†
Ro
HS
Special Features
• Single layer wound
• Excellent EMI suppression capability
over wide frequency spectrum
• High current capacity
• Dielectric strength: 1500 Vrms
• Coil mount on UL 94V-0 rated plastic header
(optional)
• Fixed pin spacing allow easy PCB insertion
• Operating temperature: -55 to +105 °C
8101-RC
8102-RC
8103-RC
8104-RC
8105-RC
8106-RC
8107-RC
8108-RC
8109-RC
8110-RC
8111-RC
8112-RC
8113-RC
8114-RC
8115-RC
8116-RC
8117-RC
8118-RC
8119-RC
8120-RC
8121-RC
4
2.5
1
10
7
5
2
1
30
20
12
8
5
2.5
1.2
50
36
7.3
4
2.4
1
1.7
2.4
4.8
2.4
2.8
3.7
6.6
10
2.3
2.9
4
5.6
8.9
12.5
16
2.3
2.9
9.3
14.5
17
20
0.173
0.09
0.022
0.17
0.12
0.07
0.022
0.01
0.33
0.21
0.11
0.055
0.022
0.011
0.006
0.45
0.3
0.032
0.012
0.008
0.007
27
17
7
45
32
23
9
4.5
136
95
57
38
25
12.5
6
230
167
30.5
16
9.6
4
0.76
0.76
0.76
1.20
1.20
1.20
1.20
1.20
1.35
1.35
1.35
1.35
1.45
1.45
1.50
1.55
1.55
1.65
1.70
1.70
1.70
0.600
0.600
0.600
0.800
0.800
0.800
0.800
0.800
0.900
0.900
0.900
0.900
0.900
0.900
0.900
0.900
0.900
0.900
1.200
1.200
1.200
0.250
0.250
0.250
0.400
0.400
0.400
0.400
0.400
0.600
0.600
0.600
0.600
0.600
0.600
0.600
0.600
0.600
0.600
0.700
0.700
0.700
0.90
0.90
0.90
1.20
1.20
1.20
1.20
1.20
1.45
1.45
1.45
1.45
1.50
1.50
1.53
1.65
1.65
1.65
1.65
1.65
1.65
0.040
0.040
0.040
0.050
0.050
0.050
0.050
0.050
0.050
0.050
0.050
0.050
0.043
0.053
0.060
0.050
0.050
0.043
0.060
0.067
0.067
Notes
* Rated current to cause approx. 35 °C
temperature rise
† *RoHS Directive 2002/95/EC Jan. 27, 2003
including annex and RoHS Recast 2011/65/EU
June 8, 2011.
How to Order
8101 - ___ RC
Model
Configuration
Blank = With mounting base
1 = Without mounting header
(with vertical coil, 2-inch self-lead
length, non-tinned)
RoHS Compliant
“-RC” suffix indicates RoHS compliance.
B
A
0.12 min.
B
A
0.12 min.
E
E
D
0.09
0.15
C
F
D
0.20
C
F
2
1
3
4
2
1
3
4
2
1
3
4
2
1
3
4
8101-8103
Dimensions: Inches
8104-8121
Tel. (877) 426-8767 • Fax (951) 781-5006
25.4
www.bourns.com
REV. 07/15

8105-RC Related Products

8105-RC 8119-RC 8103-RC 8107-RC HVC1206-464KFT3 8101-RC 8115-RC 8114-RC 8111-RC 8117-RC
Description Common Mode Chokes / Filters 7mH Common Mode Chokes / Filters 4mH MIN Common Mode Chokes / Filters 1mH MIN Common Mode Chokes / Filters 2mH MIN Fixed Resistor, Metal Glaze/thick Film, 0.3W, 464000ohm, 1000V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP Common Mode Chokes / Filters 4mH MIN Common Mode Chokes / Filters 1.2mH MIN Common Mode Chokes / Filters 2.5mH MIN Common Mode Chokes / Filters 12mH MIN Common Mode Chokes / Filters 36mH MIN
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 155 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Is it lead-free? Lead free Lead free Lead free Lead free - Lead free Lead free Lead free Lead free Lead free
Maker Bourns - Bourns Bourns - Bourns Bourns - Bourns Bourns
Factory Lead Time 16 weeks - 14 weeks 14 weeks - 14 weeks 18 weeks 18 weeks 18 weeks 16 weeks
Certification UL UL UL UL - UL UL UL UL UL
Maximum DC resistance 0.12 Ω 0.012 Ω 0.022 Ω 0.022 Ω - 0.173 Ω 0.006 Ω 0.011 Ω 0.11 Ω 0.3 Ω
filter type DATA LINE FILTER DATA LINE FILTER DATA LINE FILTER DATA LINE FILTER - DATA LINE FILTER DATA LINE FILTER DATA LINE FILTER DATA LINE FILTER DATA LINE FILTER
high 30.48 mm 41.91 mm 22.86 mm 30.48 mm - 22.86 mm 38.86 mm 38.1 mm 36.83 mm 41.91 mm
inductance 7000 µH 4000 µH 1000 µH 2000 µH - 4000 µH 1200 µH 2500 µH 12000 µH 36000 µH
length 30.48 mm 43.18 mm 19.3 mm 30.48 mm - 19.3 mm 38.1 mm 36.83 mm 34.29 mm 39.37 mm
Installation type THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT - THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
Number of functions 2 2 2 2 - 2 2 2 2 2
physical size L30.48XB15.24XH30.48 (mm)/L1.20XB0.6XH1.2 (inch) L43.18XB22.86XH41.91 (mm)/L1.7XB0.9XH1.65 (inch) L19.3XB10.79XH22.86 (mm)/L0.76XB0.425XH0.9 (inch) L30.48XB15.24XH30.48 (mm)/L1.20XB0.6XH1.2 (inch) - L19.3XB10.79XH22.86 (mm)/L0.76XB0.425XH0.9 (inch) L38.1XB20.701XH38.86 (mm)/L1.50XB0.815XH1.53 (inch) L36.83XB20.32XH38.1 (mm)/L1.45XB0.8XH1.50 (inch) L34.29XB20.32XH36.83 (mm)/L1.35XB0.8XH1.45 (inch) L39.37XB20.32XH41.91 (mm)/L1.55XB0.8XH1.65 (inch)
Rated current 2.8 A 14.5 A 4.8 A 6.6 A - 1.7 A 16 A 12.5 A 4 A 2.9 A
width 15.24 mm 22.86 mm 10.79 mm 15.24 mm - 10.79 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm
