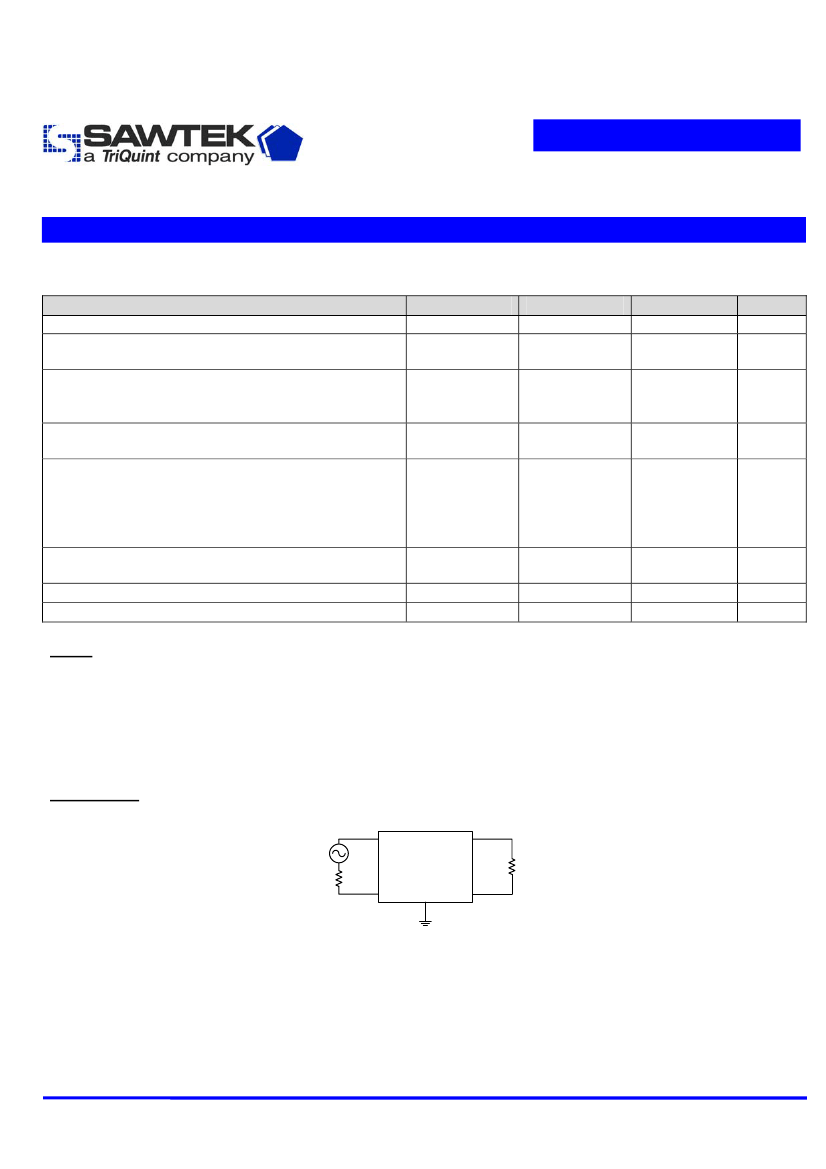

All specifications are based on the test circuit shown below. Testing is carried out using test fixture 971748, test data sheet
122288-02, to equipment specification 100221.
In production, devices will be tested at room temperature in a Sawtek test fixture to a guardbanded specification to ensure
electrical compliance over temperature.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances.
Maximum peak to adjacent valley over the defined frequency range.
This is the optimum impedance in order to achieve the performance shown.
Test Circuit:
1
5
200
Ω
3
2,4,6,8
7
200
Ω
Balanced
200
Ω
No impedance matching
required
Subject to change or obsolescence without notice
Rev F
12-Sep-2003
Page 2 of 5
Data Sheet
Part Number 855964
1086 MHz SAW Filter

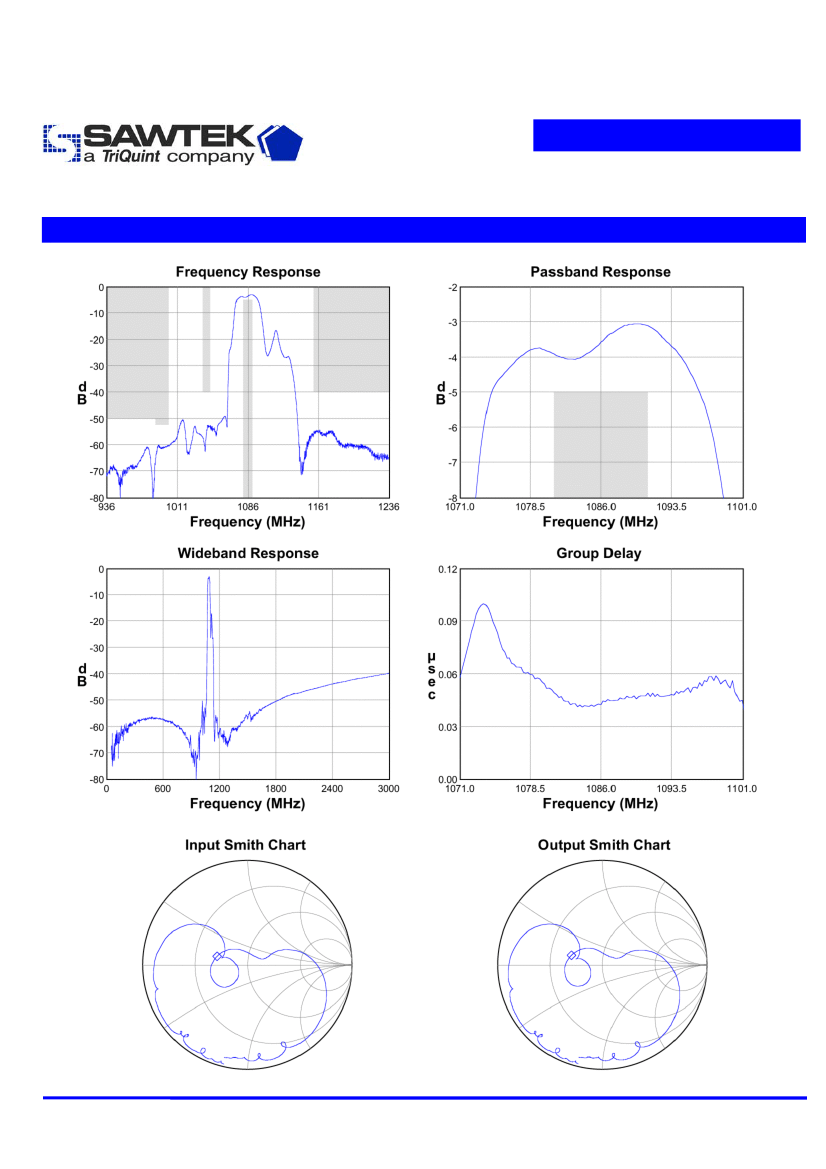

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev F
12-Sep-2003
Page 3 of 5
Data Sheet
Part Number 855964
1086 MHz SAW Filter

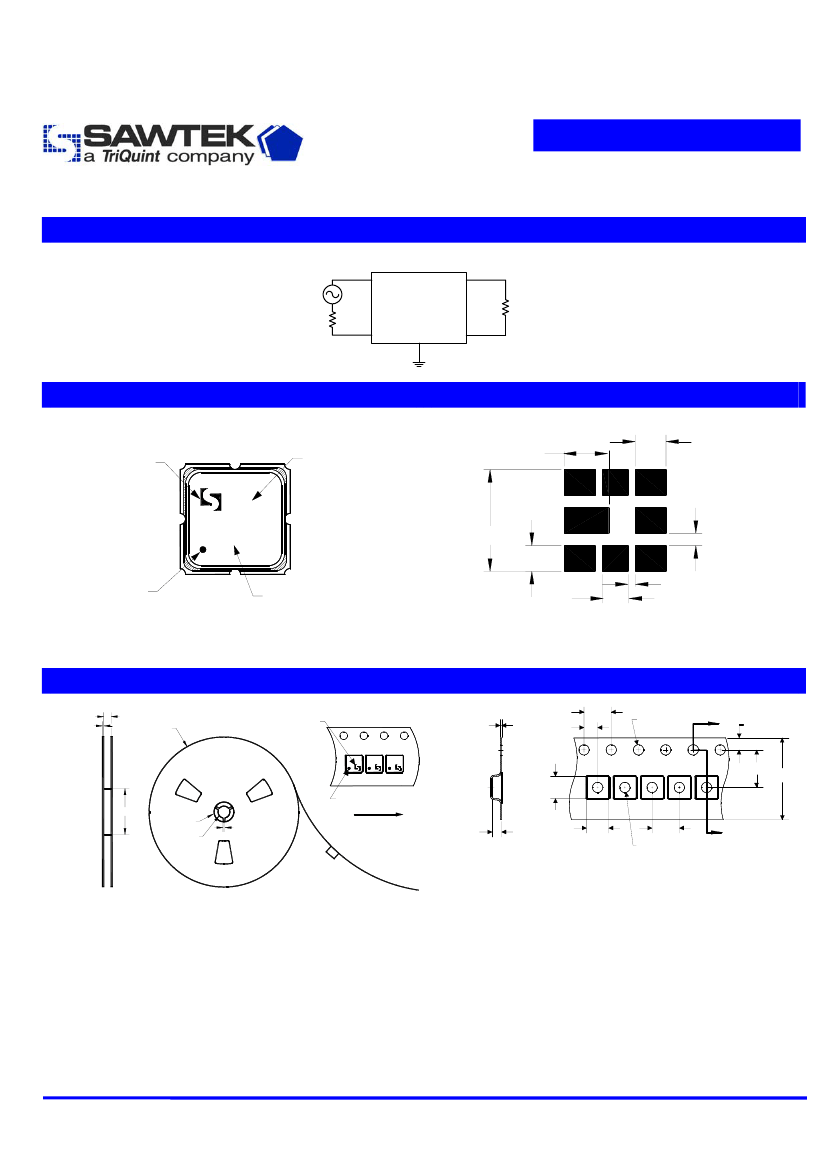

Matching Schematics
1
5
200
Ω
3
2,4,6,8
7
200
Ω
Balanced
200
Ω
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
1.39
.96
5
JJJYM
ID dot
Date code
.81
3.20 SQ
.23
.81
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
12.0
ID dot
Ø102
Ø20.2
Ø13.0
2.0
1.4
Section A-A
3.25
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev F
12-Sep-2003
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855964
1086 MHz SAW Filter
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
