RT0510P-101-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RT0510P-101-M

RT0510P-101-M: DescriptionThin Film Resistors - SMD 1/16W 100ohm 20% Trimmable; CategoryPassive components The resistor; File Size42KB，1 Pages; ManufacturerSUSUMU

Download Datasheet Parametric View All

RT0510P-101-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RT0510P-101-M	-	-	View	Buy Now

RT0510P-101-M Overview

Thin Film Resistors - SMD 1/16W 100ohm 20% Trimmable

RT0510P-101-M Parametric

Parameter Name	Attribute value
package instruction	SMT, 0402
Reach Compliance Code	compliant
Is Samacsys	N
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR, Paper, 7 Inch
Rated power dissipation(P)	0.0625 W
Guideline	AEC-Q200
resistance	100 Ω
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	20%
Operating Voltage	25 V
Base Number Matches	1

Preview

Download Datasheet

View All

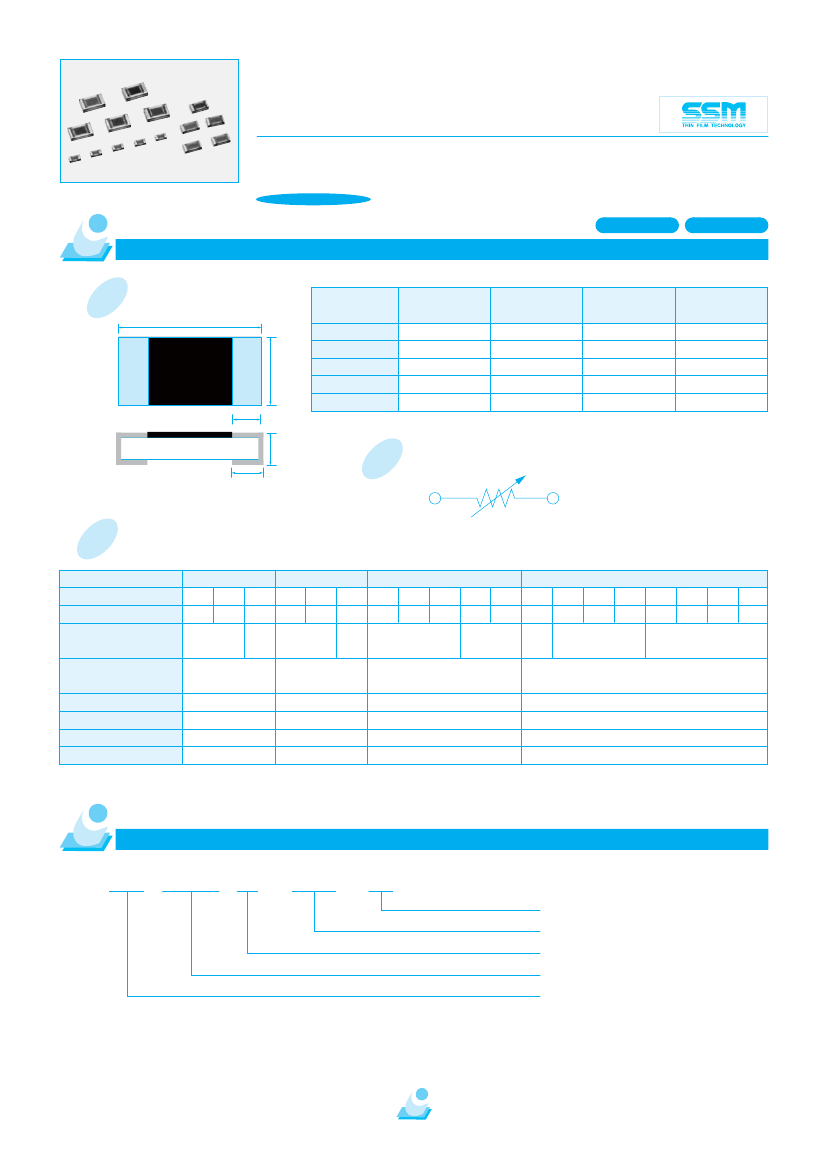

RT series, high-precision

trimmable chip resistors

A one-step trimmable thin film component for in-circuit resistor tuning. This component has excellent

temperature characteristics, exhibits excellent performance in circuit noise and the third harmonic

distortion, and needs no moisture proofing treatment after trimming.(Patent1921853)

NEW First in the market

0201 trimmable chip resistor

RoHS compliant

Completely lead free

SPECIFICATIONS

Mechanical

Dimension

(Inch Size)

RT0603

(0201)

0.60

0.30

0.12

0.15

0.25

0.05

0.03

0.05

0.03

RT0510

(0402)

1.00 0.07

0.50 0.07

0.20 0.10

0.25 0.20

0.35 0.05

RT0816

(0603)

1.60 0.20

0.80 0.20

0.30 0.20

0.40 0.10

RT1220

(0805)

2.00 0.20

1.25 0.20

0.40 0.20

0.40 0.10

( unit : mm)

Equivalent circuit

Electrical

RT0603

RT0510

RT1220

RT0816

Initial resistance value( )

150 330 1.5k 100 270 1.5k 100 330 1k 3.3k 10k 33 100 330 1k 3.3k 10k 33k 100k

Upper resistance limit( )

1.0k 1.9k 10k 820 2.1k 10k 2.7k 8.0k 8.8k 37k 40k 4.7k 8.2k 15k 15k 100k 120k 120k 220k

100

TCR ppm / C(code)

(R)

(P)

(Q)

(P)

(R)

(P)

Type

Resistance Tolerance

(code)

Power

Max Operating Voltage

Max Applied Voltage

Package

20%

(M)

20%

(M)

20%

(M)

1/16W

75V

150V

5,000pcs/reel

20%

(M)

1/10W

100V

200V

5,000pcs/reel

1/16W

1/20W

25V

15V

50V

30V

15,000pcs/reel 10,000pcs/reel

•

The RT0510 type with 50

initial resistance value is also avaiable.

PART NUMBER

RT 0816 P - 102 - M

Resistance Tolerance

Resistance

Temperature Coefficient of Resistance

Dimensions

Part Code

susumu group catalog
