UUG1A222MNQ1ZD

Description
Aluminum Electrolytic Capacitors - SMD
CategoryPassive components
File Size289KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

UUG1A222MNQ1ZD Online Shopping

Suppliers Part Number Price MOQ In stock
UUG1A222MNQ1ZD - - View Buy Now

UUG1A222MNQ1ZD Overview

Aluminum Electrolytic Capacitors - SMD

UUG1A222MNQ1ZD Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerNichicon
Product CategoryAluminum Electrolytic Capacitors - SMD
RoHSDetails
Capacitance2200 uF
Voltage Rating DC10 VDC
Tolerance20 %
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Diameter12.5 mm
Length16 mm
Life2000 Hour
Ripple Current960 mA
PackagingTray
ProductAluminum Electrolytic Capacitors
Termination StyleSMD/SMT
Leakage Current4 uA
Factory Pack Quantity70
Unit Weight0.107938 oz

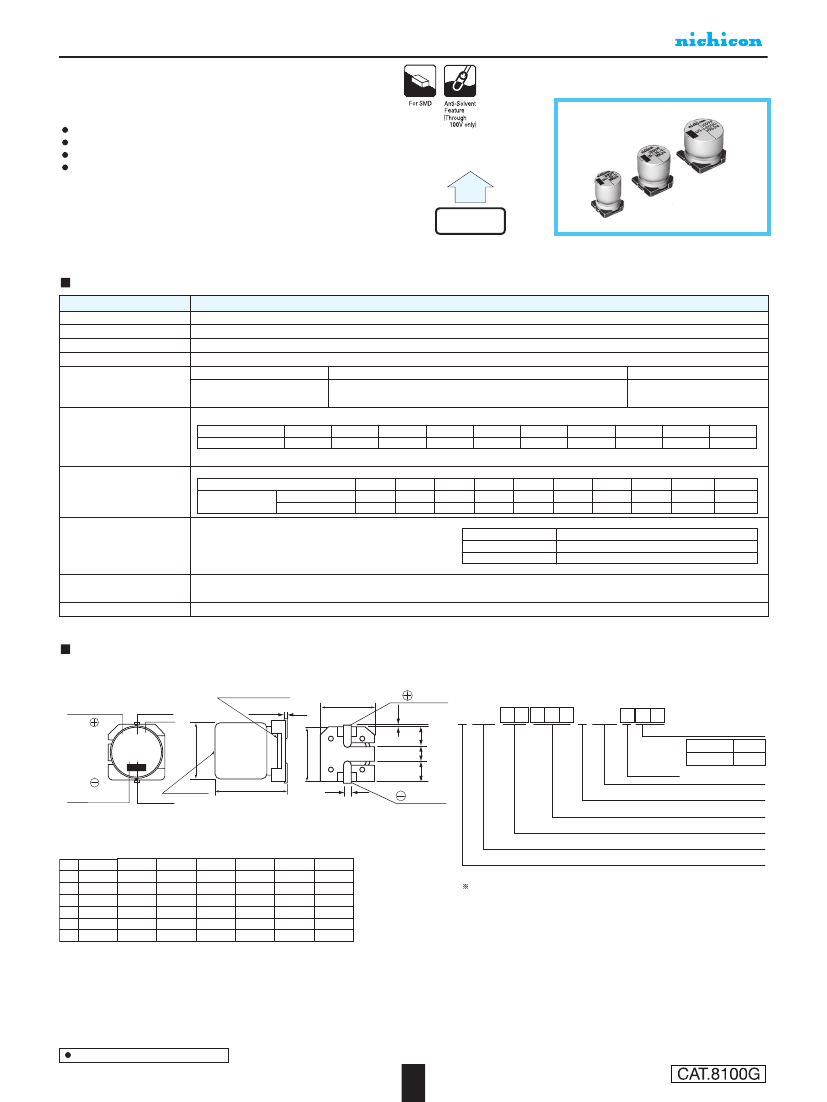

ALUMINUM ELECTROLYTIC CAPACITORS
UUG
Chip Type, Higher Capacitance Range
Chip Type, higher capacitance in larger case sizes (φ12.5,
φ16, φ18)
Designed for surface mounting on high density PC board.
Applicable to automatic mounting machine fed with carrier tape and tray.
Compliant to the RoHS directive (2011/65/EU).
UUJ
Wide
Temperature
UUG
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
–40 to +85°C
6.3 to 450V
4.7 to 10000µF
± 20% at 120Hz, 20°C
Rated voltage (V)
6.3 to 100
160 to 450
After 1 minute's application of rated voltage at 20°C, leakage current is not
more than 0.03CV or 4 (µA), whichever is greater.
I
= 0.04CV+100 ( µA) max.
(1 minute's at 20°C)
Measurement frequency : 120Hz at 20°C
Tangent of loss angle (tan
δ)
Rated voltage (V)
tan
δ
(MAX.)
6.3
0.28
10
0.24
16
0.20
25
0.16
35
0.14
50
0.12
63
0.10
100
0.08
160 to 250 400
450
0.25
0.20
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Measurement frequency: 120Hz
Rated voltage (V)
Stability at Low Temperature
Impedance ratio
ZT / Z20 (MAX.)
Z–25°C / Z+20°C
Z–40°C / Z+20°C
6.3
5
12
10
4
10
16
3
8
25
2
5
35
2
4
50
2
3
63
2
3
100
2
3
160 to 250 400
450
3
6
6
10
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Black print on the case top.
Chip Type
Type numbering system (Example : 50V 330
µ
F)
Plastic platform
Trade mark
Voltage
Lot No.
nichicon
C ±0.2
0.5 MAX.
Positive
1
2
3
4
5
6
7
8
9
10 11 12 13
14
Package code
Taping
Tray
MS
ZD
0.3 MAX.
U U G 1 H 3 3 1 M NQ 1 M S
A ±0.2 E
A ±0.2
330 µF
UG  50V
H1015
φ
D ±0.5
B ±0.2
Size code
Pressure
relief vent
Capacitance
Series
L ±1.0
Configuration
H
Negative
Capacitance Tolerance (±20%)
Rated capacitance (330µF)
Rated voltage (50V)
Series name
(mm)
φD
12.5×13.5 12.5×16. 12.5×21. 16×16.5. 16×21.5. 18×16.5. 18×21.5.
4.8
4.8
5.4
5.4
6.4
6.4
A
4.8
13.6
13.6
17.1
17.1
19.1
19.1
B
13.6
13.6
13.6
17.1
17.1
19.1
19.1
C
13.6
4.0
4.0
6.3
6.3
6.3
6.3
E
4.0
13.5
16.0
16.5
21.5
16.5
21.5
L
21.0
H 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4
Type
The vibration structure-resistant product is also available upon request,
please ask for details.
Dimension table in next page.
